(3PCS) MAX251ESD MAXIM Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS SOIC14
Tax included.

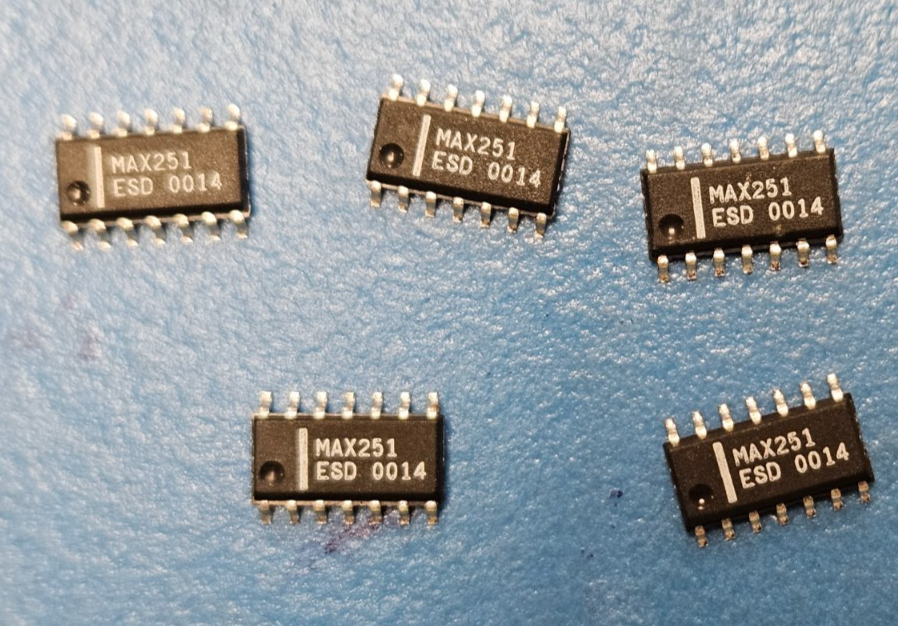

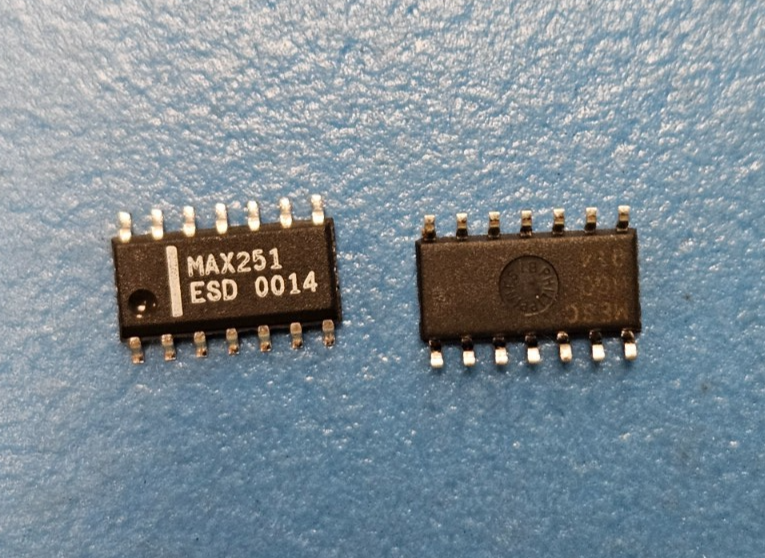

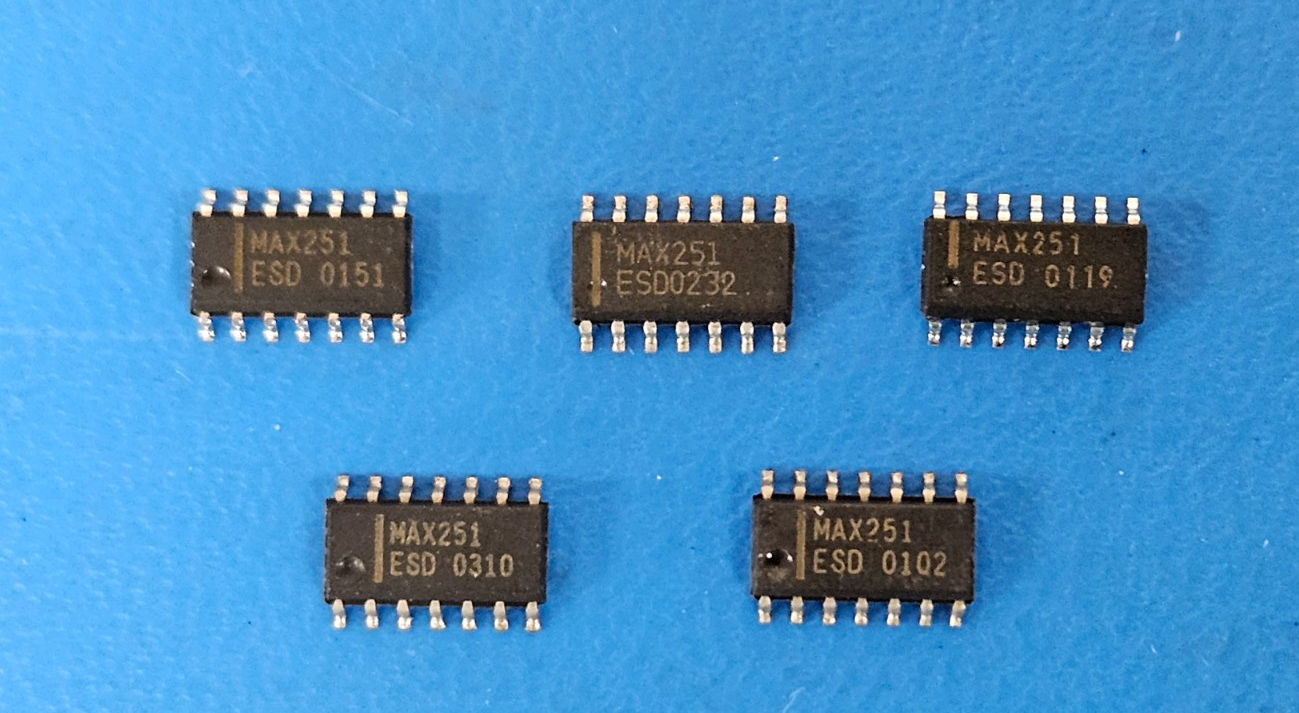

This listing is for (3PCS) of MAX251ESD by Maxim
Status Discontinued
Additional Feature ISOLATED DATA INTERFACE-PAIRED WITH MAX250; RS-232 TO OPTO INTERFACE; TRISTATABLE RECEIVERS
Differential Output NO
Driver Number of Bits 2
Input Characteristics SCHMITT TRIGGER
Interface IC Type LINE TRANSCEIVER
Interface Standard EIA-232-C; V.28
JESD-30 Code R-PDSO-G14
J-STD-609 Code e0
Length (mm) 8.6500
Moisture Sensitivity Level 1
Number of Functions 2
Number of Terminals 14
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Out Swing-Min (V) 10.000000
Output Characteristics TOTEM-POLE
Output Low Current-Max (mA) 3.200000000000000
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
DLA Qualification Not Qualified
Receiver Number of Bits 2
Seated Height-Max (mm) 1.7500
Supply Current-Max (mA) 2.50000000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5.0000
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 3.9000
