(3PCS) LP3876ES-ADJ LDO Regulator Pos 1.216V to 6.2V 3A 6-Pin(5+Tab) TO-263
(3PCS) LP3876ES-ADJ LDO Regulator Pos 1.216V to 6.2V 3A 6-Pin(5+Tab) TO-263
(3PCS) LP3876ES-ADJ LDO Regulator Pos 1.216V to 6.2V 3A 6-Pin(5+Tab) TO-263
(3PCS) LP3876ES-ADJ LDO Regulator Pos 1.216V to 6.2V 3A 6-Pin(5+Tab) TO-263

(3PCS) LP3876ES-ADJ LDO Regulator Pos 1.216V to 6.2V 3A 6-Pin(5+Tab) TO-263

Tax included.
Only 5 left!

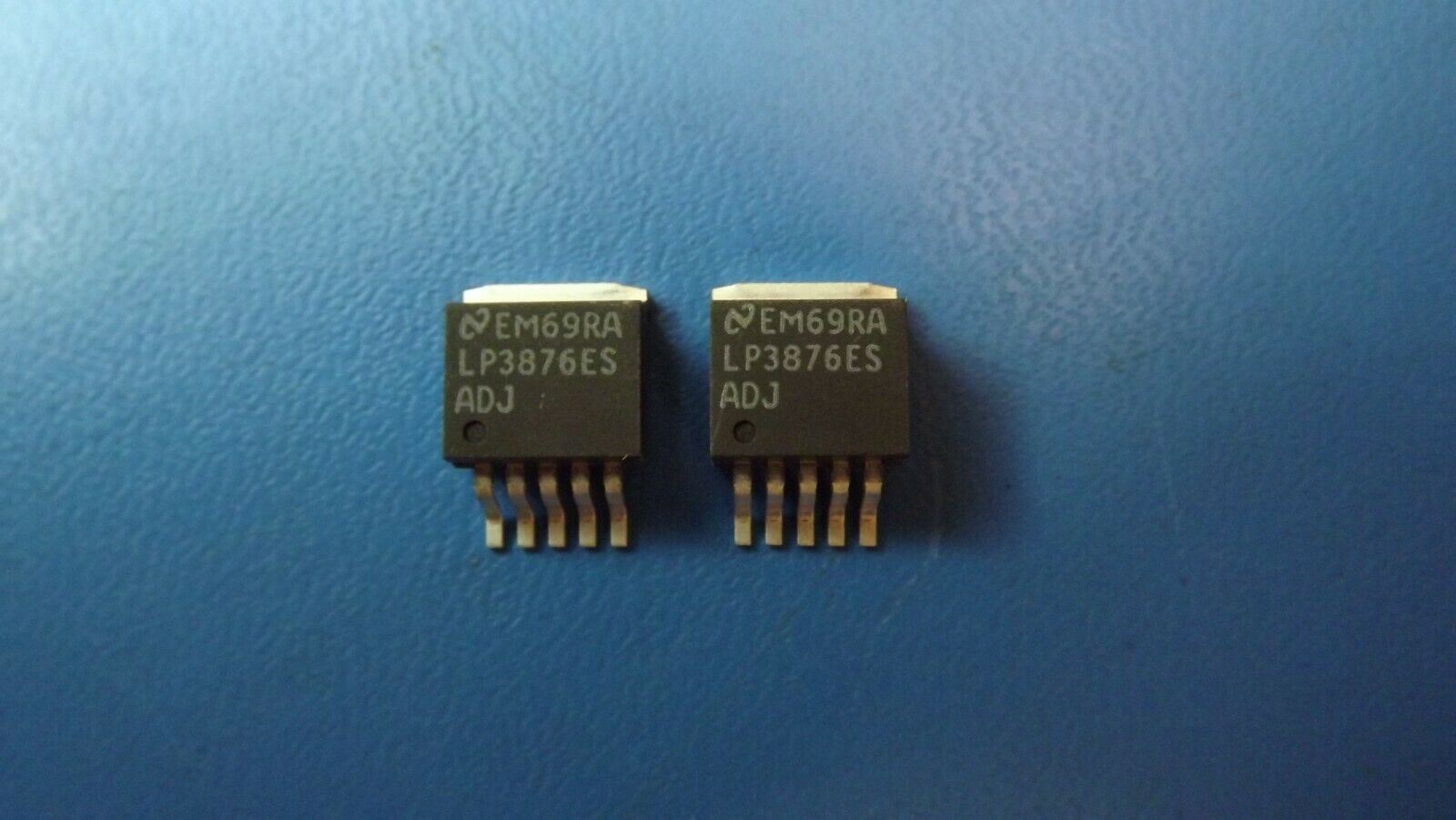

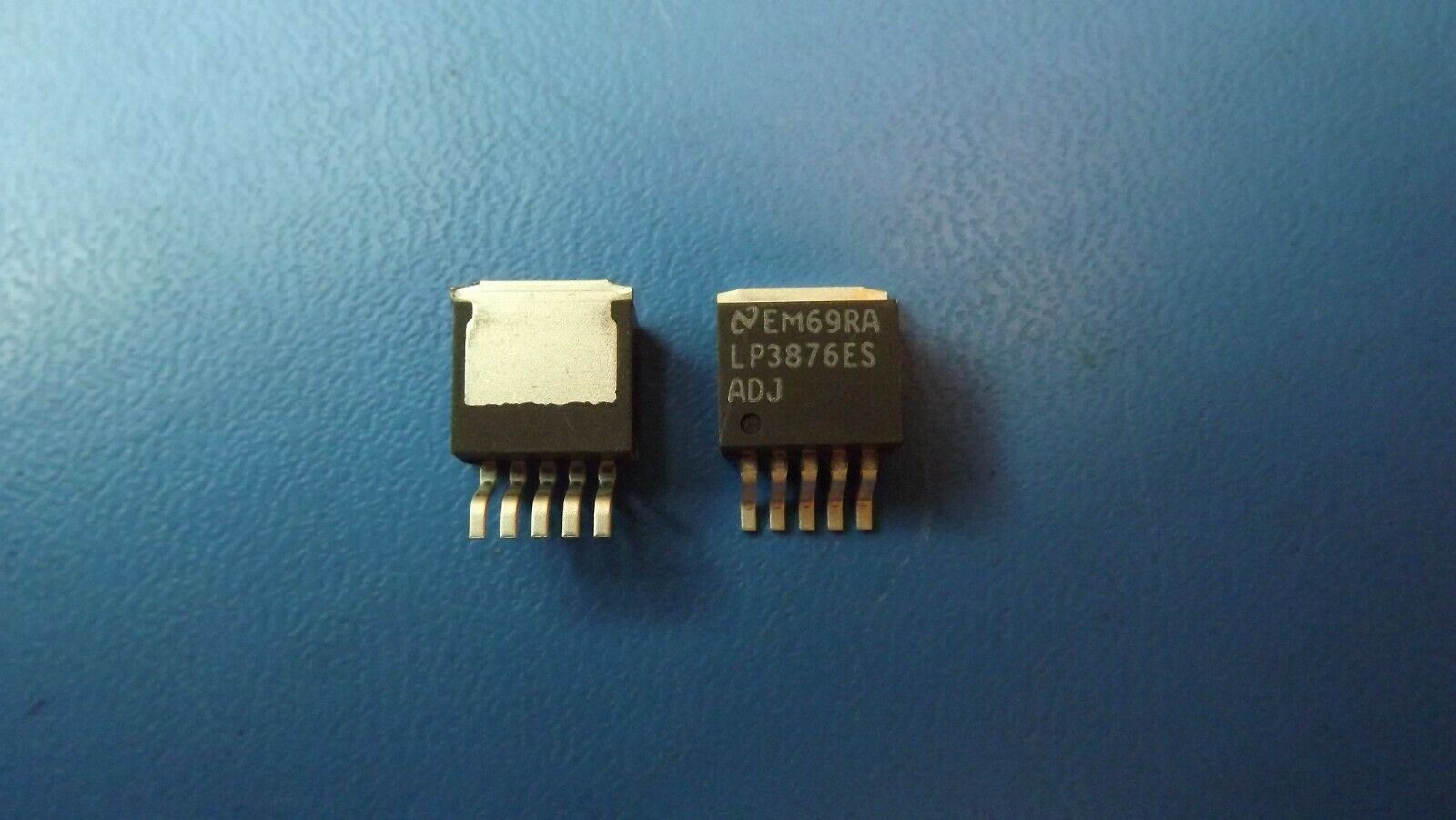

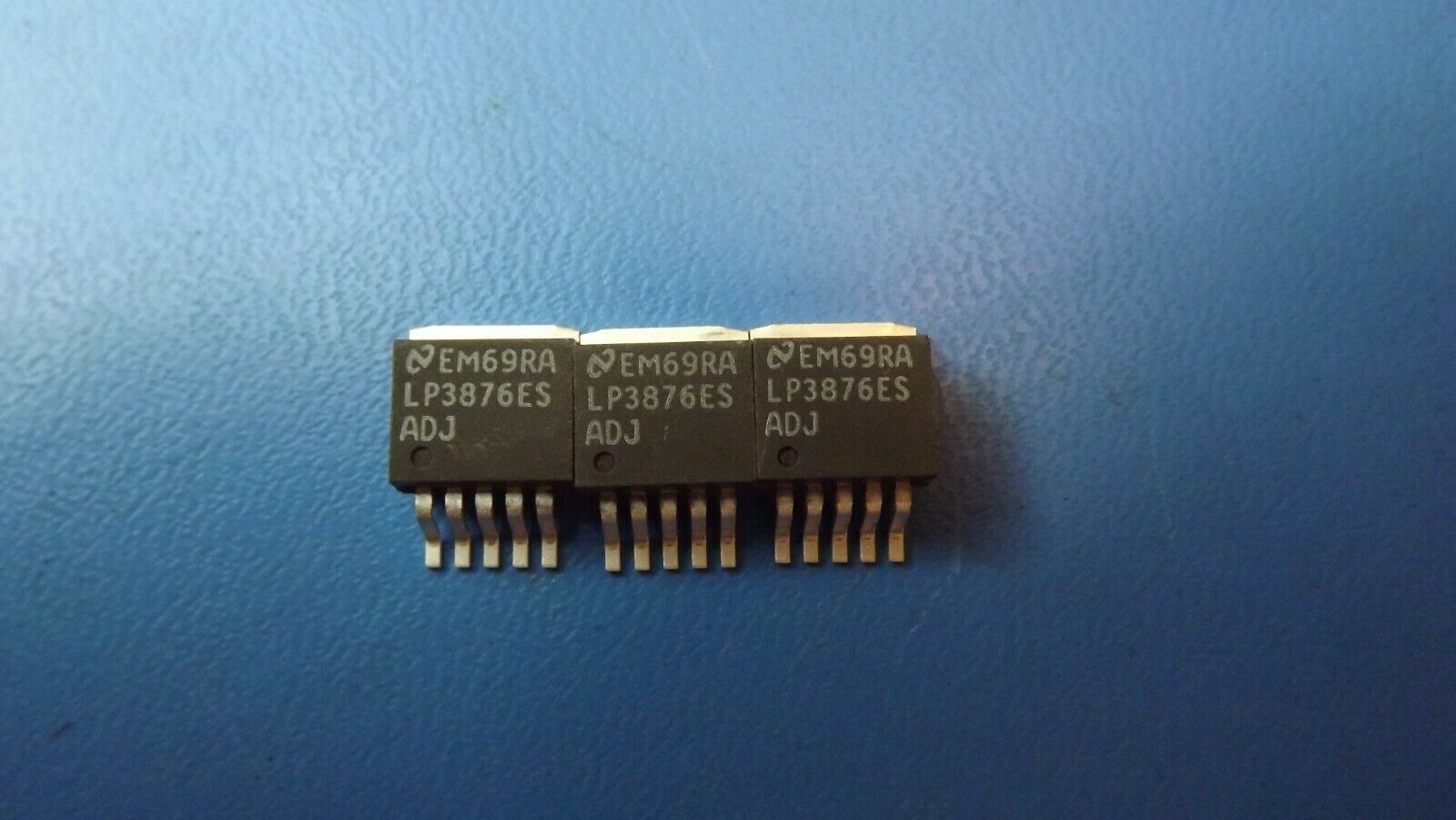

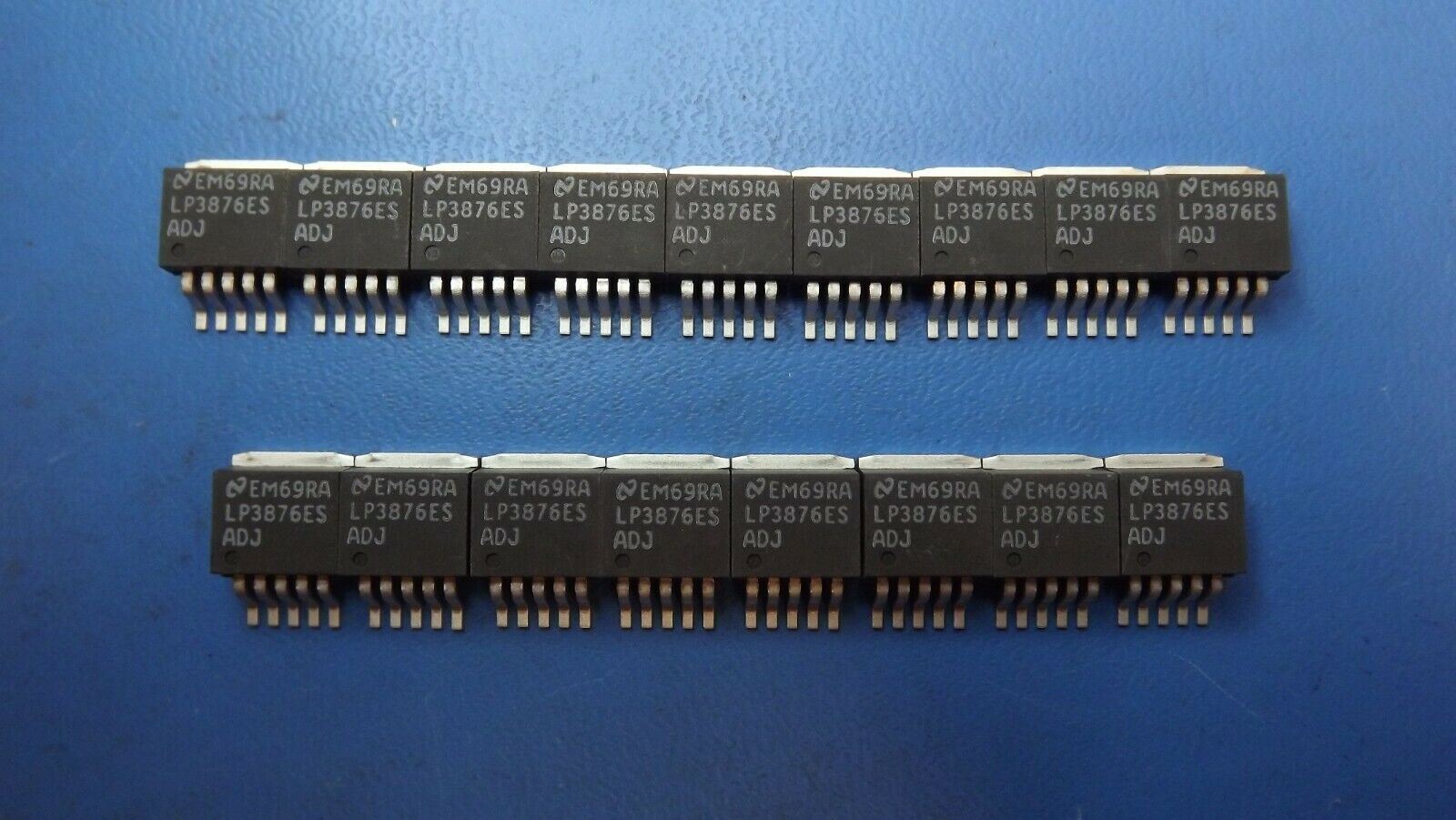

THIS LISTING IS FOR (3PCS) OF LP3876ES-ADJ BY NATIONAL SEMICONDUCTOR

Manufacturer: NSC
Product Category:LDO Voltage Regulators
RoHS:N
Mounting Style:SMD/SMT
Package / Case:TO-263-5
Output Voltage:1.216 V to 6.2 V
Output Current:3 A
Number of Outputs:1 Output
Polarity:Positive
Input Voltage MAX:7 V
Input Voltage MIN:2.5 V
Output Type:Adjustable
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 125 C
Dropout Voltage:800 mV
Series:LP3876-ADJ
Packaging:Tube
Operating Temperature Range:- 40 C to + 125 C
Brand: NSC
Dropout Voltage - Max:0.105 V at 300 mA, 1 V at 3 A
Ib - Input Bias Current:6 mA
Line Regulation:0.02 %
Load Regulation:0.08 %
Moisture Sensitive:Yes
Operating Supply Current:6 mA
Product Type:LDO Voltage Regulators
Reference Voltage:1.216 V
