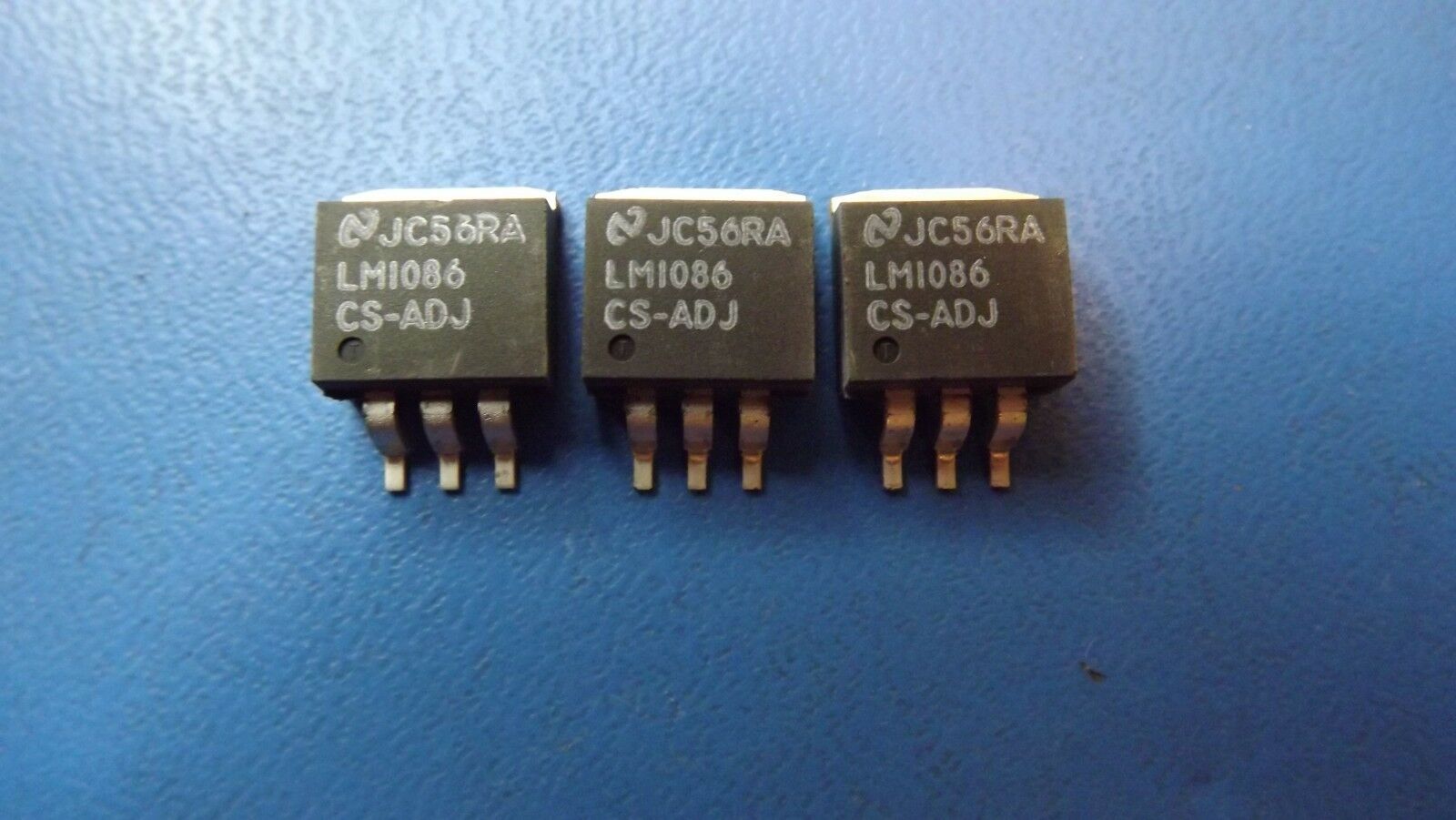

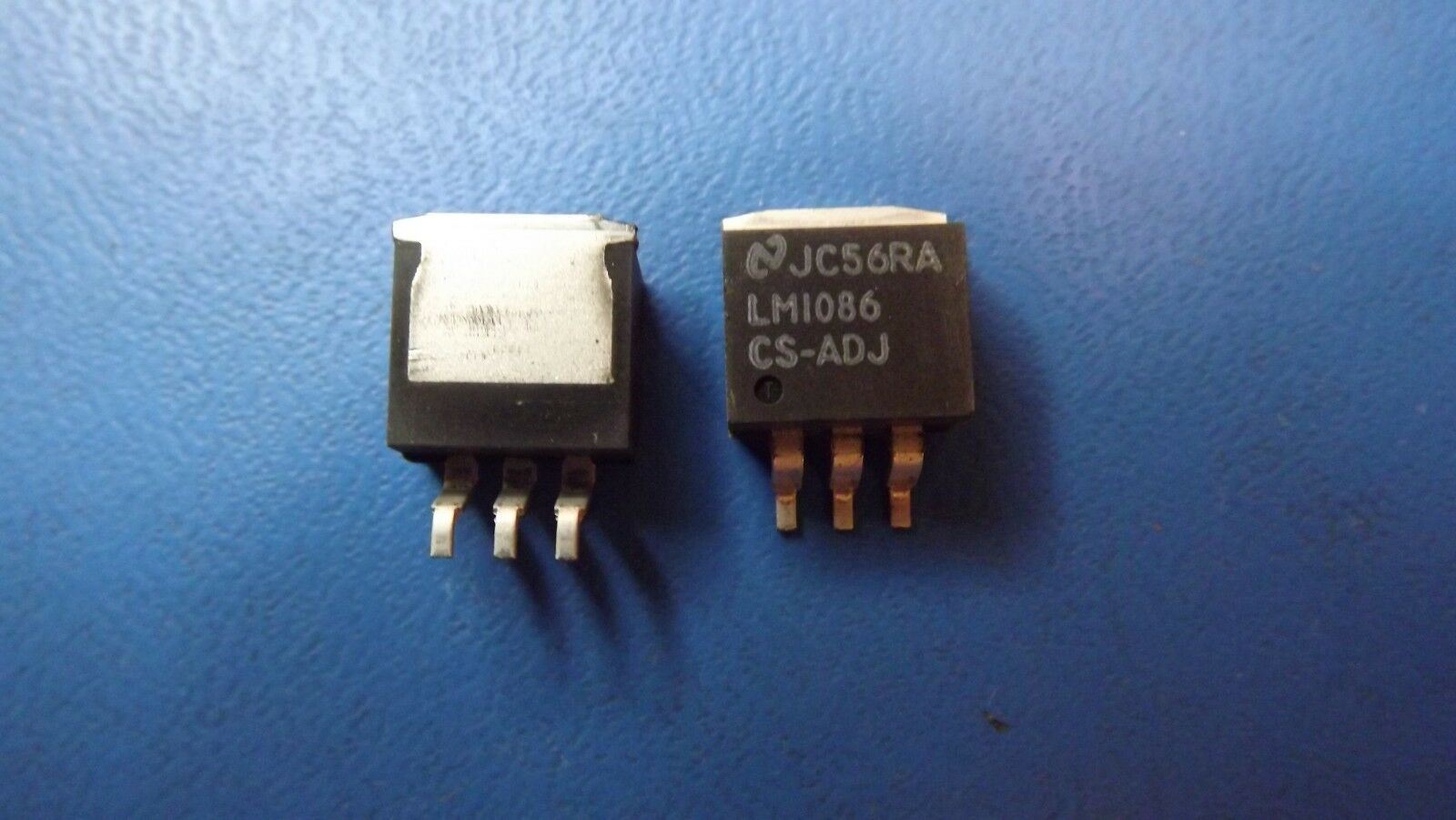

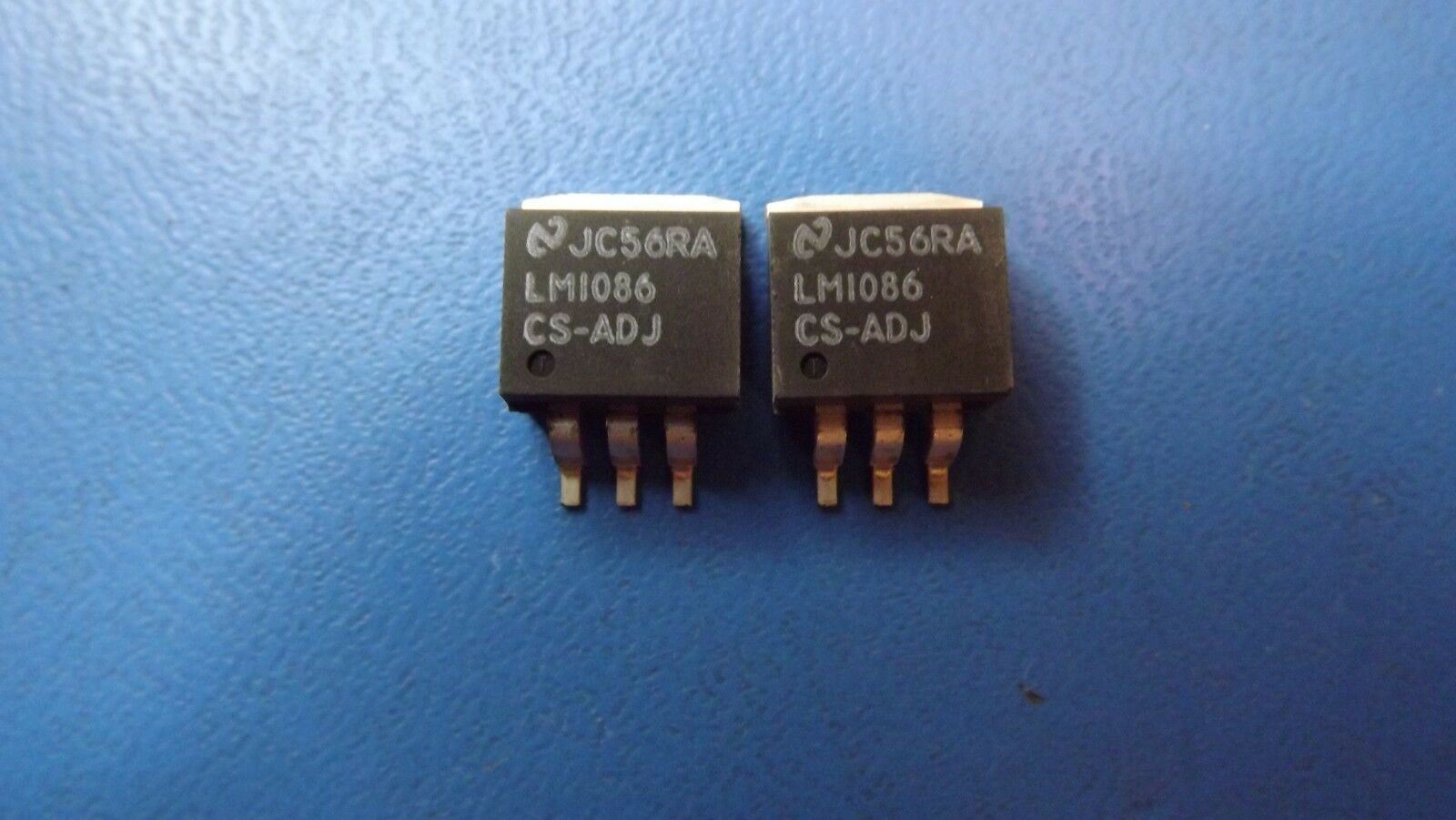

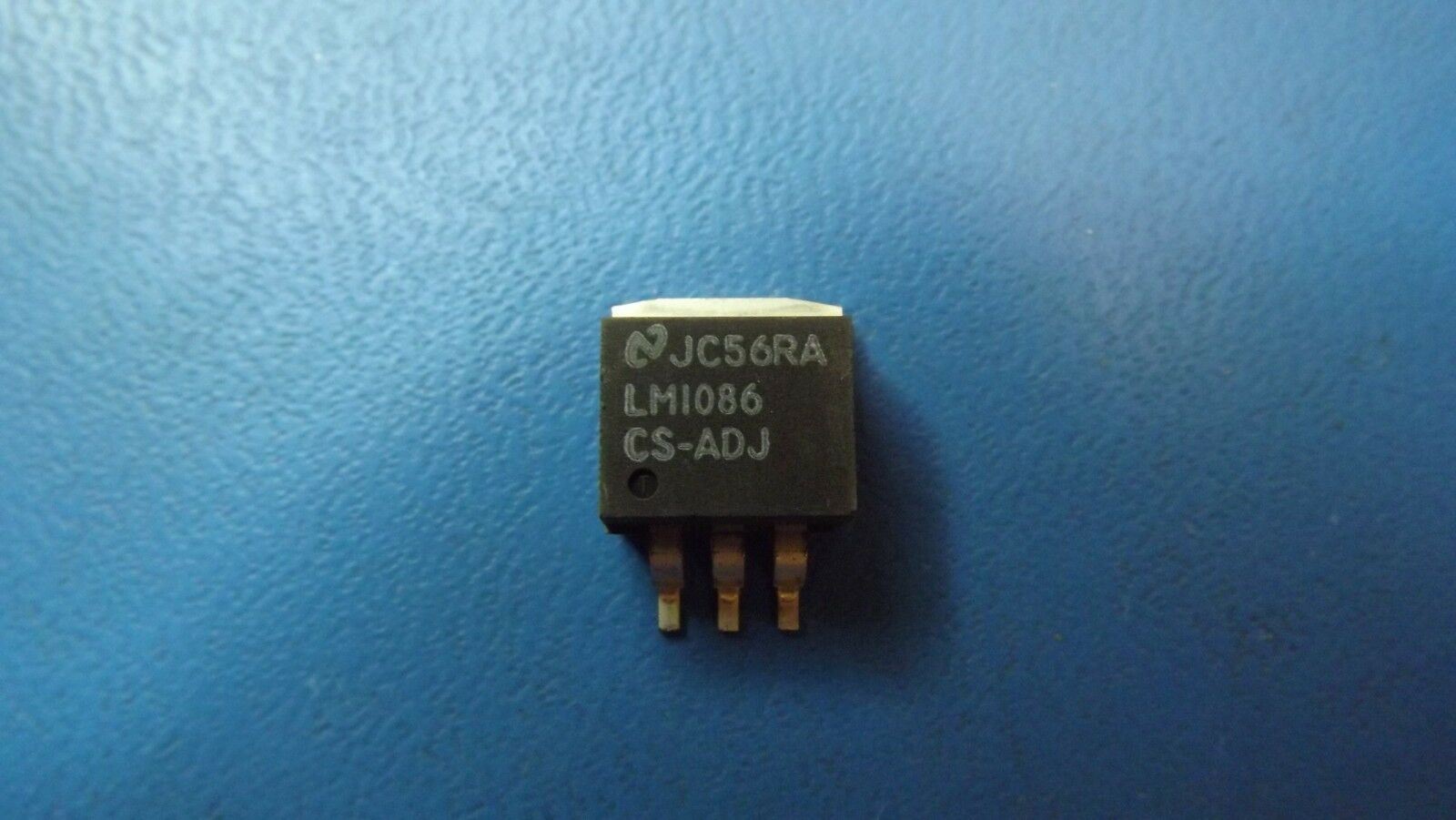

(3PCS) LM1086CS-ADJ NSC LDO Regulator Pos 1.5A 4-Pin(3+Tab) TO-263

  • $7.95
    Unit price per
Tax included.

Only 14 left!

THIS LISTING IS FOR (3PCS) OF LM1086CS-ADJ BY NSC

SPECIFICATIONS

Mfr Package Description TO-263, 3 PIN
REACH Compliant Yes
Status Transferred
Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability ADJUSTABLE
Dropout Voltage1-Nom 1.3  V
Dropout Voltage1-Max 1.5  V
Input-Output Voltage Differential-Min 1.5  V
Input-Output Voltage Differential-Max 15.0  V
JESD-30 Code R-PSSO-G3
JESD-609 Code e0
Line Regulation-Max (%/V) 0.01
Load Regulation-Max(%) 0.4  %
Moisture Sensitivity Level 3
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 3
Operating Temperature, TJ-Min 0.0  Cel
Operating Temperature, TJ-Max 125.0  Cel
Output Current1-Max 1.5  A
Output Voltage1-Min 1.2  V
Output Voltage1-Max 15.0  V
Package Body Material PLASTIC/EPOXY
Package Code TO-263
Package Equivalence Code SMSIP3H,.55TB
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Packing Method RAIL
Peak Reflow Temperature (Cel) 235
Qualification Status Not Qualified
Seated Height-Max 4.65  mm
Sub Category Other Regulators
Surface Mount YES
Technology BIPOLAR
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 2.54  mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 30
Length 10.16  mm
Width 8.635  mm
