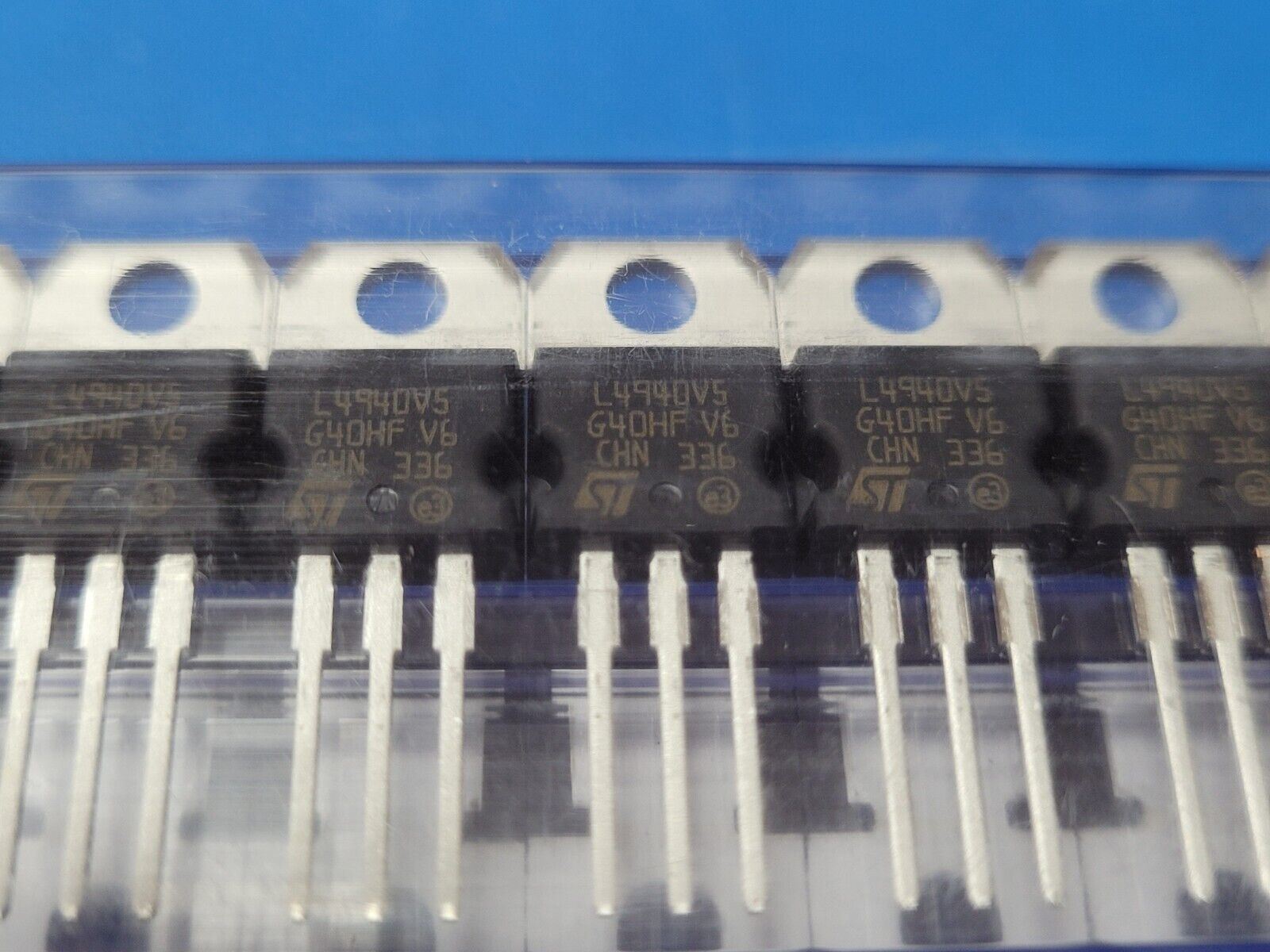

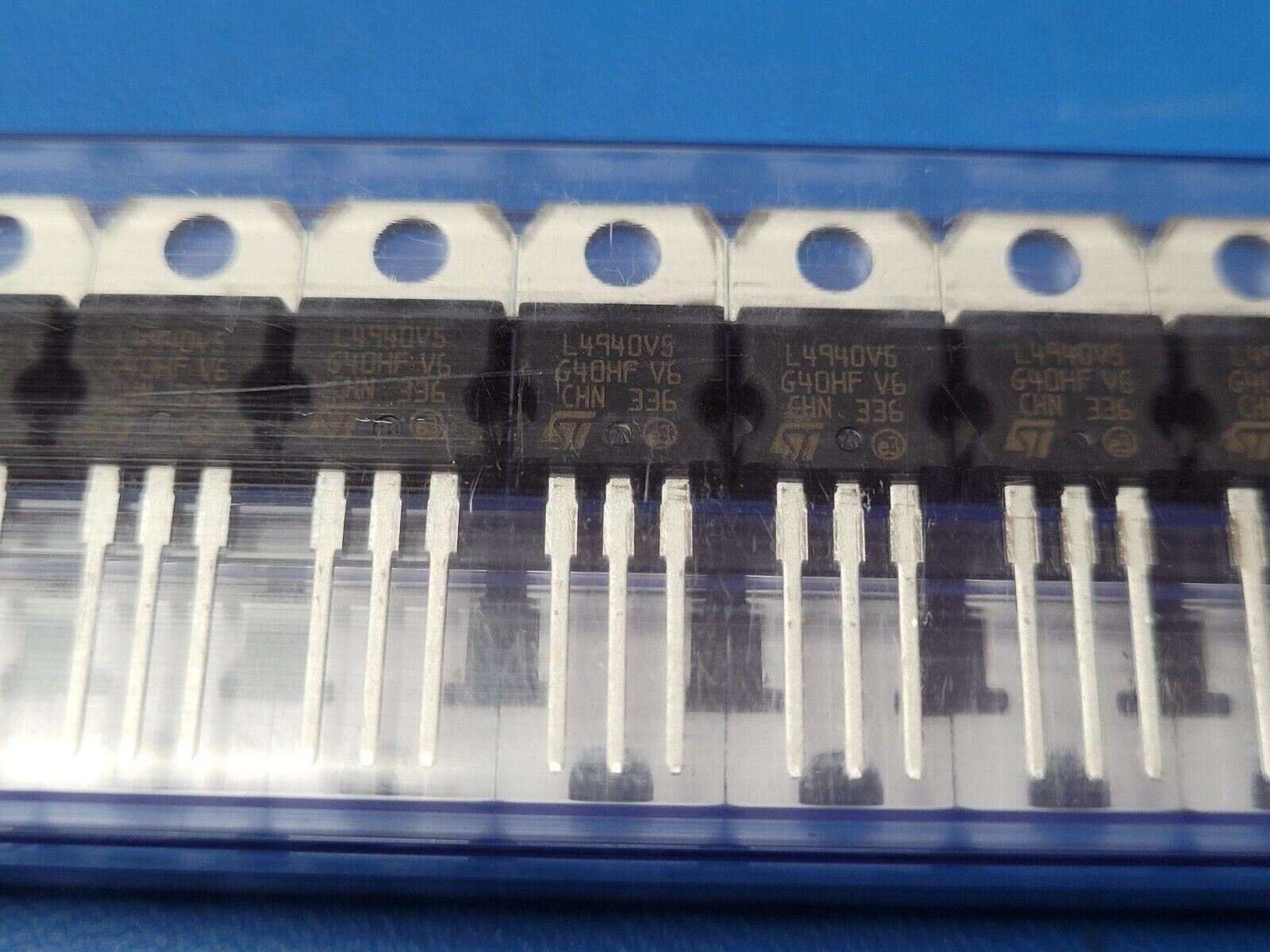

(3PCS) L4940V5 1.5 A 5 V Fixed Output VLDO Regulator Flange Mount - TO-220
Tax included.
THIS LISTING IS FOR (3PCS) OF L4940V5 BY ST MICROELECTRONICS
Manufacturer: STMicroelectronics
Product Category: LDO Voltage Regulators
RoHS: Details
Mounting Style: Through Hole
Package / Case: TO-220-3
Output Voltage: 5 V
Output Current: 1.5 A
Number of Outputs: 1 Output
Polarity: Positive
Quiescent Current: 30 mA
Input Voltage, Min: 6 V
Input Voltage, Max: 17 V
Output Type: Fixed
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 150 C
Dropout Voltage: 200 mV
Series: L4940
Packaging: Tube
Brand: STMicroelectronics
Dropout Voltage - Max: 900 mV
Height: 9.15 mm
Ib - Input Bias Current: 5 mA
Length: 10.4 mm
Line Regulation: 10 mV
Load Regulation: 25 mV
Product Type: LDO Voltage Regulators
