(3PCS) K6T4008C1B-GB55 Standard SRAM, 512KX8, 55ns, CMOS, SOIC-32
Tax included.

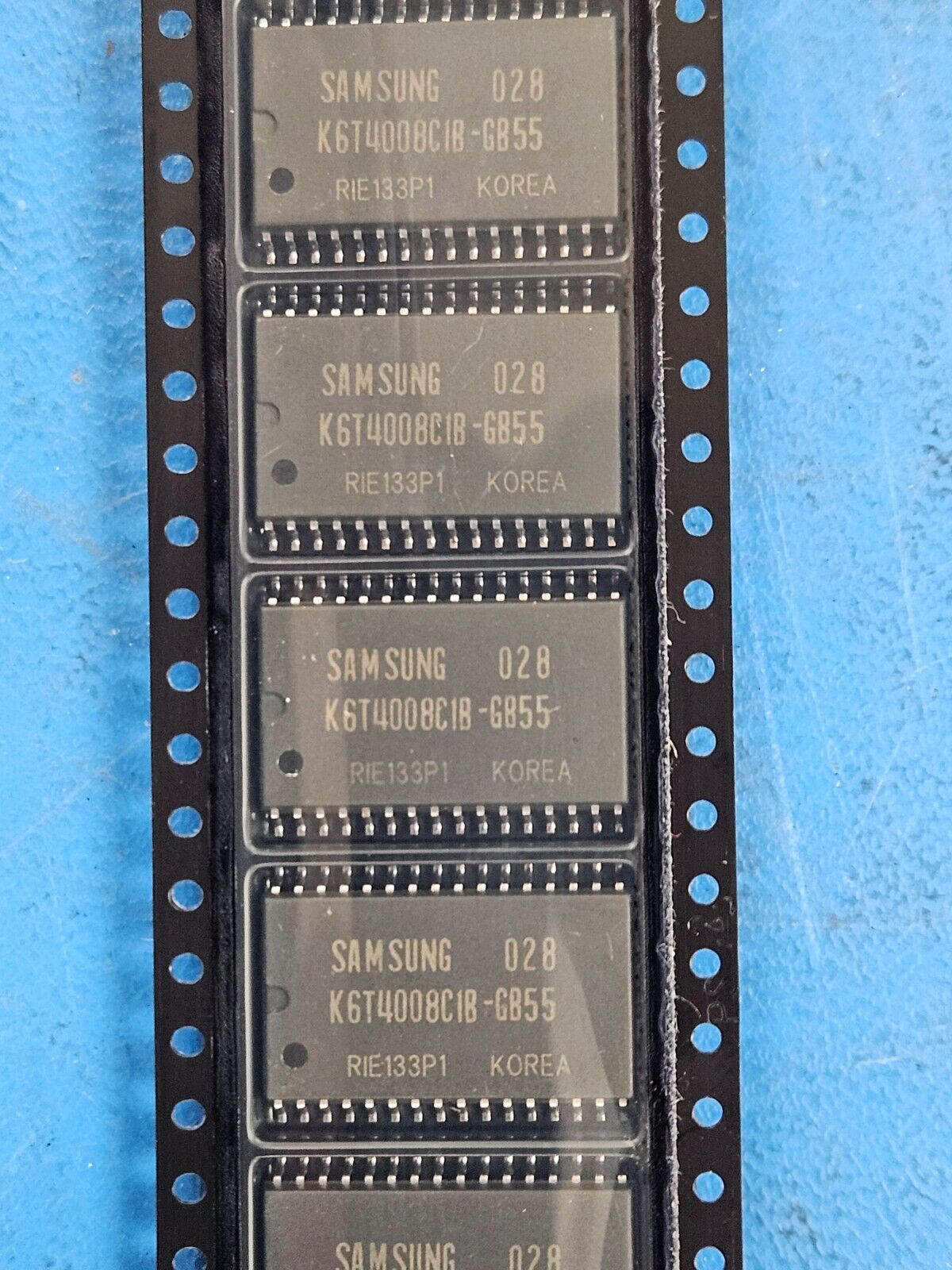

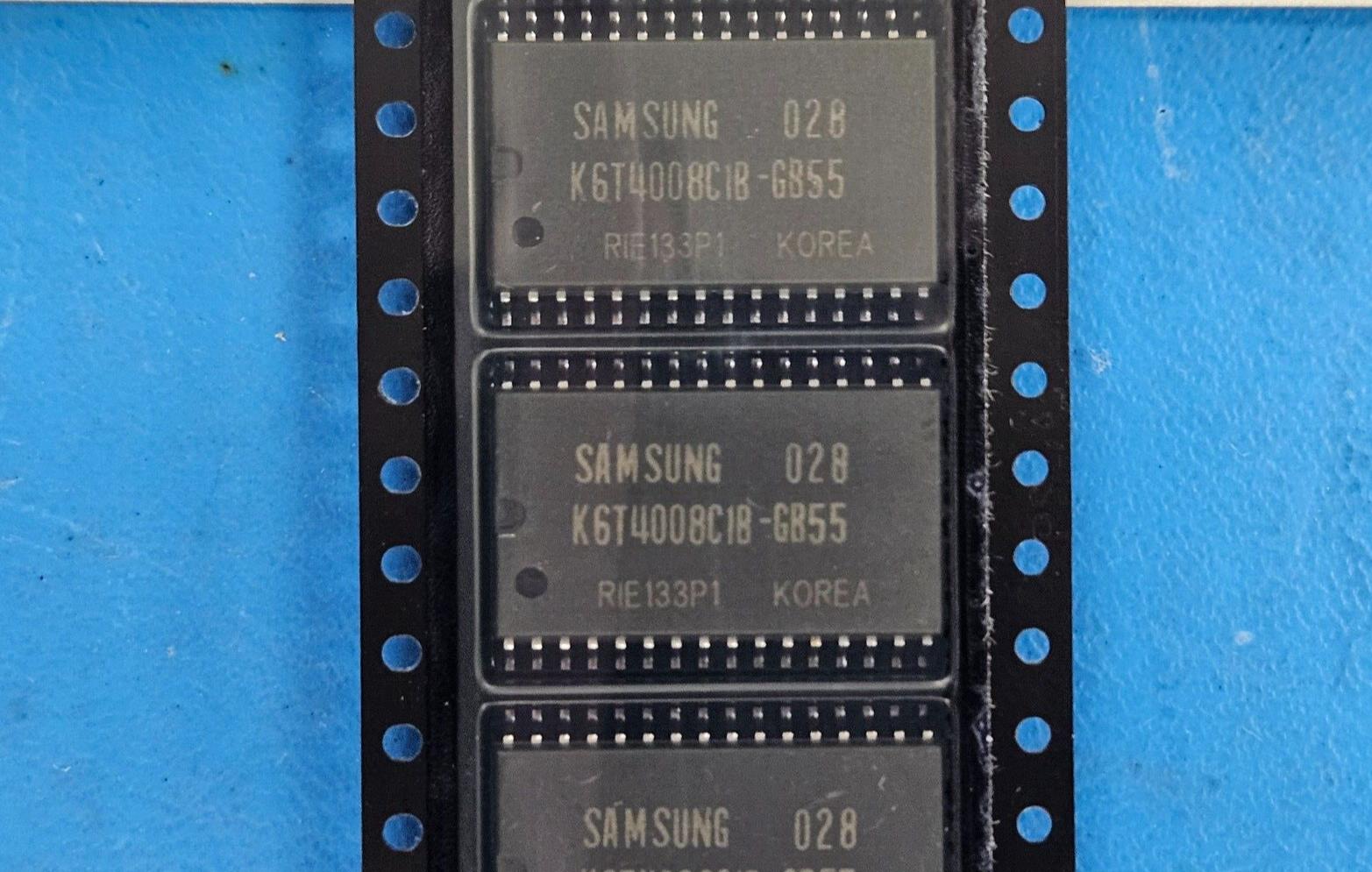

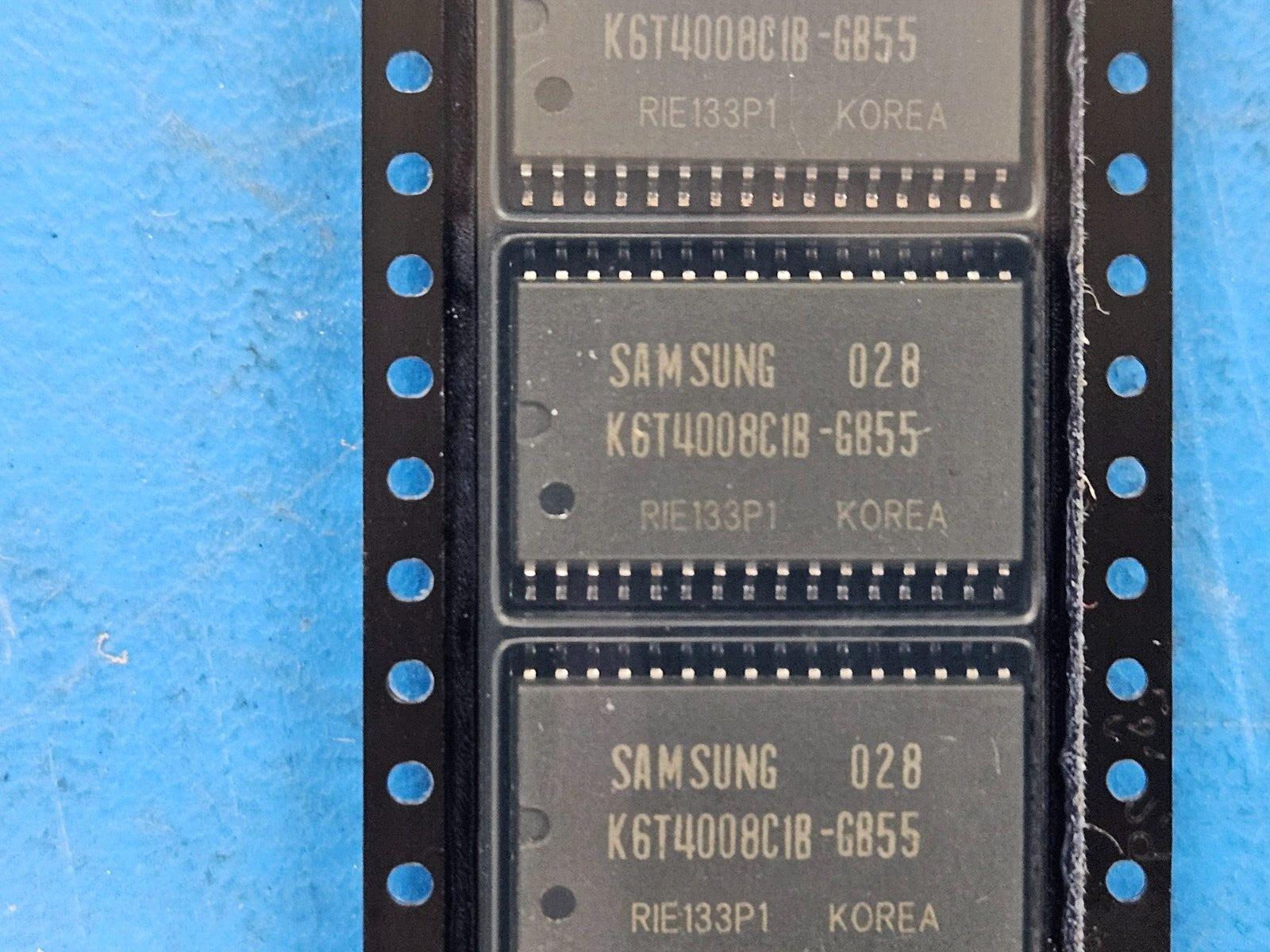

This listing is for (3pcs) of K6T4008C1B-GB55 by Samsung
Mfr Package Description 0.525 INCH, PLASTIC, SOP-32
REACH Compliant Yes
Status Discontinued
Sub Category SRAMs
Access Time-Max 55.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP32,.56
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.0 mm
Standby Voltage-Min 2.0 V
Supply Current-Max 0.08 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 20.47 mm
Width 11.43 mm
