(3PCS) K4F160411D-BC60 Samsung Fast Page DRAM, 4MX4, 60ns, CMOS, SOJ24
Tax included.

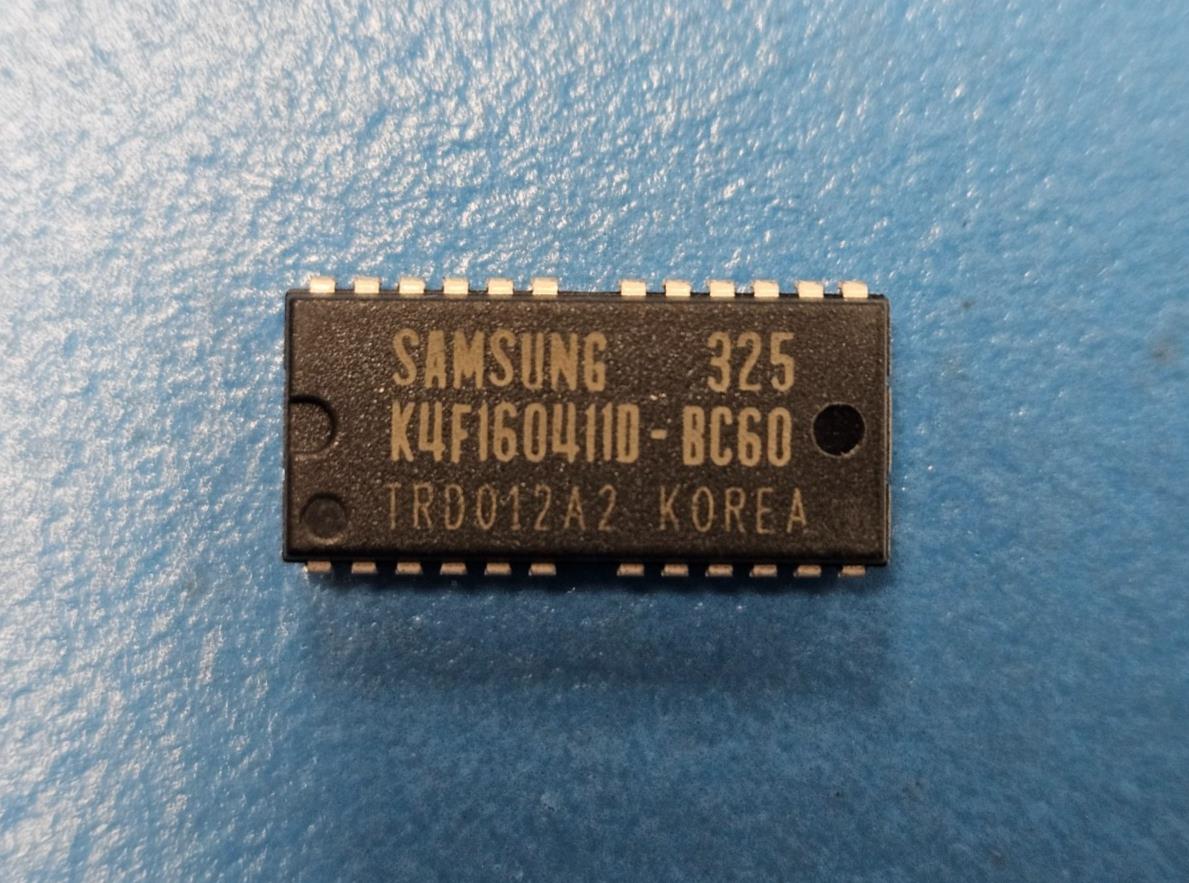

This listing is for (3PCS) of K4F160411D-BC60 by Samsung
Status Discontinued
Access Mode FAST PAGE
Access Time-Max (ns) 60.0000000000000000
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O Type COMMON
JESD-30 Code R-PDSO-J24
Length (mm) 17.1500
Memory Density (bits) 16777216.0000000000000000
Memory IC Type FAST PAGE DRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 24
Number of Words (words) 4194304.0000000000000000
Number of Words Code 4M
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 4MX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ24/26,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
DLA Qualification Not Qualified
Refresh Cycles 2048
Seated Height-Max (mm) 3.7600
Self Refresh NO
Standby Current-Max (A) 0.001000000000000
Supply Current-Max (mA) 100.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 7.6200
