(3PCS) IS61LV256-15T ISSI Standard SRAM, 32KX8, 15ns, CMOS, TSOP28
(3PCS) IS61LV256-15T ISSI Standard SRAM, 32KX8, 15ns, CMOS, TSOP28

(3PCS) IS61LV256-15T ISSI Standard SRAM, 32KX8, 15ns, CMOS, TSOP28

Tax included.
Only 9 left!

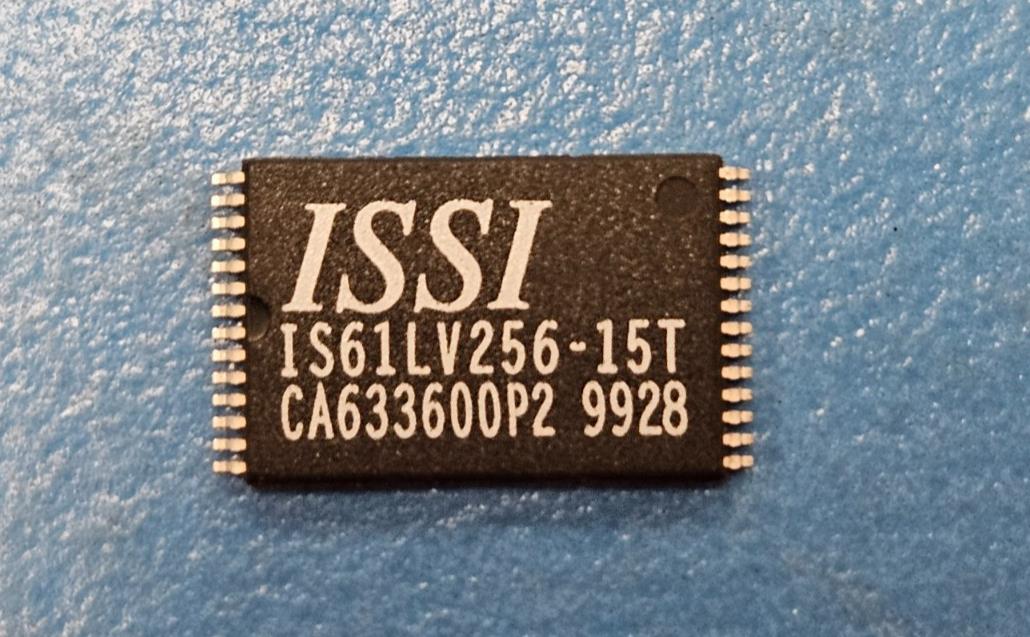

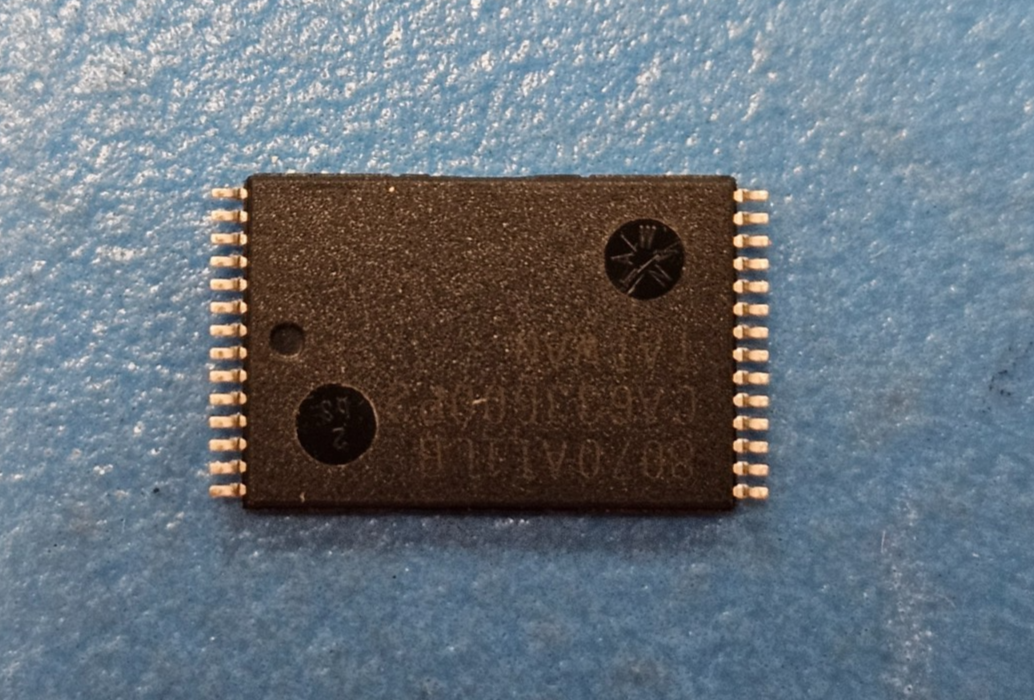

This listing is for (3PCS) of IS61LV256-15T by ISSI

Mfr Package Description TSOP1-28
Status Discontinued
Access Time-Max 15.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 28
Number of Words 32768.0 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP28,.53,22
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Reverse Pinout NO
Standby Current-Max 0.002 Amp
Supply Current-Max 0.09 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 2.97 V
Supply Voltage-Max (Vsup) 3.33 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature AUTOMATIC POWER DOWN
