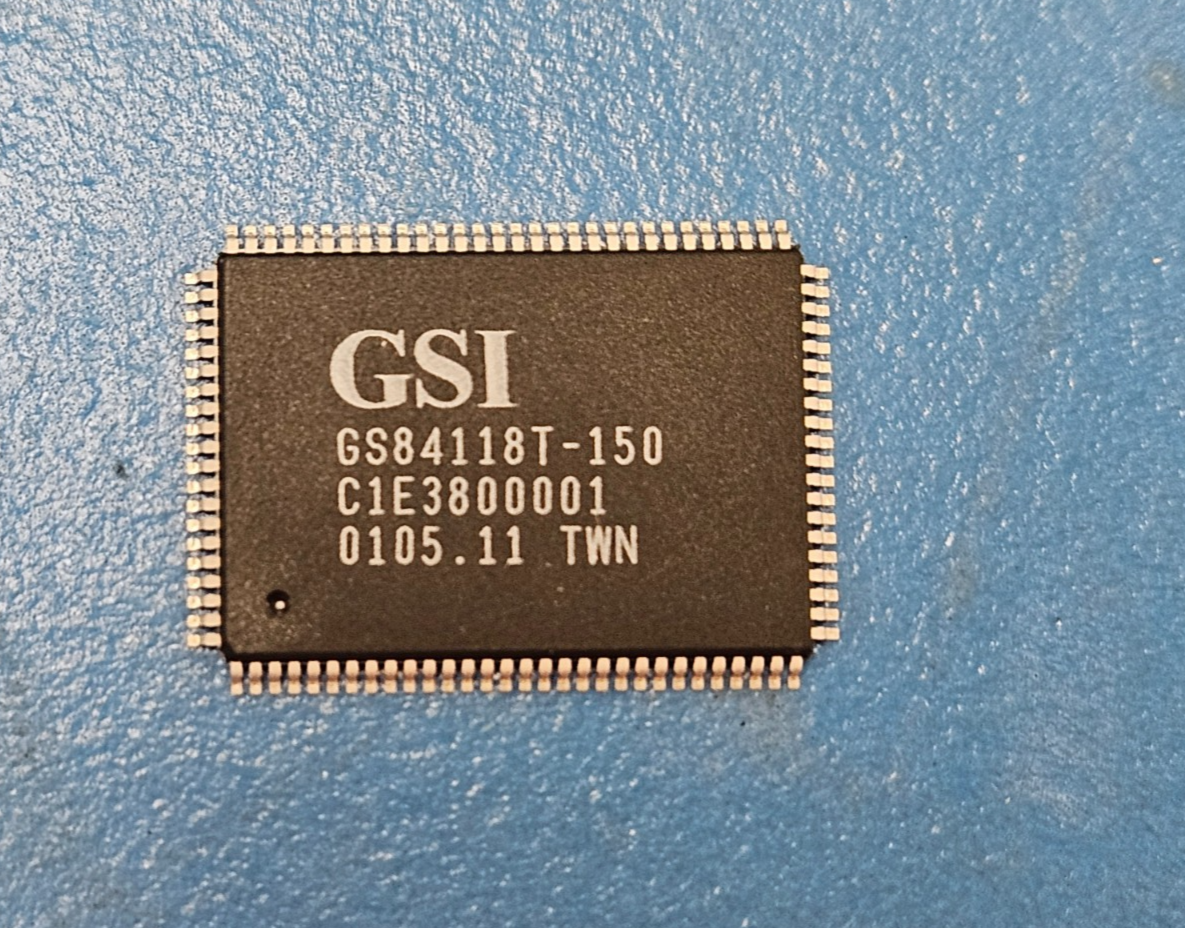

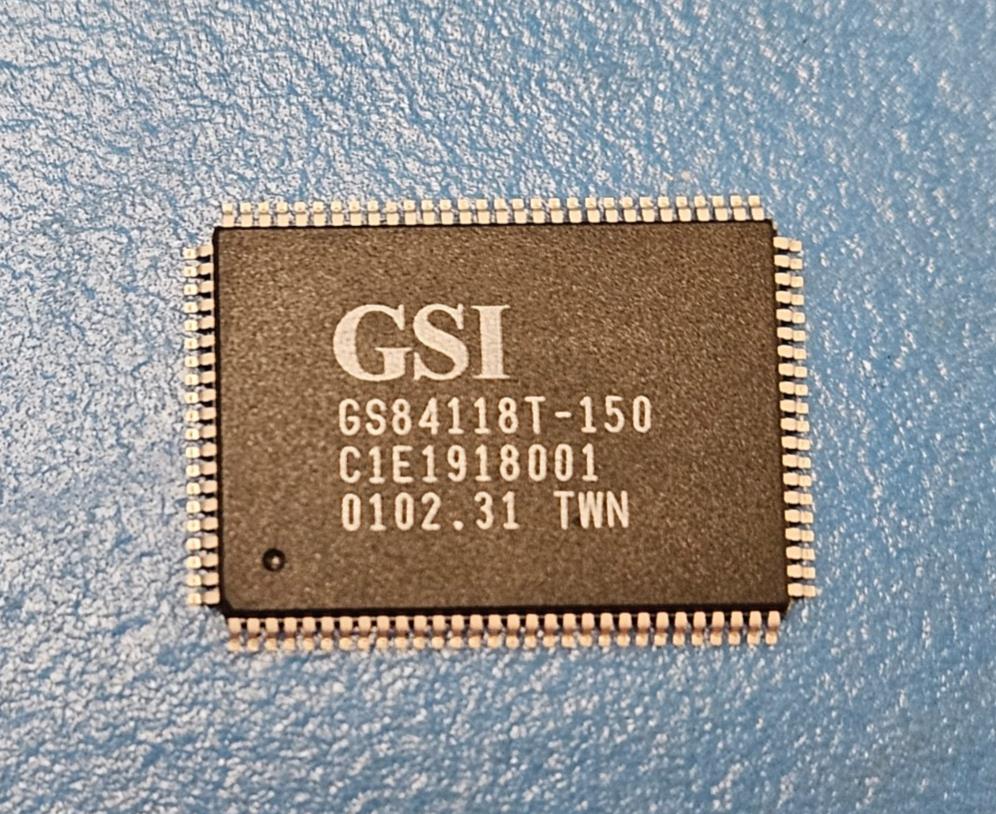

(3PCS) GS84118T-150 GSI Cache Tag SRAM, 256KX18, 10ns, CMOS, PQFP100
Tax included.
This listing is for (3PCS) of GS84118T-150 by GSI Technology
Mfr Package Description TQFP-100
REACH Compliant Yes
Status Discontinued
Sub Category SRAMs
Access Time-Max 10.0 ns
Clock Frequency-Max (fCLK) 150.0 MHz
I/O Type COMMON
JESD-30 Code R-PQFP-G100
JESD-609 Code e0
Memory Density 4718592.0 bit
Memory IC Type CACHE TAG SRAM
Memory Width 18
Moisture Sensitivity Level 3
Number of Functions 1
Number of Terminals 100
Number of Words 262144.0 words
Number of Words Code 256K
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 256KX18
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code LQFP
Package Equivalence Code QFP100,.63X.87
Package Shape RECTANGULAR
Package Style FLATPACK, LOW PROFILE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 220
Qualification Status Not Qualified
Seated Height-Max 1.6 mm
Standby Current-Max 0.03 Amp
Standby Voltage-Min 3.14 V
Supply Current-Max 0.275 Amp
Supply Voltage-Nom (Vsup) 3.3 V
Supply Voltage-Min (Vsup) 3.135 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position QUAD
Length 20.0 mm
Width 14.0 mm
Additional Feature FLOW-THROUGH OR PIPELINED ARCHITECTURE
