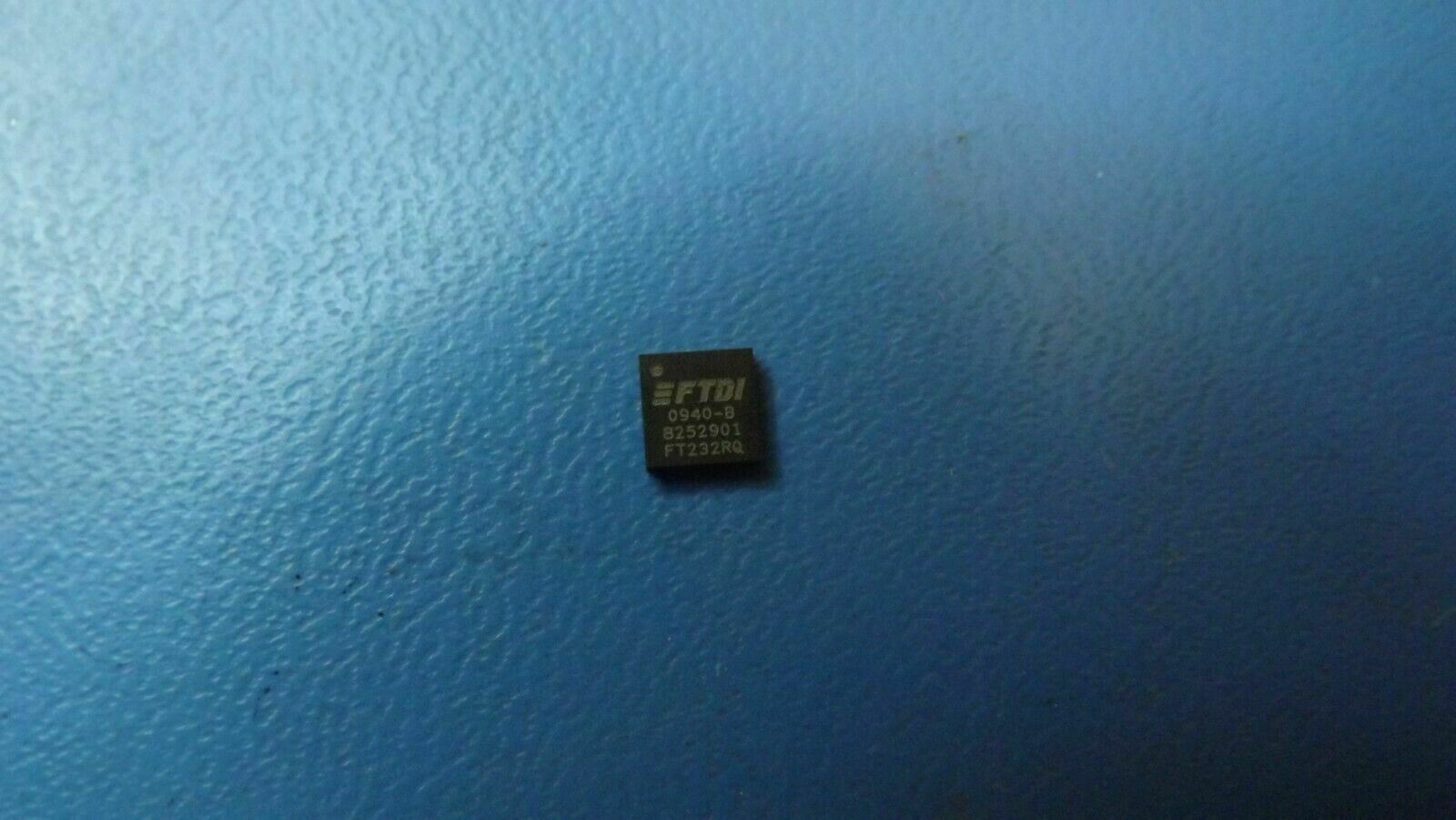

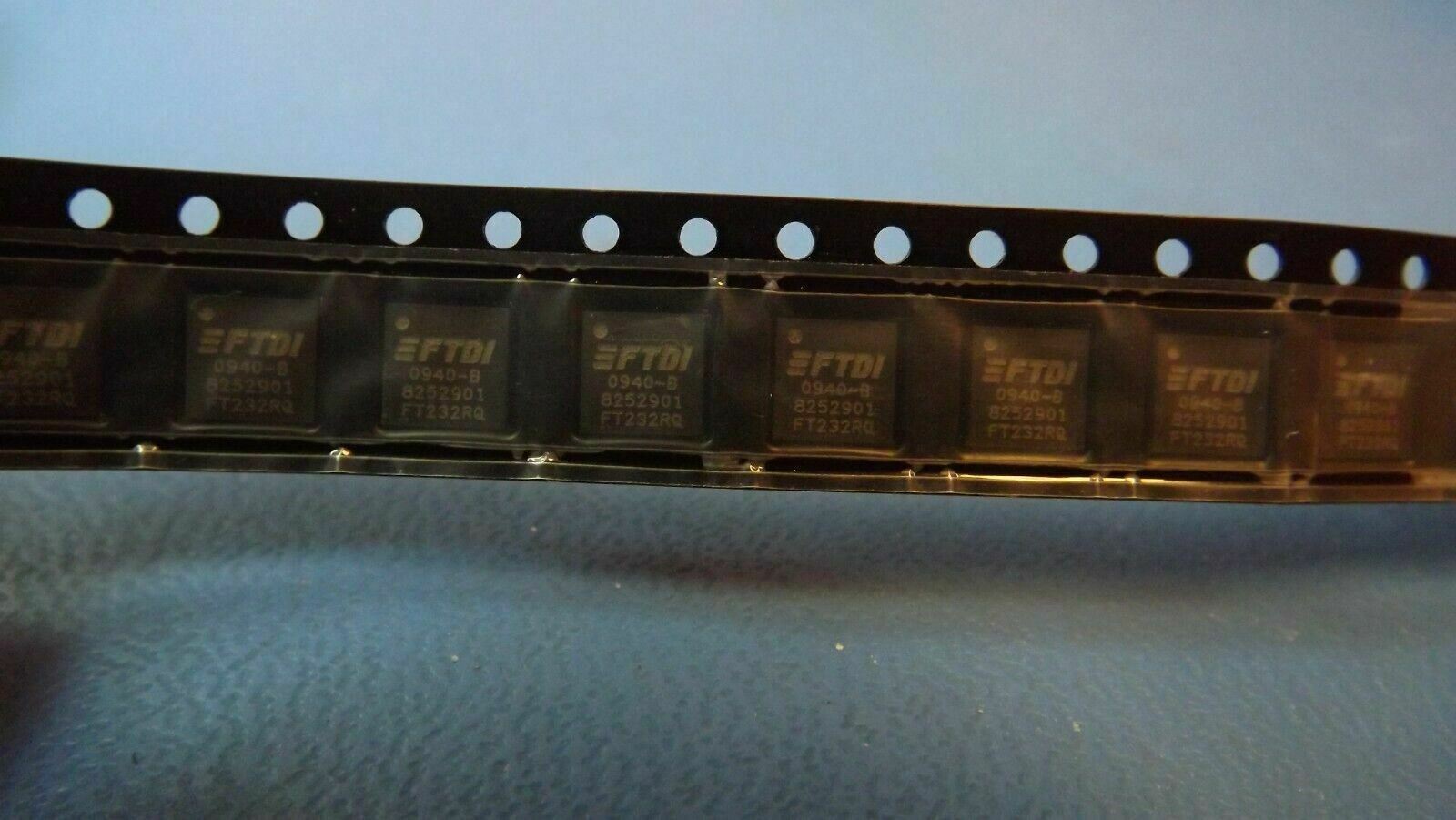

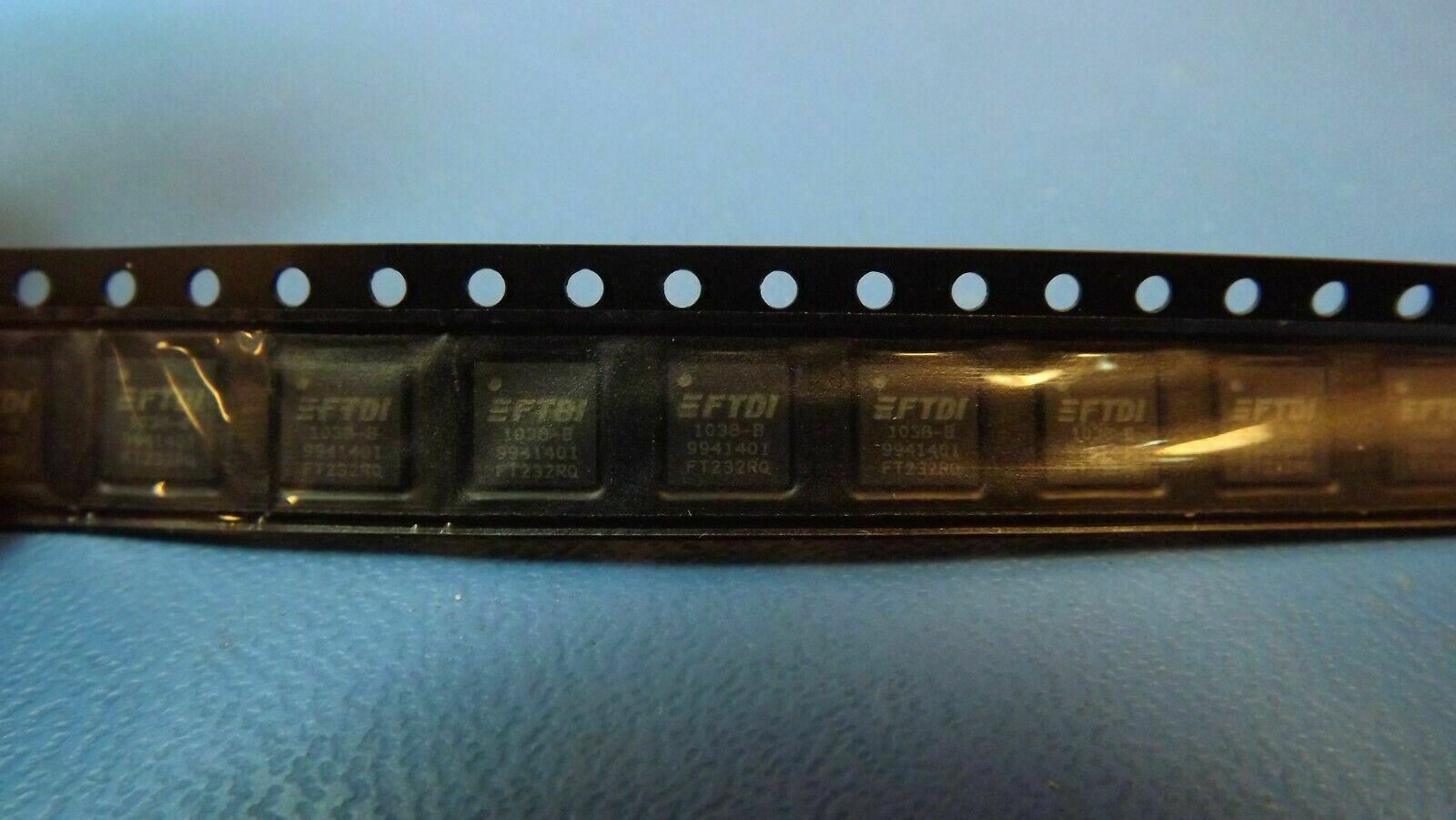

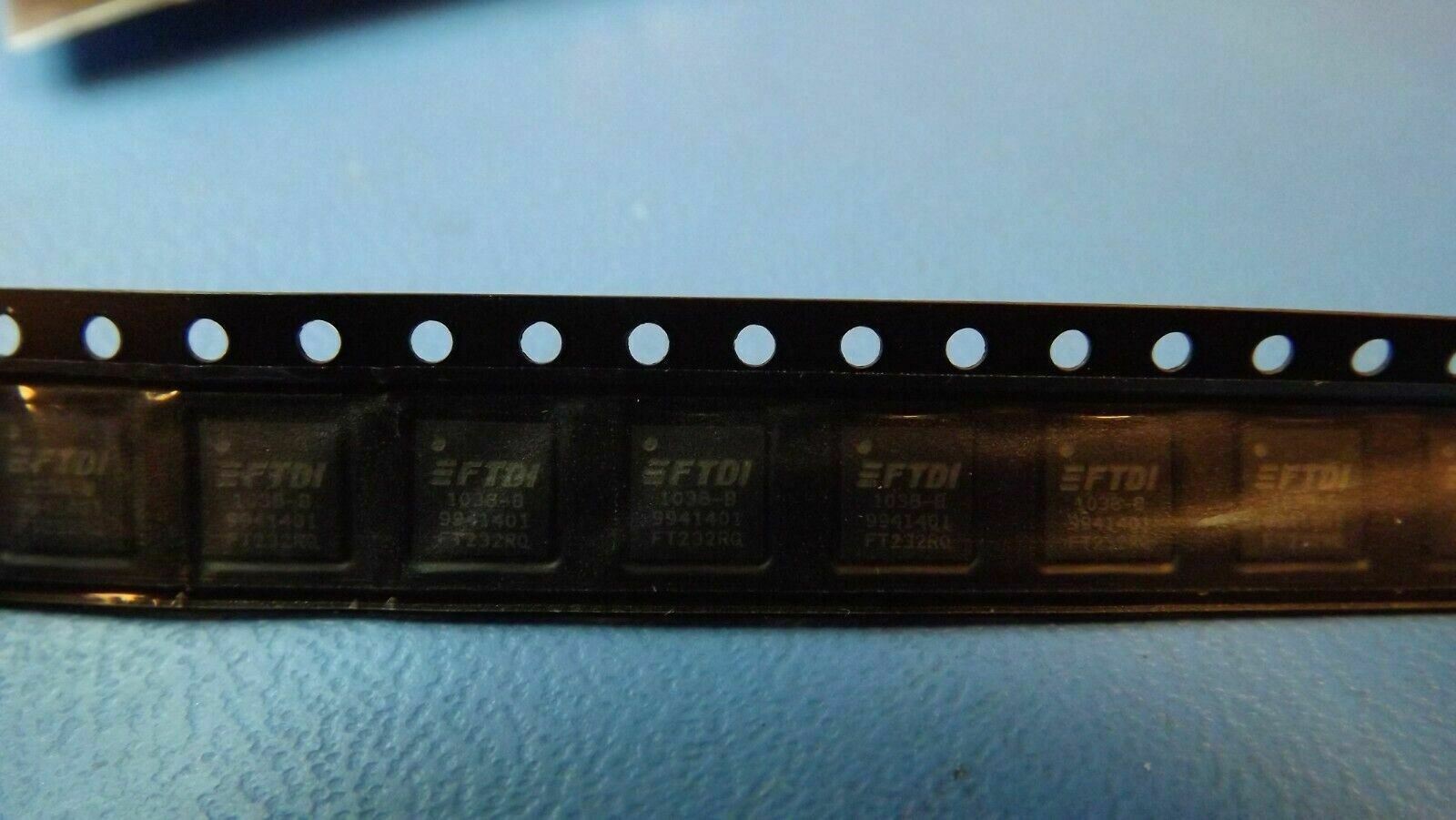

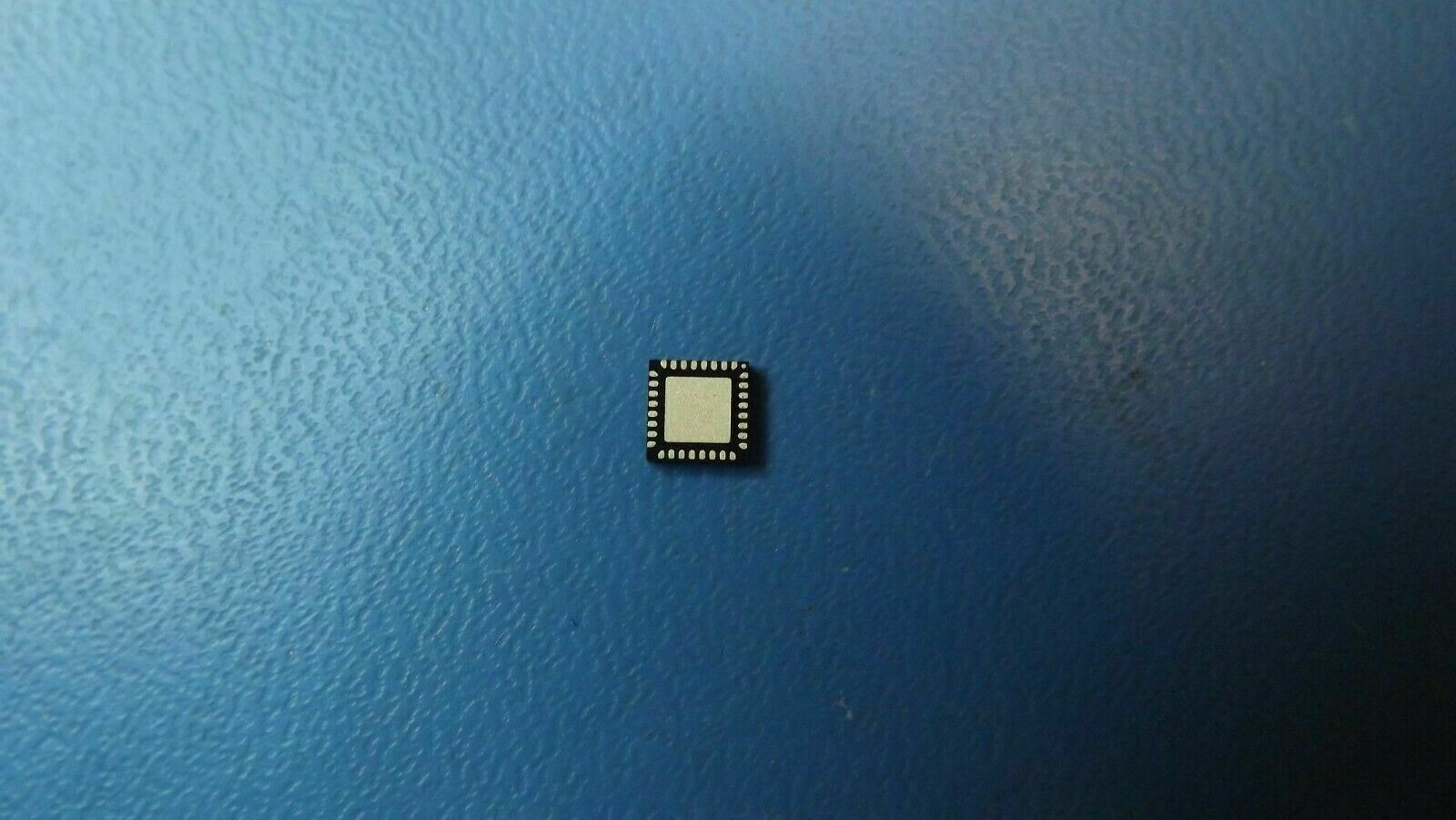

(3PCS) FT232RQ FTDI IC USB FS SERIAL UART 32-QFN
Tax included.
THIS LISTING IS FOR (3PCS) OF FT232RQ BY FTDI
SPECIFICATIONS
| Mfr Package Description | 5 X 5 MM, GREEN, QFN-32 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Microprocessor/Microcontroller/Peripheral IC Type | BUS CONTROLLER, UNIVERSAL SERIAL BUS |
| Address Bus Width | 0.0 |
| Clock Frequency-Max | 12.02 MHz |
| External Data Bus Width | 0.0 |
| JESD-30 Code | S-XQCC-N32 |
| Moisture Sensitivity Level | 3 |
| Number of Terminals | 32 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | UNSPECIFIED |
| Package Code | HVQCCN |
| Package Equivalence Code | LCC32,.2SQ,20 |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 2/5,3.3/5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 0.9 mm |
| Sub Category | Serial IO/Communication Controllers |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 3.3 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 5.0 mm |
| Width | 5.0 mm |
