(3pcs) EPM7032AELC44-10 600 Gates 32 Macro Cells 103.1MHz CMOS, 3.3V 44-Pin PLCC
Tax included.

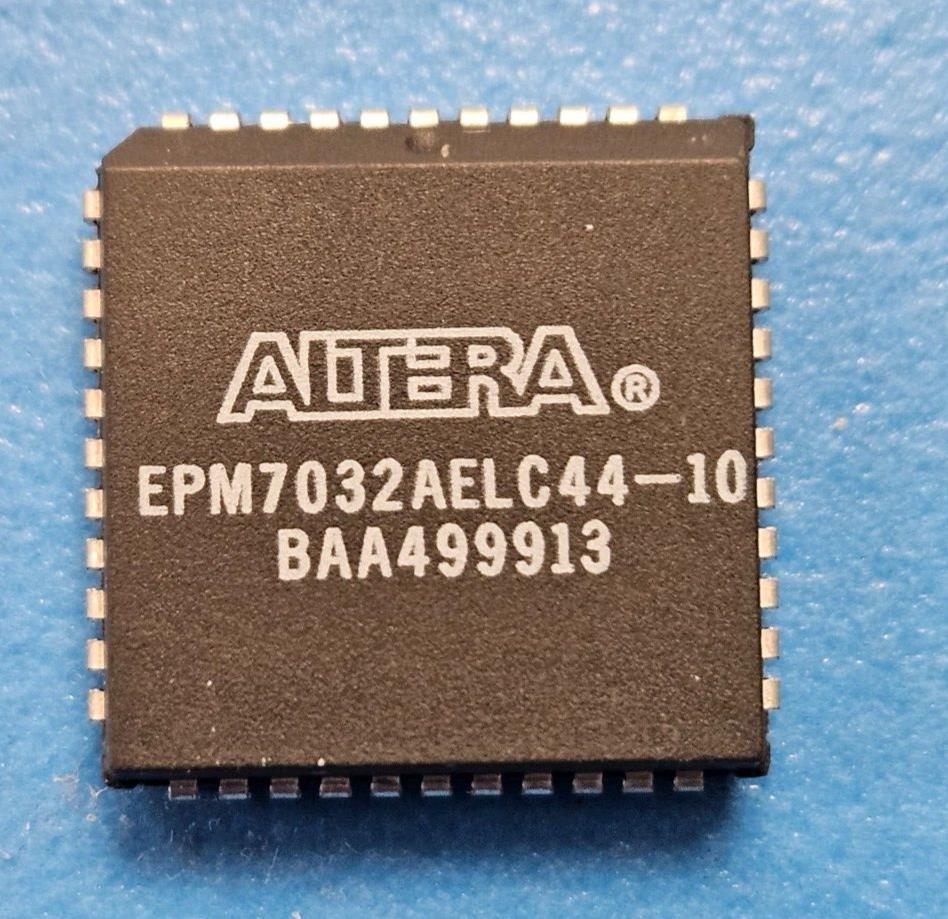

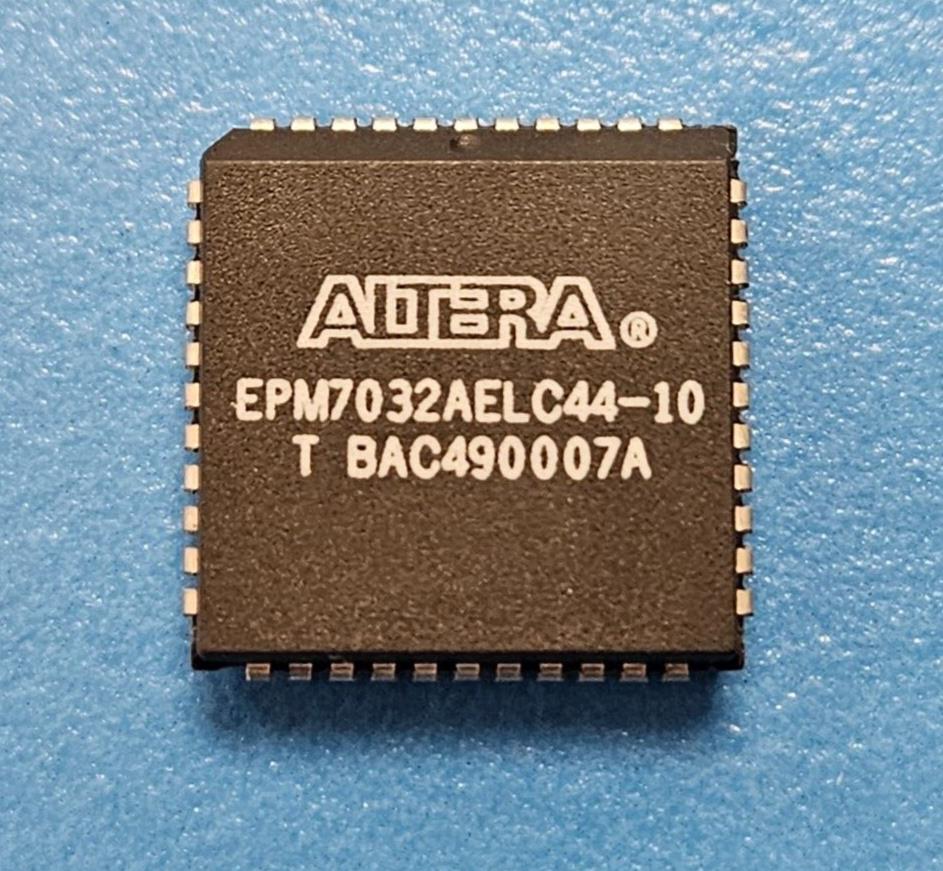

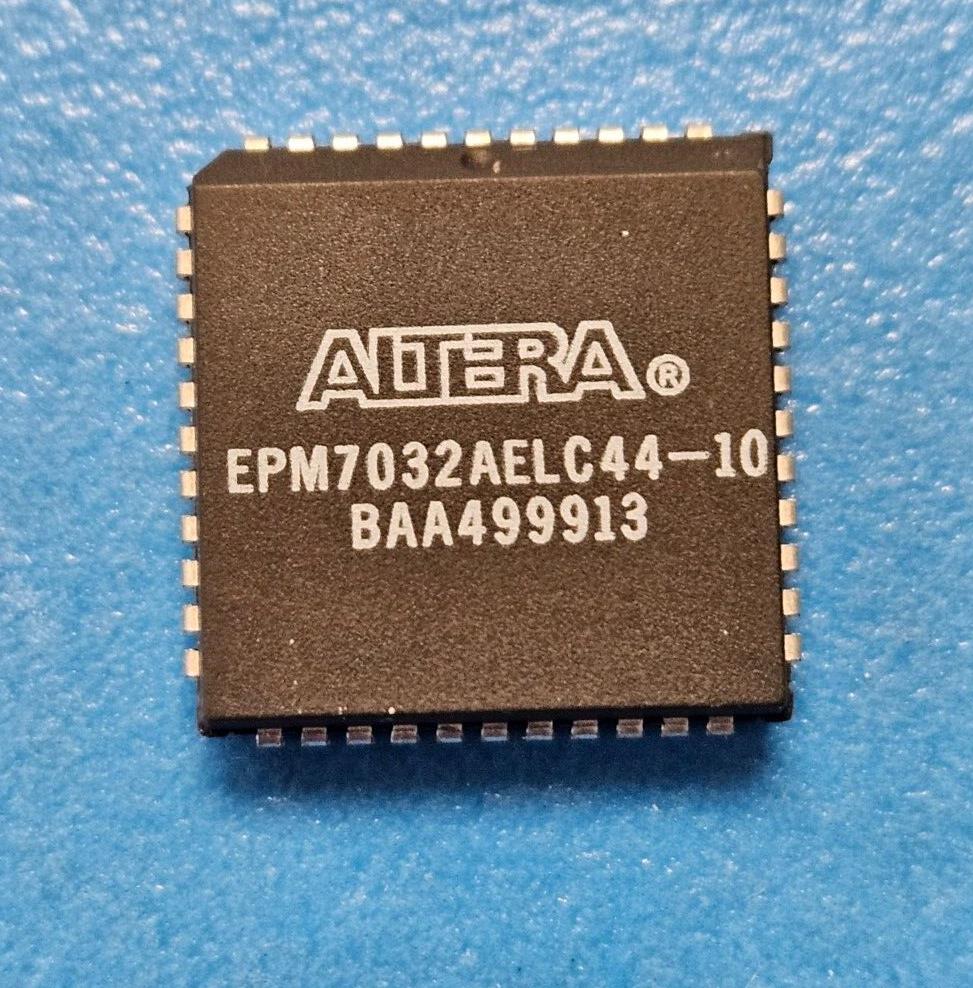

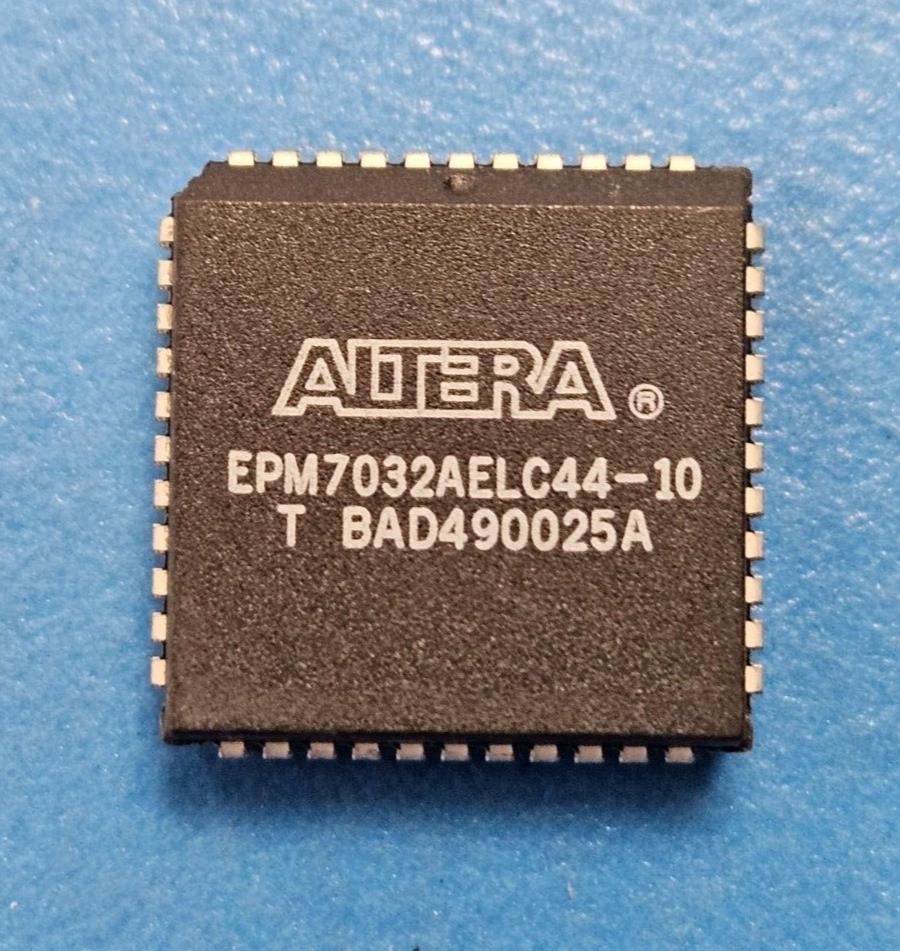

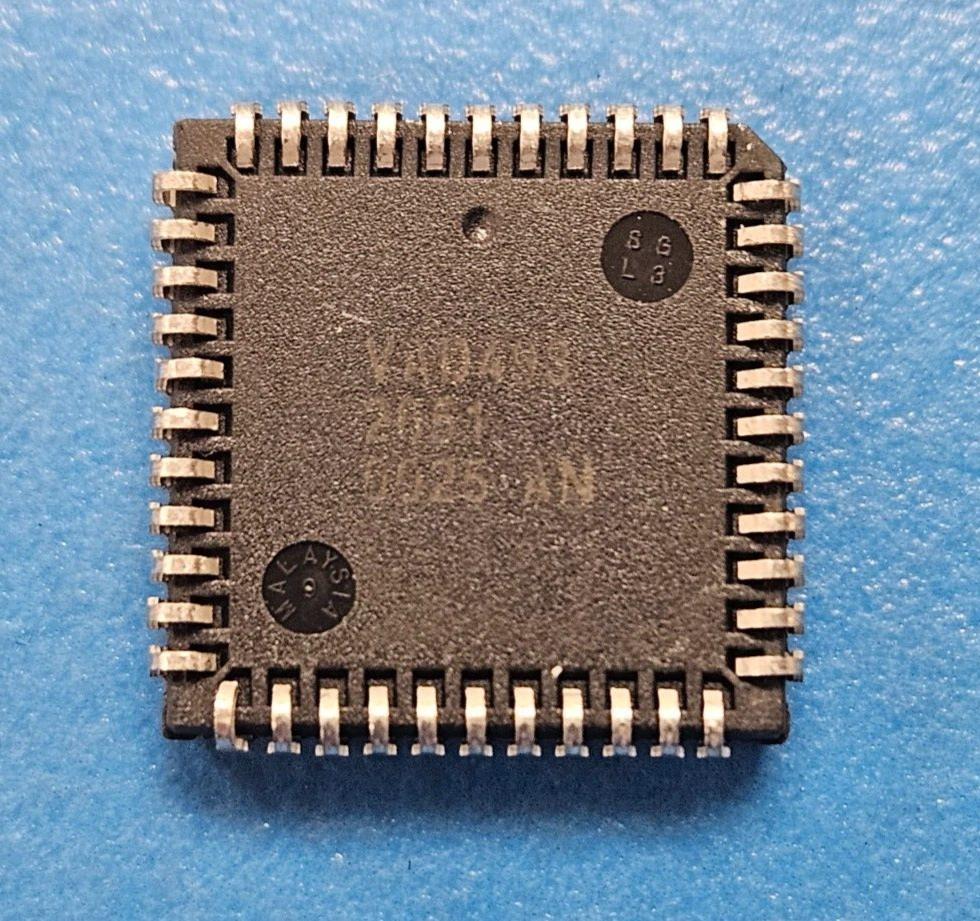

THIS LISTING IS FOR (3PCS) OF EPM7032AELC44-10 BY ALTERA
Mfr Package Description PLASTIC, LCC-44
Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 103.1 MHz
In-System Programmable YES
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 1
Number of Dedicated Inputs 0.0
Number of I/O Lines 36.0
Number of Macro Cells 32.0
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 36 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 220
Power Supplies 2.5/3.3,3.3
Propagation Delay 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 3.3 V
Supply Voltage-Min 3.0 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 16.5862 mm
Width 16.5862 mm
Additional Feature 32 MACROCELLS; 2 LABS; CONFIGURABLE I/O OPERATION WITH 2.5 OR 3.3
