(3PCS) E28F008SA-120 Intel 8-MBIT (1-MBIT x 8) FlashFileTM MEMORY 40P TSOP
Tax included.

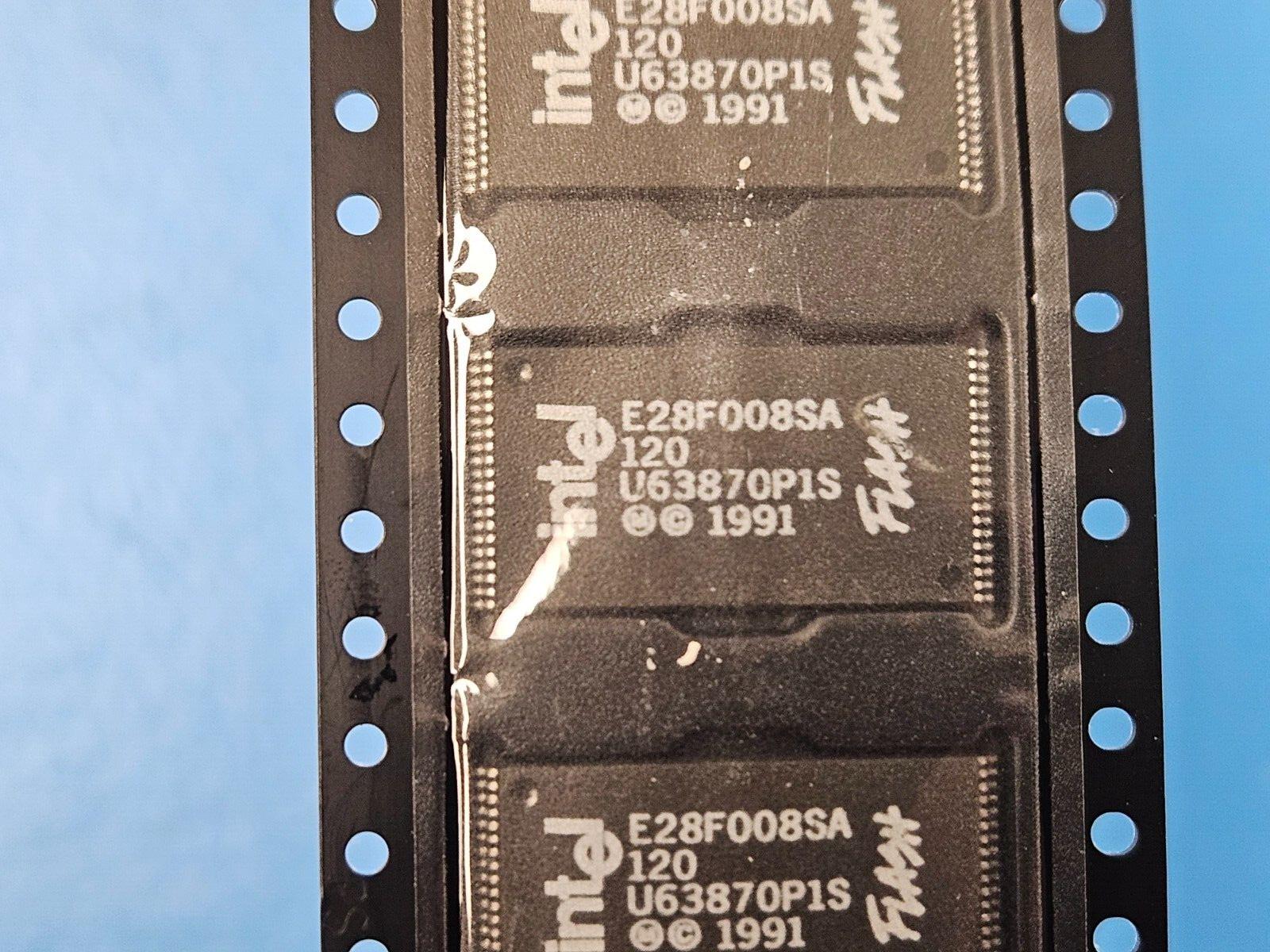

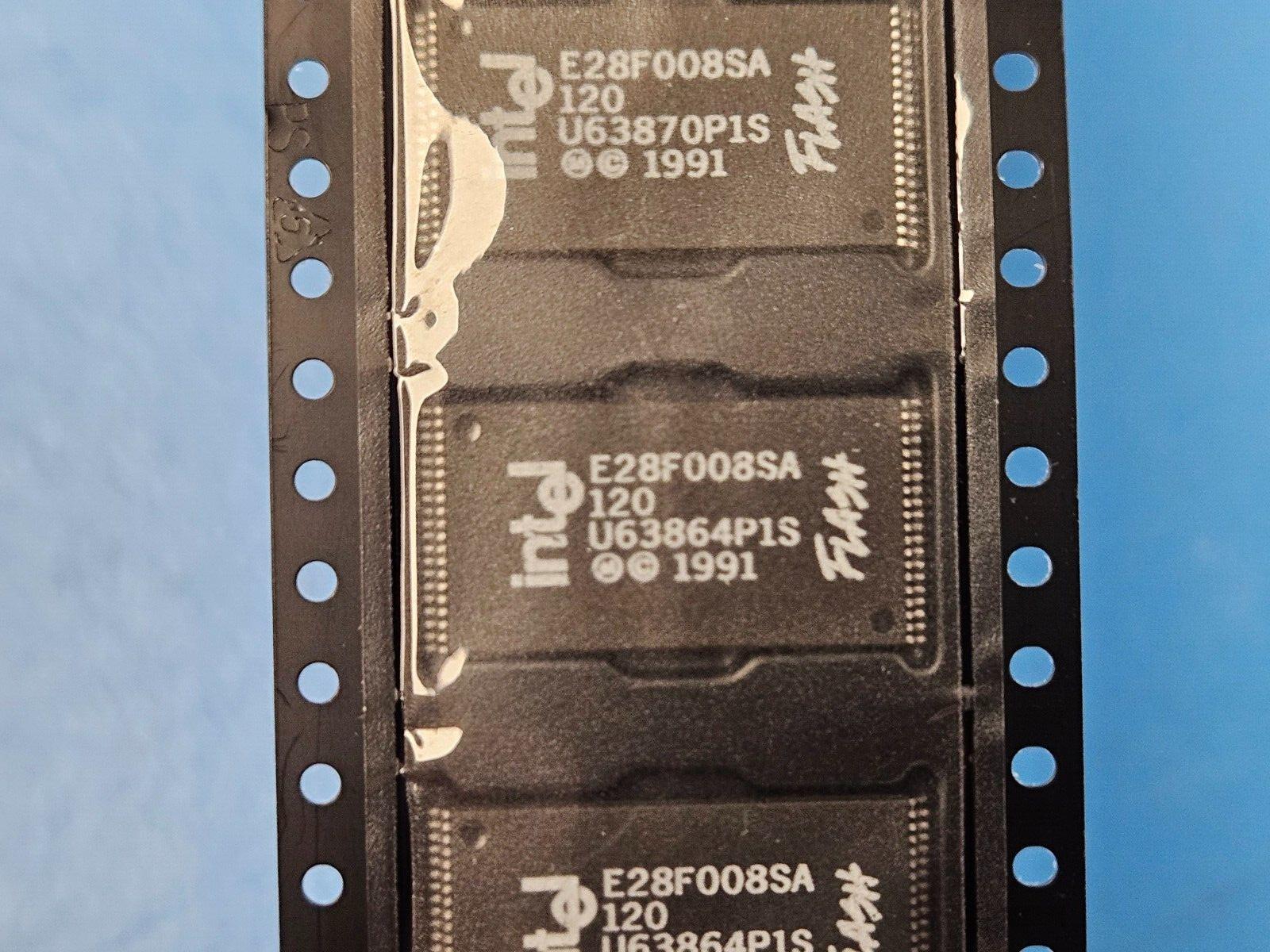

This listing is for (3PCS) of E28F008SA-120 by Intel
Mfr Package Description 10 X 20 MM, TSOP-40
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 120.0 ns
Command User Interface YES
Data Polling NO
JESD-30 Code R-PDSO-G40
JESD-609 Code e0
Memory Density 8388608.0 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Sectors/Size 16
Number of Terminals 40
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1MX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP40,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Ready/Busy YES
Seated Height-Max 1.2 mm
Standby Current-Max 1.2E-6 Amp
Supply Current-Max 0.05 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology MOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit NO
Length 18.4 mm
Width 10.0 mm
Additional Feature DEEP POWER-DOWN
