(3pcs) CY7C433-15JC FIFO, 4KX9, 15ns, Asynchronous, CMOS, PLCC32
Tax included.

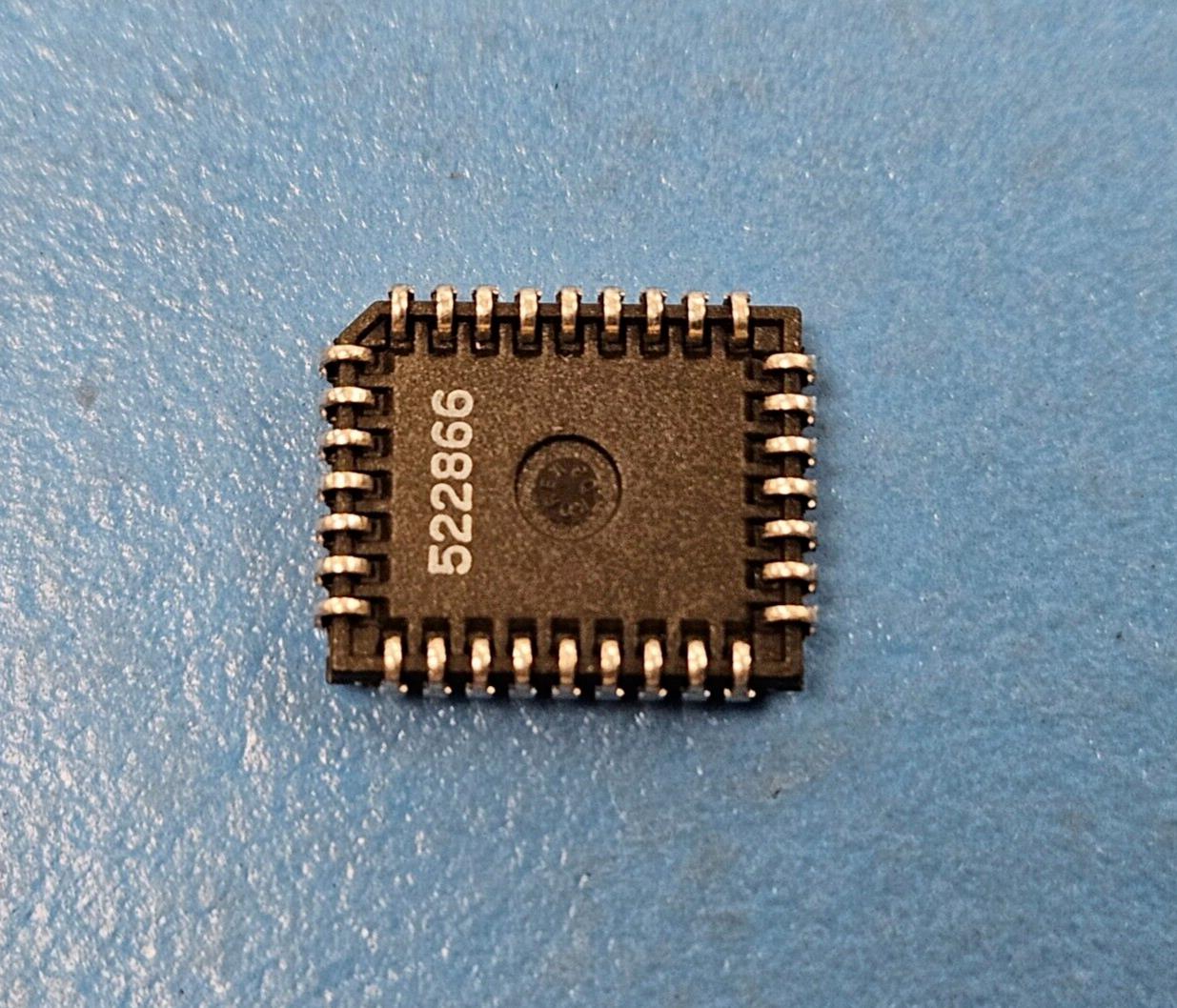

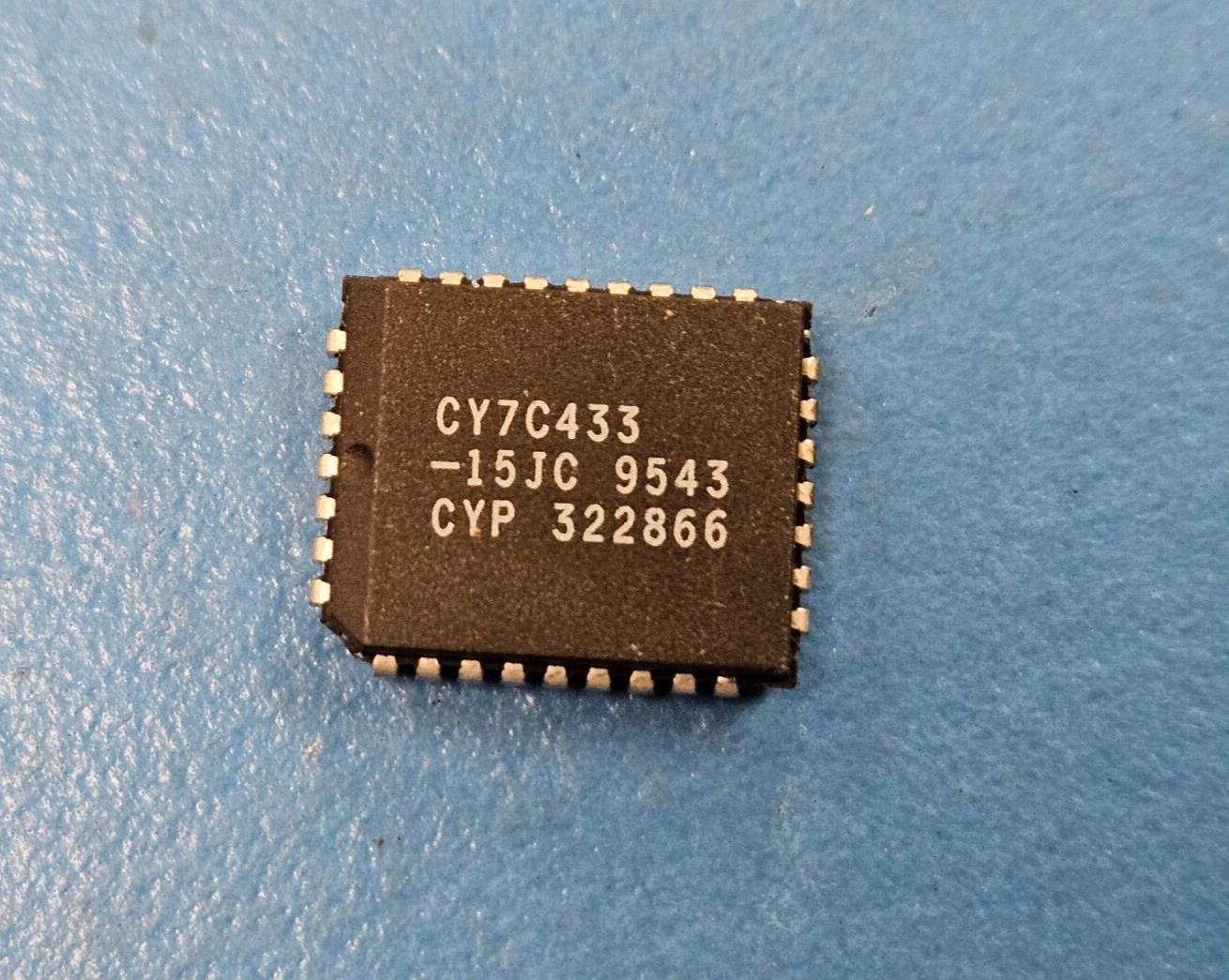

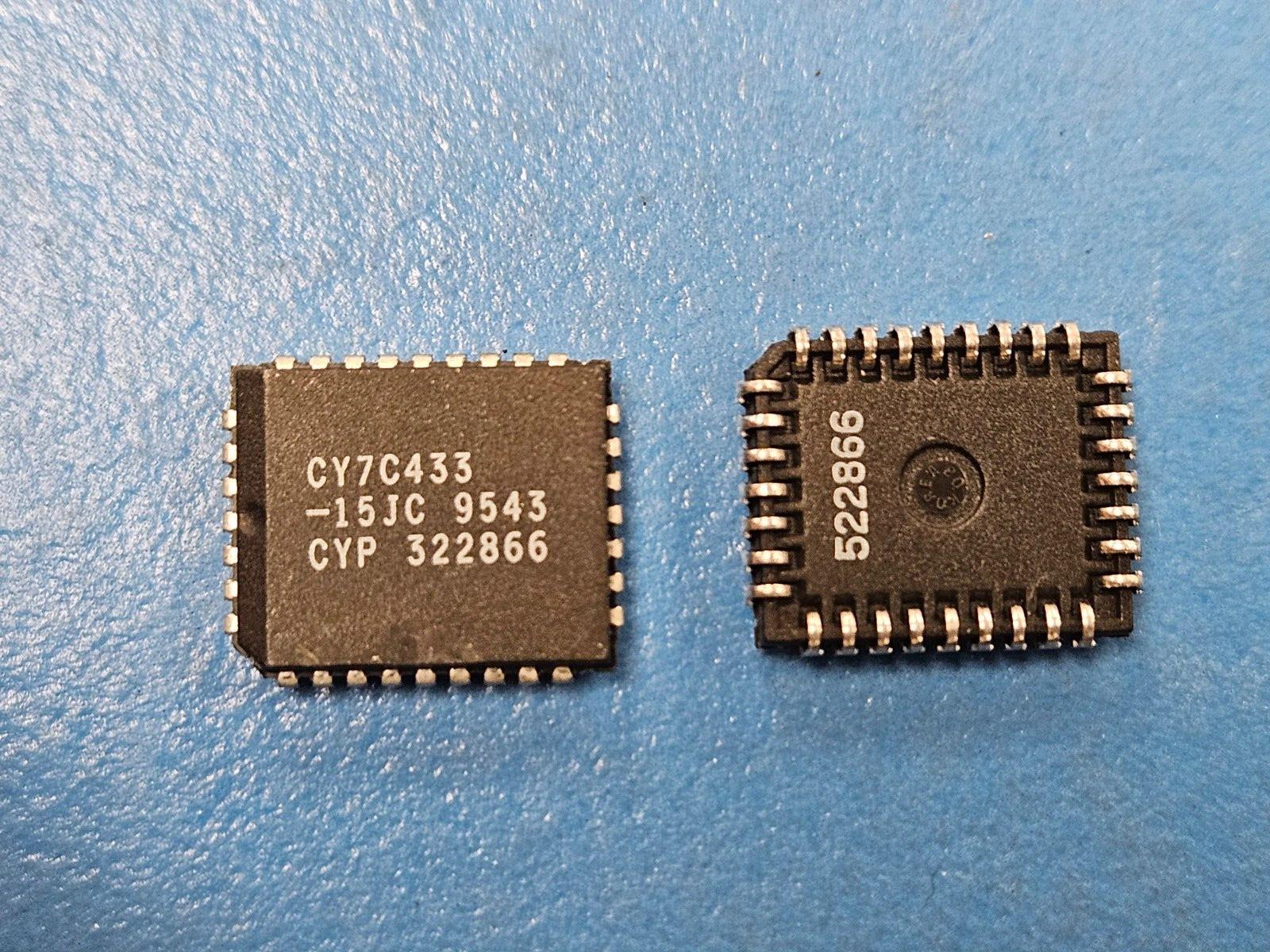

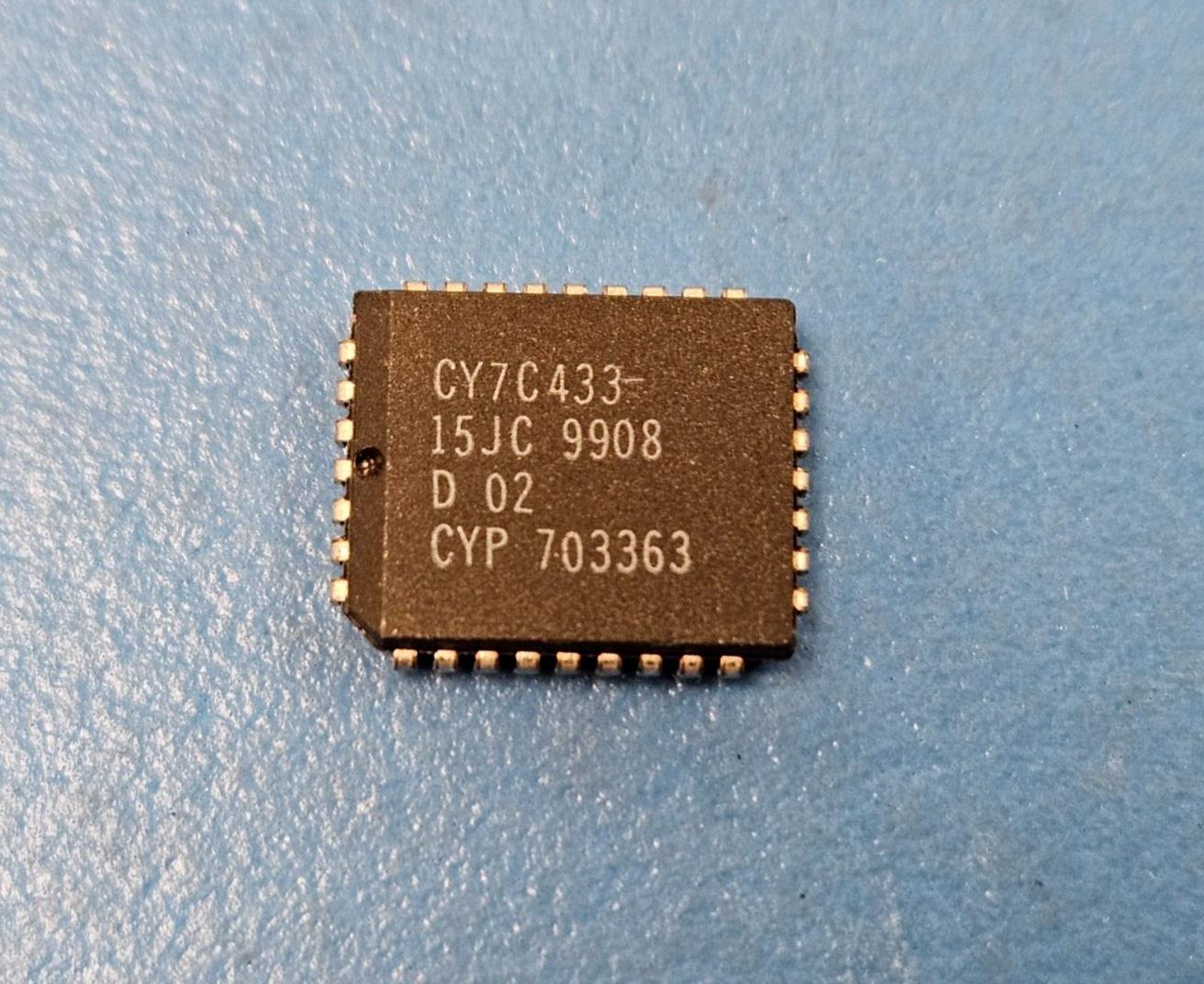

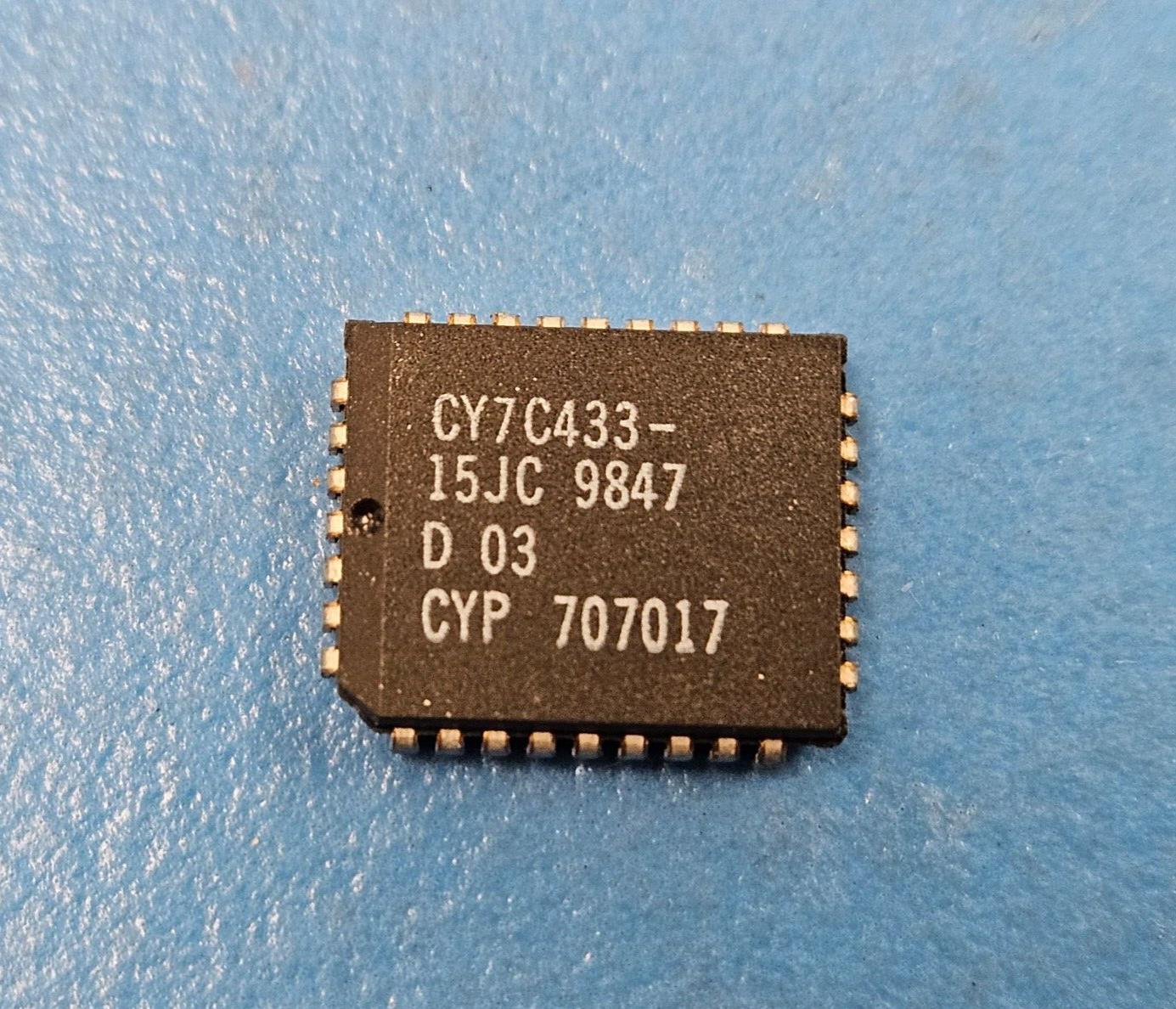

This listing is for (3pcs) of CY7C433-15JC by Cypress
Mfr Package Description PLASTIC, LCC-32
Status Discontinued
Sub Category FIFOs
Access Time-Max 15.0 ns
Clock Frequency-Max (fCLK) 40.0 MHz
Cycle Time 25.0 ns
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 36864.0 bit
Memory IC Type OTHER FIFO
Memory Width 9
Number of Functions 1
Number of Terminals 32
Number of Words 4096.0 words
Number of Words Code 4K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 4KX9
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.55 mm
Standby Current-Max 0.005 Amp
Supply Current-Max 0.065 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 13.97 mm
Width 11.43 mm
Additional Feature RETRANSMIT
