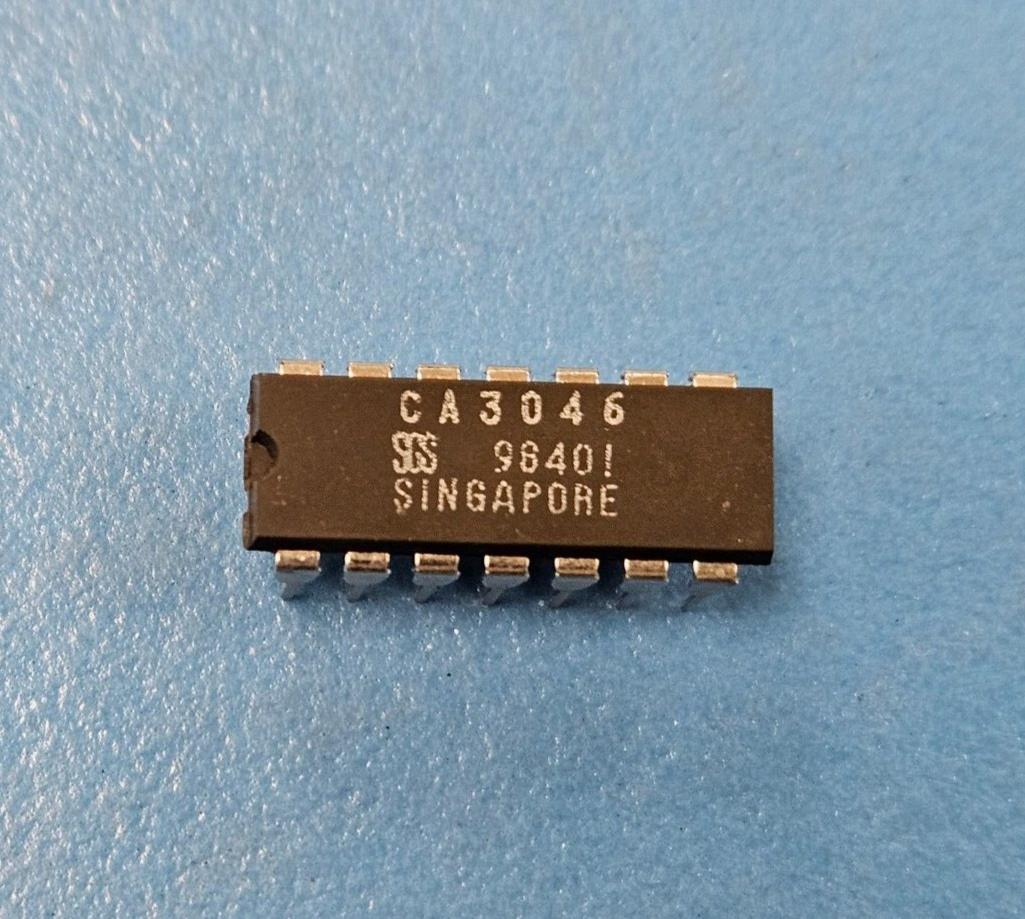

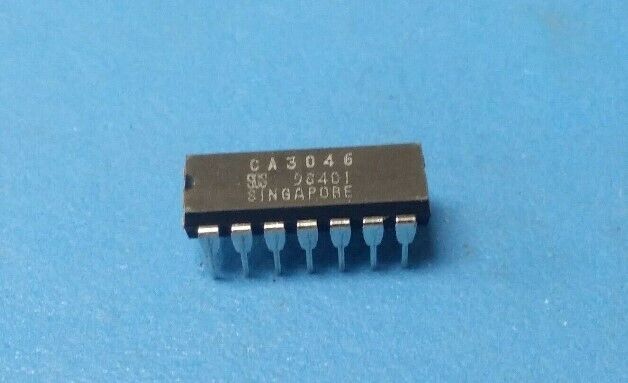

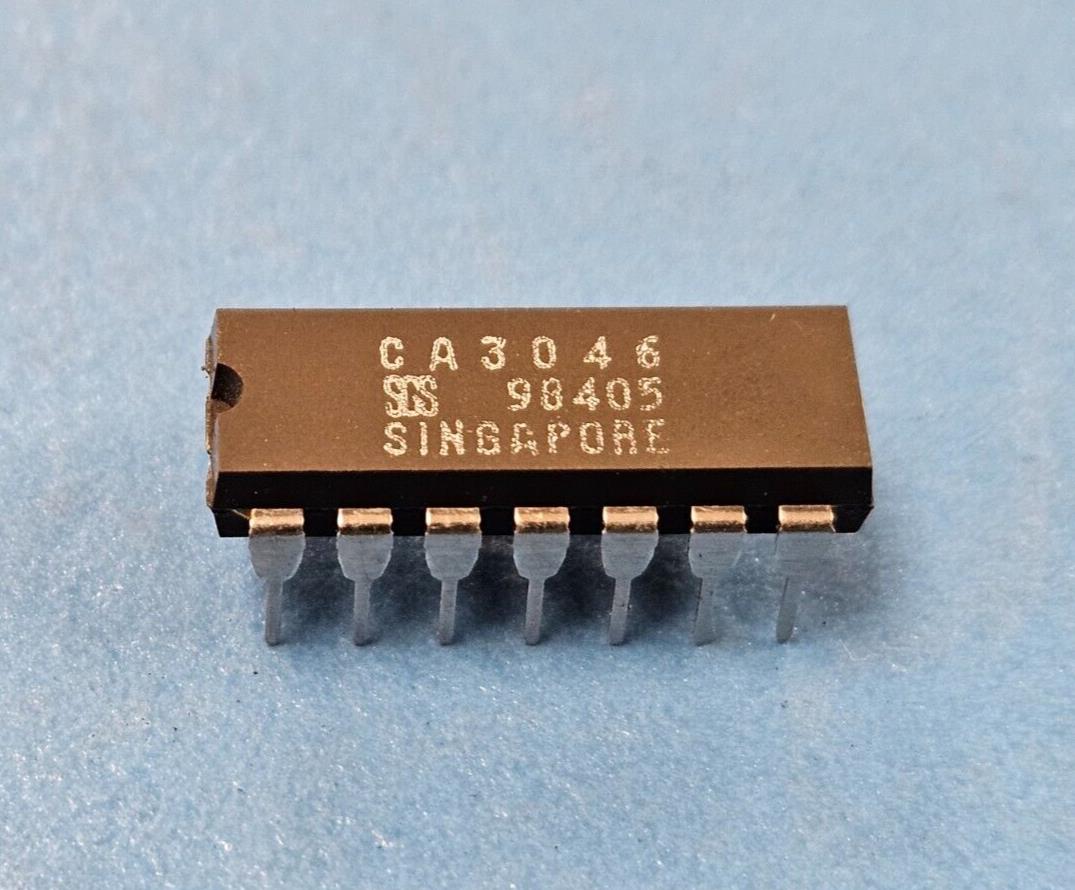

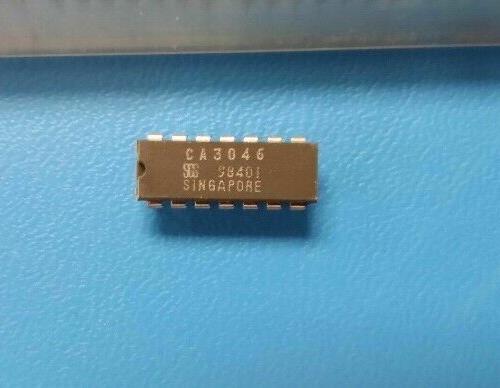

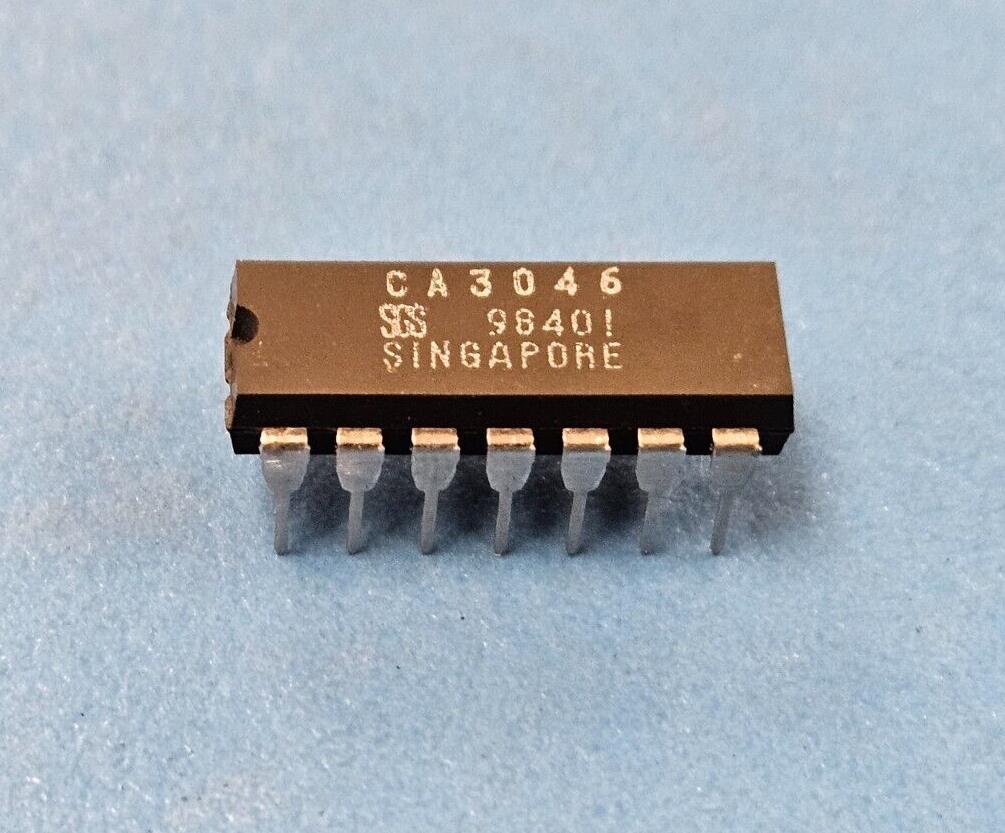

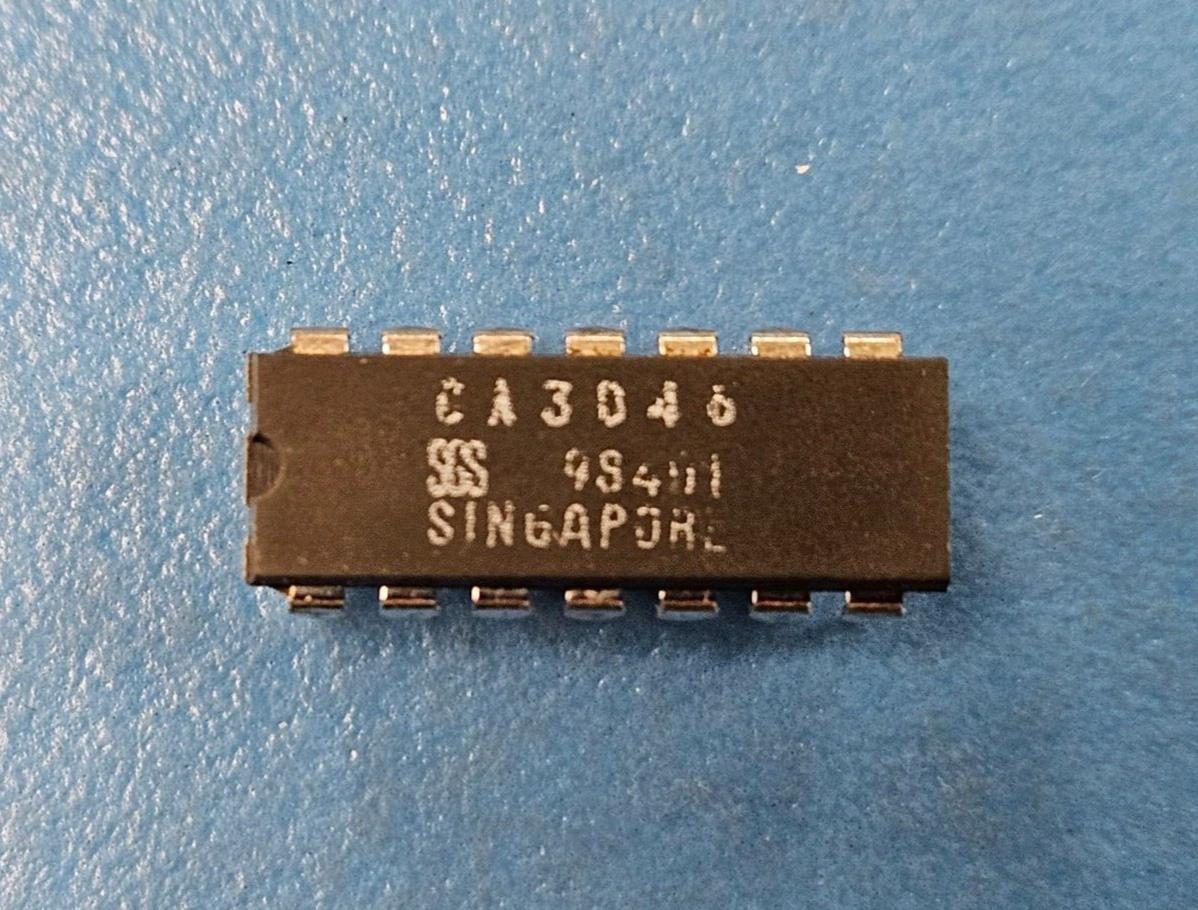

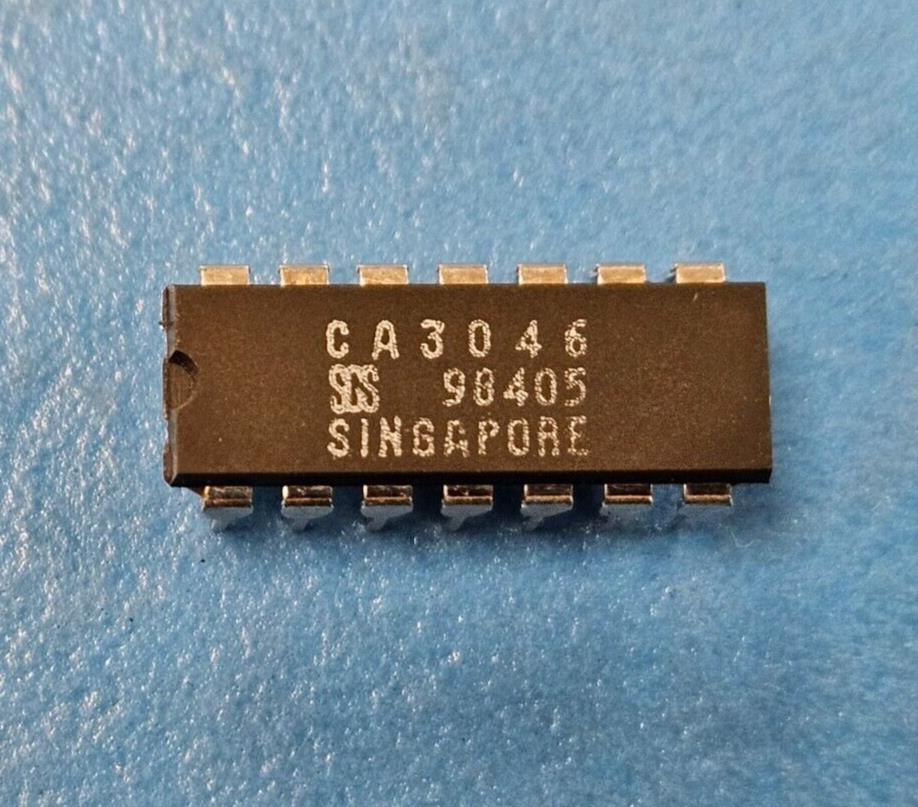

(3PCS) CA3046 SGS RF Small Signal Bipolar Transistor, 0.05A NPN 14-DIP
Tax included.
THIS LISTING IS FOR (3 PCS) OF CA3046 BY SGS
RF Small Signal Bipolar Transistor, 0.05A NPN 14-DIP
Status Discontinued
Collector Current-Max (IC) 0.05 A
Collector-emitter Voltage-Max 15.0 V
Configuration COMPLEX
DC Current Gain-Min (hFE) 40.0
Highest Frequency Band VERY HIGH FREQUENCY BAND
JEDEC-95 Code MS-001AA
JESD-30 Code R-PDIP-T14
Number of Elements 5.0
Number of Terminals 14
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Polarity/Channel Type NPN
Qualification Status Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Transistor Application AMPLIFIER
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 550.0 MHz
