(3PCS) AM29F040B-70JI Flash, 512KX8, 70ns, PLCC-32
Tax included.

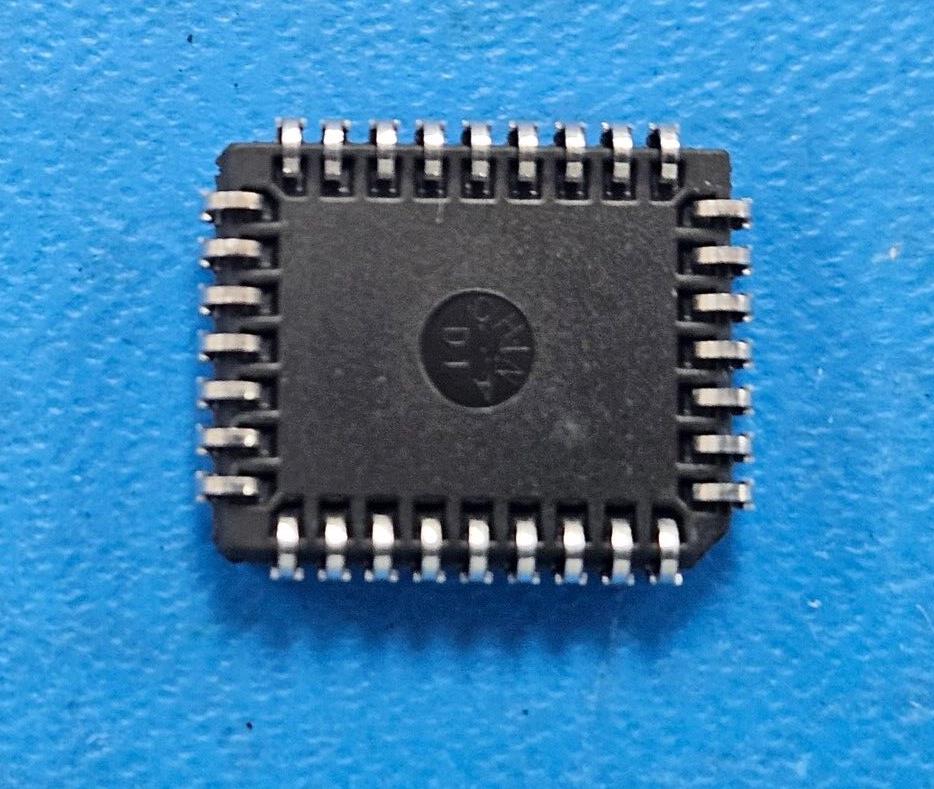

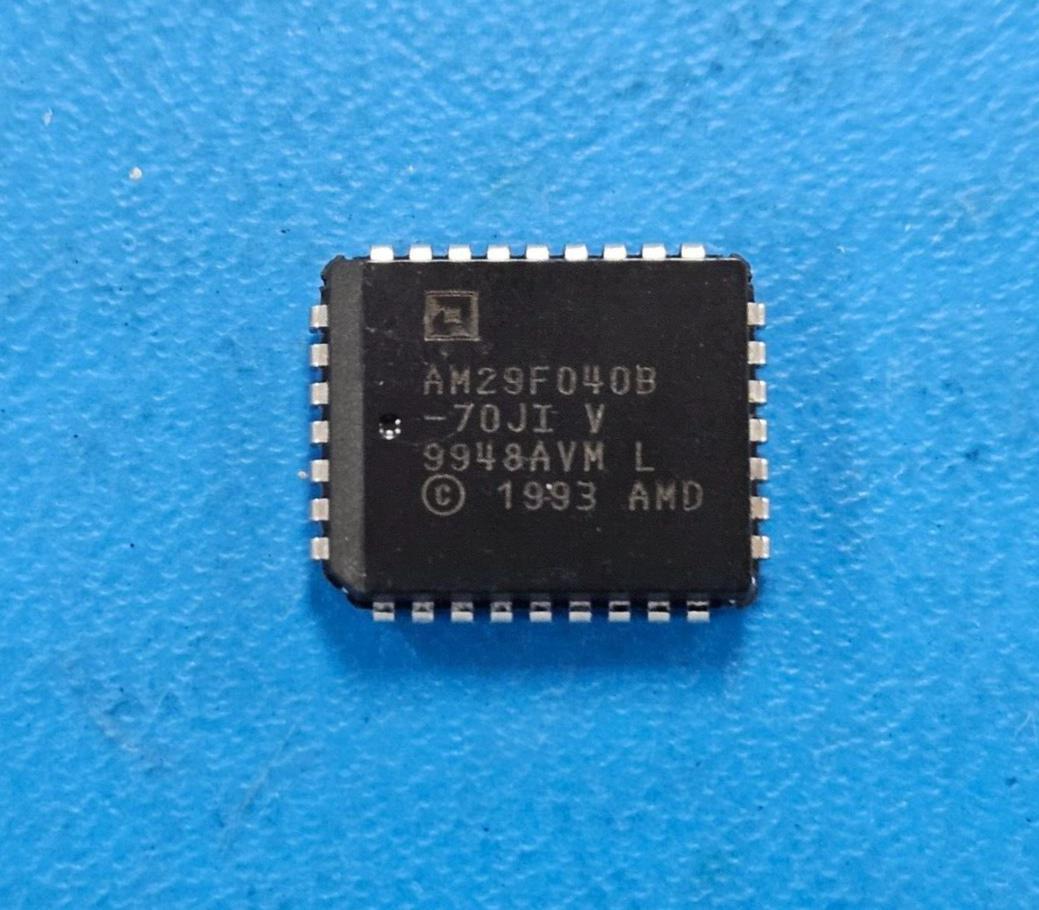

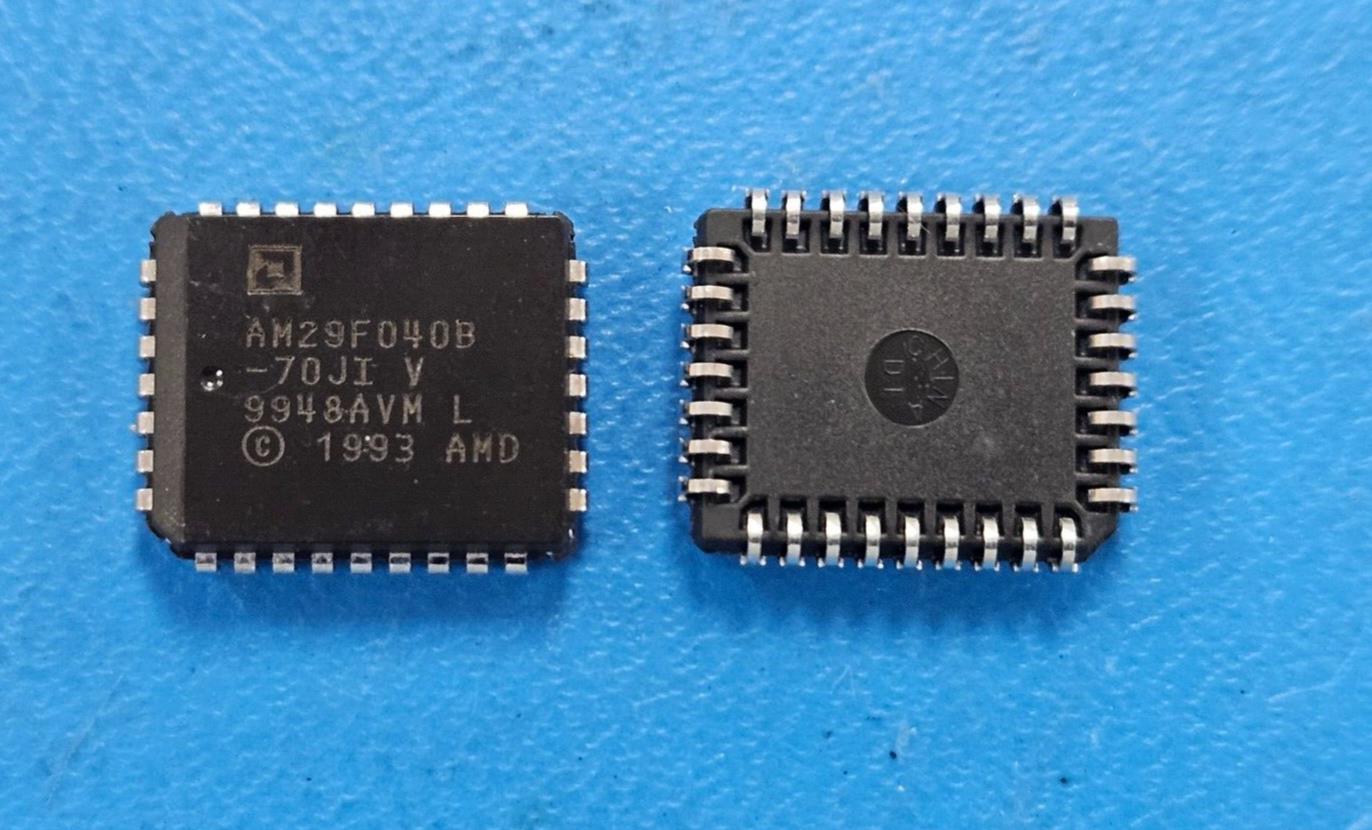

This listing is for (3pcs) of AM29F040B-70JI by AMD
Mfr Package Description PLASTIC, MO-052AE, LCC-32
Status Transferred
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 70.0 ns
Command User Interface YES
Data Polling YES
Data Retention Time-Min 20
Endurance 1000000.0 Write/Erase Cycles
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Sectors/Size 8
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 512KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.556 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.04 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Toggle Bit YES
Length 13.97 mm
Width 11.43 mm
