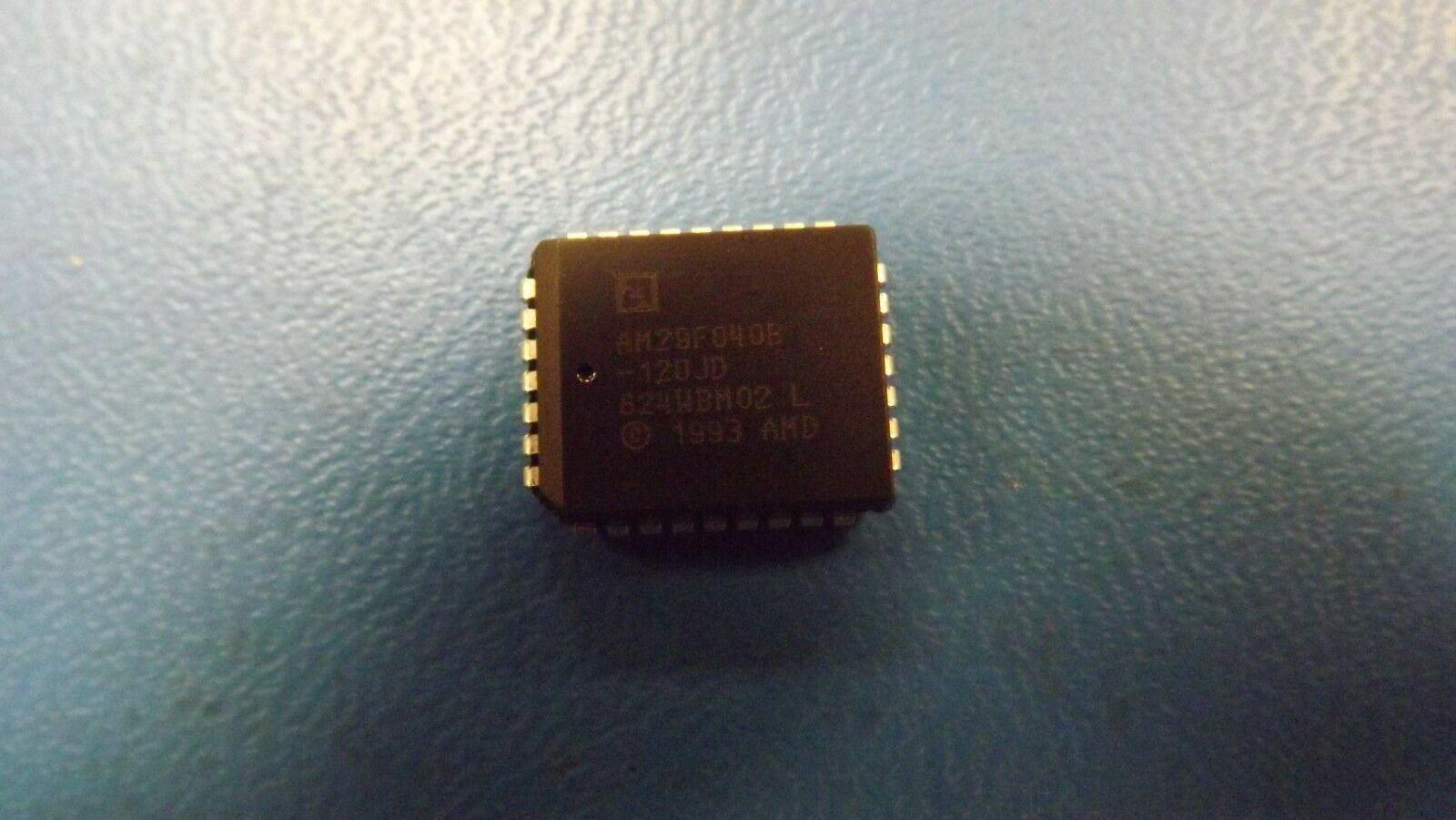

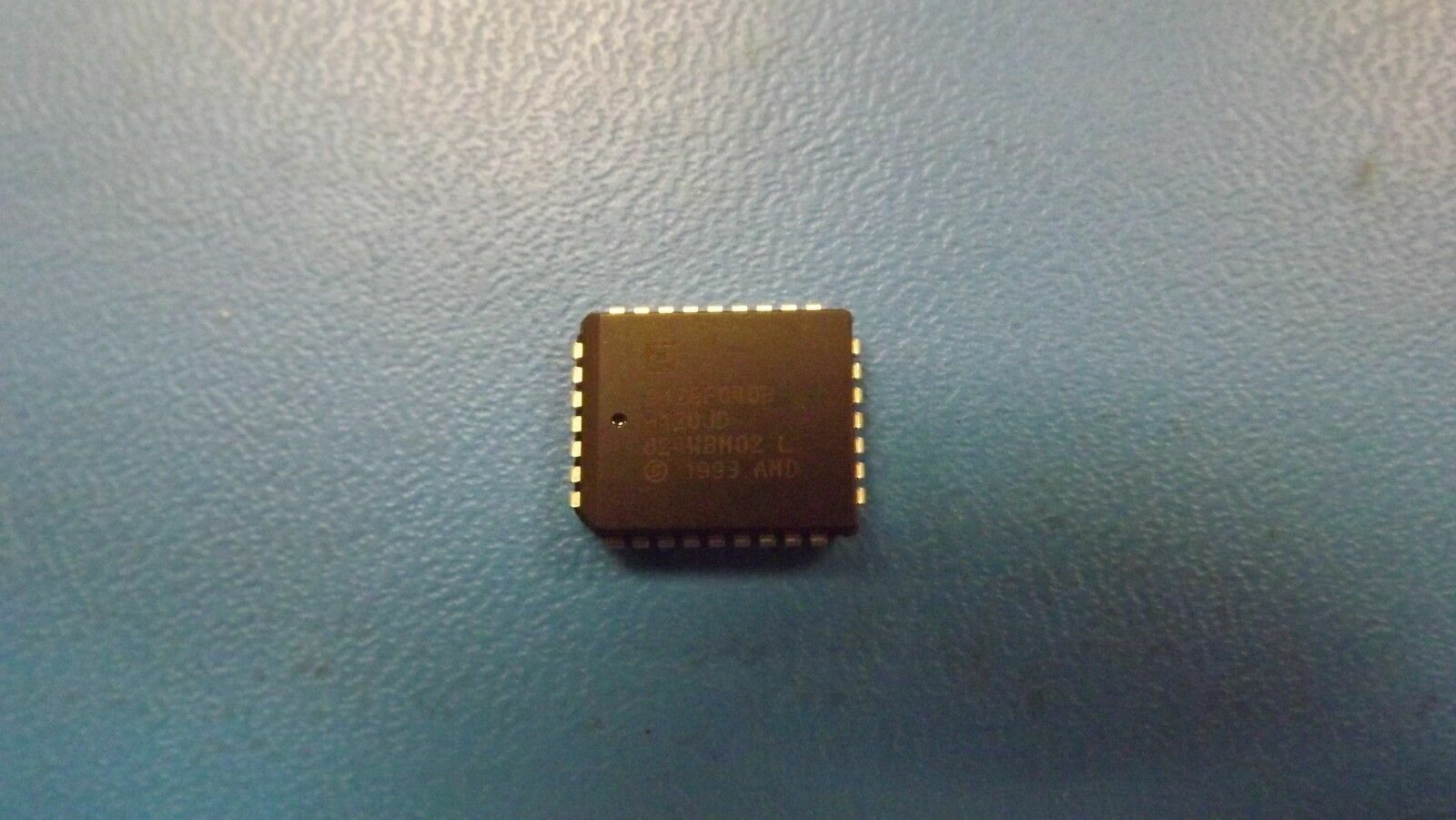

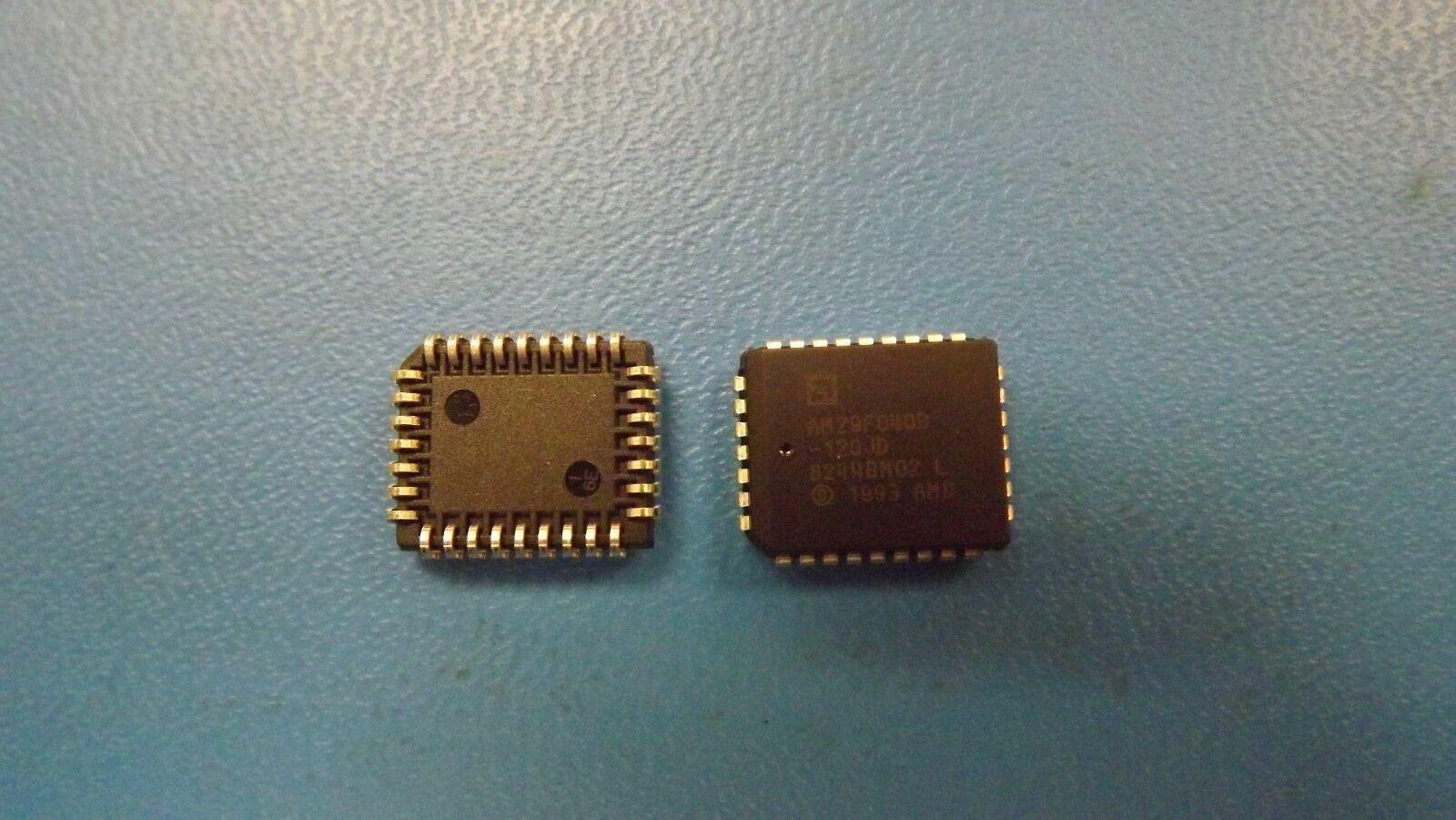

(3PCS) AM29F040B-120JD AMD/SPANSION FLASH MEMORY 4MBIT 120NS 32-PLCC
Tax included.
THIS LISTING IS FOR (3PCS) OF AM29F040B-120JD BY AMD/SPANSION
SPECIFICATIONS
| Mfr Package Description | LEAD FREE, PLASTIC, MO-052AE, LCC-32 |
| EU RoHS Compliant | Yes |
| Status | Transferred |
| Type | NOR TYPE |
| Sub Category | Flash Memories |
| Access Time-Max | 120.0 ns |
| Command User Interface | YES |
| Data Polling | YES |
| Endurance | 1000000.0 Write/Erase Cycles |
| JESD-30 Code | R-PQCC-J32 |
| Memory Density | 4194304.0 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Sectors/Size | 8 |
| Number of Terminals | 32 |
| Number of Words | 524288.0 words |
| Number of Words Code | 512K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 512KX8 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC32,.5X.6 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER |
| Parallel/Serial | PARALLEL |
| Power Supplies (V) | 5 |
| Programming Voltage (V) | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 3.556 mm |
| Sector Size (Words) | 64K |
| Standby Current-Max | 5.0E-6 Amp |
| Supply Current-Max | 0.04 Amp |
| Supply Voltage-Nom (Vsup) | 5.0 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Toggle Bit | YES |
| Length | 13.97 mm |
| Width | 11.43 mm |
