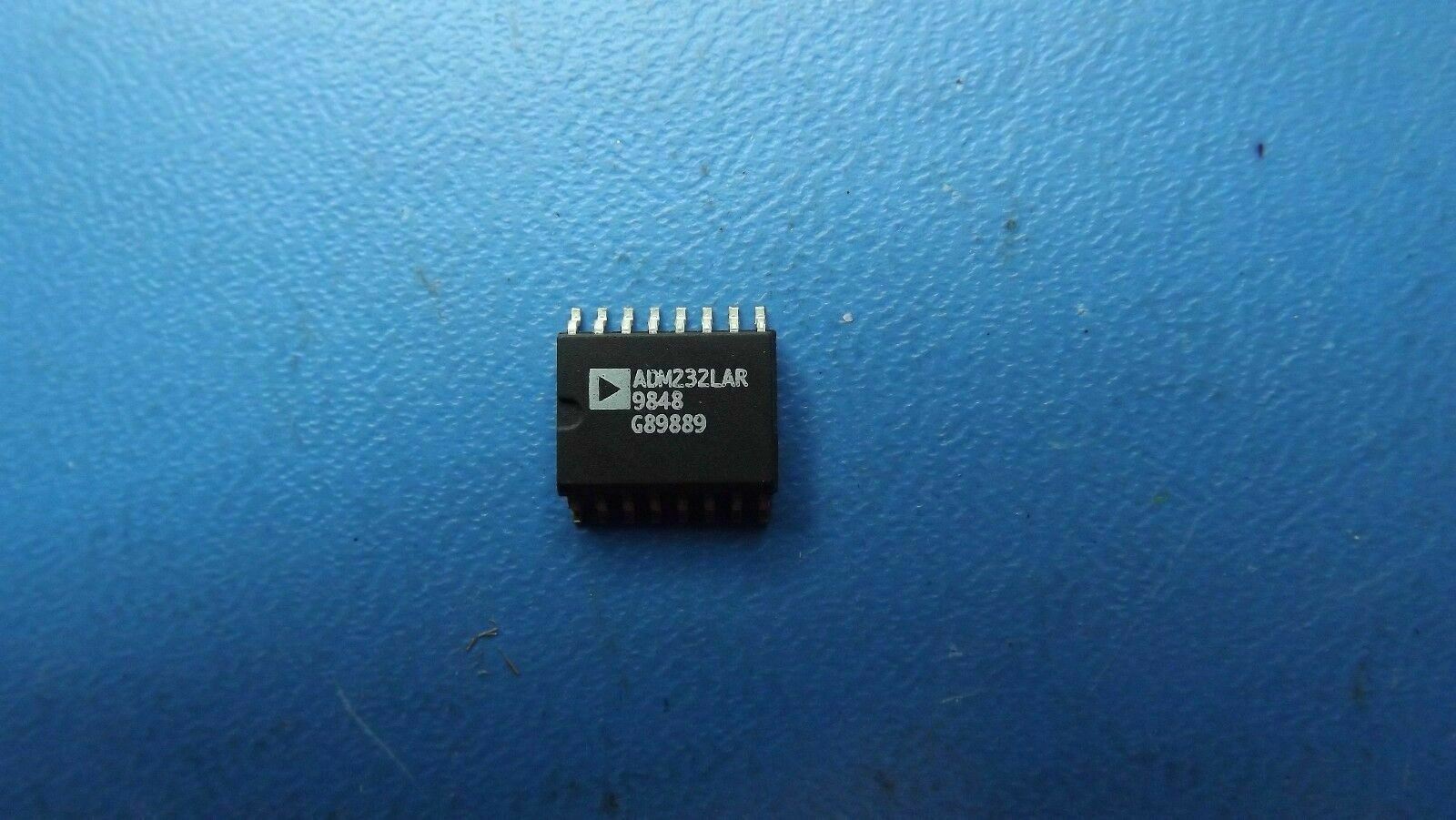

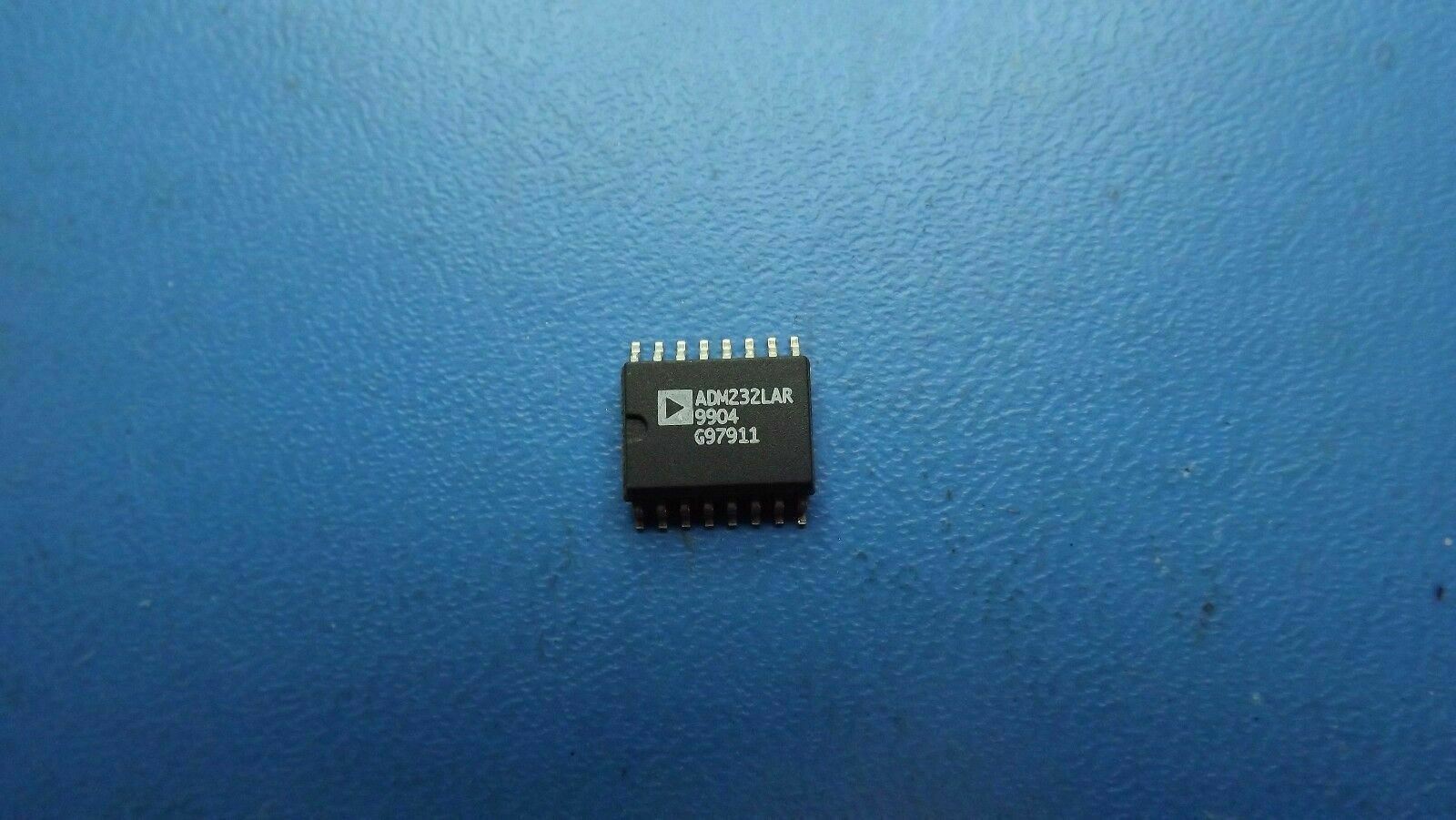

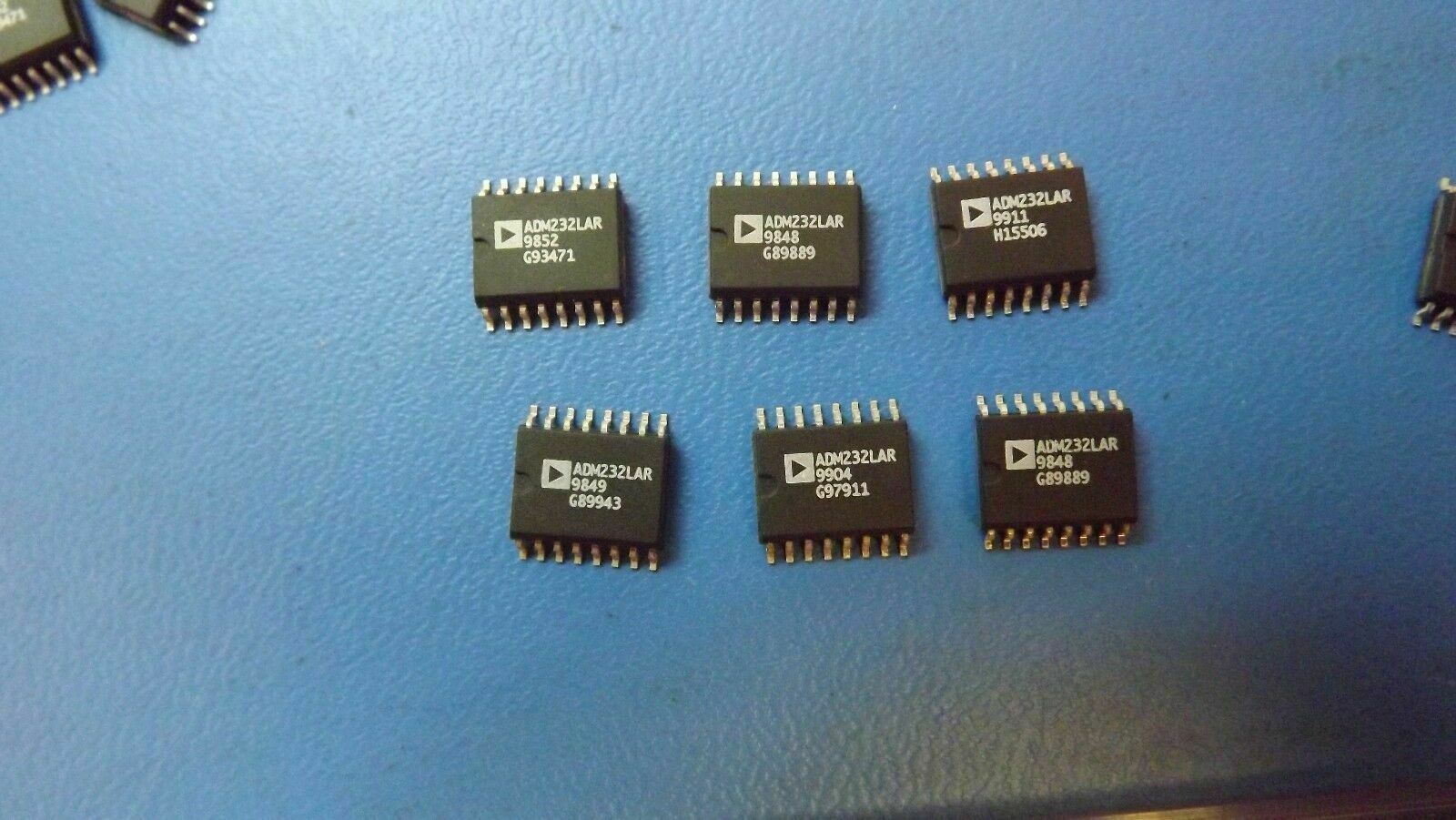

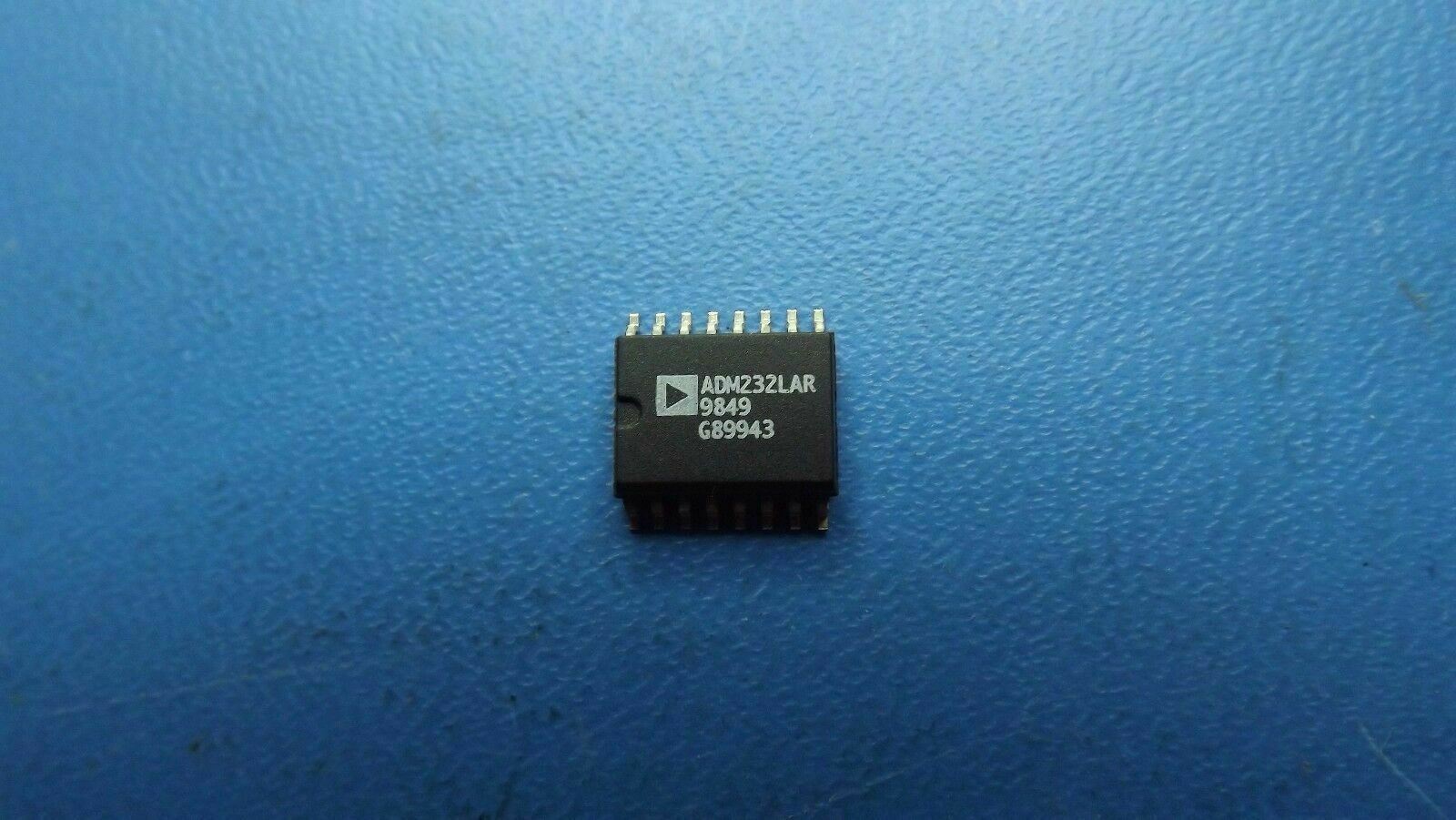

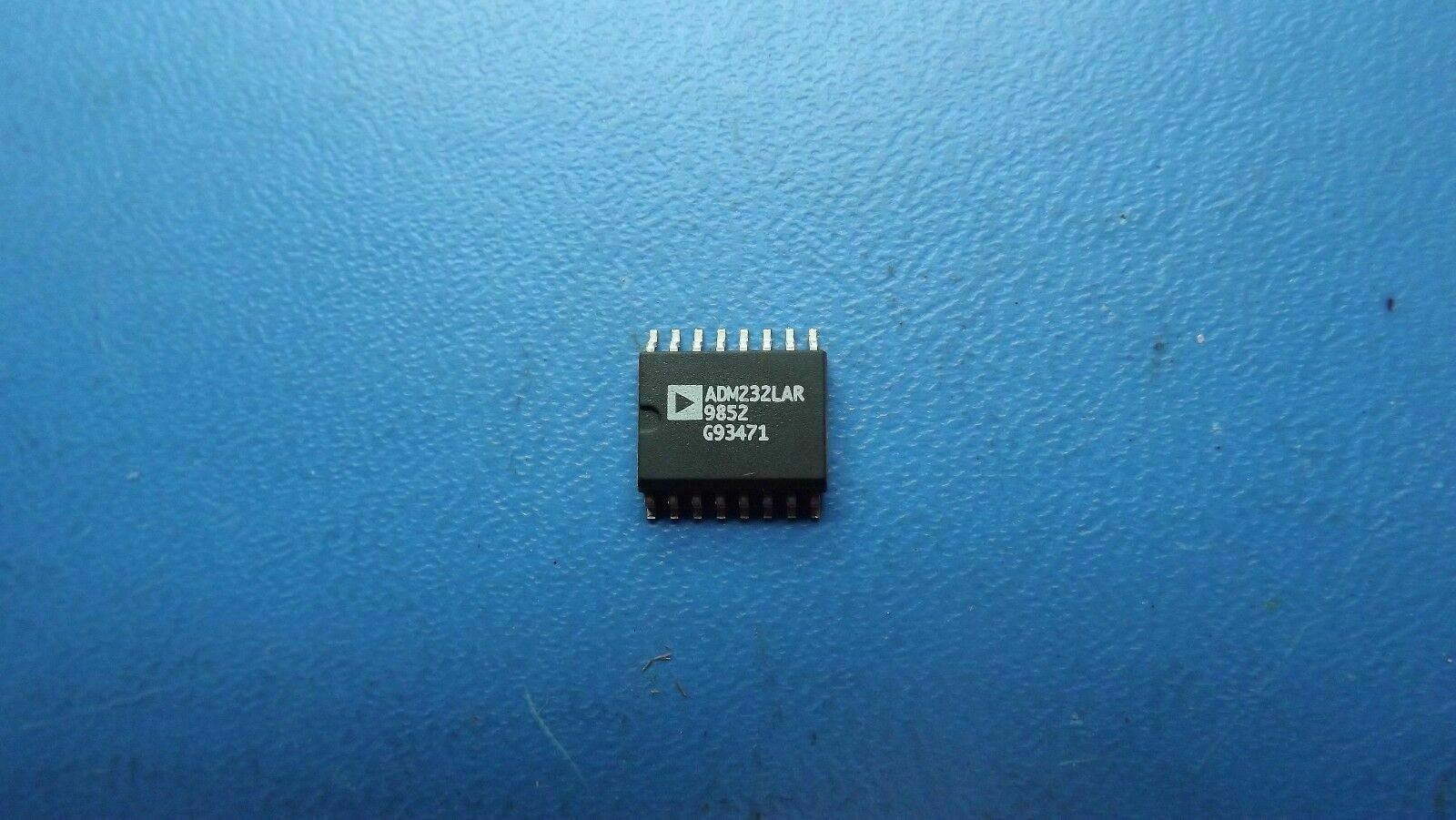

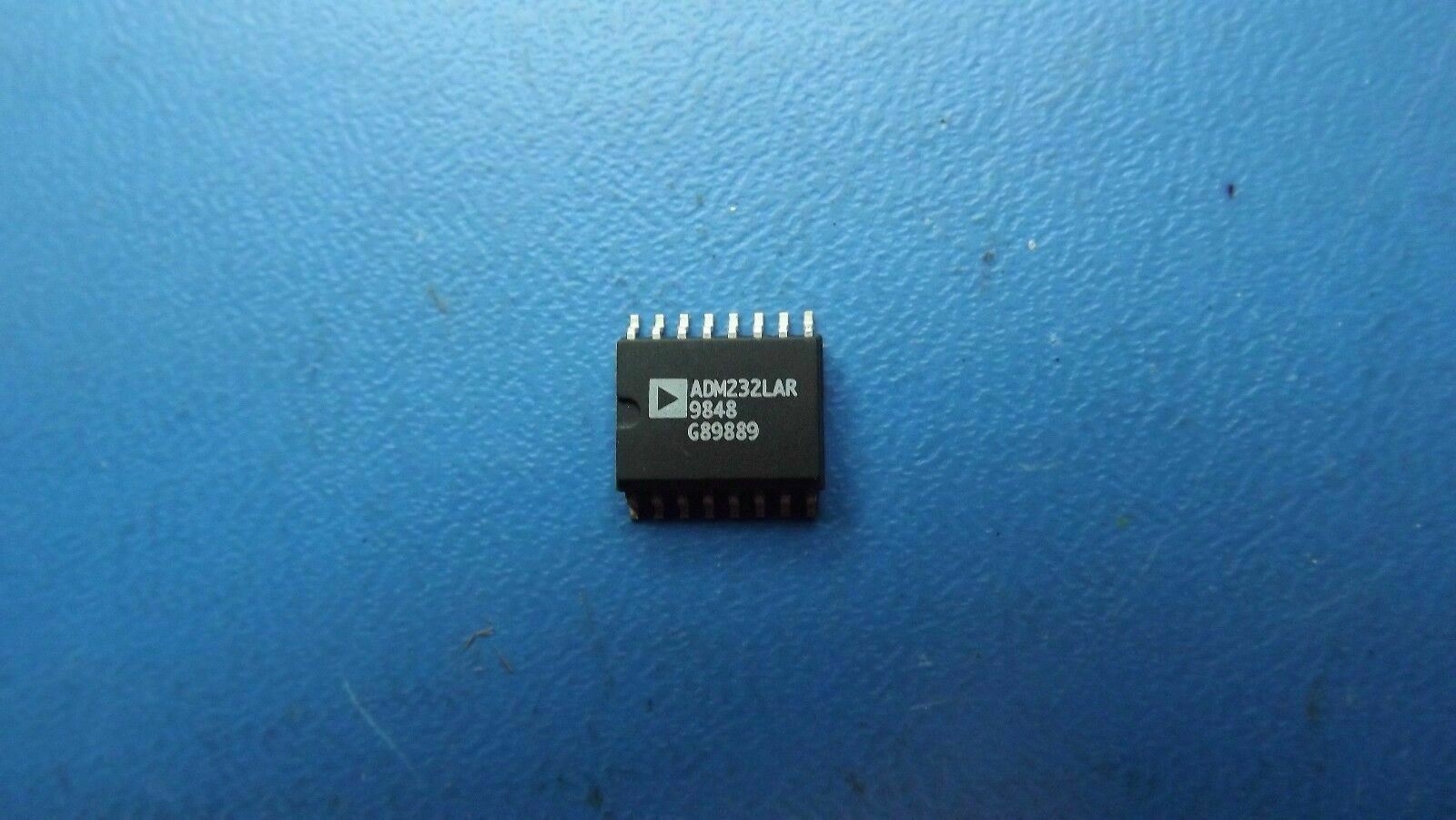

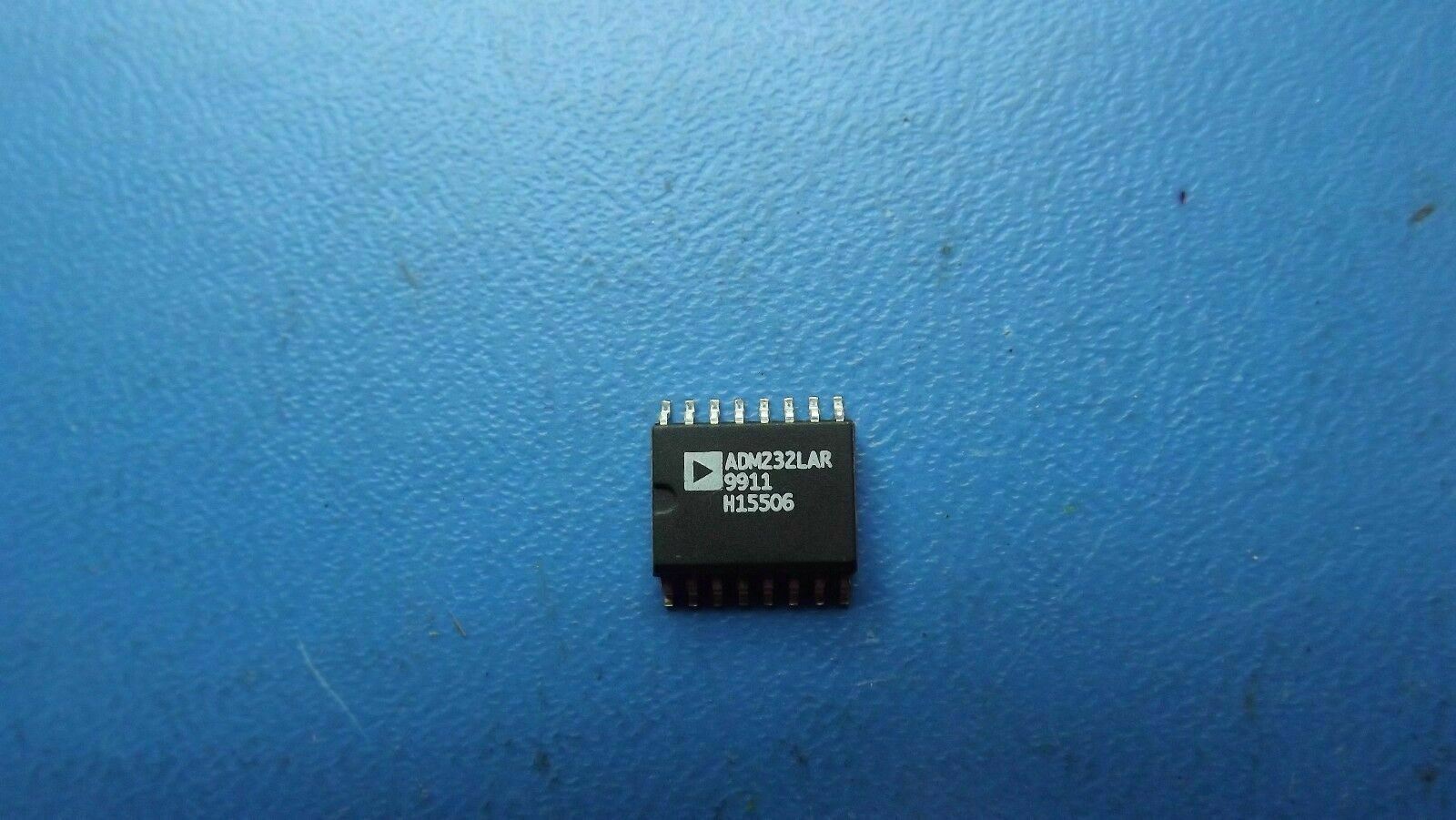

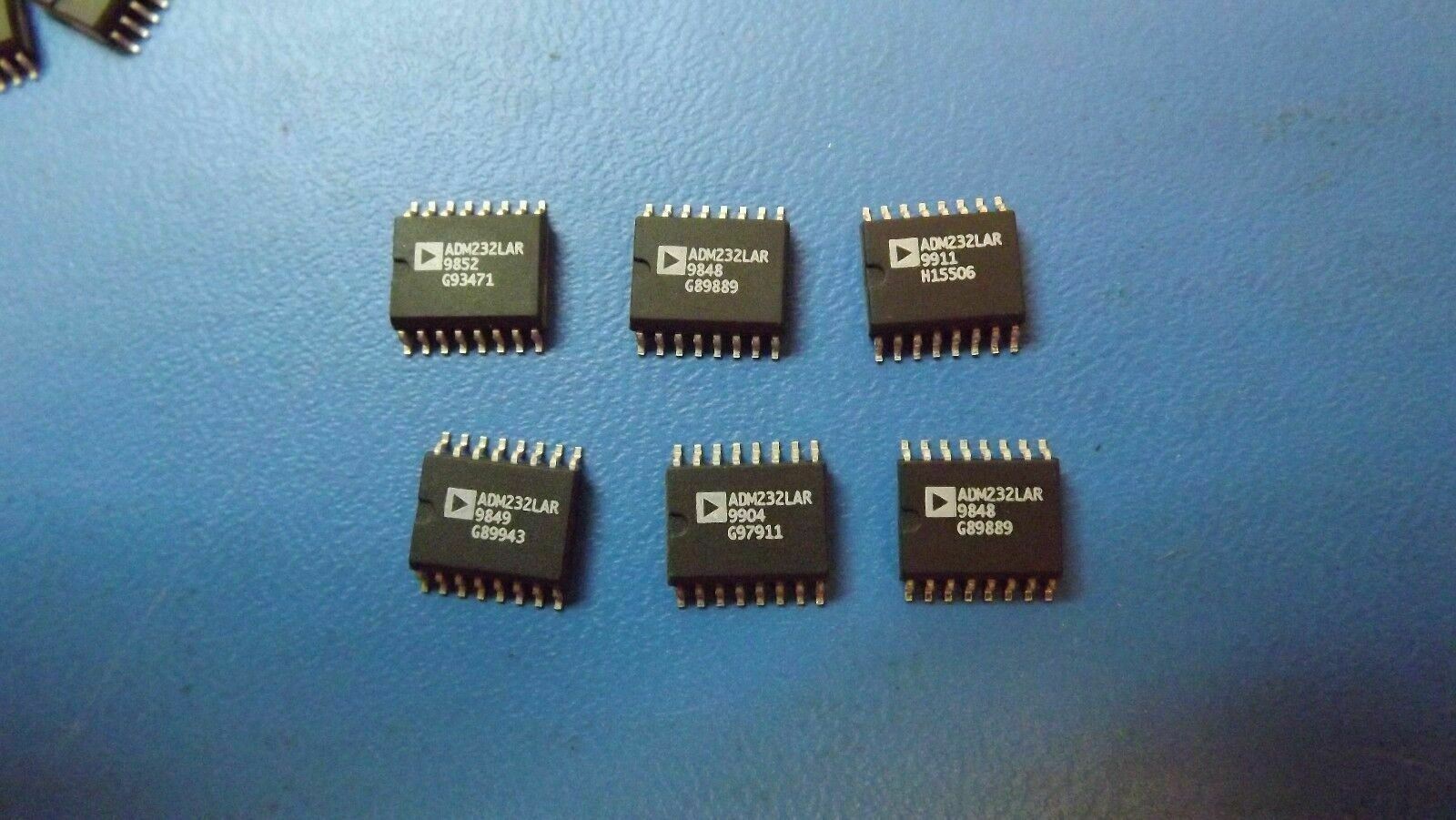

(5PCS) ADM232LAR Dual Transmitter/Receiver RS-232 16-Pin SOIC
Tax included.
THIS LISTING IS FOR (5PCS) OF ADM232LAR BY ANALOG DEVICES.
Dual Transmitter/Receiver RS-232 16-Pin SOIC
PART INFORMATION
ADM232LAR PART DETAILS & PARAMETRIC
| EU RoHS |
Not Compliant
|
| Function | Line Transmitter/Receiver |
| Number of Transceivers | 1 |
| Data Rate | 120Kbps |
| Number of Receivers | 2 |
| Data Transmission Topology | Point-to-Point |
| Receiver Signal Type | Single-Ended |
| Interface Standards | EIA-232-E|RS-232|V.28 |
| Number of Transmitters | 2 |
| Transmitter Signal Type | Single-Ended |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 85 |
| Power Supply Type | Single |
| Typical Single Supply Voltage (V) | 5 |
| Minimum Single Supply Voltage (V) | 4.5 |
| Maximum Single Supply Voltage (V) | 5.5 |

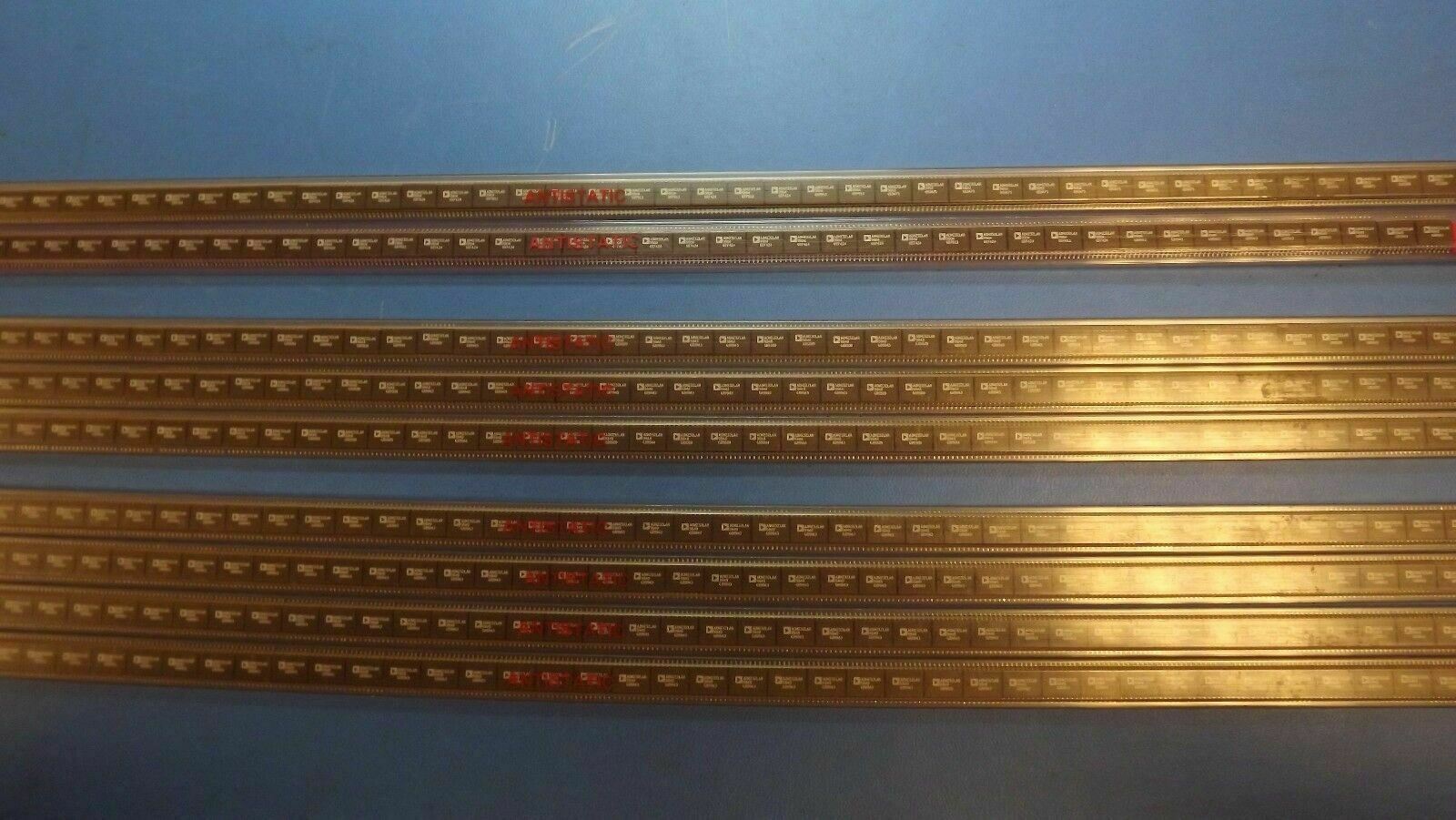

| Packaging | Tube |
| Mounting | Surface Mount |
| Package Height (mm) | 2.35(Max) |
| Package Length (mm) | 10.5(Max) |
| Package Width (mm) | 7.6(Max) |
| PCB | 16 |
| Standard Package Name | SOIC |
| Supplier Package | SOIC W |
| Pin Count | 16 |
| Lead Shape | Gull-wing |
