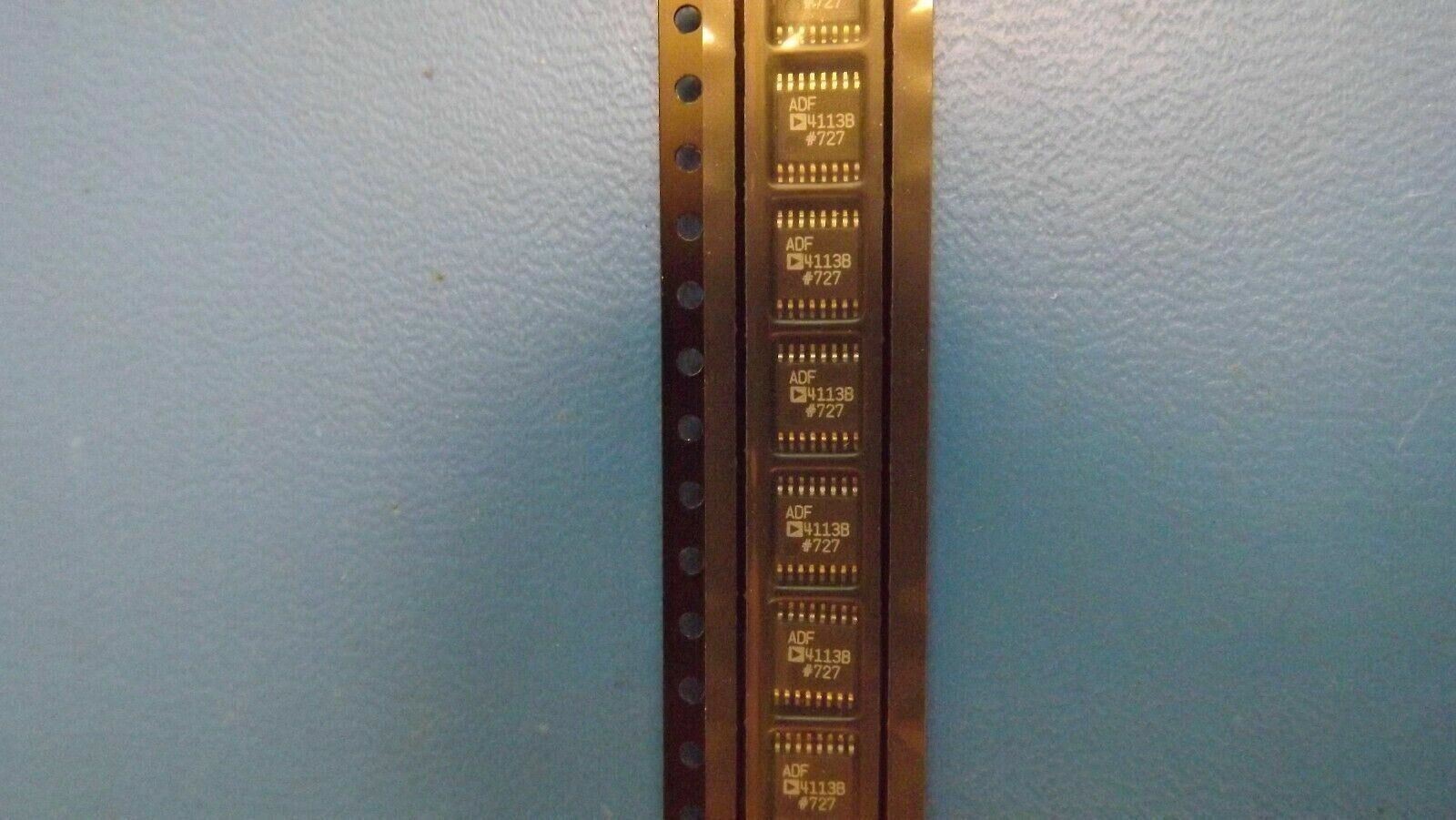

(3PCS) ADF4113BRUZ ANALOG DEVICES PLL Frequency Synthesizer Single 16-Pin TSSOP

  • $5.85
    Unit price per
Tax included.

Only 490 left!

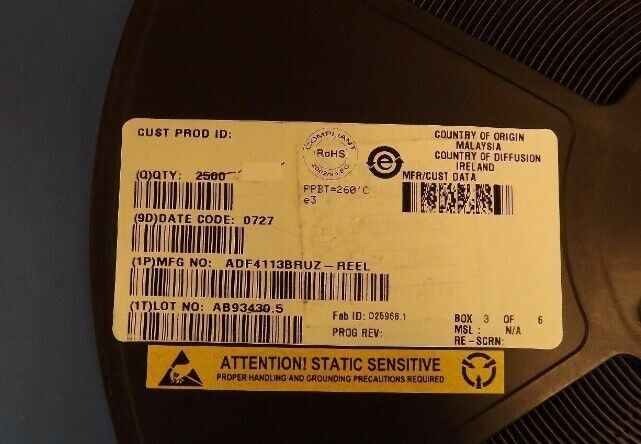

THIS LISTING IS FOR (3PCS) OF ADF4113BRUZ BY ANALOG DEVICES

**WE CURRENTLY HAVE 17000PCS IN STOCK AND WILL GLADLY MAKE DEALS ON LARGER QUANTITIES. PLEASE SEND OFFERS OR INQUIRIES.**

SPECIFICATIONS

Mfr Package Description LEAD FREE, MO-153AB, TSSOP-16
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Analog IC - Other Type PLL FREQUENCY SYNTHESIZER
JESD-30 Code R-PDSO-G16
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Power Supplies (V) 3/5
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Sub Category PLL or Frequency Synthesis Circuits
Supply Current-Max (Isup) 11.0 mA
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology BICMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 40
Length 5.0 mm
Width 4.4 mm
Additional Feature 6-BIT SWALLOW COUNTER
