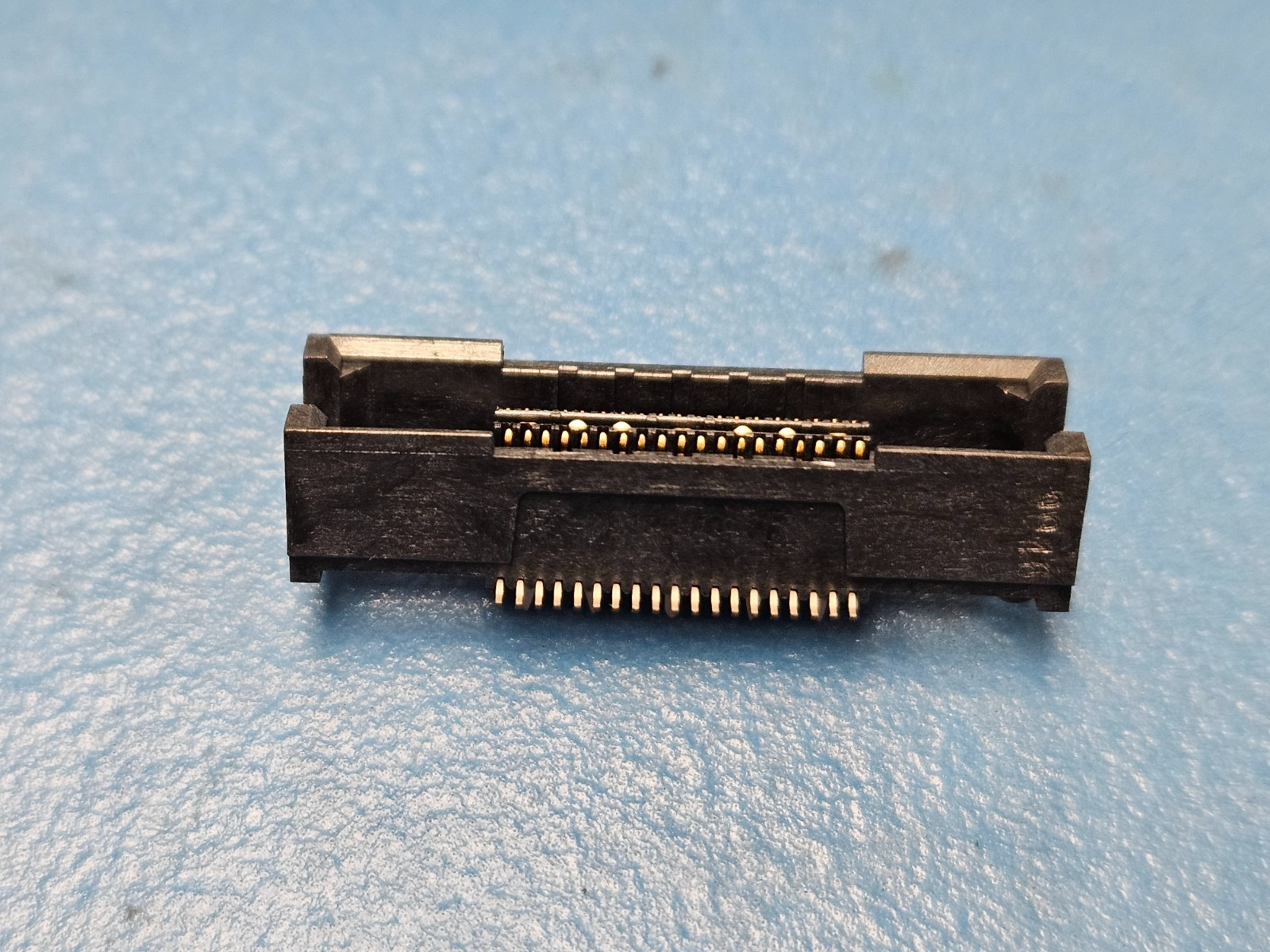

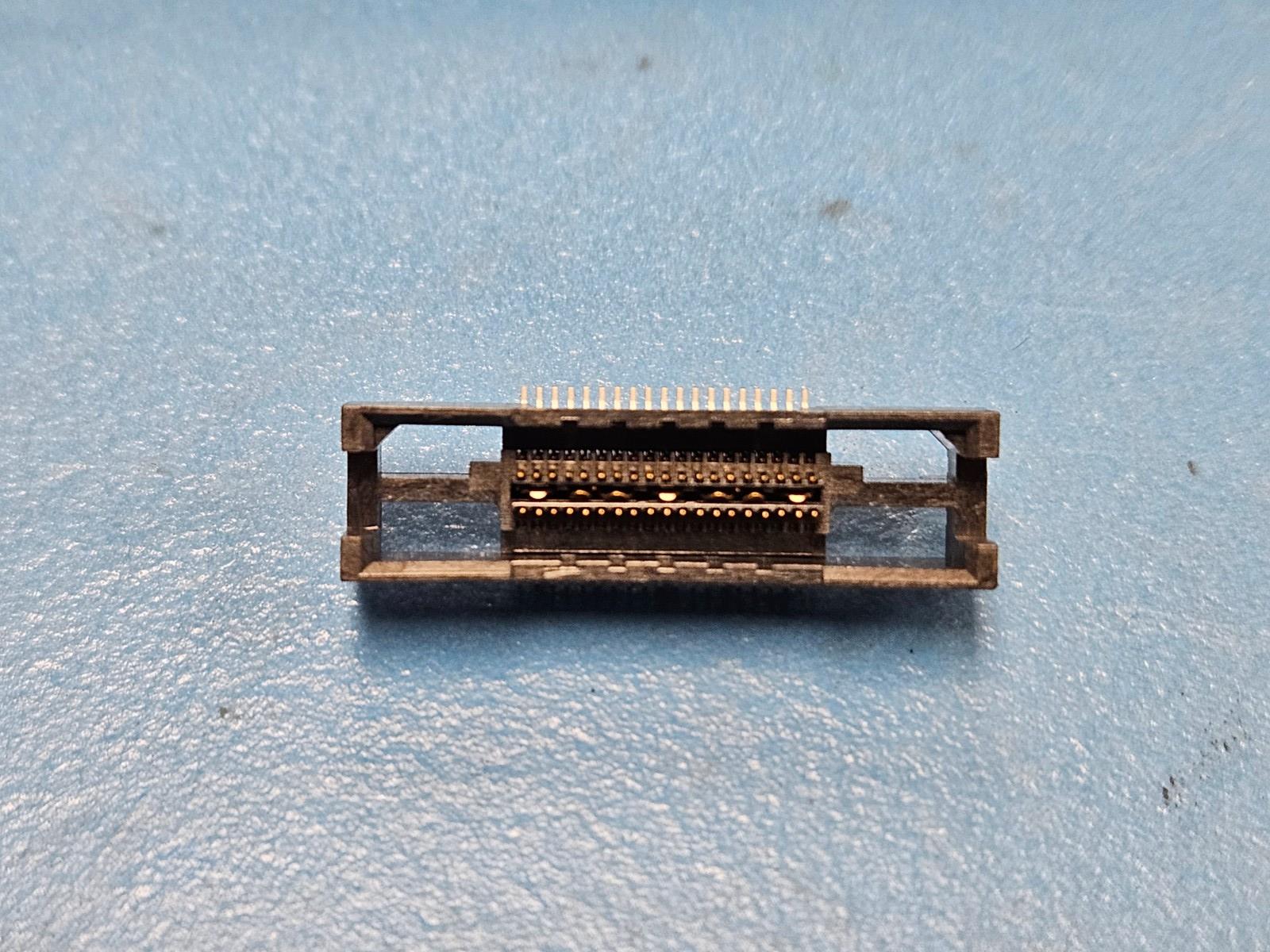

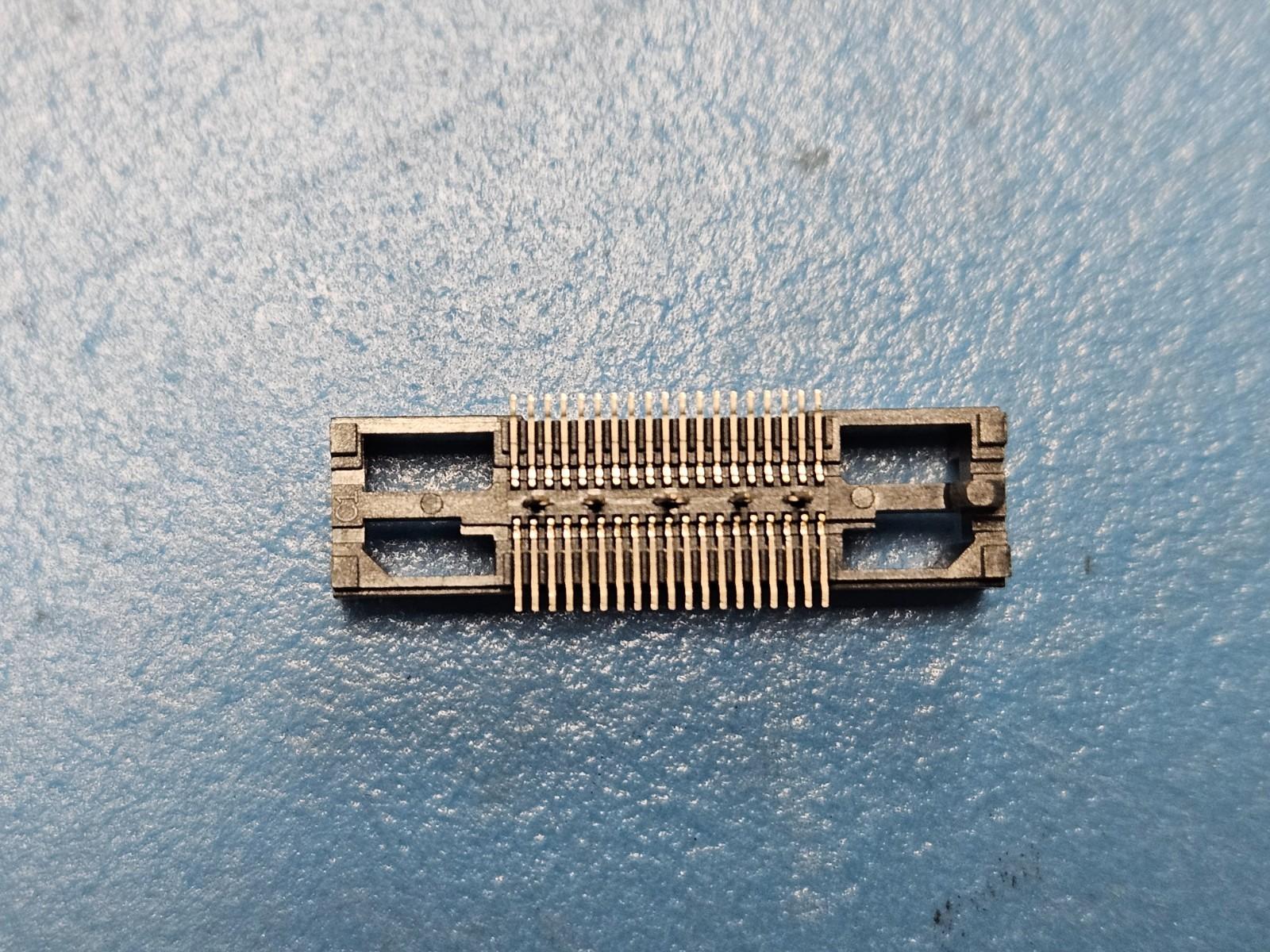

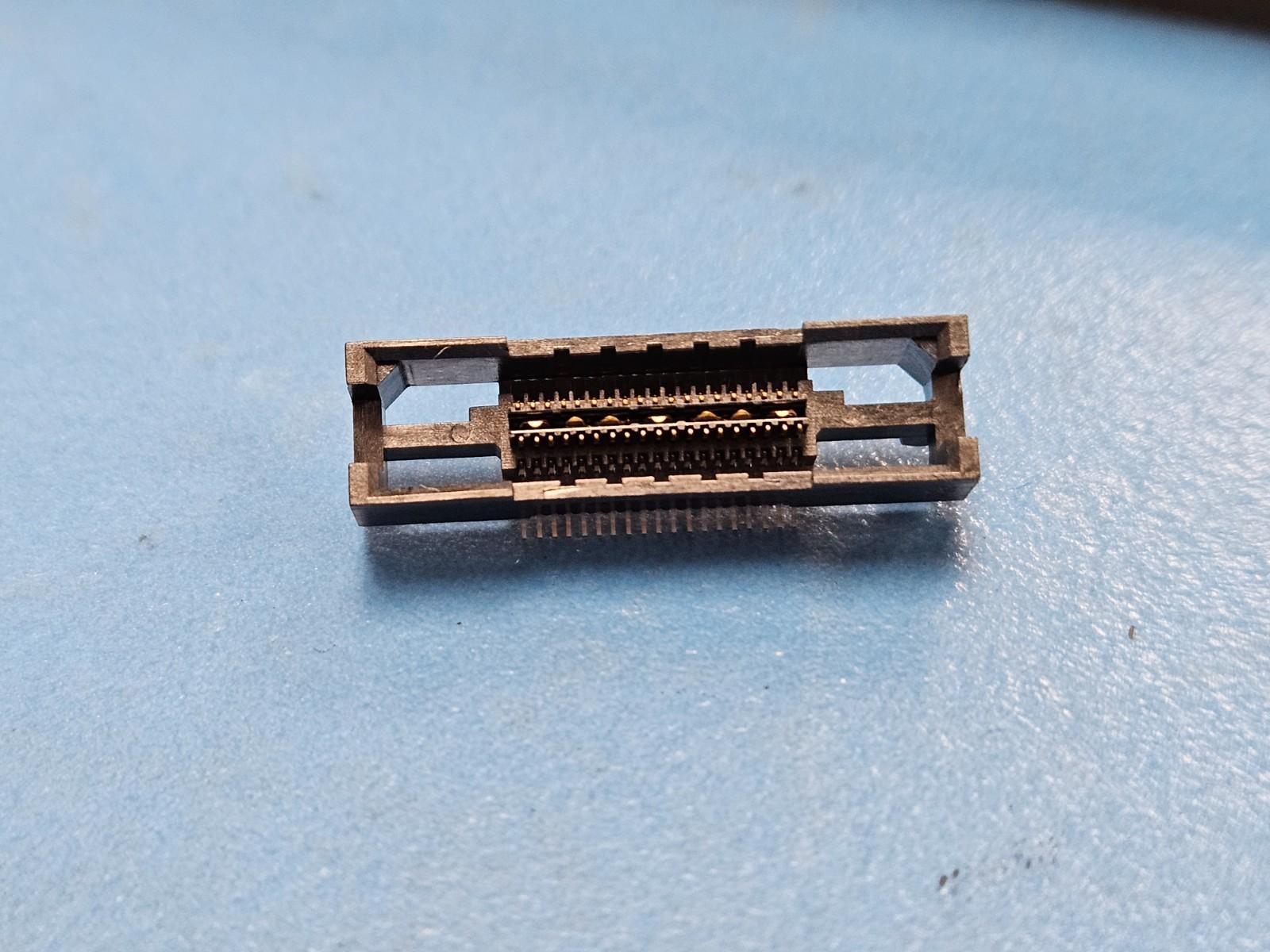

(3PCS) 767054-1 Board Stacking Connector, 38 Contact, 2 Row, Female, Straight
Tax included.
This listing is for (3PCS) of 767054-1 by TE Connectivity
Status Discontinued
Additional Feature MICTOR, POLARIZED
Board Mounting Option LOCATING POST
Body Breadth (inch) 0.272000
Body Depth (inch) 0.240000
Body Length (inch) 1.000000
Body/Shell Style RECEPTACLE
Characteristic Impedance (ohm) 50.0000000000000000
Connector Type BOARD STACKING CONNECTOR
Contact Arrangement S38P1
Contact Finish - Mating NOT SPECIFIED
Contact Finish - Termination NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Resistance (mohm) 10.000000000000000
Contact Style CENTRONIC
DIN Conformance NO
Durability (Cycles) 500
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) 1.112
Insulation Resistance (ohm) 2000000.000000000000000
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mains Connector Rating 11.5A
Mating Contact Pitch (inch) 0.025
Mating Contact Row Spacing (inch) 0.228
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts YES
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Ports 1
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 7.0866
Panel Mount NO
Plating Thickness (inch) 5u
Polarization Key POLAR PIN POSITION
Rated Current (Signal) (A) 11.5000000000000000
Rated Voltage (V) 1.0000000000000000
Screening Level / Reference Standard CSA, UL
Terminal Pitch (mm) 0.64
Termination Type SURFACE MOUNT
Number of Contacts 39
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .139
