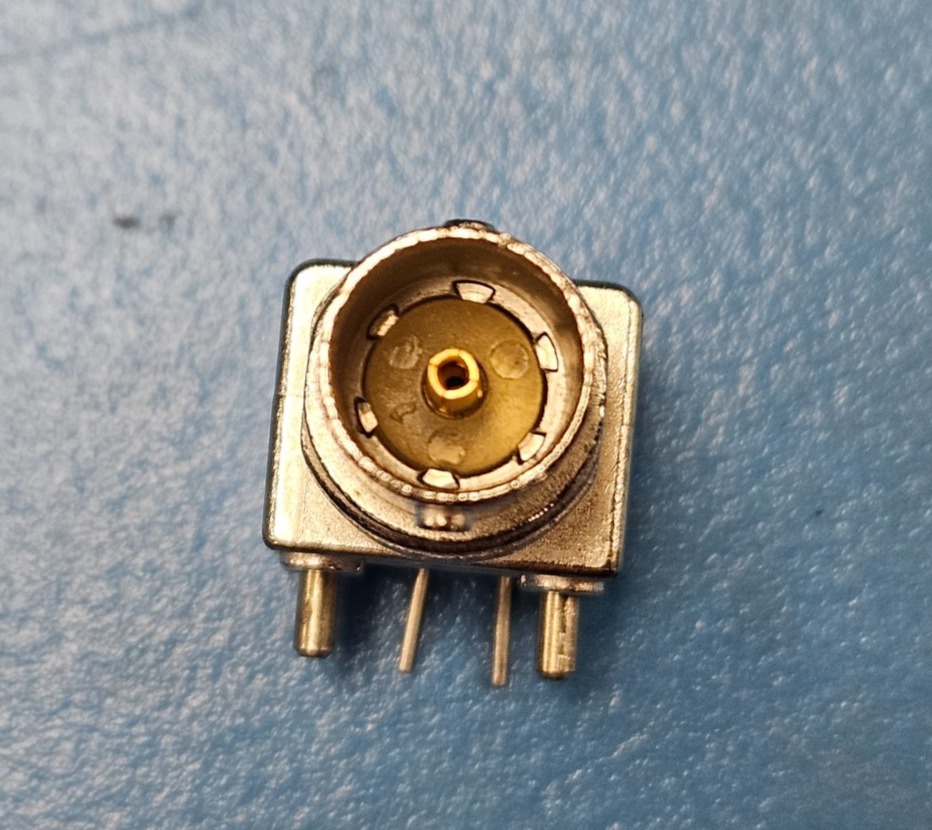

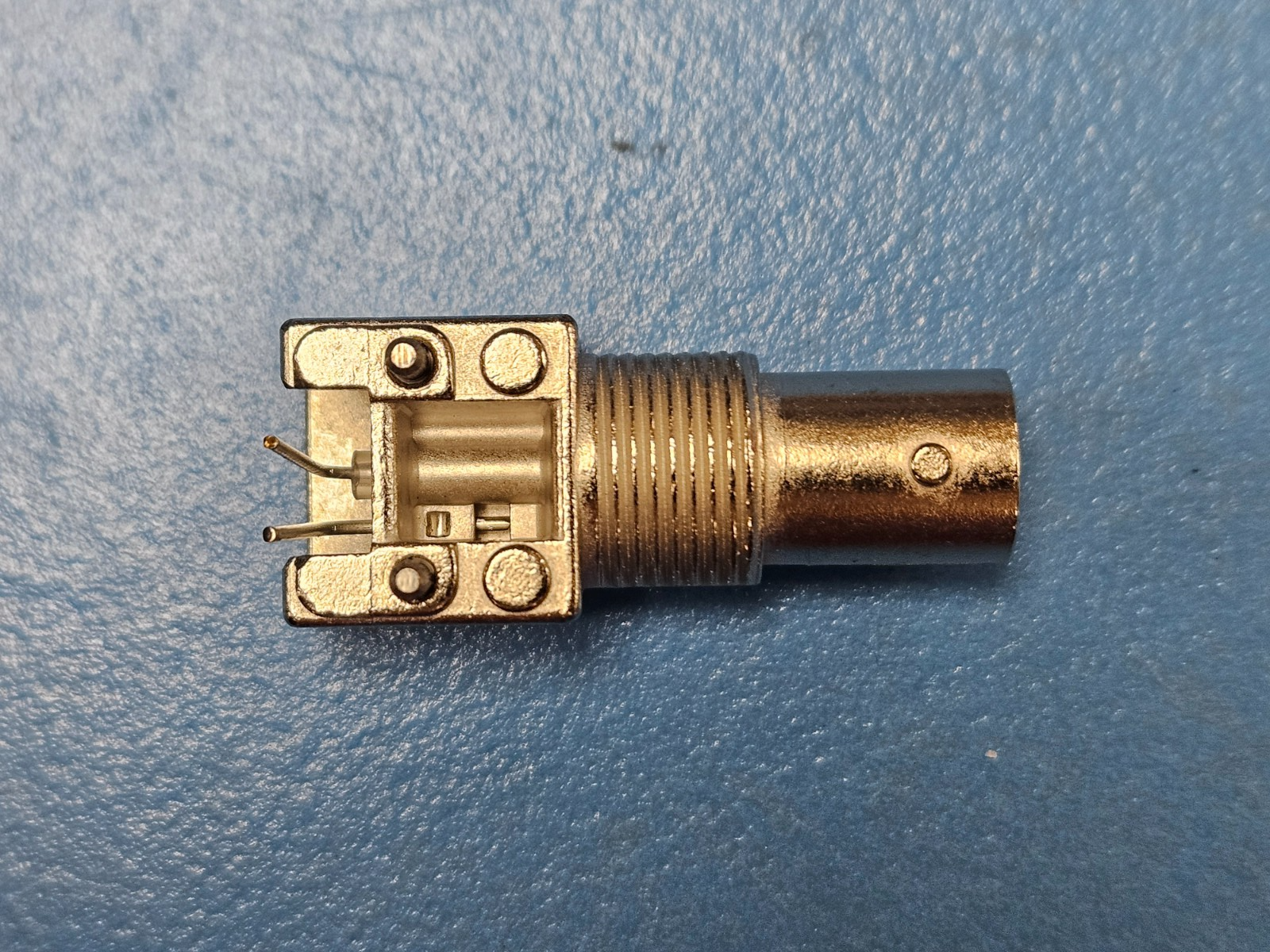

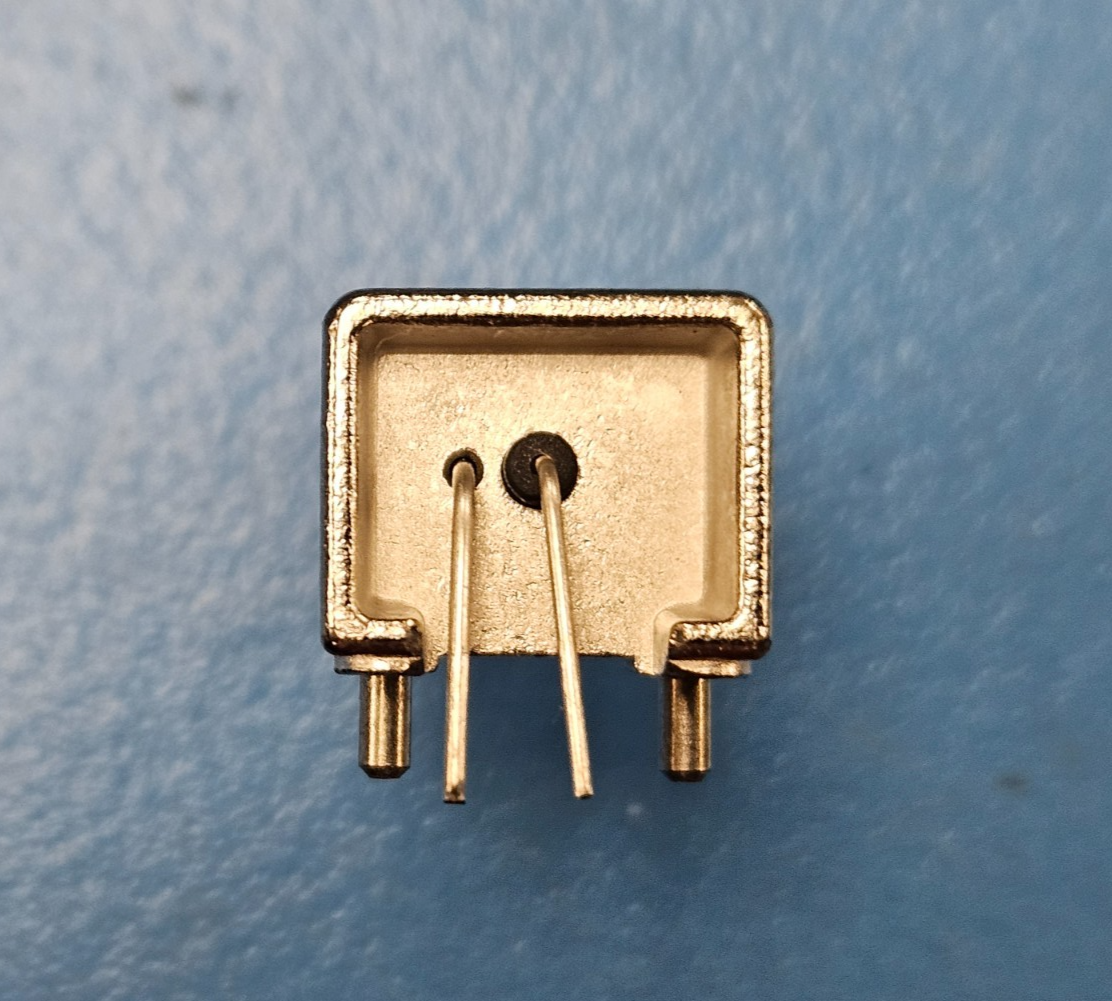

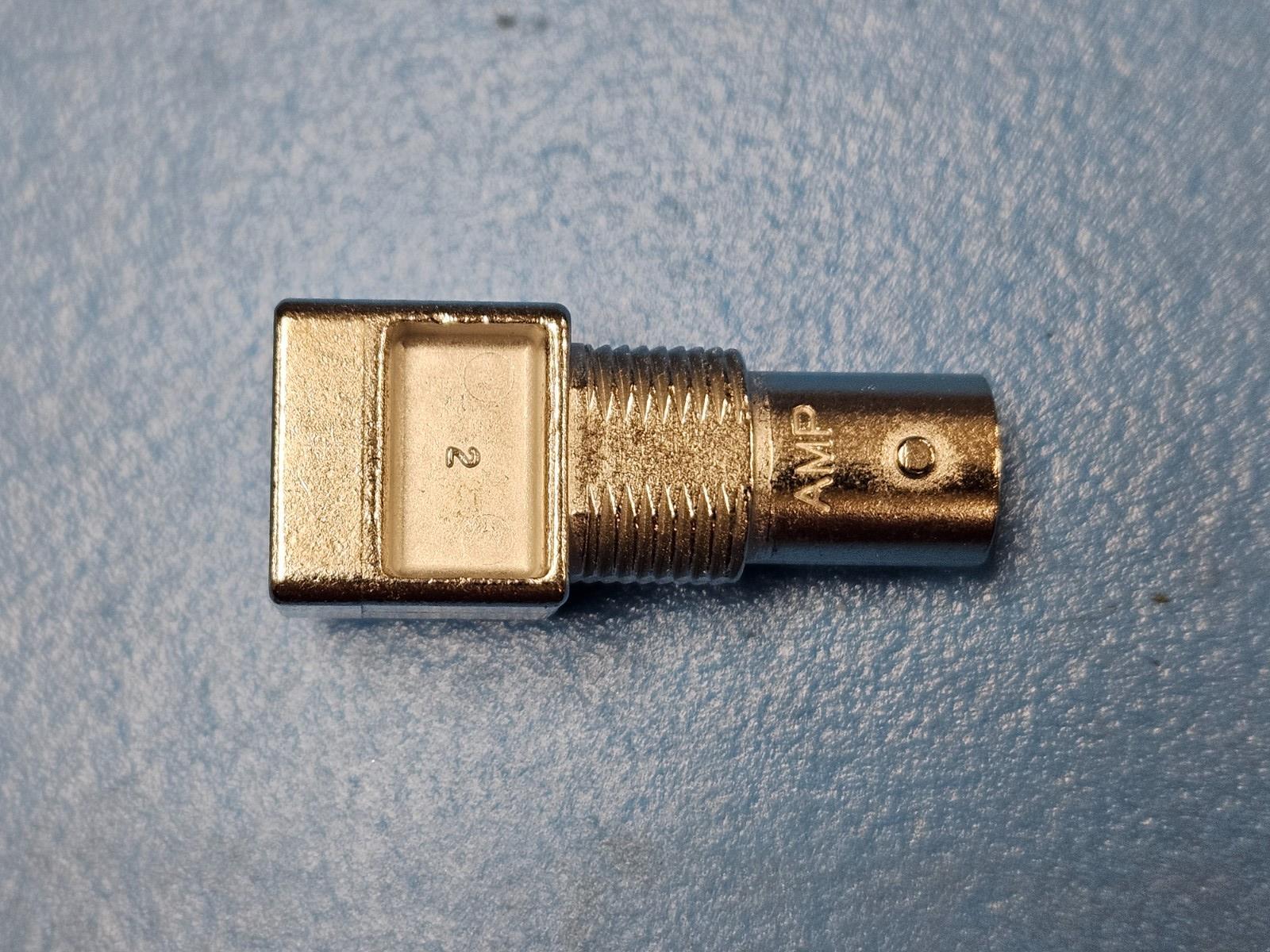

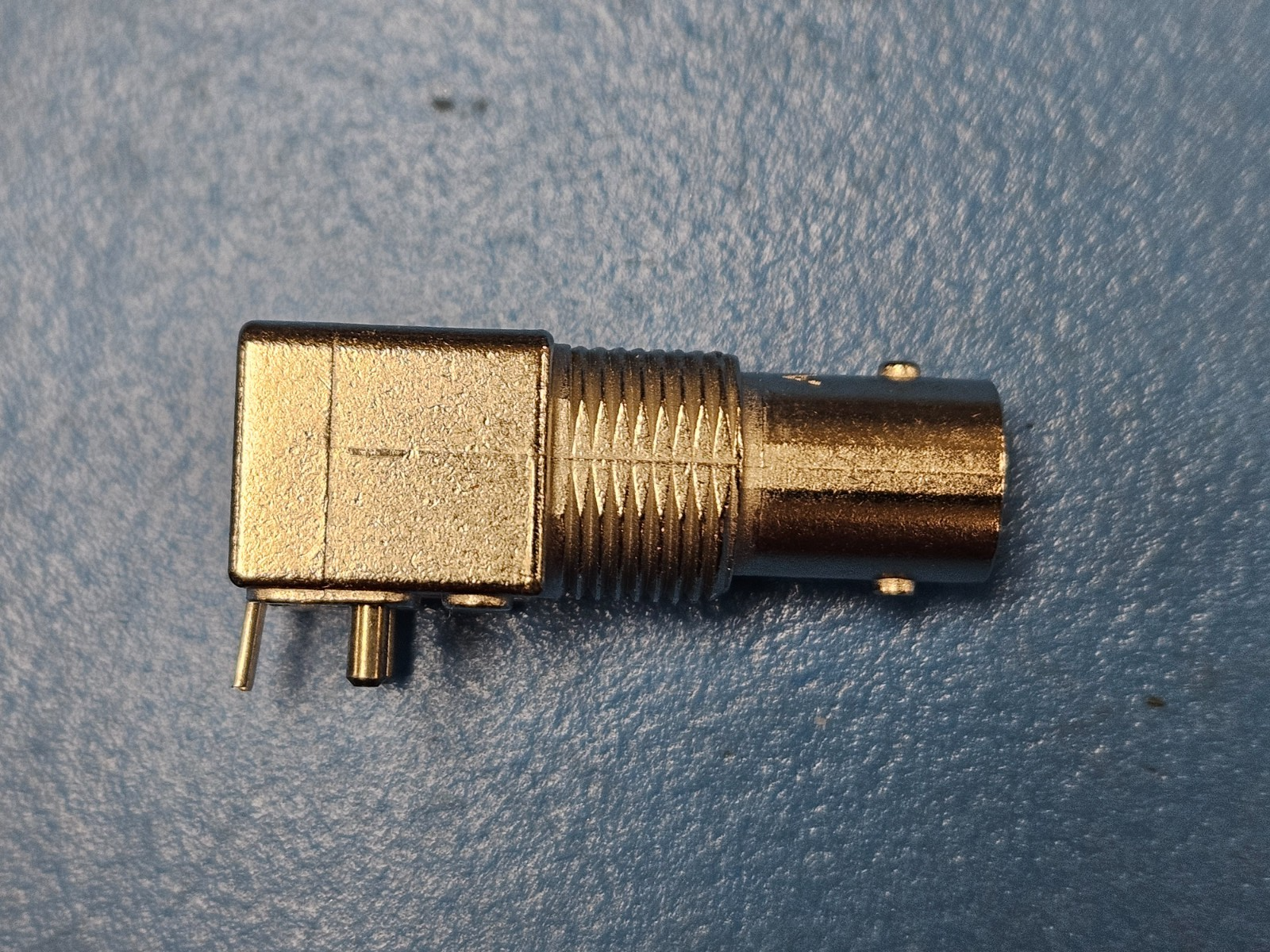

(3PCS) 414907-1 RF BNC Connector, 1 Contact, Female, Locking, Jack
Tax included.

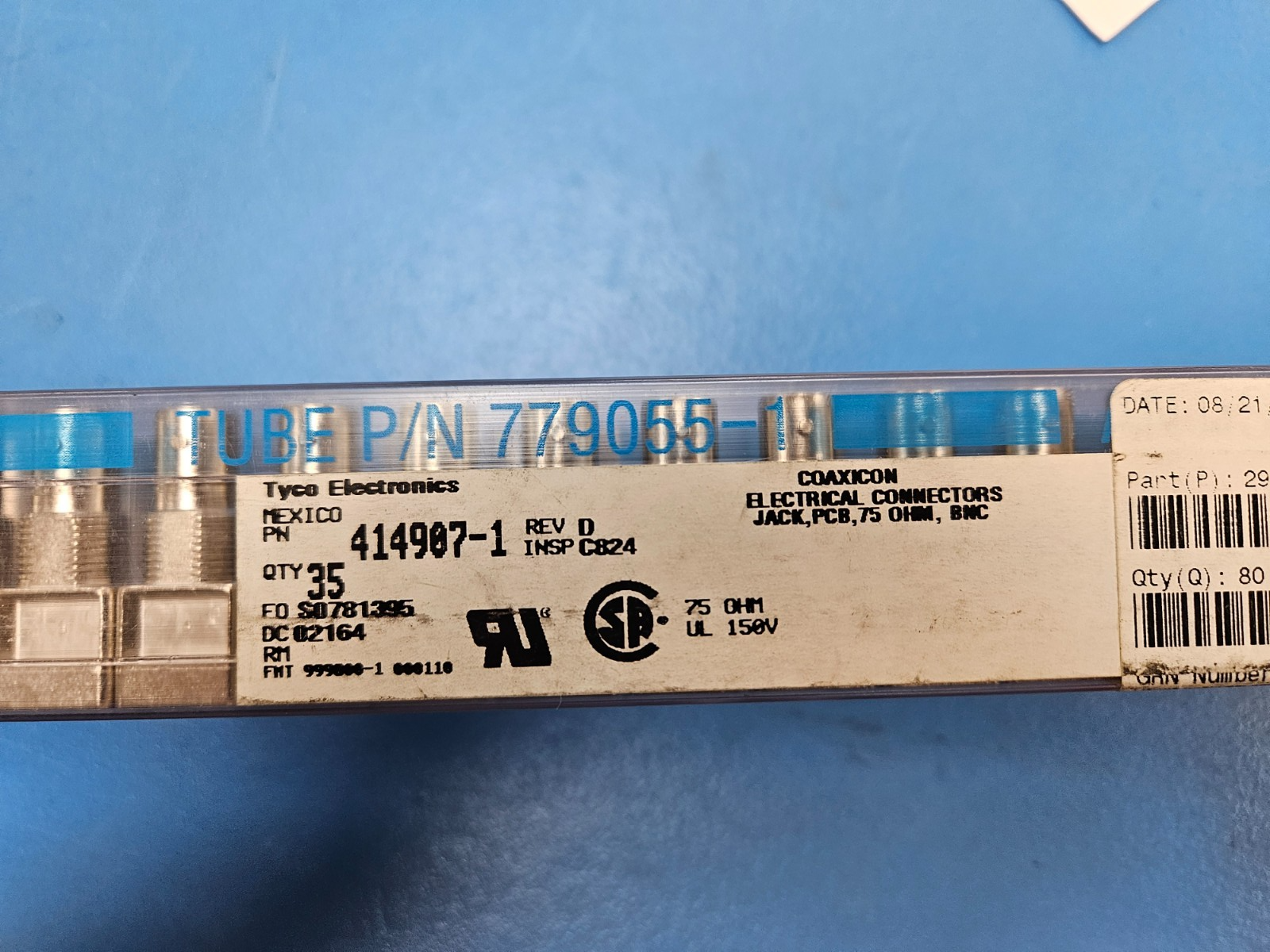

This listing is for (3PCS) of 414907-1 by Tyco Electronics
Status Discontinued
Additional Feature AMP
Body Breadth (inch) 0.500000
Body Depth (inch) 0.500000
Body Length (inch) 0.581000
Body/Shell Style JACK
Characteristic Impedance (ohm) 75.0000000000000000
Connector Type RF BNC CONNECTOR
Contact Finish - Mating NOT APPLICABLE
Contact Gender FEMALE
Contact Material NOT APPLICABLE
Contact Style COAX
Coupling Type BAYONET
DIN Conformance NO
EMI Shielded NO
Empty Shell YES
Filter Feature NO
IEC Conformance NO
Insulator Material POLYMETHYLPENTENE
MIL Conformance NO
Mains Connector Rating 115/230VAC
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type PANEL
Number of Connectors ONE
Number of Ports 1
Operating Frequency-Max (GHz) 4.0000000000000000
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -55
Option GENERAL PURPOSE
Panel Mount YES
Shell Finish NICKEL
Shell Material ZINC ALLOY
Terminal Length (inch) 0.162000
Termination Type SOLDER
Number of Contacts 1
