(3PC) MC100EL33D Prescaler, 100EL Series, 1-Func, ECL, SOIC8
Tax included.

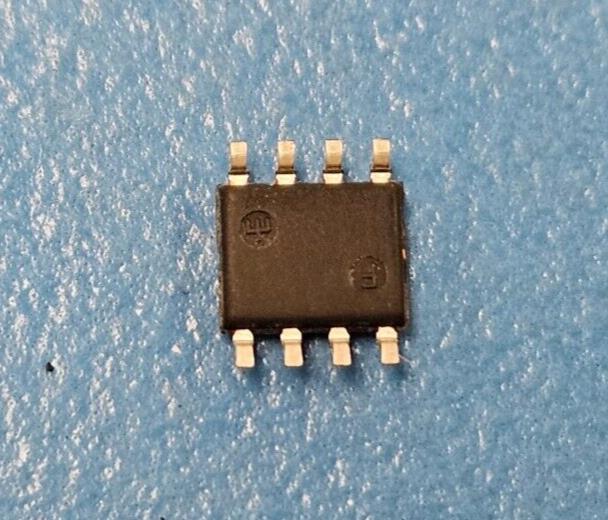

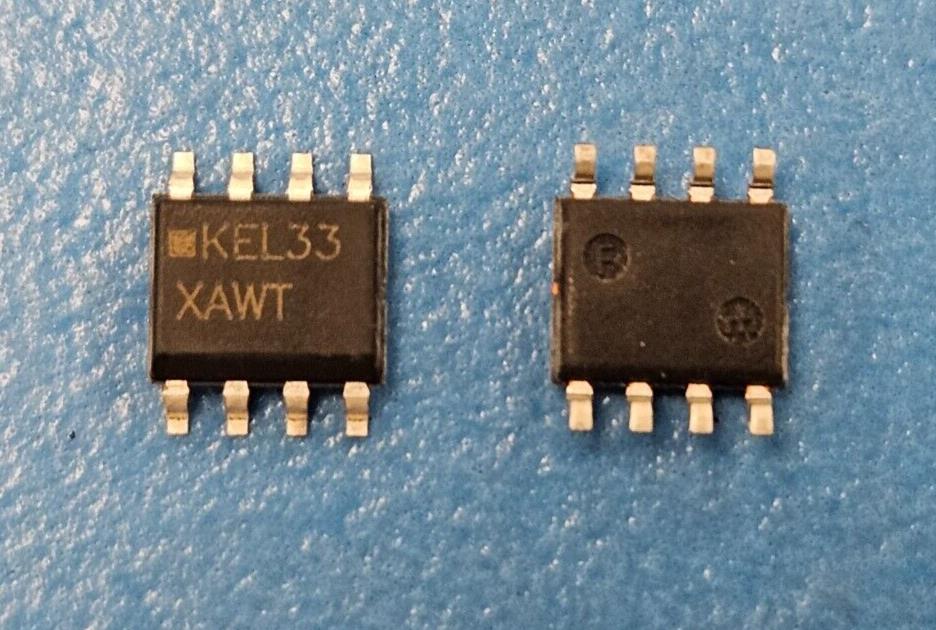

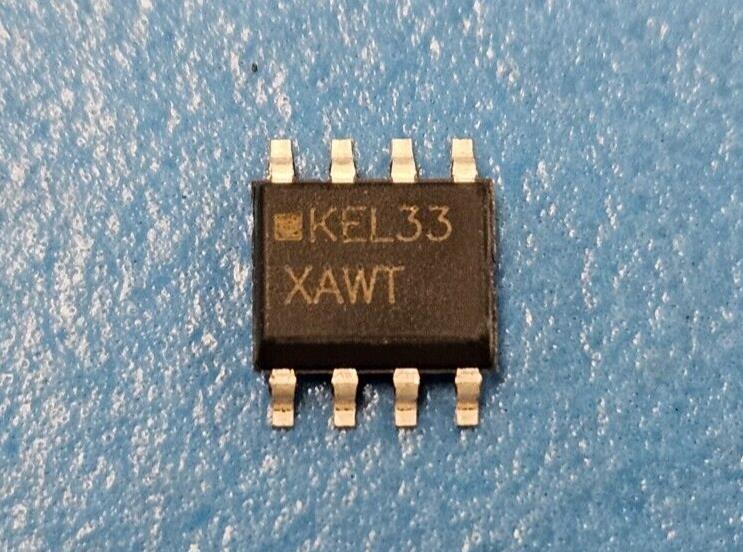

This listing is for (3PCS) of MC100EL33D by Motorola
Mfr Package Description PLASTIC, SOIC-8
Status Transferred
Logic IC Type PRESCALER
Sub Category Prescaler/Multivibrators
Family 100EL
fmax-Min 3400.0 MHz
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Max Frequency@Nom-Sup 3.8E9 Hz
Number of Data/Clock Inputs 1.0
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics OPEN-EMITTER
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 37.0 mA
Propagation Delay (tpd) 0.77 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 4.9 mm
Width 3.9 mm
