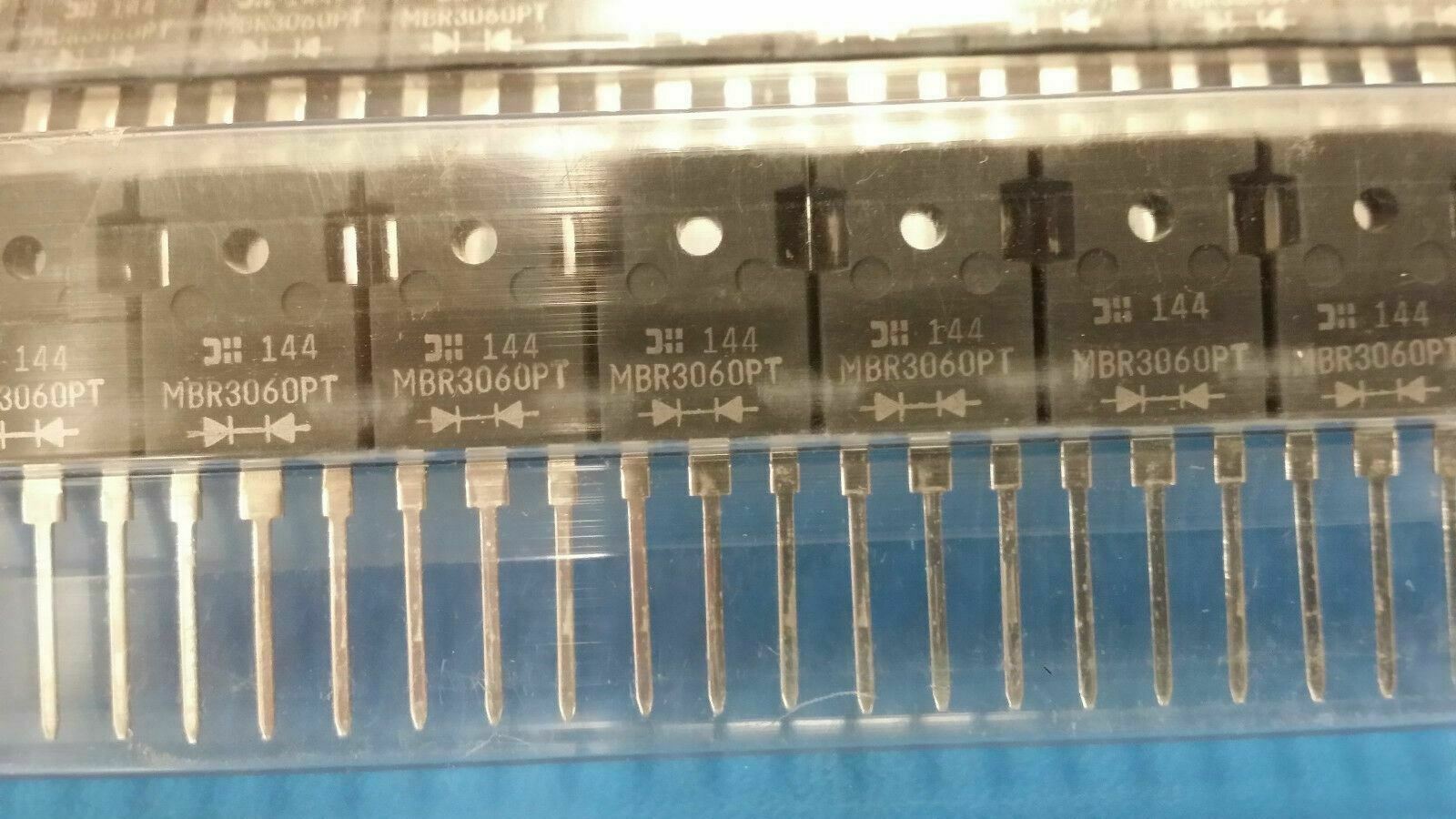

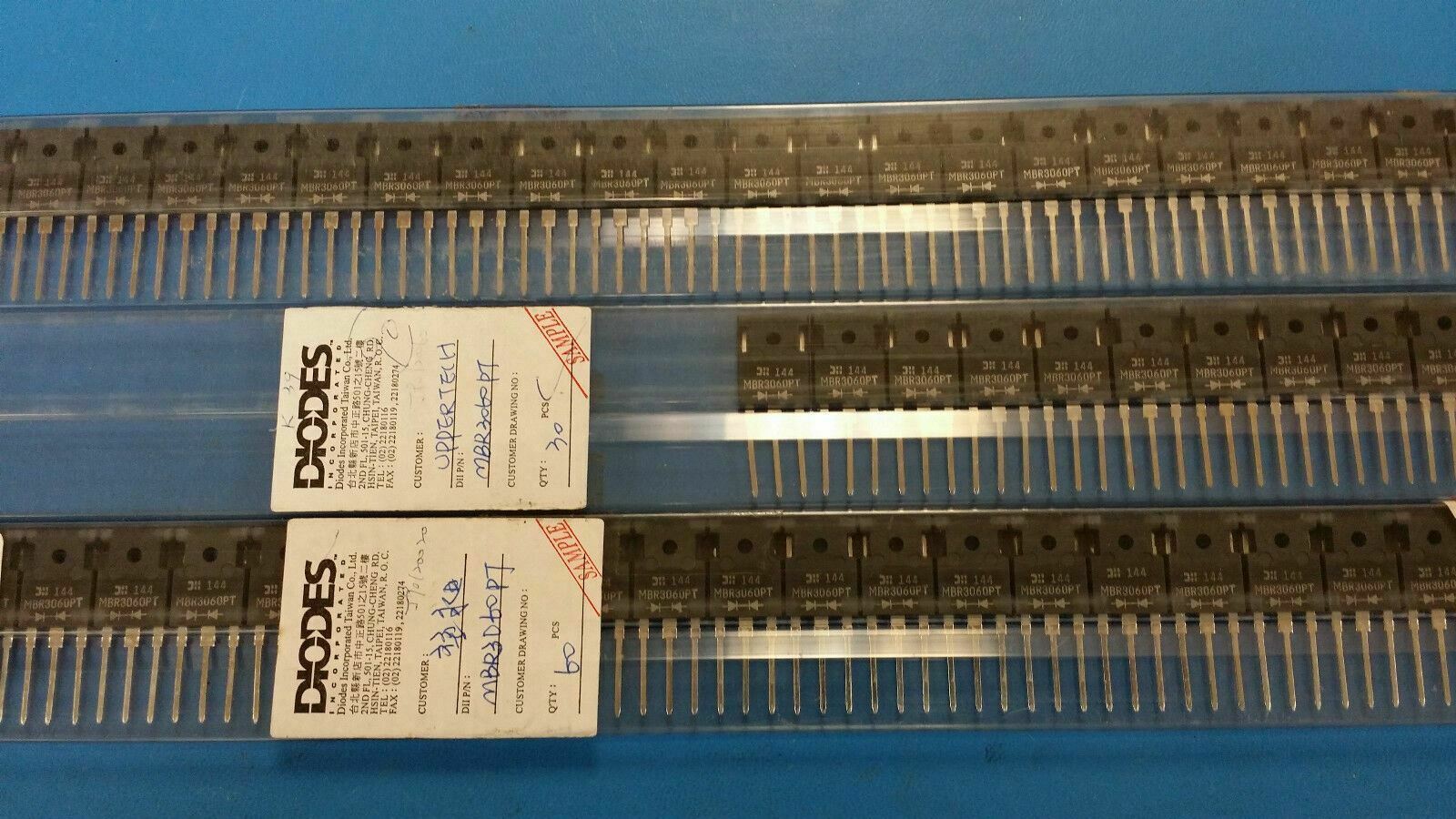

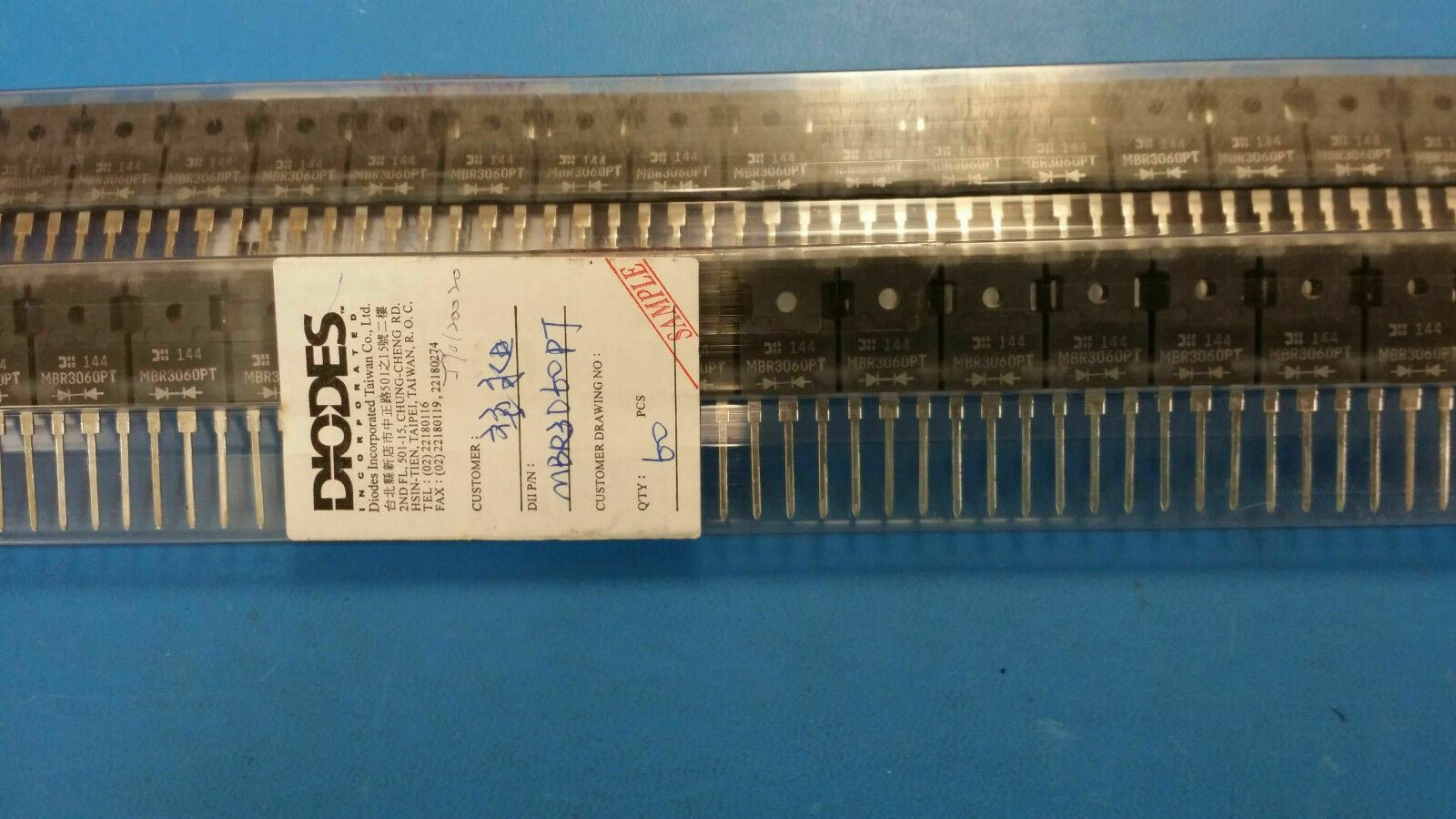

(3pc) MBR3060PT Diode Schottky 60V 30A 3-Pin(3+Tab) TO-247AD
Tax included.
THIS LISTING IS FOR (3PC) OF MBR3060PT BY DIODES INC.
Diode Schottky 60V 30A 3-Pin(3+Tab) TO-247AD
MBR3060PT Part Details & Parametric
|
|
|
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | Schottky Diode |
| Peak Reverse Current (uA) | 5000 |
| Configuration | Dual Common Cathode |
| Packaging | Tube |
| Peak Reverse Repetitive Voltage (V) | 60 |
| Maximum Continuous Forward Current (A) | 30 |
| Peak Forward Voltage (V) | 0.8 |
| Peak Non-Repetitive Surge Current (A) | 200 |
| Operating Junction Temperature (°C) | -65 to 150 |
| Mounting | Through Hole |
| Package Height (mm) | 22.38(Max) |
| Package Length (mm) | 16.25(Max) |
| Package Width (mm) | 5.36(Max) |
| PCB | 3 |
| Tab | Tab |
| Standard Package Name | TO-3P |
| Supplier Package | TO-3P |
| Pin Count | 3 |
