(39PCS) SMF8.5A LITTELFUSE Diode TVS Single Uni-Dir 8.5V 200W 2-Pin SOD-123F
Tax included.

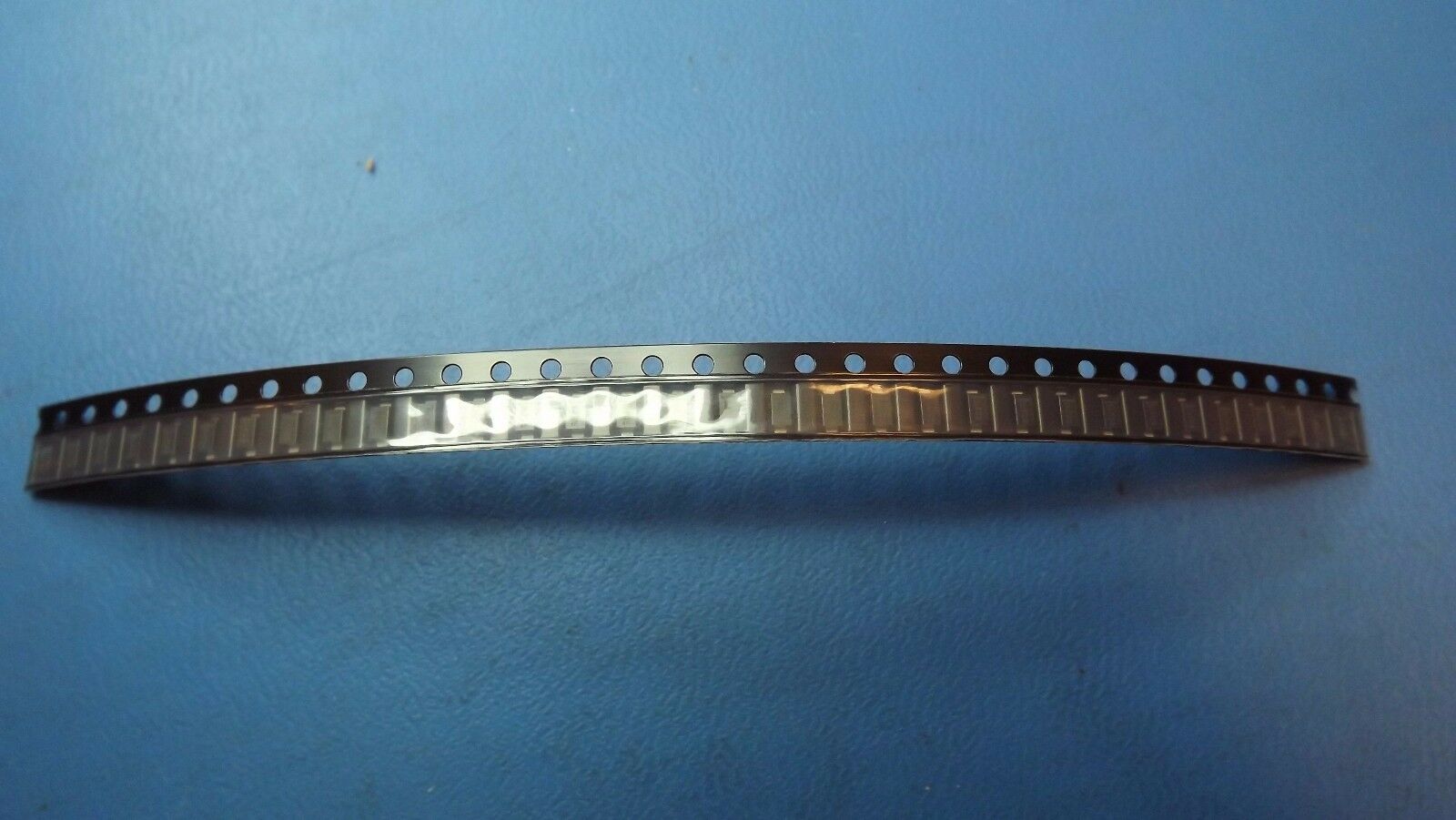

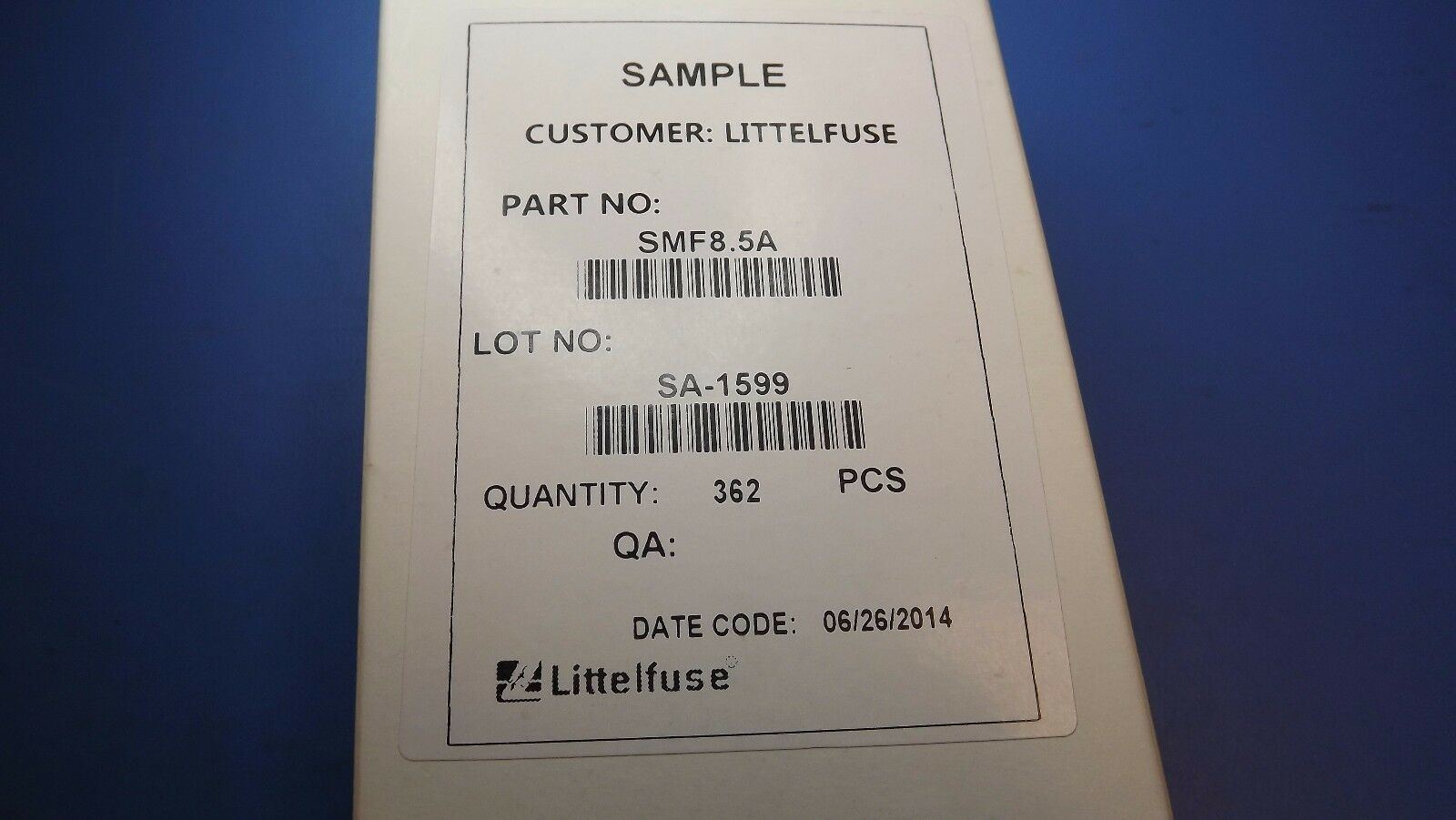

THIS LISTING IS FOR (39PCS) OF SMF8.5A BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMF, 2 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Diode Type | TRANS VOLTAGE SUPPRESSOR DIODE |
| Breakdown Voltage-Nom | 9.92 V |
| Breakdown Voltage-Min | 9.44 V |
| Breakdown Voltage-Max | 10.4 V |
| Clamping Voltage-Max | 14.4 V |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| JESD-30 Code | R-PDSO-F2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | NOT SPECIFIED |
| Non-rep Peak Rev Power Dis-Max | 200.0 W |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity | UNIDIRECTIONAL |
| Rep Pk Reverse Voltage-Max | 8.5 V |
| Sub Category | Transient Suppressors |
| Surface Mount | YES |
| Technology | AVALANCHE |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | FLAT |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Additional Feature | EXCELLENT CLAMPING CAPABILITY |
