(38PC) PI74FCT240TS PERICOM Buffer/Line Driver 8-CH Inverting 3-ST CMOS SOIC20 W
(38PC) PI74FCT240TS PERICOM Buffer/Line Driver 8-CH Inverting 3-ST CMOS SOIC20 W

(38PC) PI74FCT240TS PERICOM Buffer/Line Driver 8-CH Inverting 3-ST CMOS SOIC20 W

Tax included.
Only 100 left!

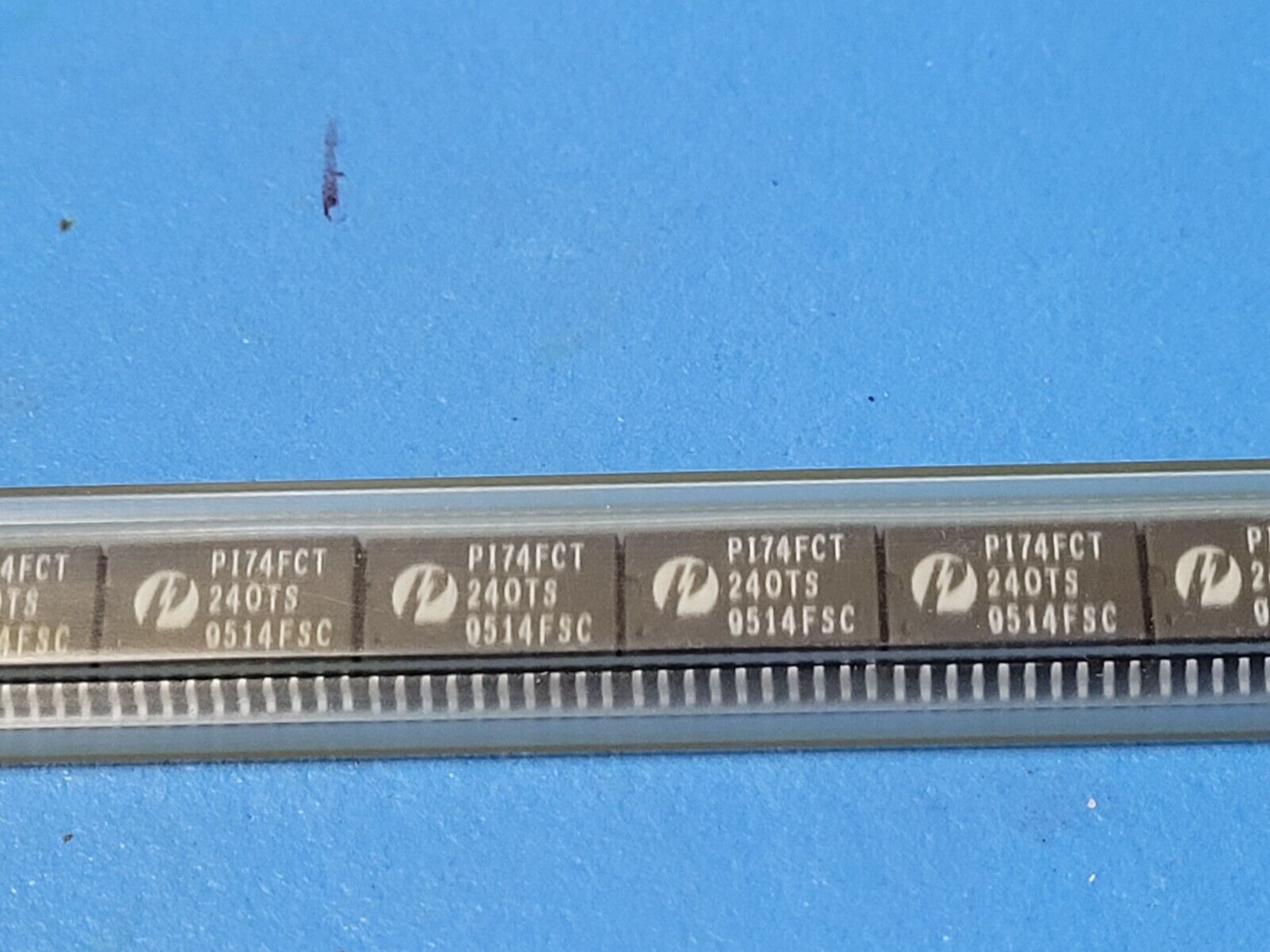

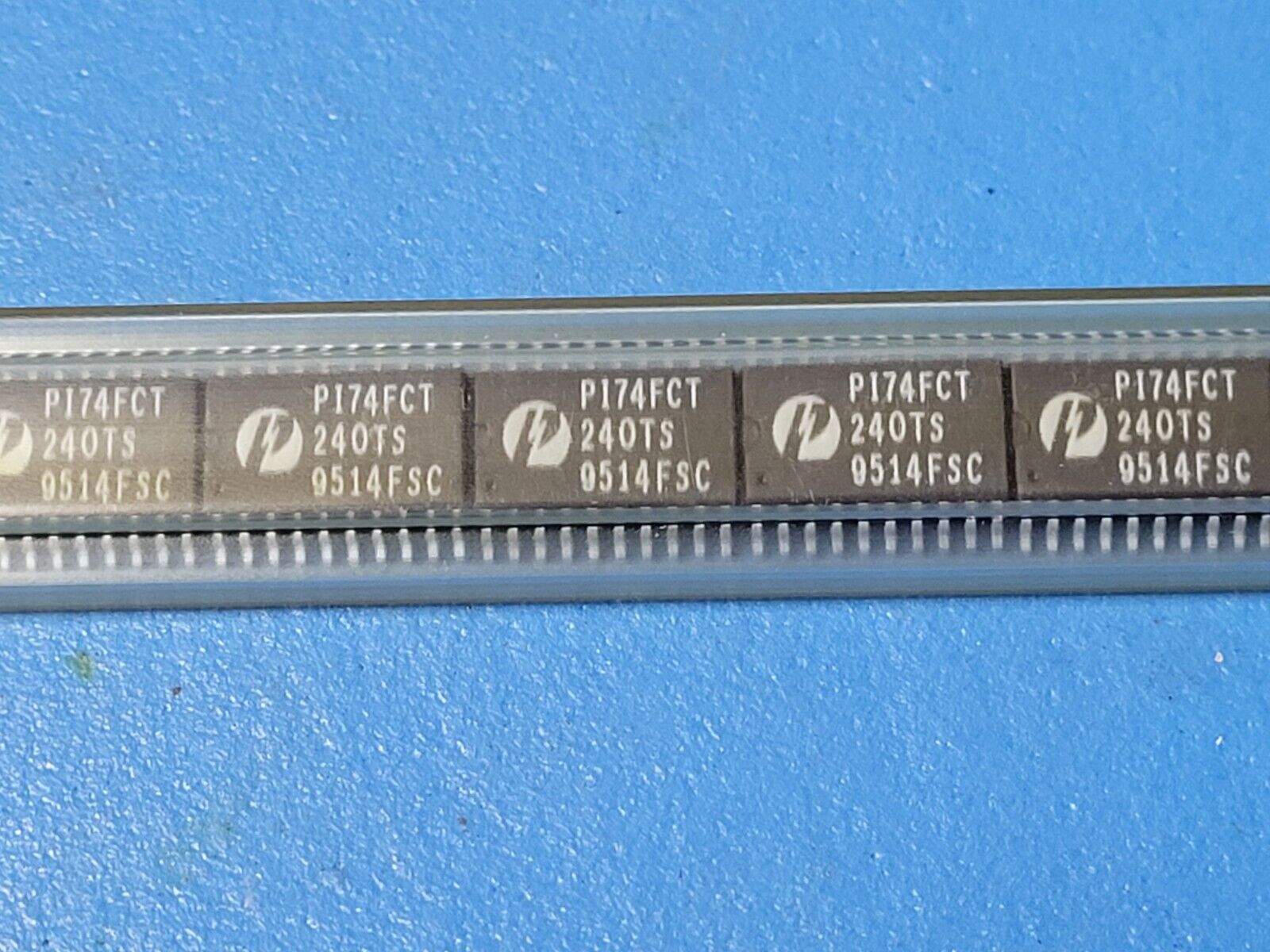

THIS IS FOR (38 PCS) OF PI74FCT240TS BY PERICOM
Buffer/Line Driver 8-CH Inverting 3-ST CMOS SOIC20 W

Part #: PI74FCT240TS
Part Category: Logic ICs
Manufacturer: Pericom Semiconductor Corp.
Description: Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, PDSO20

Mfr Package Description 0.300 INCH, PLASTIC, SOIC-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family FCT
JESD-30 Code R-PDSO-G20
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.064 Amp
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Prop. Delay@Nom-Sup 8.0 ns
Propagation Delay (tpd) 8.0 ns
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 12.8 mm
Width 7.5 mm
