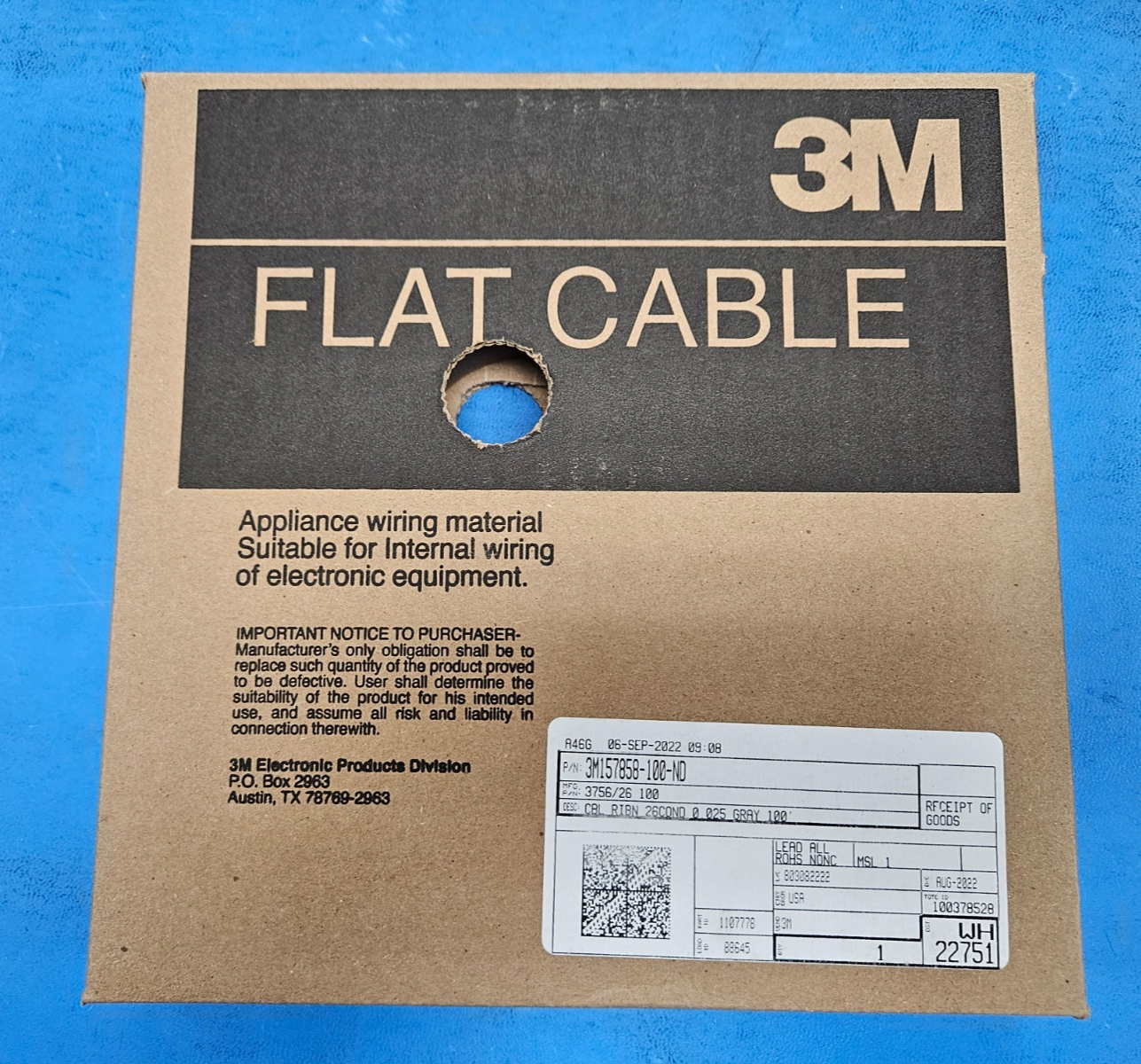

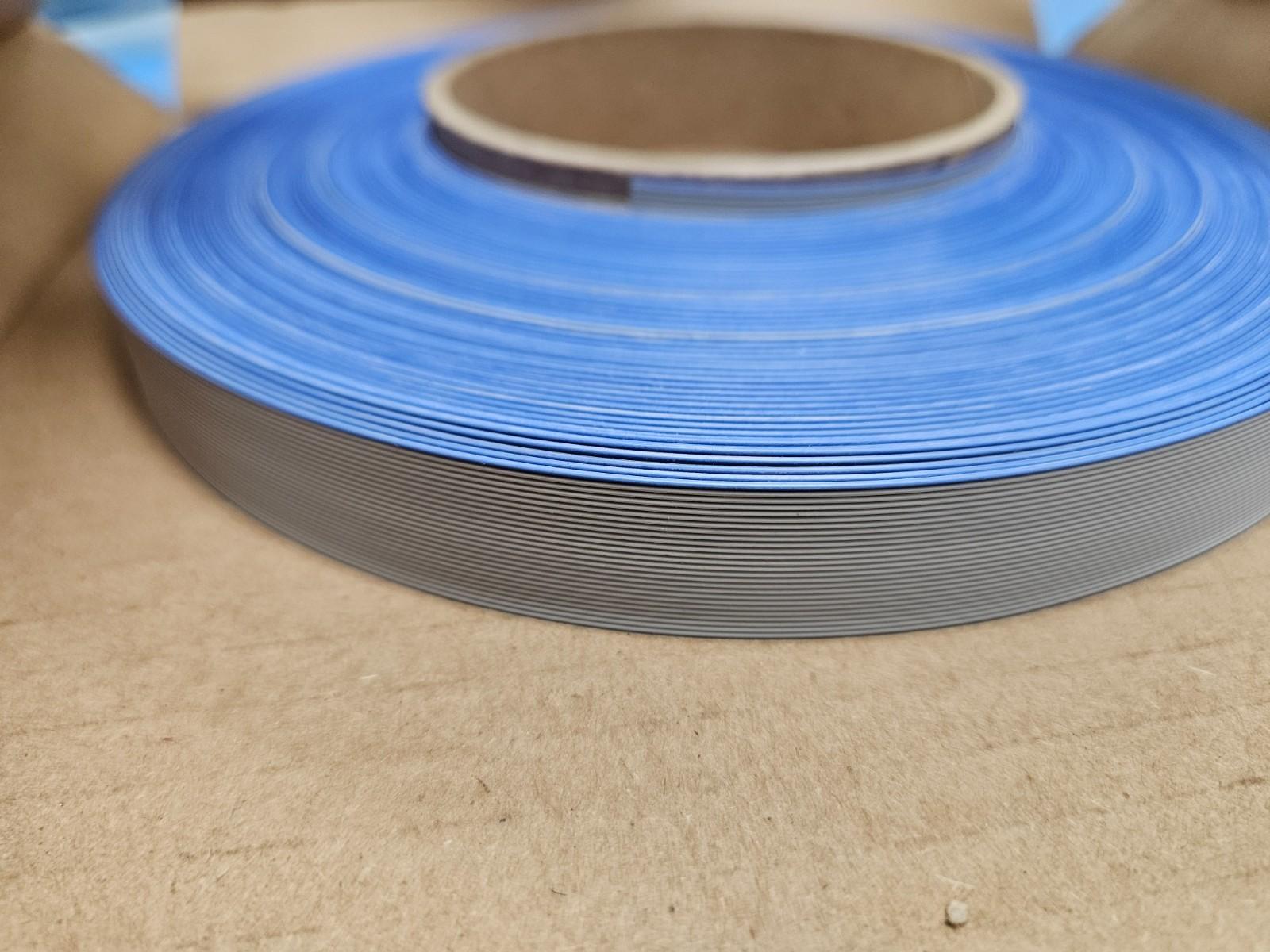

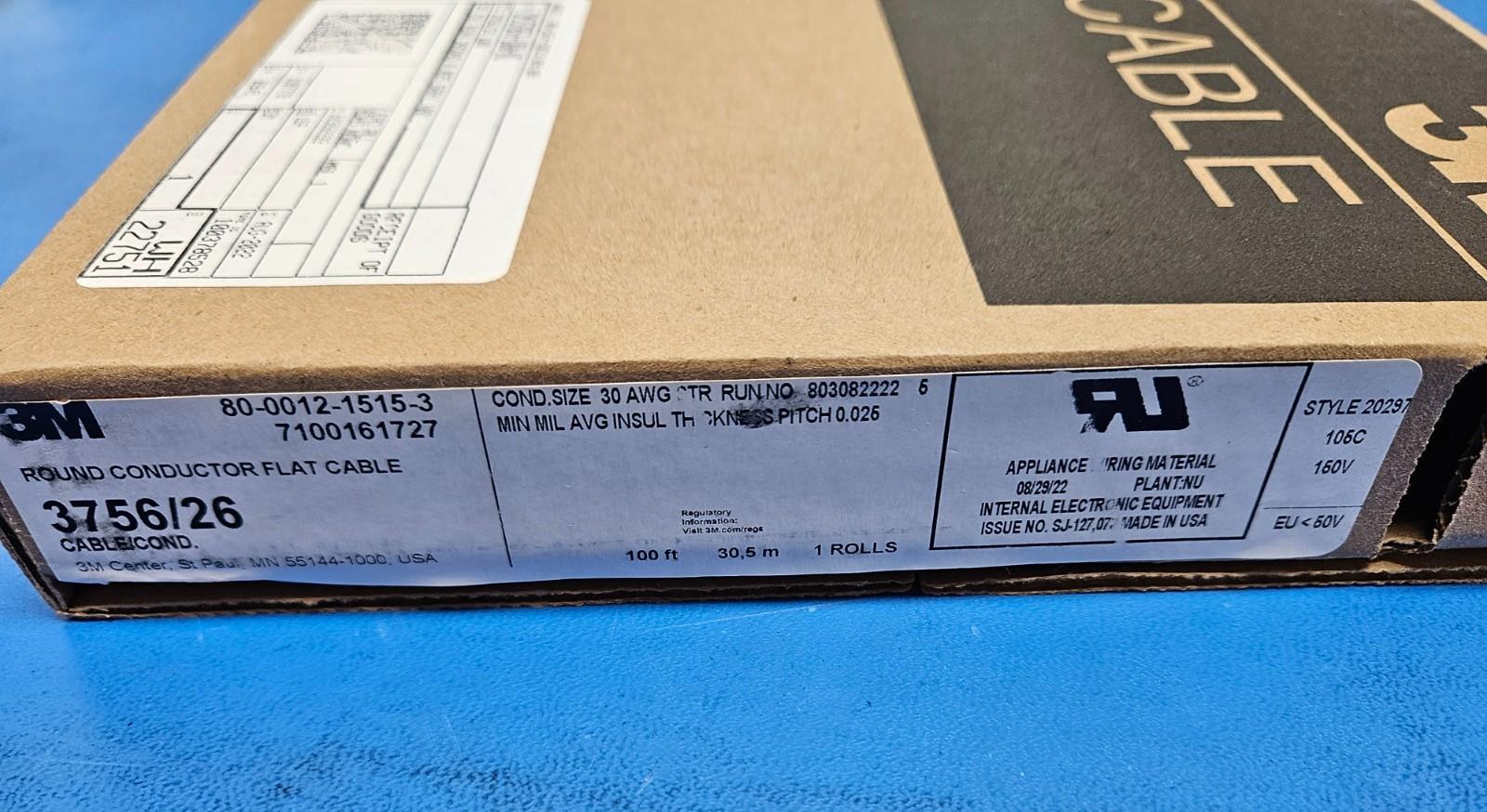

3756/26 3M 26 Conductors, 30AWG, 150V, Flat Cable 100ft/30.5 Meter
Tax included.
This listing is for 1 box of 100ft of 3756/26 by 3M
Status Active
Approvals CUL; UL
Conductor Finish TIN
Conductor Material COPPER
Connector Support Type WIRE AND CABLE
Construction FLAT
Cross Section Area (mm2) 0.0500
DIN Conformance NO
Diameter (mm) 0.64000000
IEC Conformance NO
Insulator Material THERMOPLASTIC ELASTOMER
Wire/Cable Length (m) 30.48000000
MIL Conformance NO
Number of Conductors 26
Operating Temperature-Max (Cel) 105
Operating Temperature-Min (Cel) -40
Rated Voltage (V) 150.00000000
Shielding NO
Stranding 7X38
Wire Gauge (AWG) 30
Wire and Cable Name FLAT CABLE
