(35 PCS) 1.5KE7.5A, TVS Diodes Transient Voltage Suppressor 1.5kW 6.4V UniDirect
Tax included.

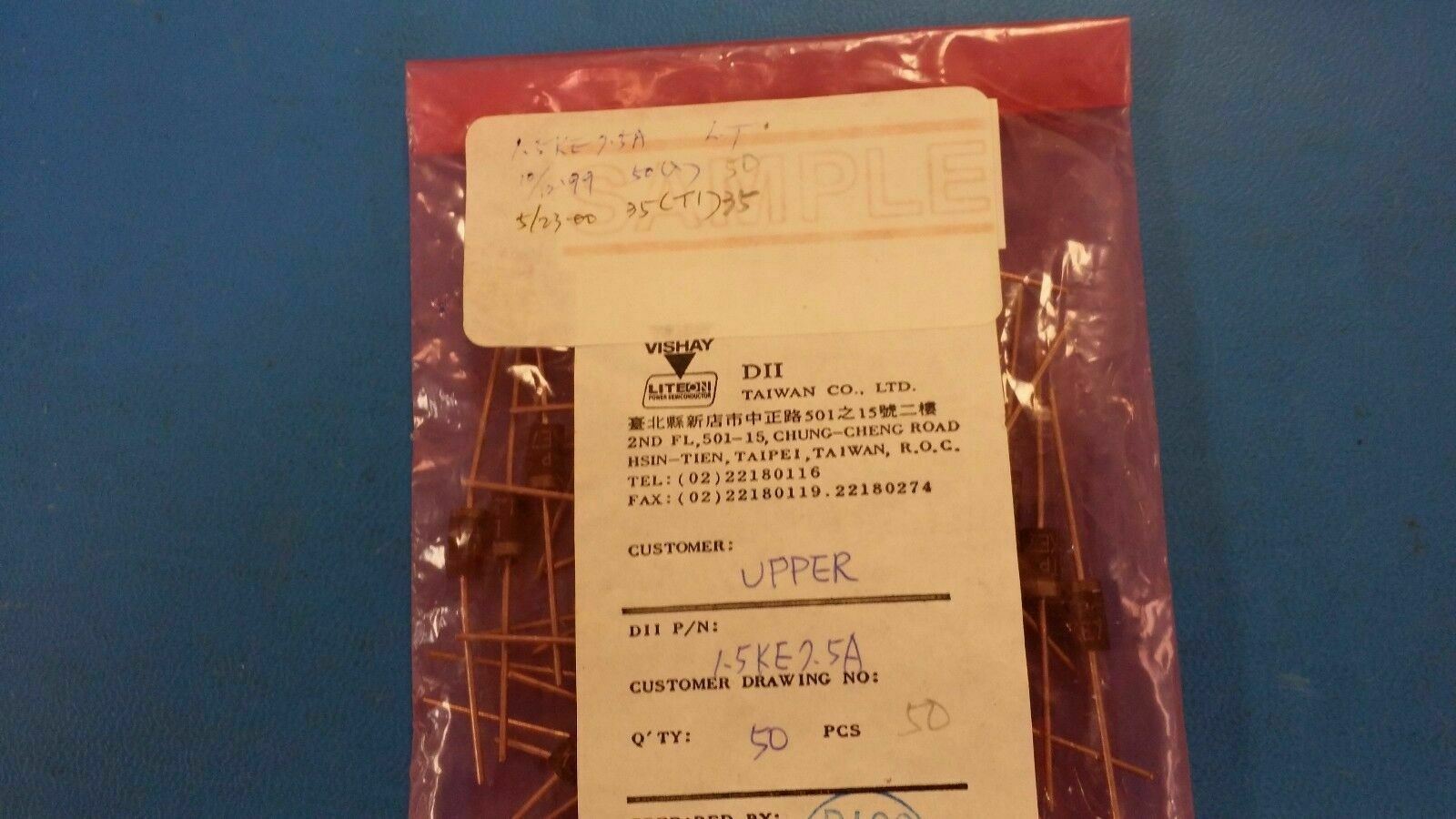

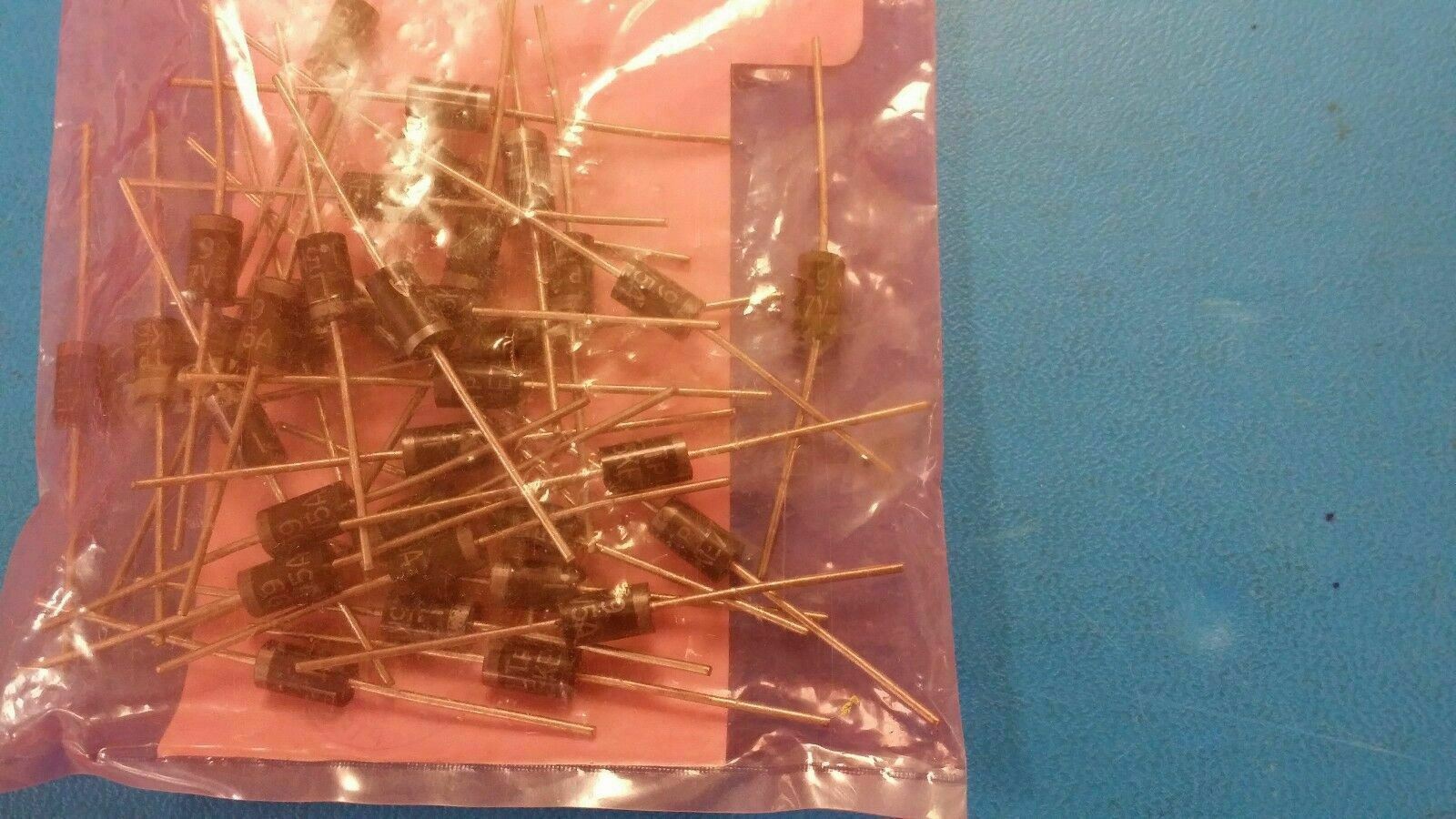

This listing is for 35 diodes.
| Type | Zener |
|---|---|
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 6.4V |
| Voltage - Breakdown (Min) | 7.13V |
| Voltage - Clamping (Max) @ Ipp | 11.3V |
| Current - Peak Pulse (10/1000µs) | 134.5A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
