(30PCS) BXRH-35G3000-D LED COB H9 ARRAY WM WHT SQ 3500K
Tax included.

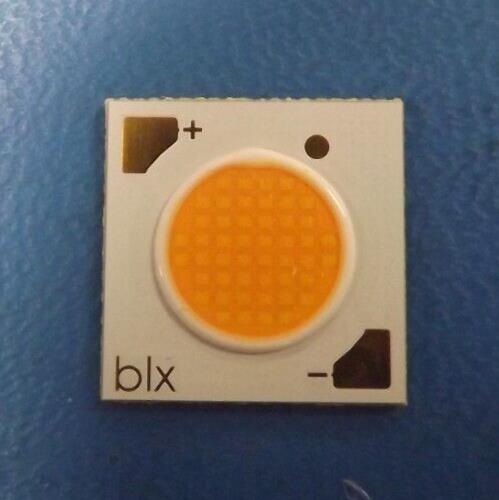

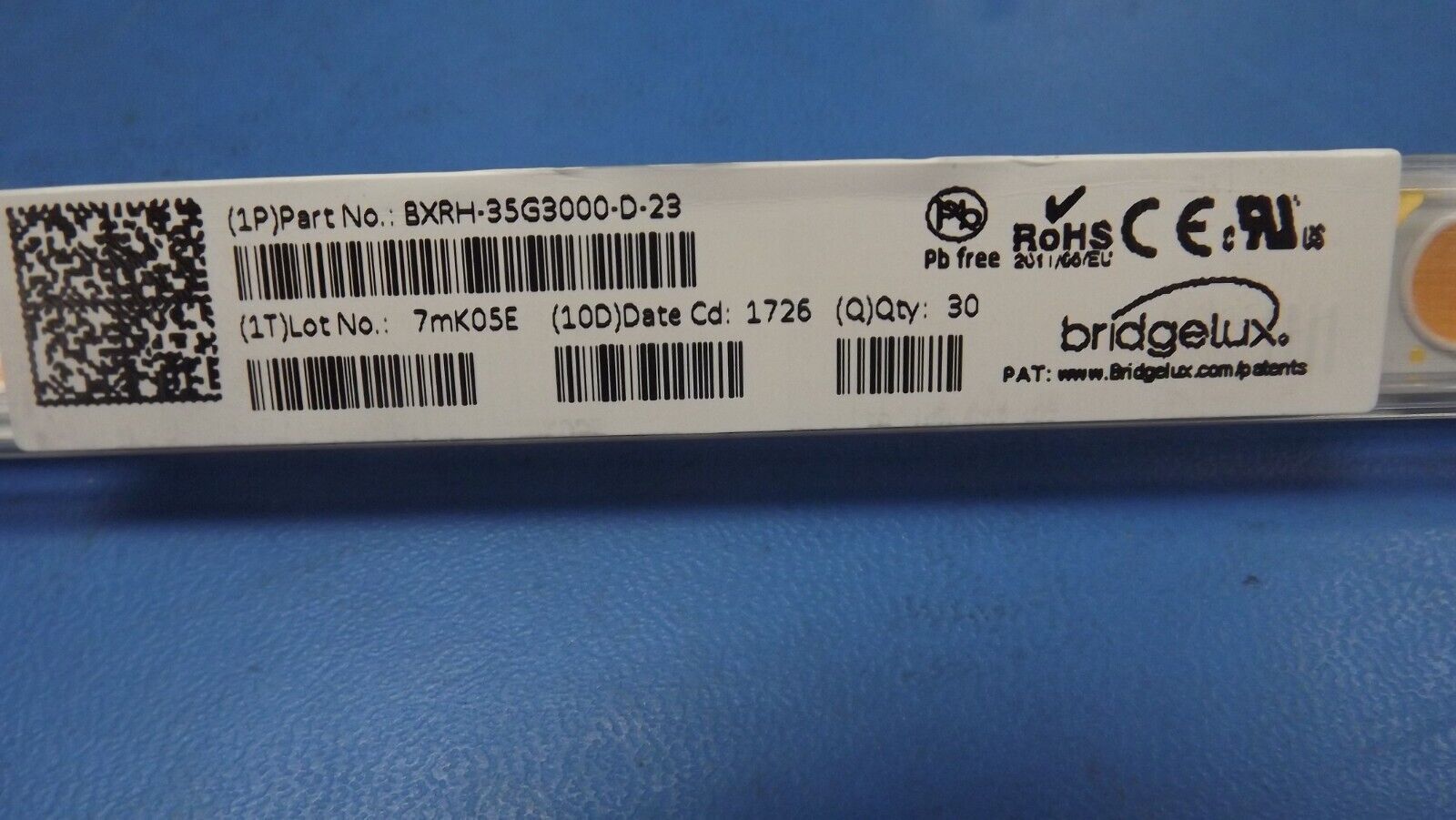

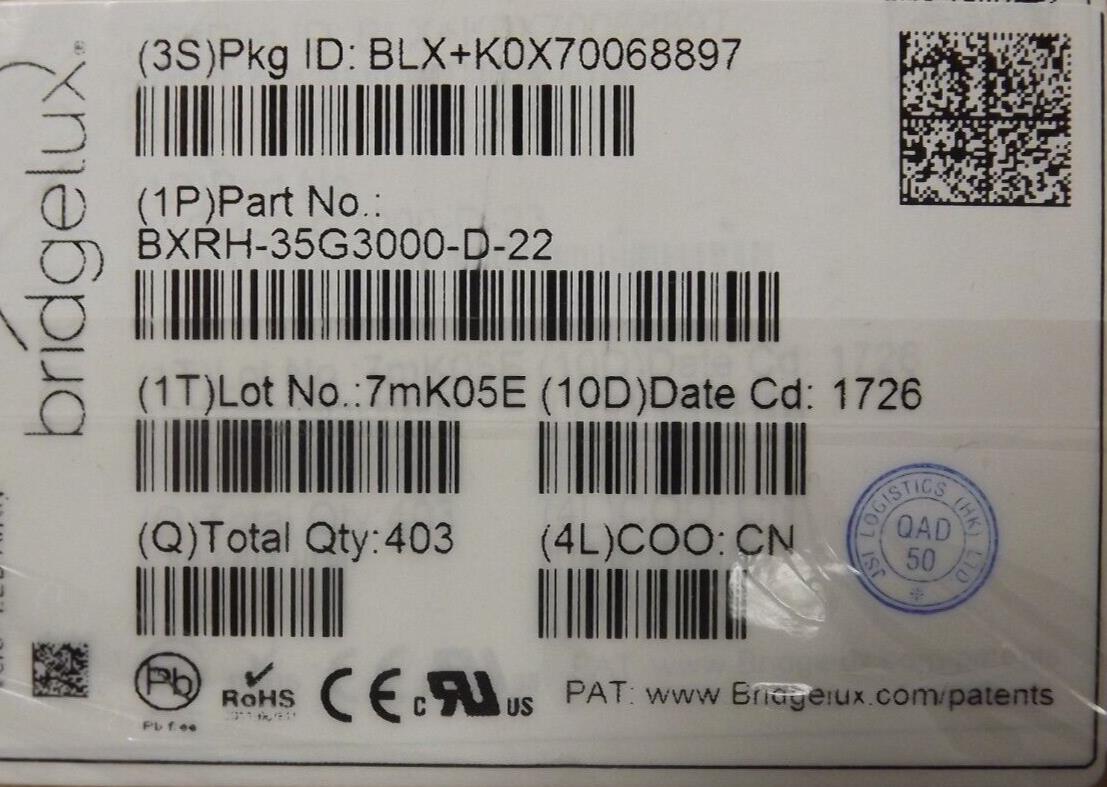

THIS LISTING IS FOR (30PCS) OF BXRH-35G3000-D BY BRIDGELUX

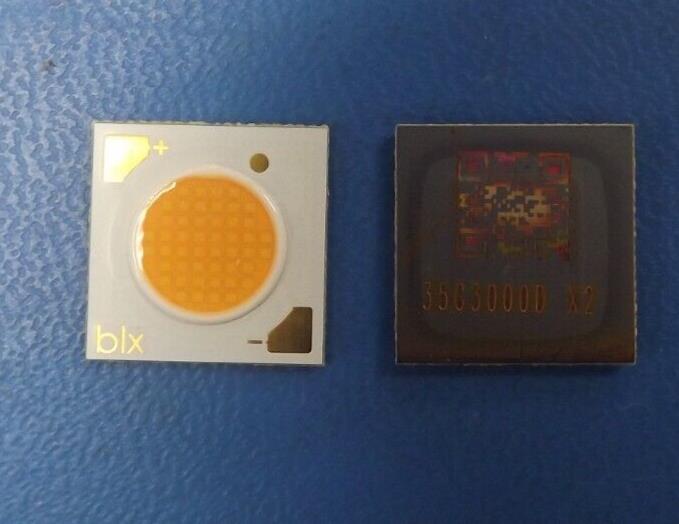

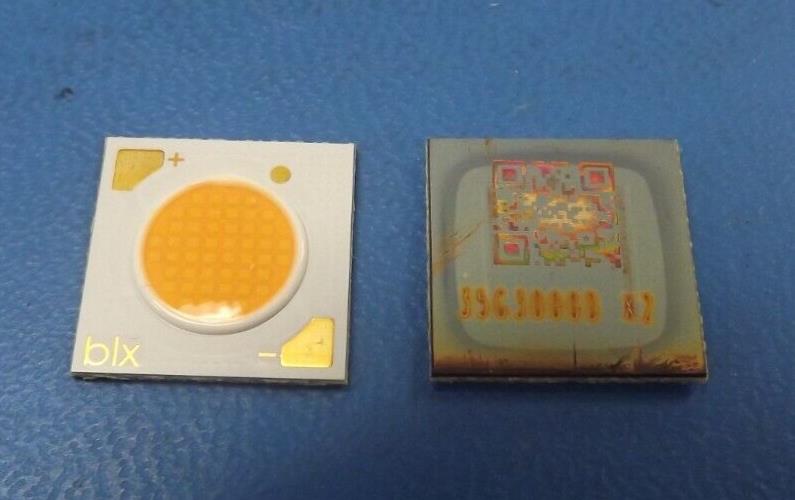

THESE ARE TARNISHED, BUT THEY WORK
Mfr
Bridgelux
Series
H9 Array
Package
Tube
Product Status
Active
Type
Chip On Board (COB)
Color
White, Warm
CCT (K)
3500K 3-Step MacAdam Ellipse
Wavelength
-
Configuration
Square
Luminous Flux @ Current/Temperature
3148lm (Typ)
Current - Test
1A
Temperature - Test
25°C
Voltage - Forward (Vf) (Typ)
36.6V
Lumens/Watt @ Current - Test
86 lm/W
Current - Max
1.4A
CRI (Color Rendering Index)
90
Viewing Angle
112°
Features
-
Size / Dimension
15.85mm L x 15.85mm W
Height
1.70mm
Light Emitting Surface (LES)
9.50mm Dia
Lens Type
Flat
Base Product Number
BXRH-35
