(3000PCS) HAT1043M-EL Power Field-Effect Transistor, 4.4A, 20V, P-Channel MOSFET

$1,500.00
Unit price per

Tax included.

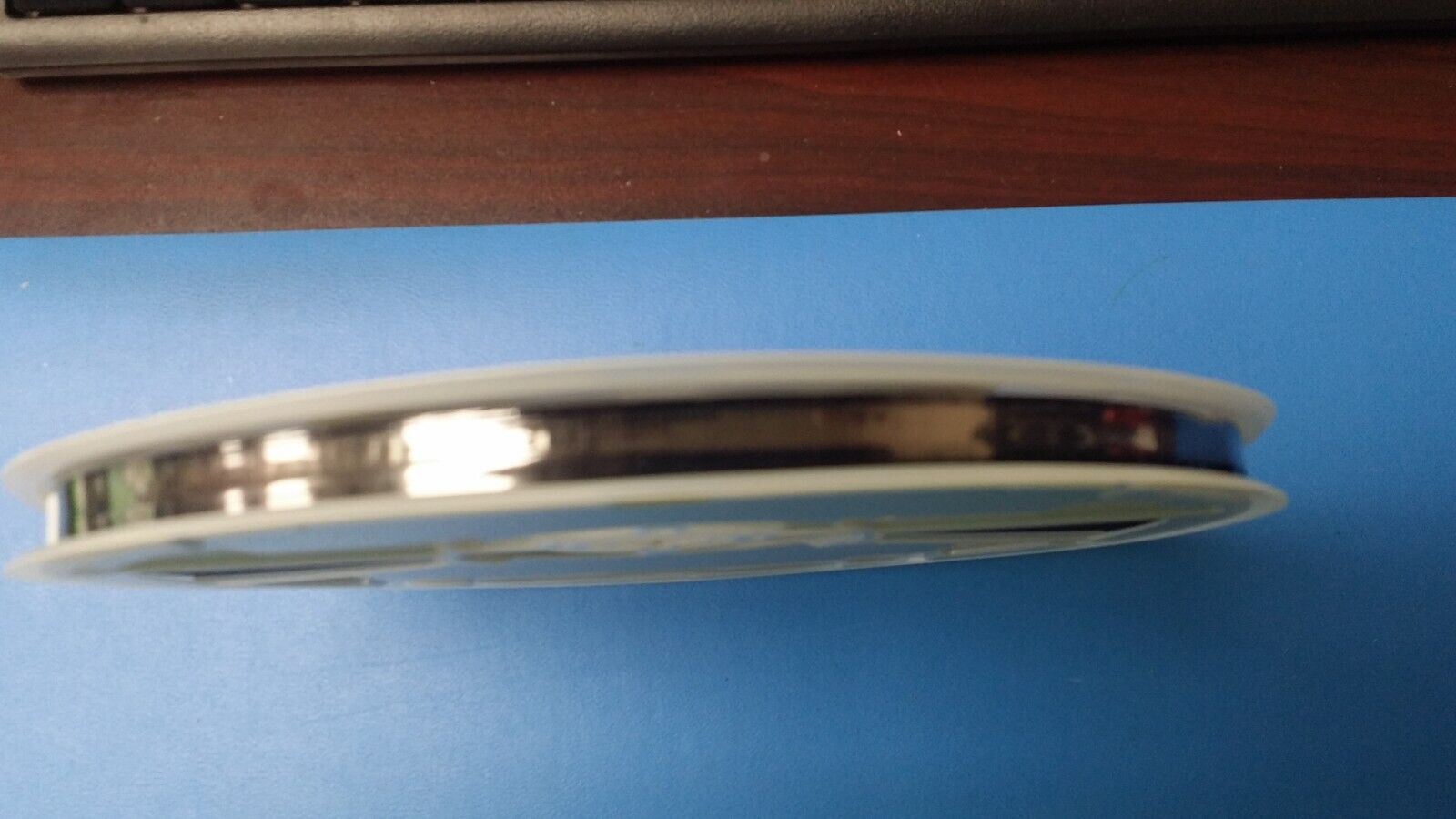

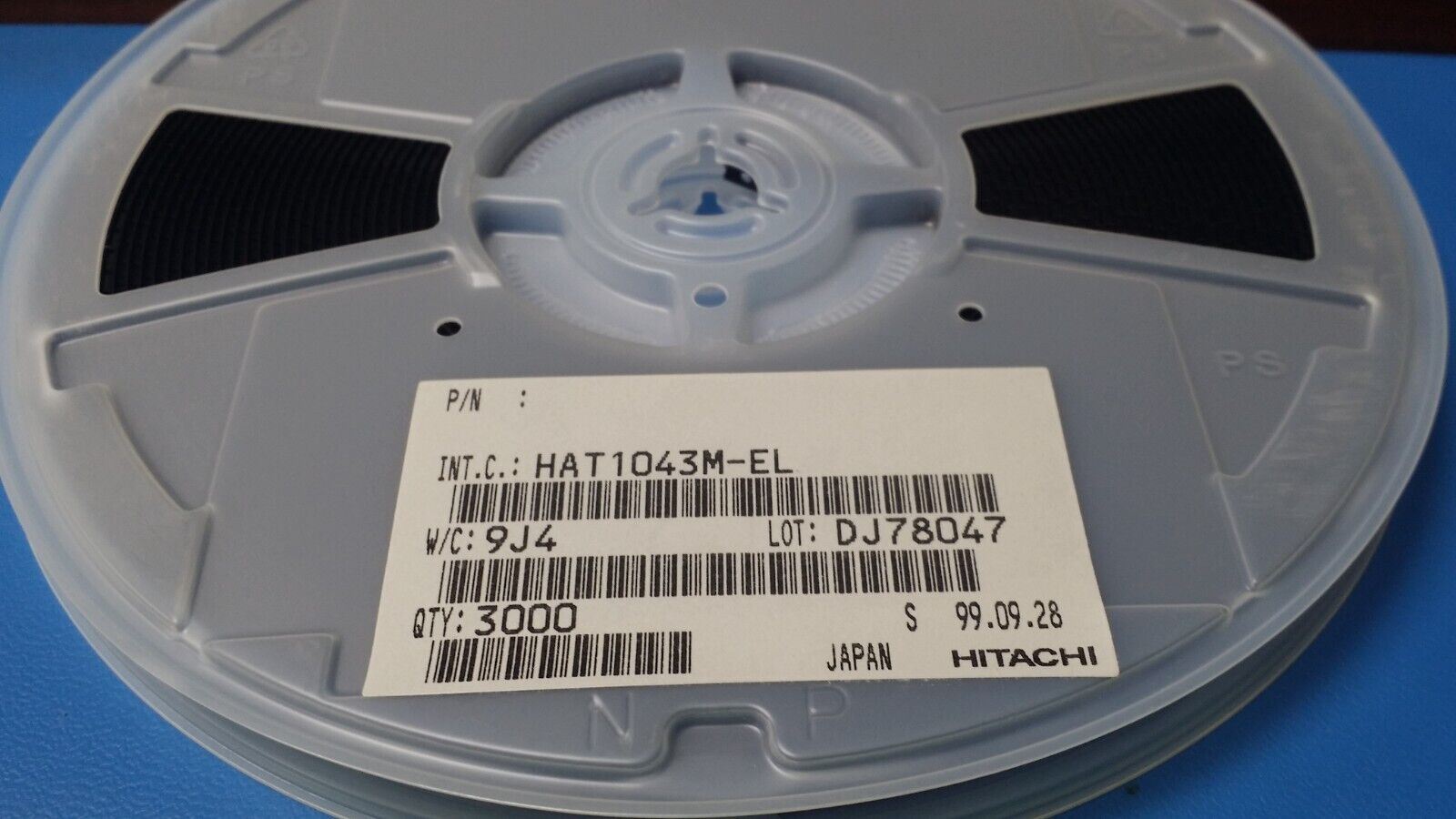

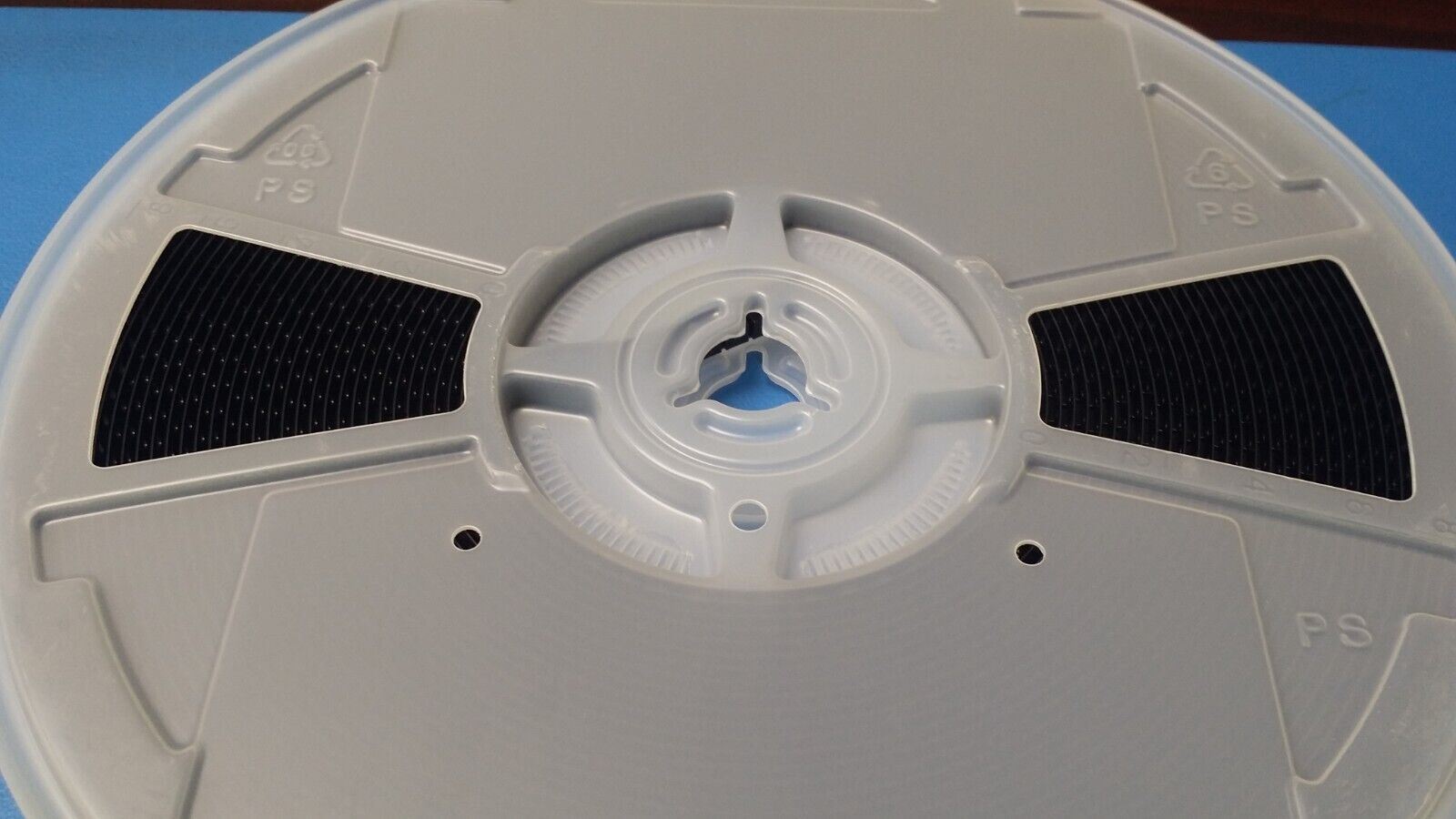

THIS IS FOR (3000 PCS) OF HAT1043M-EL BY HITACHI

Power Field-Effect Transistor, 4.4A, 20V, P-Channel MOSFET

Part #: HAT1043M

Part Category: Transistors

Manufacturer: Hitachi, Ltd.

Description: Power Field-Effect Transistor, 4.4A I(D), 20V, 0.11ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET

Mfr Package Description TSOP-6

Status Transferred

Configuration SINGLE WITH BUILT-IN DIODE

Drain Current-Max (Abs) (ID) 4.4 A

Drain Current-Max (ID) 4.4 A

Drain-source On Resistance-Max 0.11 ohm

DS Breakdown Voltage-Min 20.0 V

FET Technology METAL-OXIDE SEMICONDUCTOR

JESD-30 Code R-PDSO-G6

Number of Elements 1.0

Number of Terminals 6

Operating Mode ENHANCEMENT MODE

Operating Temperature-Max 150.0 Cel

Package Body Material PLASTIC/EPOXY

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Polarity/Channel Type P-CHANNEL

Power Dissipation-Max (Abs) 1.05 W

Pulsed Drain Current-Max (IDM) 17.6 A

Qualification Status Not Qualified

Sub Category Other Transistors

Surface Mount YES

Terminal Form GULL WING

Terminal Position DUAL

Transistor Application SWITCHING

Transistor Element Material SILICON
