(3000 PCS) ZXCL400E5TA ZETEX LDO Voltage Regulators 4.0V 150mA Sgl LDO

$599.95
Unit price per

Tax included.

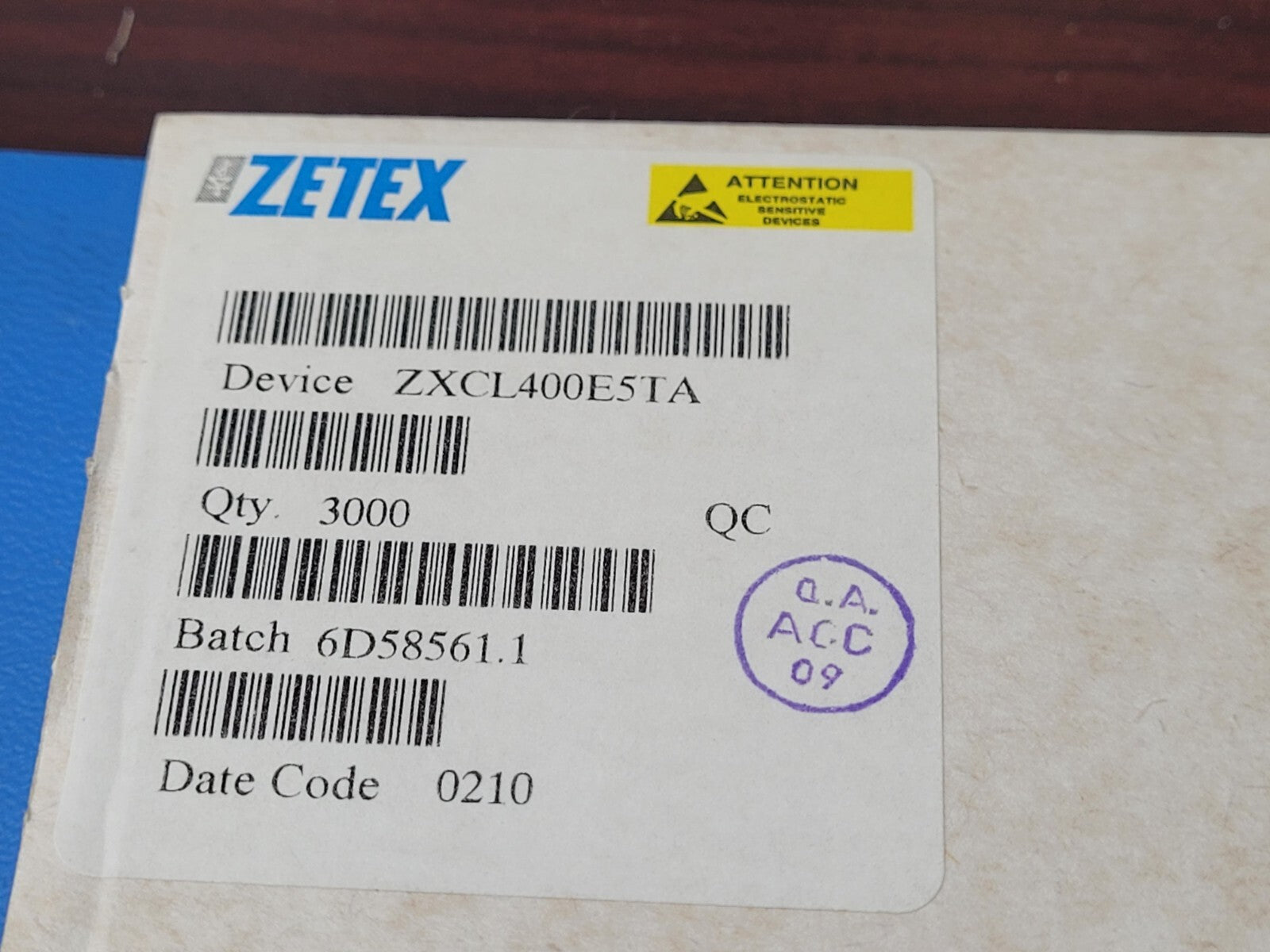

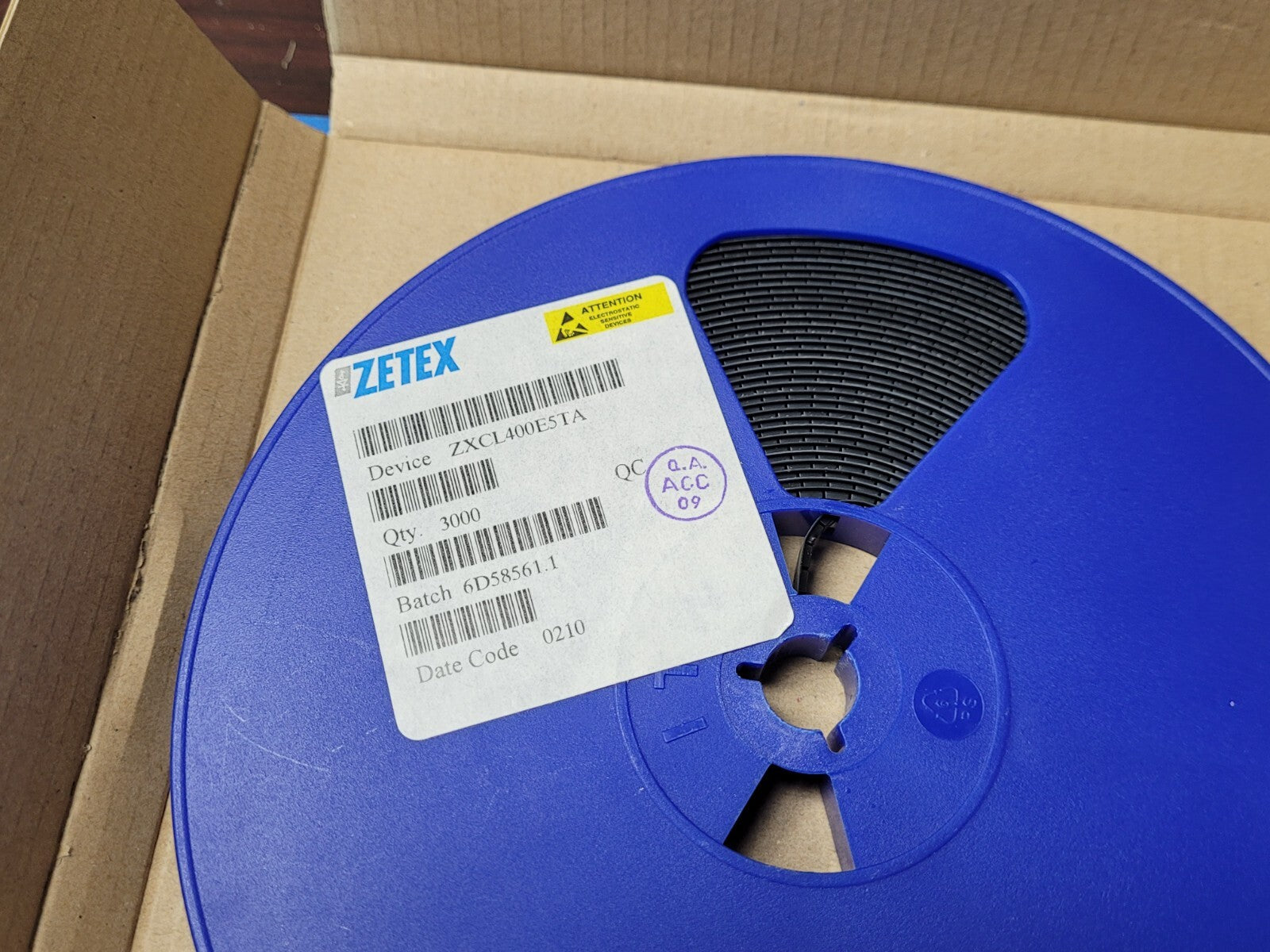

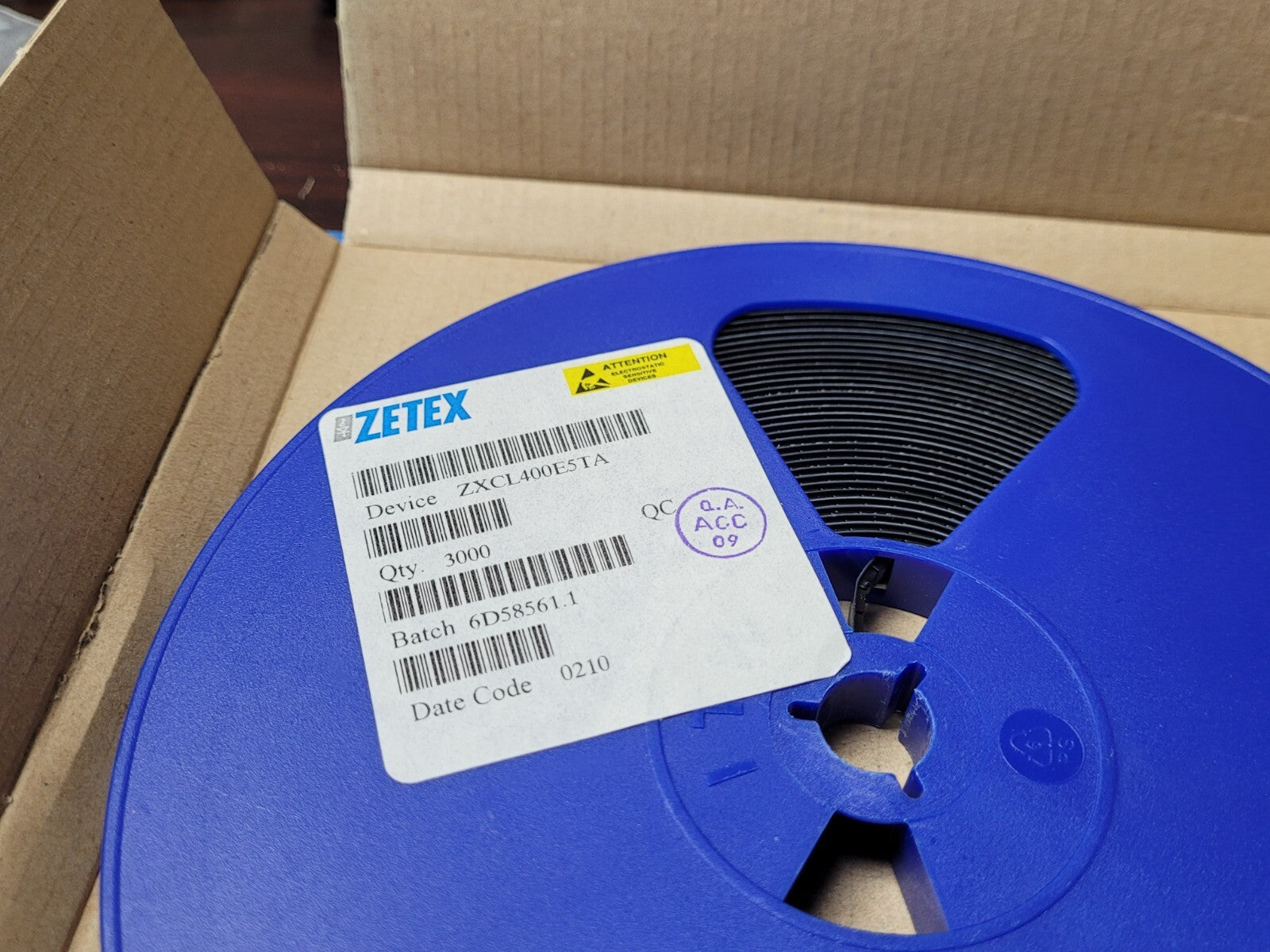

THIS IS FOR (3000 PCS) OF ZXCL400E5TA BY ZETEX

LDO Voltage Regulators 4.0V 150mA Sgl LDO

Part #: ZXCL400E5TA

Part Category: Regulators

Manufacturer: (ZETEX) DIODES Incorporated

Description: Fixed Positive LDO Regulator, 4V, 0.28V Dropout, CMOS, PDSO5

Mfr Package Description SOT-23, 5 PIN

Status Transferred

Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

Dropout Voltage1-Max 0.28 V

Input Voltage-Min 4.5 V

Input Voltage-Max 5.5 V

JESD-30 Code R-PDSO-G5

JESD-609 Code e3

Number of Functions 1

Number of Terminals 5

Output Voltage1-Nom 4.0 V

Output Voltage1-Min 3.88 V

Output Voltage1-Max 4.12 V

Package Body Material PLASTIC/EPOXY

Package Code LSSOP

Package Shape RECTANGULAR

Package Style SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Seated Height-Max 1.45 mm

Surface Mount YES

Technology CMOS

Terminal Finish MATTE TIN

Terminal Form GULL WING

Terminal Pitch 0.95 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 2.9 mm

Width 1.55 mm
