(300 PCS) Z0107NN NXP TRIAC, 800V V(DRM), 1A I(T)RMS ROHS
Tax included.

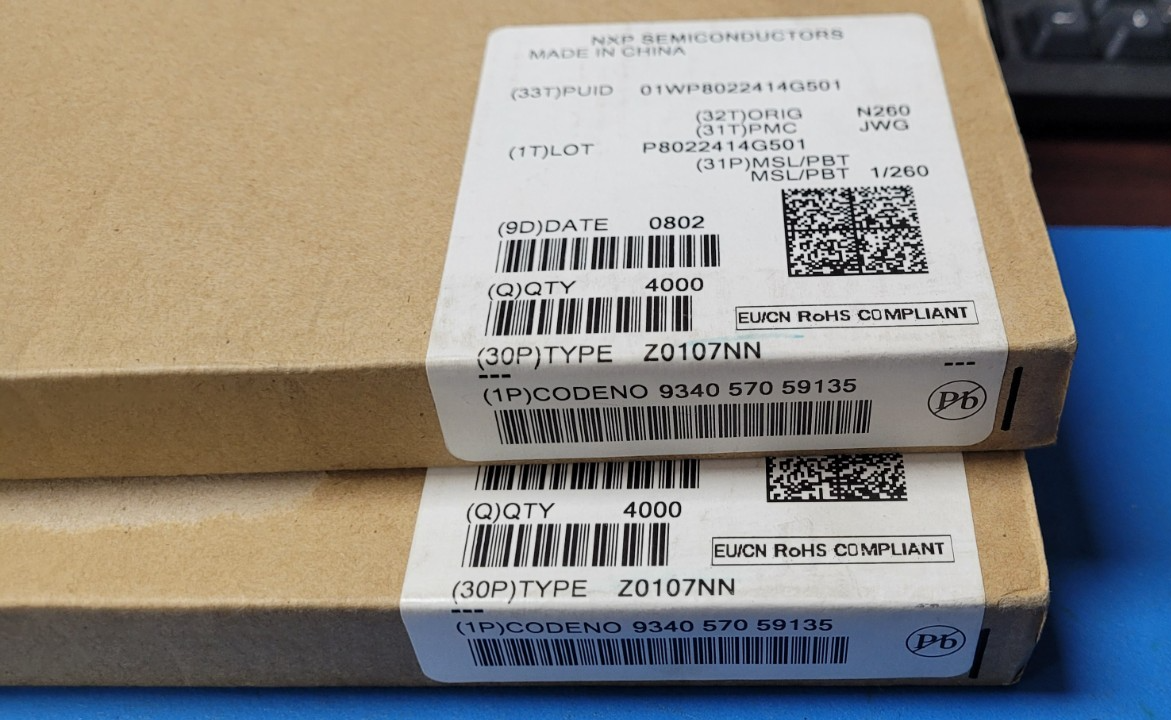

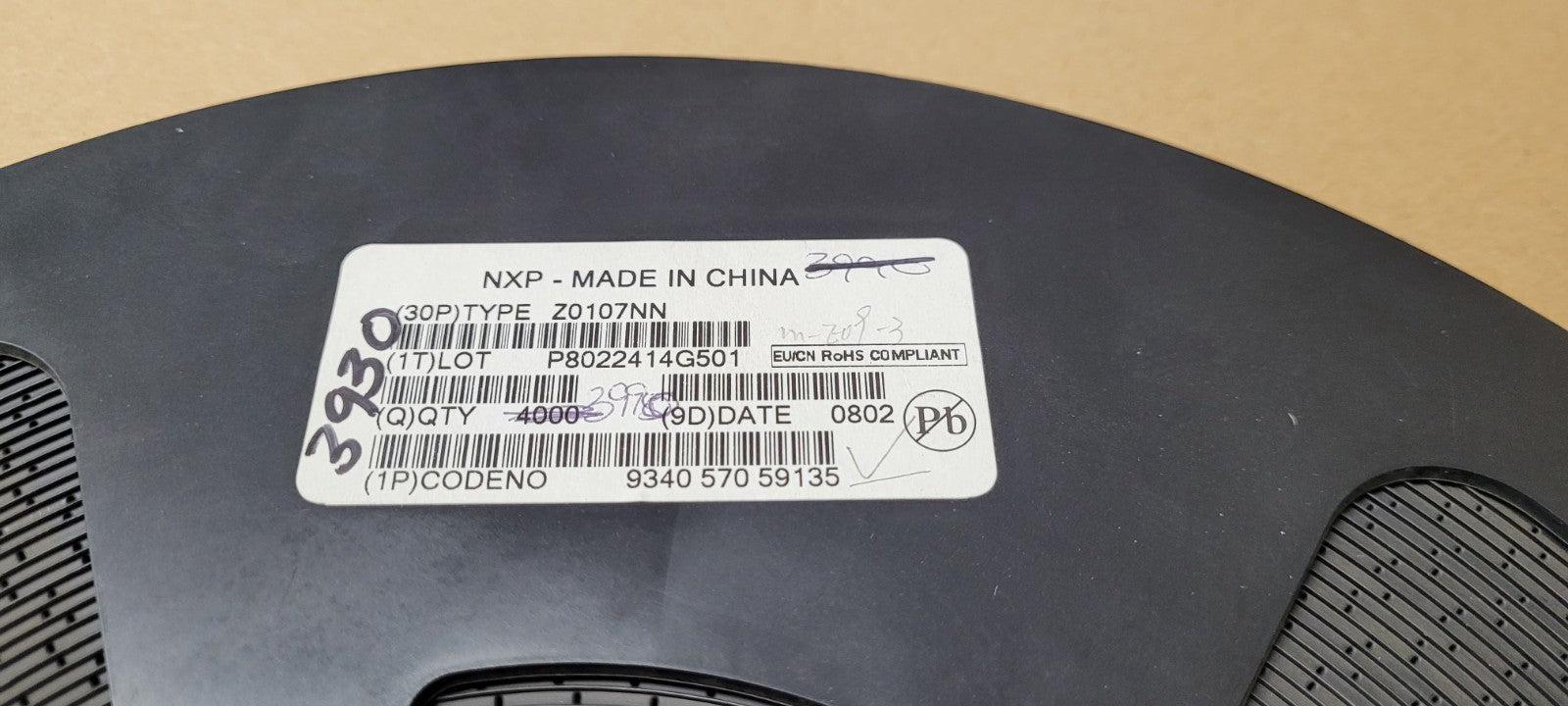

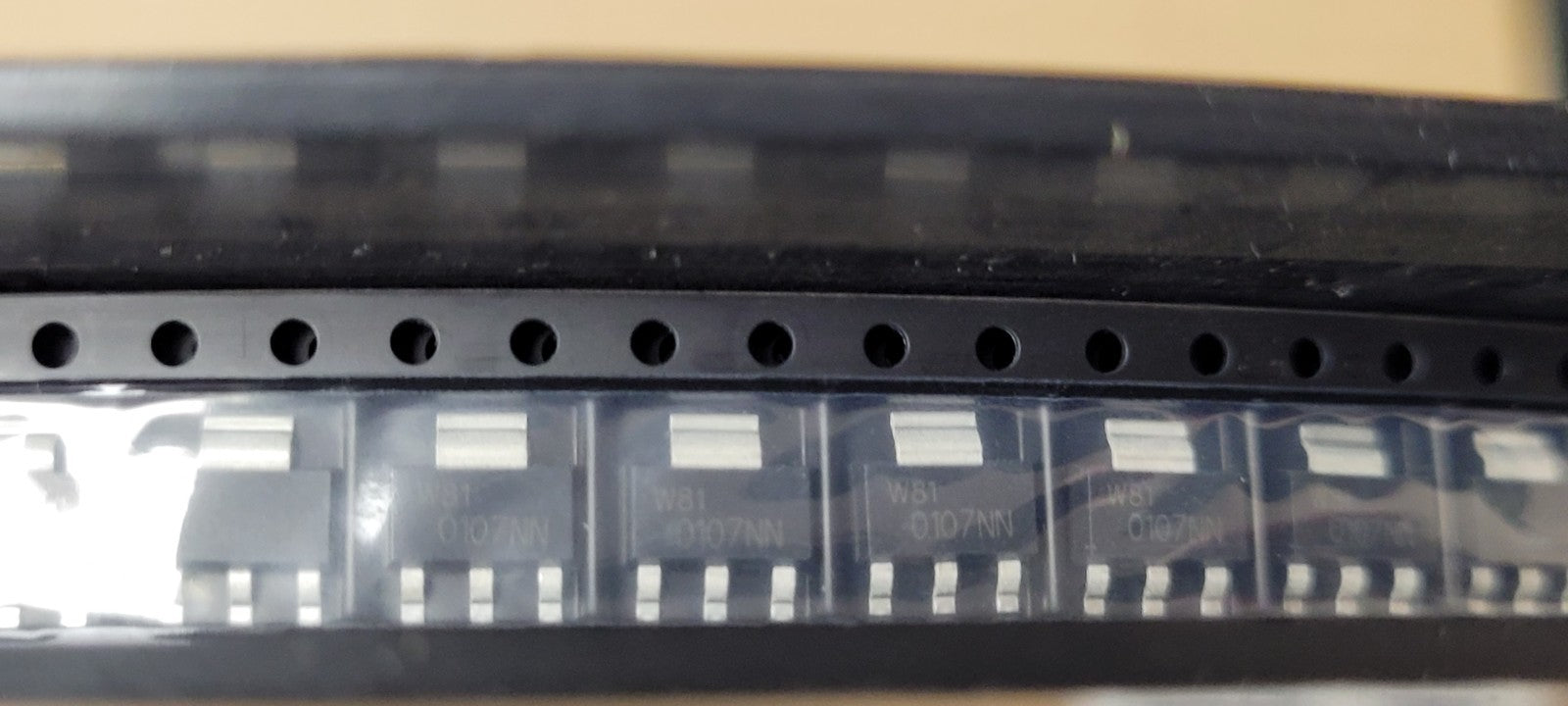

THIS IS FOR (300 PCS) OF Z0107NN BY NXP
TRIAC, 800V V(DRM), 1A I(T)RMS ROHS
Part #: Z0107NN
Other
Part Category: TRIACs
Manufacturer: NXP SEMICONDUCTORS
Description: 4 Quadrant Logic Level TRIAC, 800V V(DRM), 1A I(T)RMS
Status Transferred
Additional Feature SENSITIVE GATE
Case Connection MAIN TERMINAL 2
Configuration SINGLE
DC Gate Trigger Current-Max (mA) 7.0000000000000000
DC Gate Trigger Voltage-Max (V) 1.3000000000000000
Holding Current-Max (mA) 10.0000000000000000
JESD-30 Code R-PDSO-G4
J-STD-609 Code e3
Leakage Current-Max (mA) 0.500000000000000
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 4
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -40
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
DLA Qualification Not Qualified
RMS On-state Current-Max (A) 1.0000000000000000
Repetitive Peak Off-state Voltage (V) 800
Surface Mount YES
Terminal Finish TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
