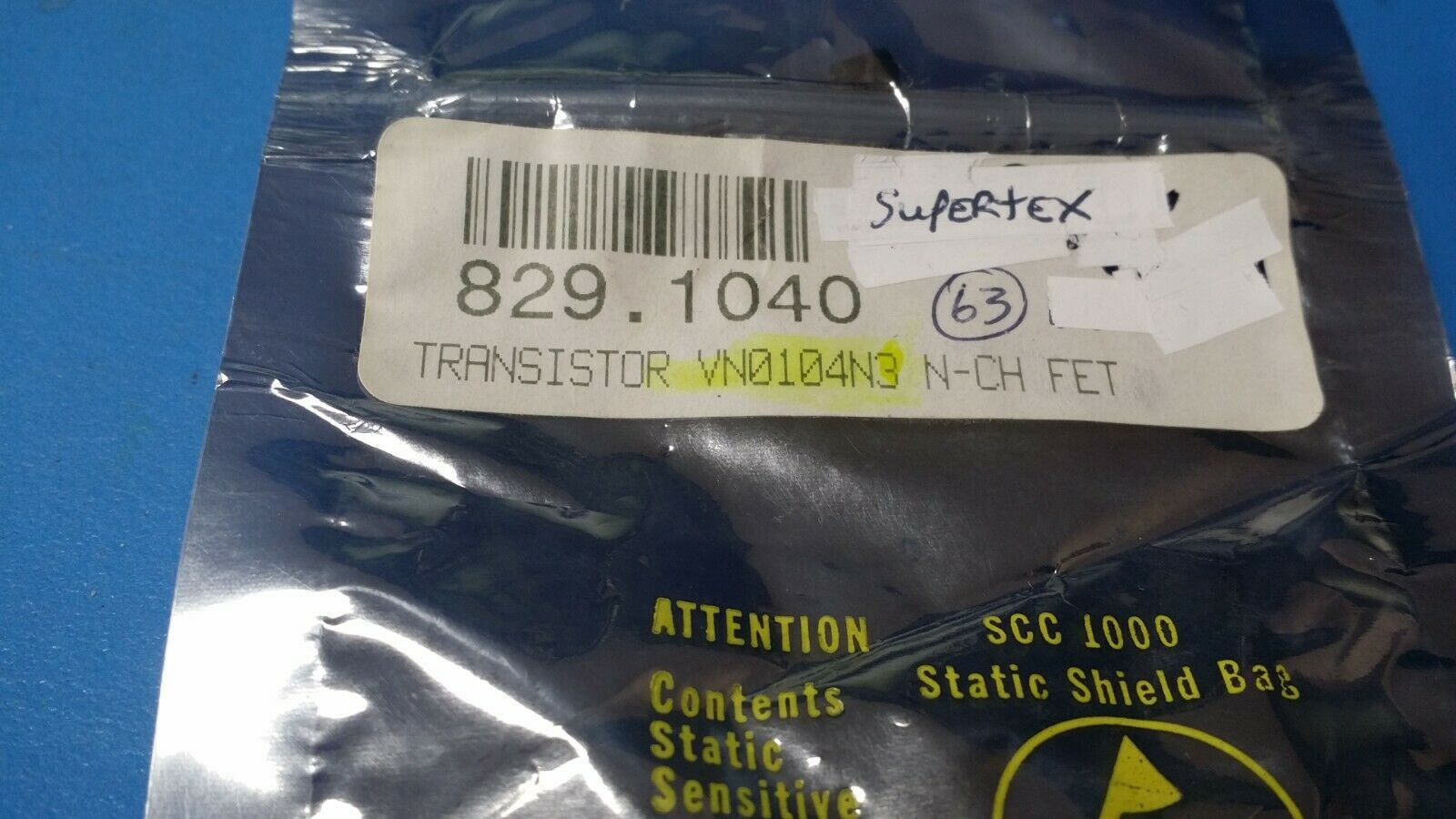

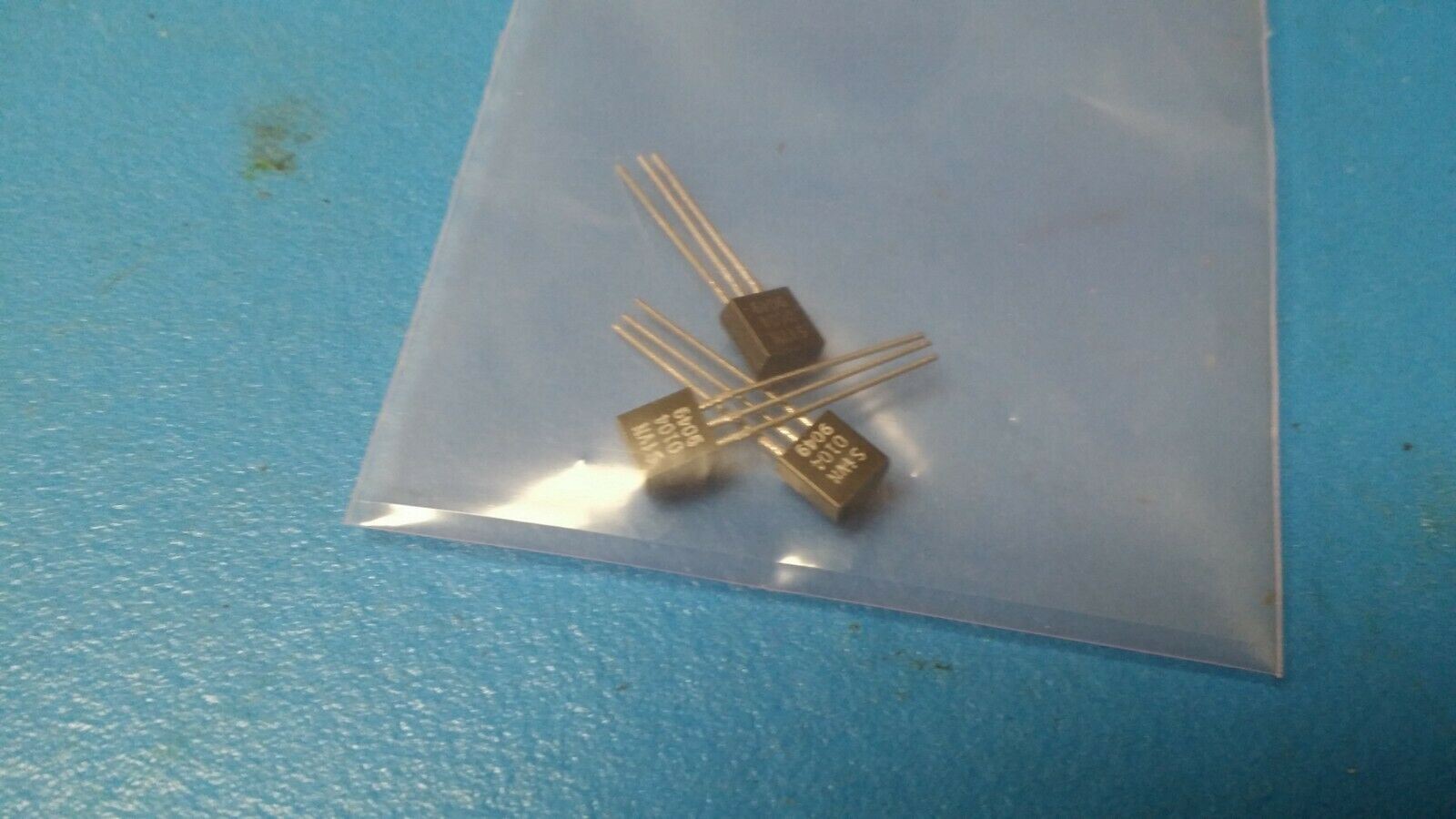

(3 PCS) VN0104N3 SUPERTEX Trans MOSFET N-CH Si 40V 0.35A 3-Pin TO-92 Bag

Part #: VN0104N3

Part Category: Transistors

Manufacturer: Supertex, Inc.

Description: Small Signal Field-Effect Transistor, 0.5A I(D), 40V, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-92

Mfr Package Description TO-92, 3 PIN

REACH Compliant Yes

Status Discontinued

Configuration SINGLE WITH BUILT-IN DIODE

Drain Current-Max (Abs) (ID) 0.5  A

Drain Current-Max (ID) 0.5  A

Drain-source On Resistance-Max 3.0  ohm

DS Breakdown Voltage-Min 40.0  V

Feedback Cap-Max (Crss) 8.0  pF

FET Technology METAL-OXIDE SEMICONDUCTOR

JEDEC-95 Code TO-92

JESD-30 Code O-PBCY-T3

JESD-609 Code e0

Number of Elements 1.0

Number of Terminals 3

Operating Mode ENHANCEMENT MODE

Operating Temperature-Max 150.0  Cel

Package Body Material PLASTIC/EPOXY

Package Shape ROUND

Package Style CYLINDRICAL

Peak Reflow Temperature (Cel) NOT SPECIFIED

Polarity/Channel Type N-CHANNEL

Power Dissipation-Max (Abs) 1.0  W

Qualification Status Not Qualified

Sub Category FET General Purpose Power

Surface Mount NO

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Position BOTTOM

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Transistor Application SWITCHING

Transistor Element Material SILICON

Additional Feature HIGH INPUT IMPEDANCE
