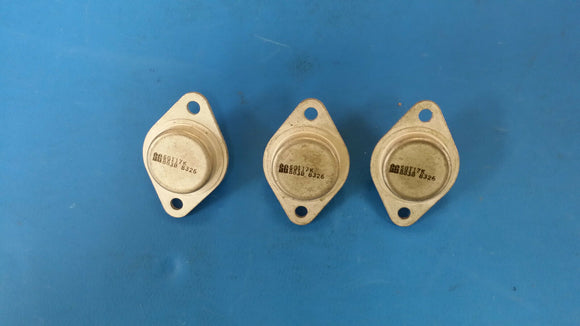

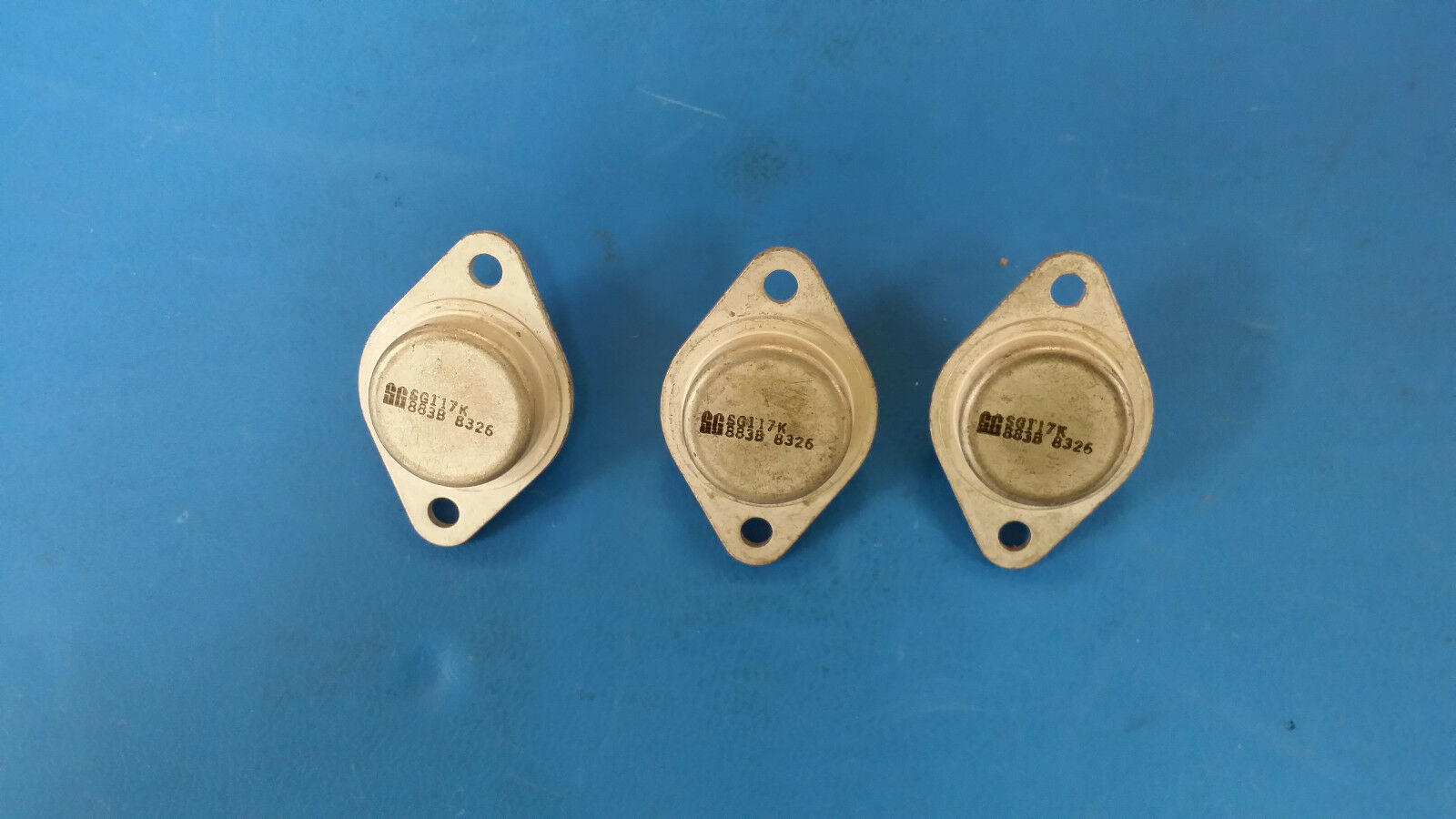

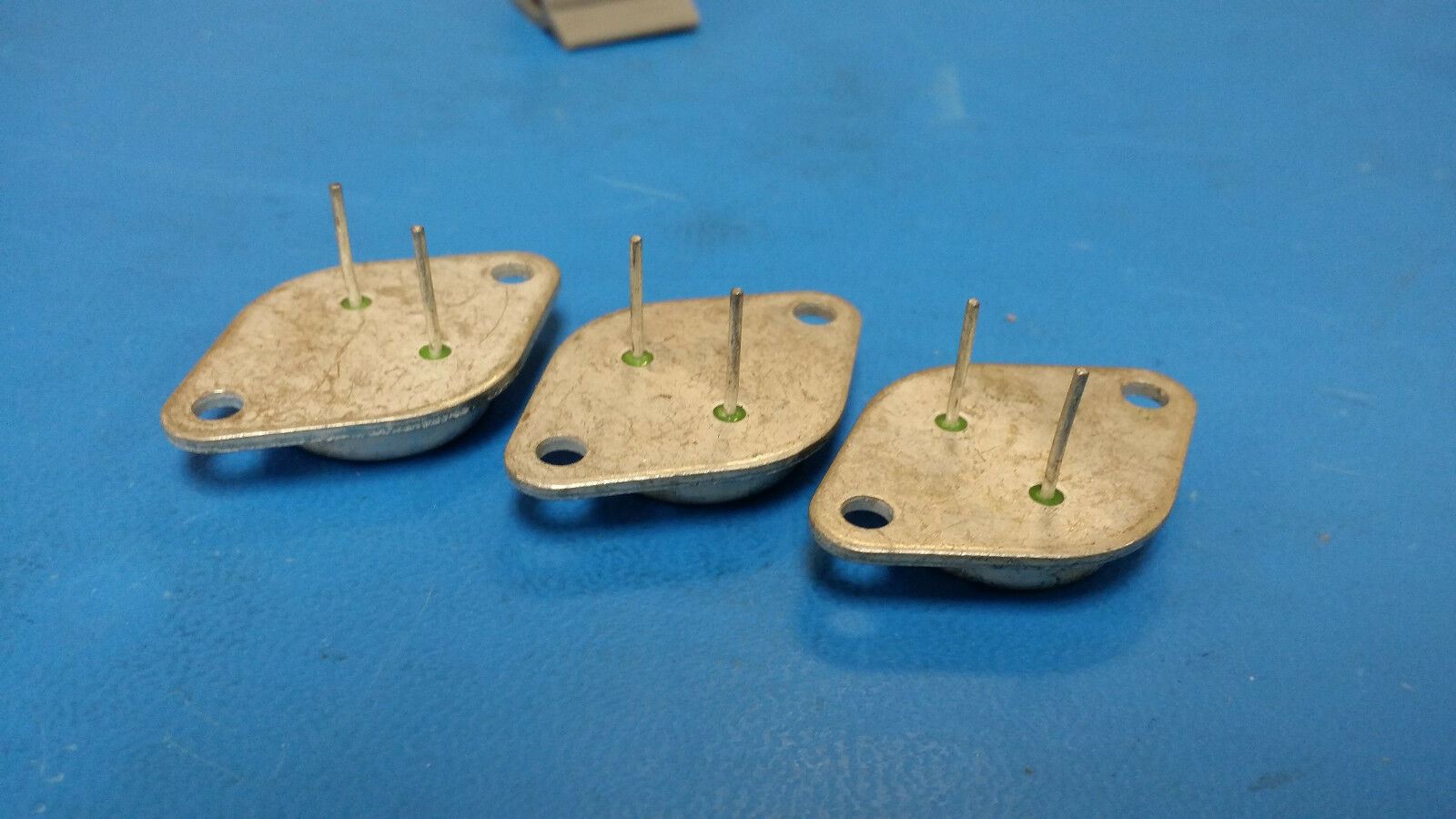

(3 PCS) SG117K-883B SG Standard Regulator Pos 1.5A 3-Pin(2+Tab) TO-3
Tax included.
THIS LISTING IS FOR (3 PCS) OF SG117K-883B
Standard Regulator Pos 1.5A 3-Pin(2+Tab) TO-3
Standard Regulator Pos 1.5A 3-Pin(2+Tab) TO-3
Part Information
SG117K-883B Part Details & Parametric
| EU RoHS |
Not Compliant
|
| Number of Outputs | 1 |
| Type | Standard |
| Output Type | Adjustable |
| Polarity | Positive |
| Load Regulation | 0.3% |
| Line Regulation | 0.02%/V |
| Maximum Power Dissipation (mW) | 20000 |
| Maximum Input Voltage (V) | 37 |
| Maximum Output Current (A) | 1.5(Min) |
| Accuracy (%) | ±1 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 125 |
| Screening Level | Military |
| Mounting | Through Hole |
| Package Height (mm) | 7.92 |
| Package Length (mm) | 39.29 |
| Package Width (mm) | 26.42 |
| PCB | 2 |
| Tab | Tab |
| Standard Package Name | TO-204-AA |
| Supplier Package | TO-3 |
| Pin Count | 3 |
