(6 PCS) ILD2 VISHAY OPTOISOLTR 5.3KV 2CH TRANS 8-DIP ROHS
Tax included.

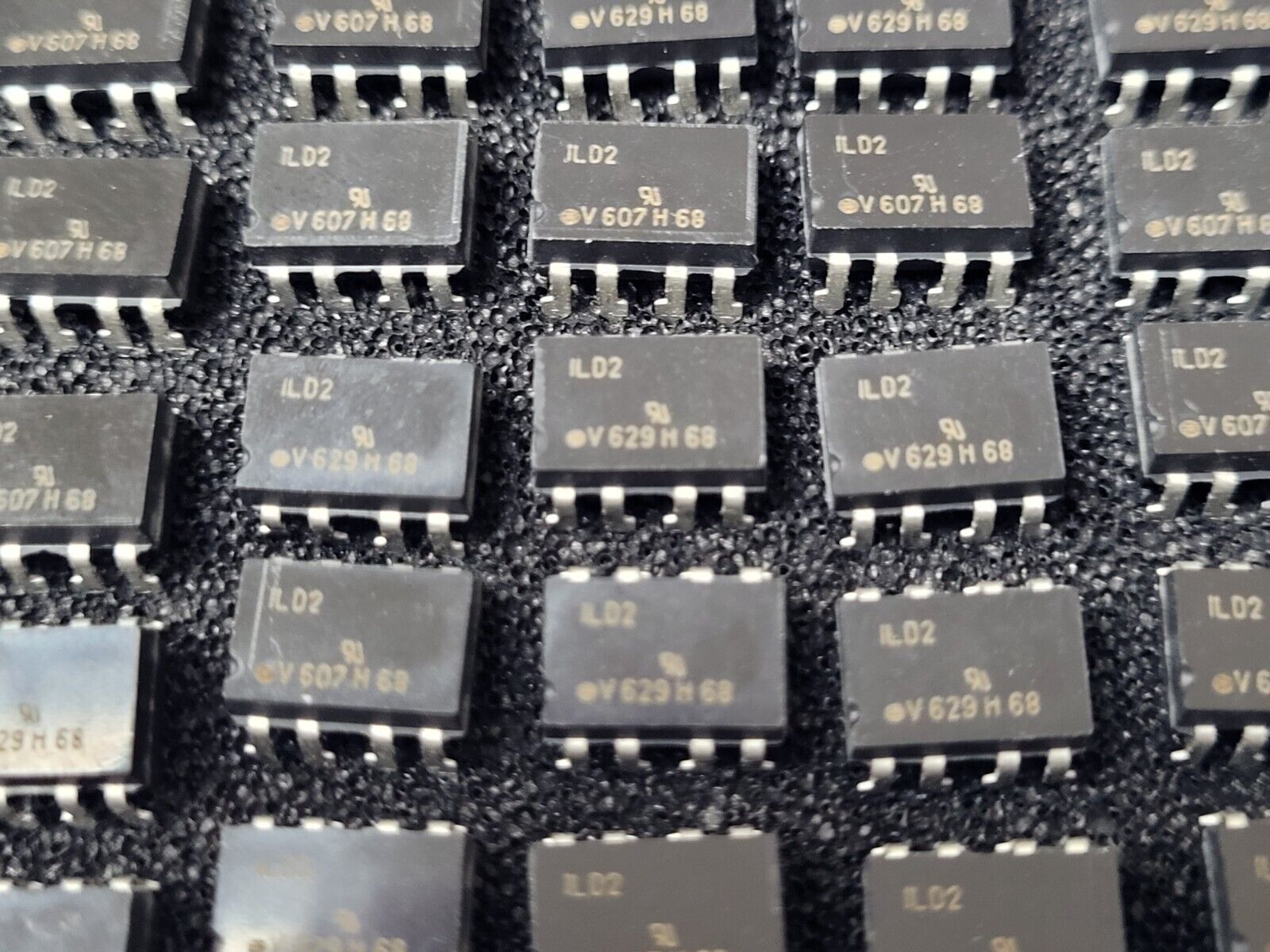

THIS IS FOR (3 PCS) OF ILD2 BY VISHAY
OPTOISOLTR 5.3KV 2CH TRANS 8-DIP ROHS
Manufacturer: Vishay
Product Category: Transistor Output Optocouplers
RoHS: YES
Mounting Style: Through Hole
Package / Case: DIP-8
Number of Channels: 2 Channel
Isolation Voltage: 5300 Vrms
Output Type: NPN Phototransistor
Current Transfer Ratio - Min: 100 %
Current Transfer Ratio - Max: 500 %
If - Forward Current: 60 mA
Vf - Forward Voltage: 1.65 V
Maximum Collector Emitter Voltage: 70 V
Maximum Collector Current: 400 mA
Maximum Collector Emitter Saturation Voltage: 400 mV
Rise Time: 2 us
Fall Time: 2.2 us
Vr - Reverse Voltage: 6 V
Pd - Power Dissipation: 250 mW
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 100 C
Packaging: Tube
Brand: Vishay Semiconductors
Configuration: 2 Channel
Current Transfer Ratio: 100 %
Height: 3.81 mm
Length: 9.91 mm
Product Type: Transistor Output Optocouplers
