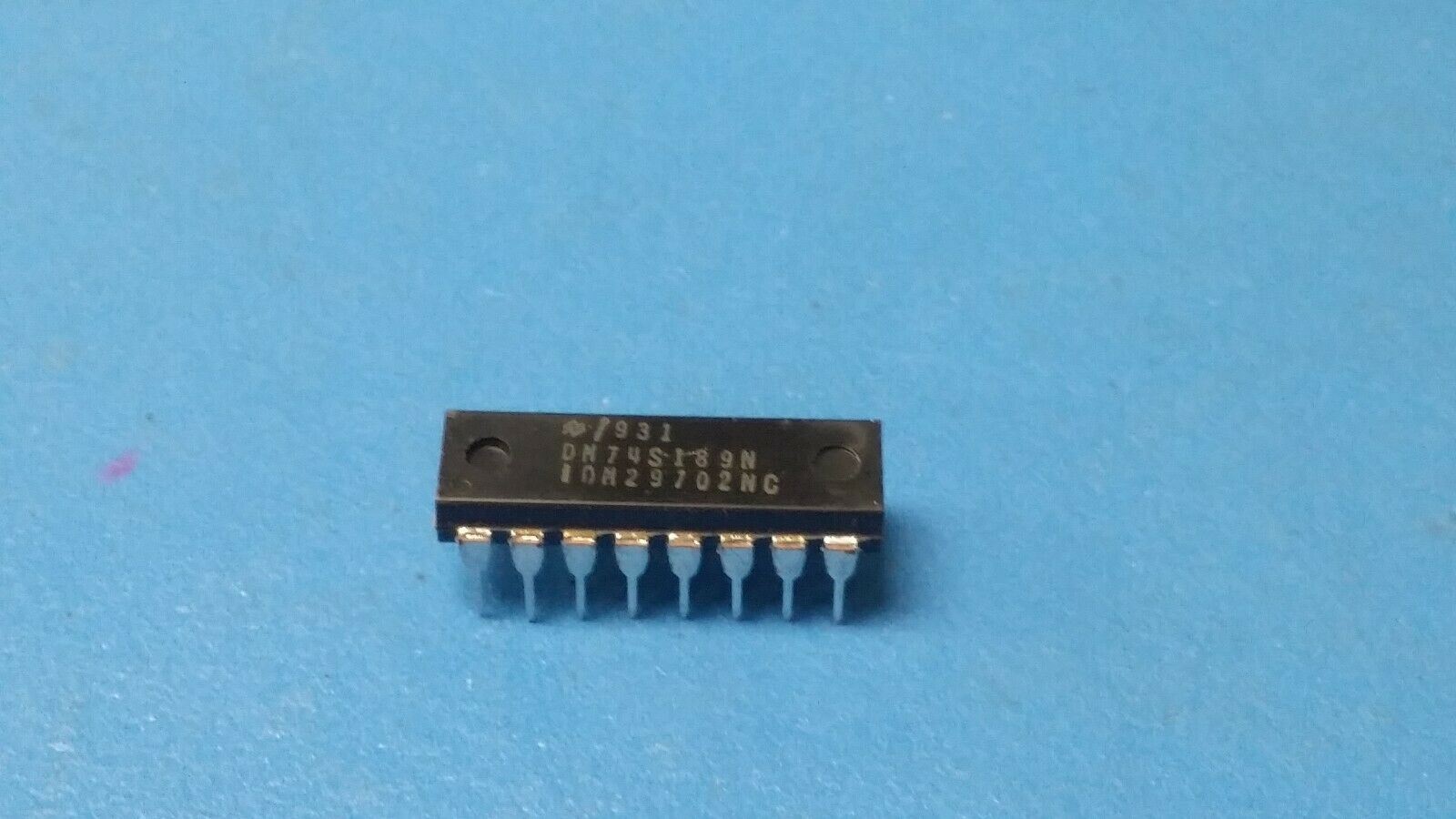

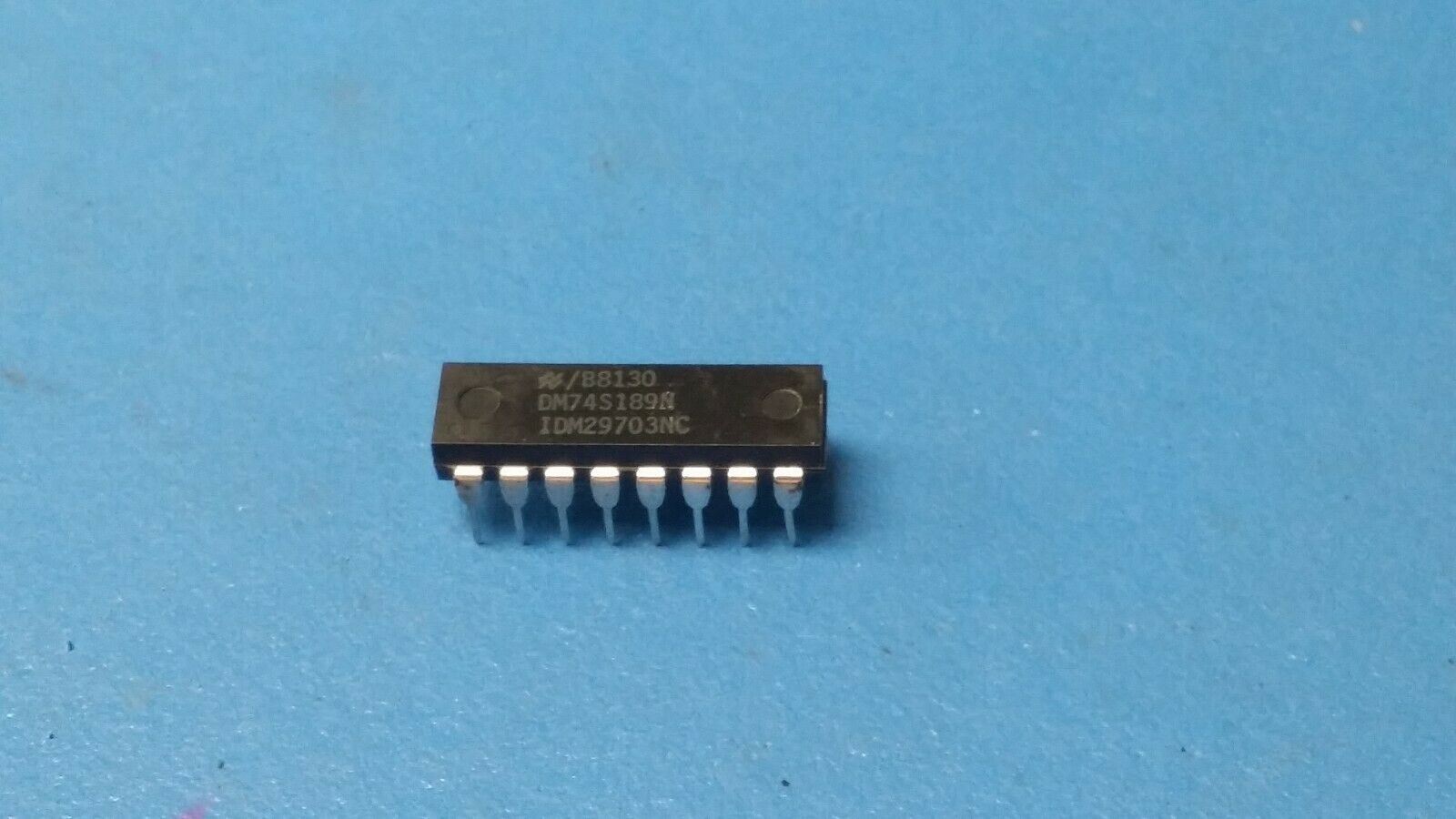

(3 PCS) DM74S189N/IDM29702NC NSC Standard SRAM, 16X4, 35ns, TTL, PDIP16
Tax included.
THIS IS FOR (3 PCS) OF DM74S189N BY NSC
Standard SRAM, 16X4, 35ns, TTL, PDIP16
Part #: DM74S189N
Part Category: Memory ICs
Manufacturer: (NSC)Texas Instruments High-Performance Analog
Description: Standard SRAM, 16X4, 35ns, TTL, PDIP16
Mfr Package Description PLASTIC, DIP-16
Status Discontinued
Sub Category SRAMs
Access Time-Max 35.0 ns
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Memory Density 64.0 bit
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 16
Number of Words 16.0 words
Number of Words Code 16
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 16X4
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 19.305 mm
Width 7.62 mm
