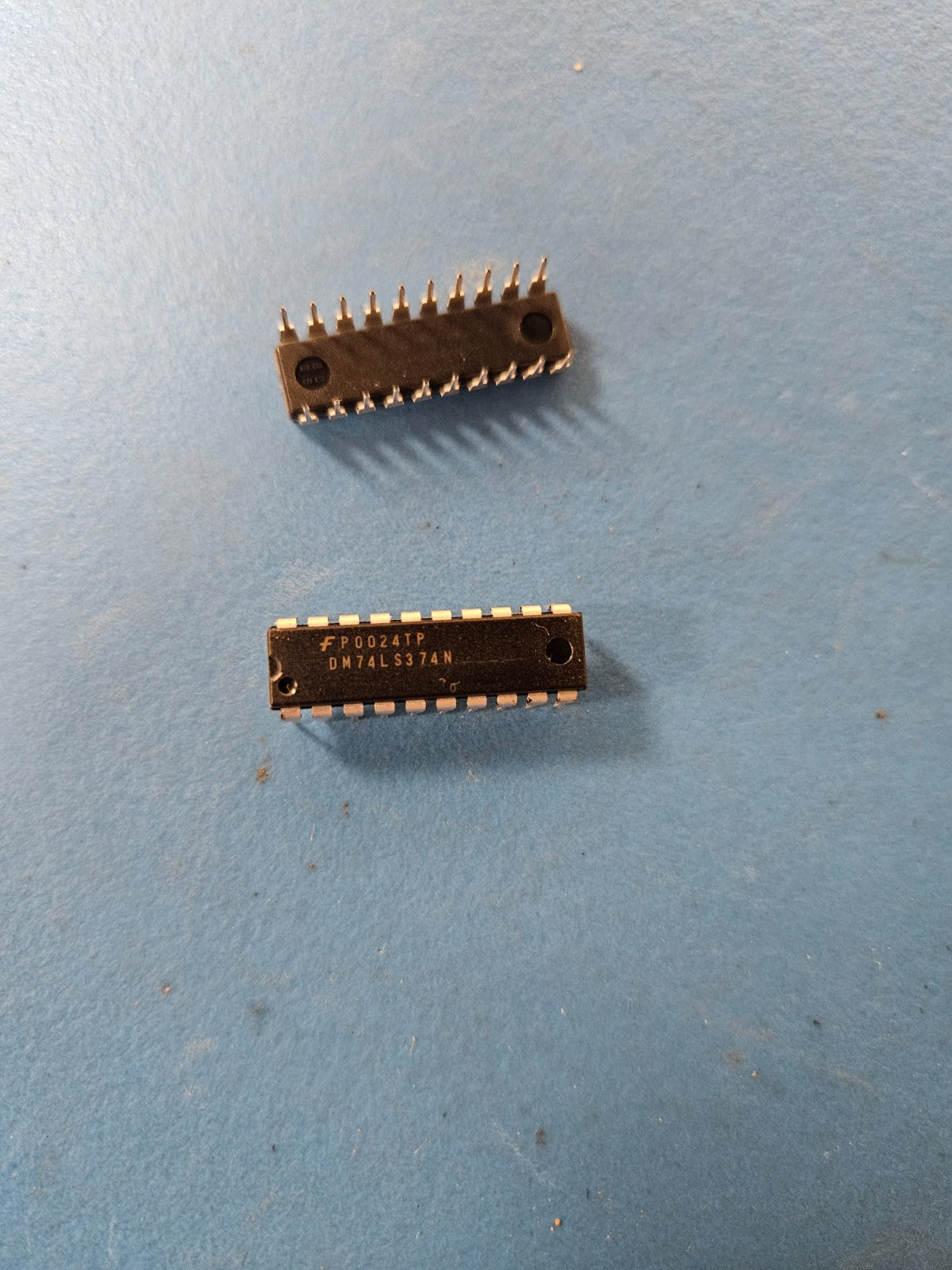

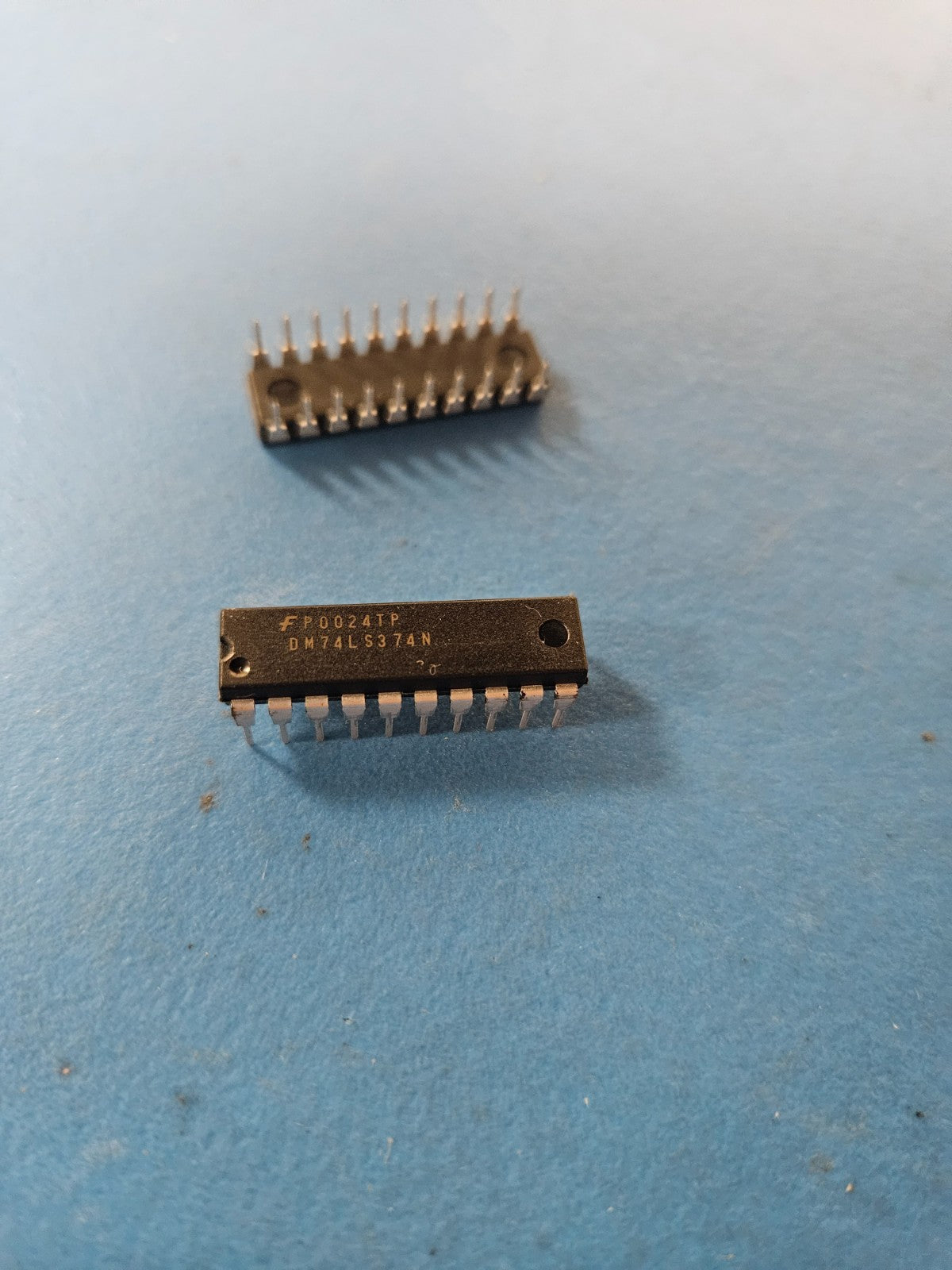

(3 PCS) DM74LS374N FSC
Tax included.
This listing is for 3 pieces
|
Mfr Package Description |
0.300 INCH, PLASTIC, MS-001, DIP-20 |
| Status | Discontinued |
| Logic IC Type | BUS DRIVER |
| Sub Category | FF/Latches |
| Family | LS |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Max I(ol) | 0.024 Amp |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supply Current-Max (ICC) | 45.0 mA |
| Prop. Delay@Nom-Sup | 28.0 ns |
| Propagation Delay (tpd) | 38.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.75 V |
| Supply Voltage-Max (Vsup) | 5.25 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Trigger Type | POSITIVE EDGE |
| Length | 26.075 mm |
| Width | 7.62 mm |
