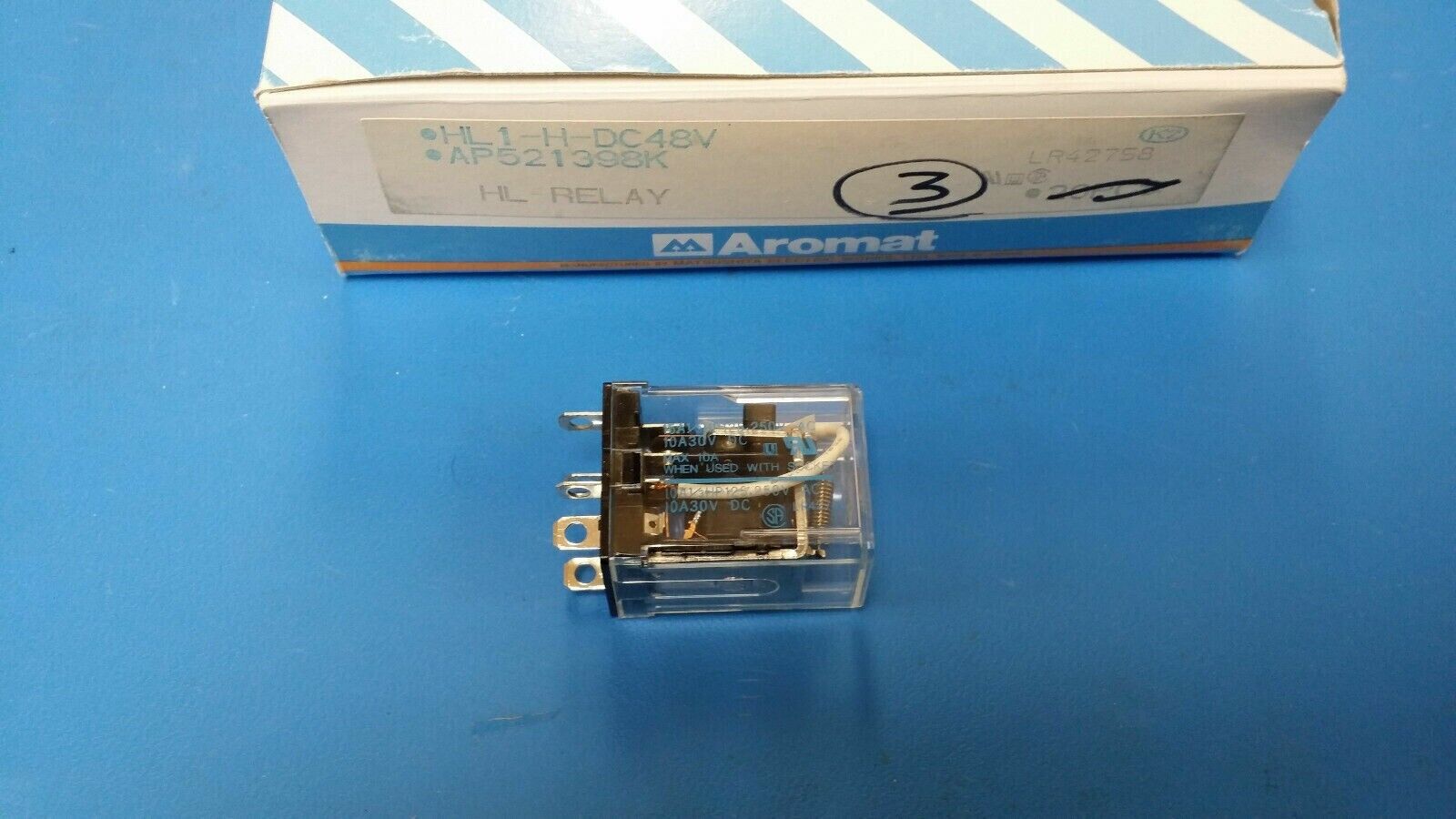

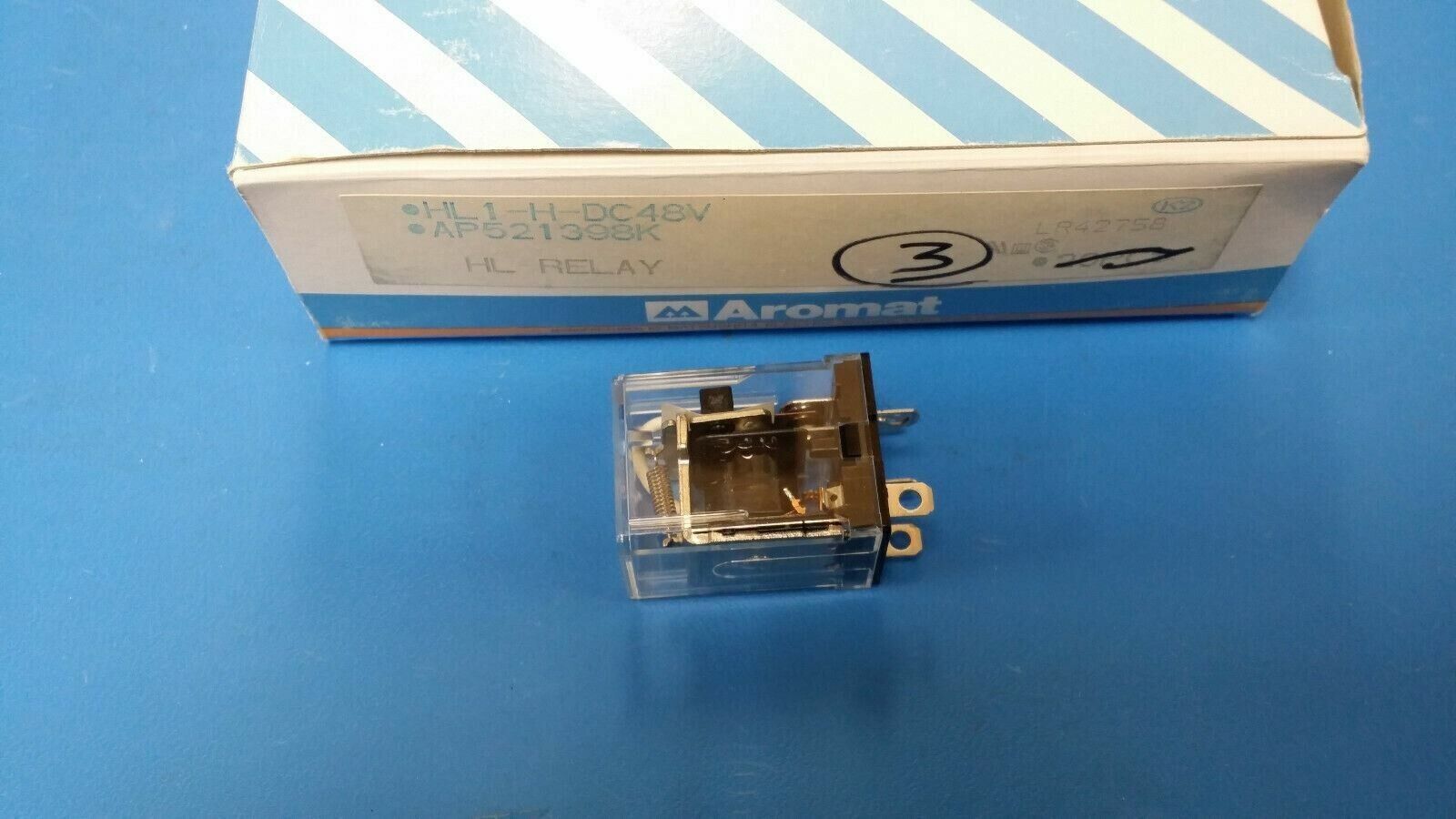

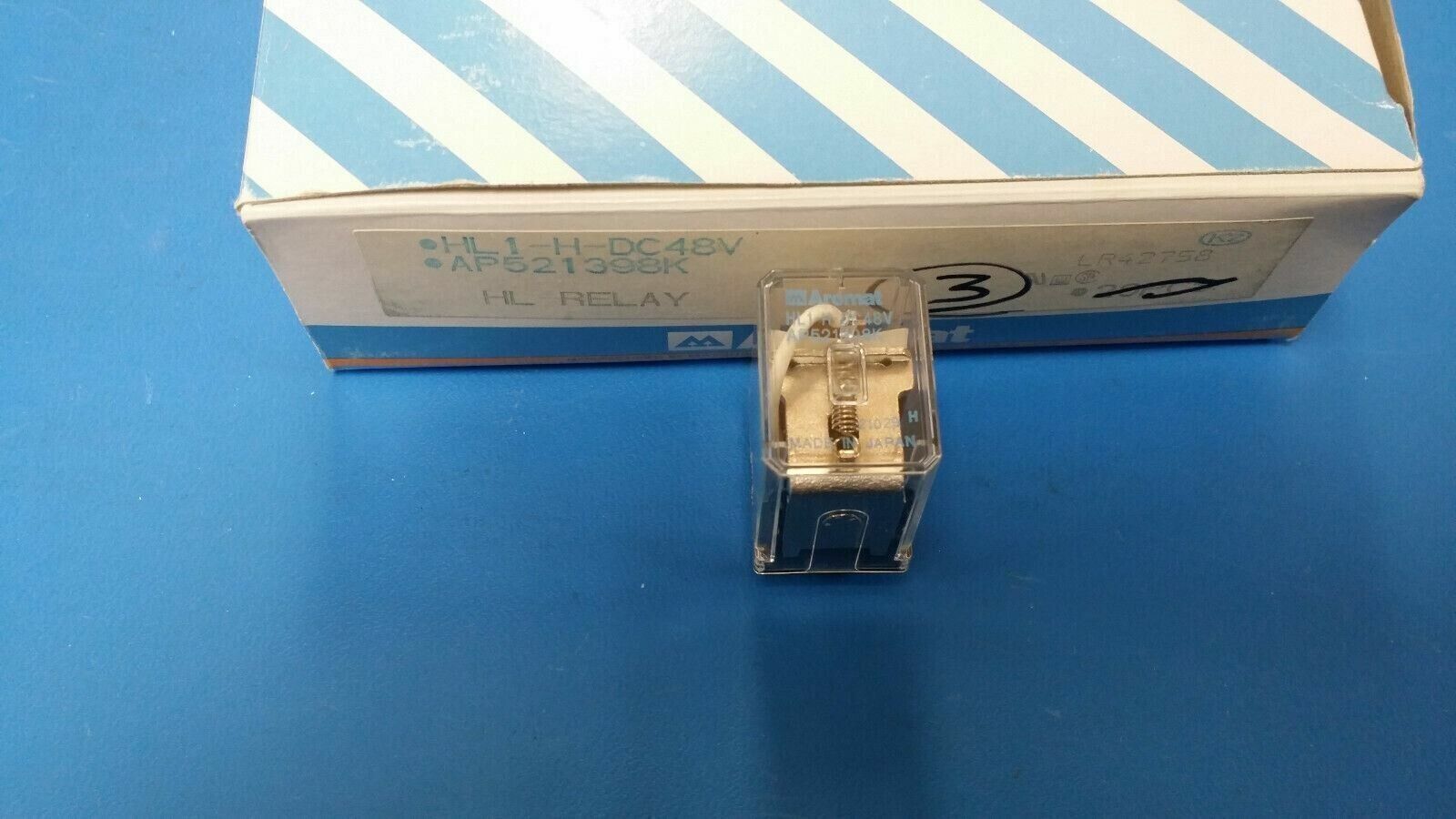

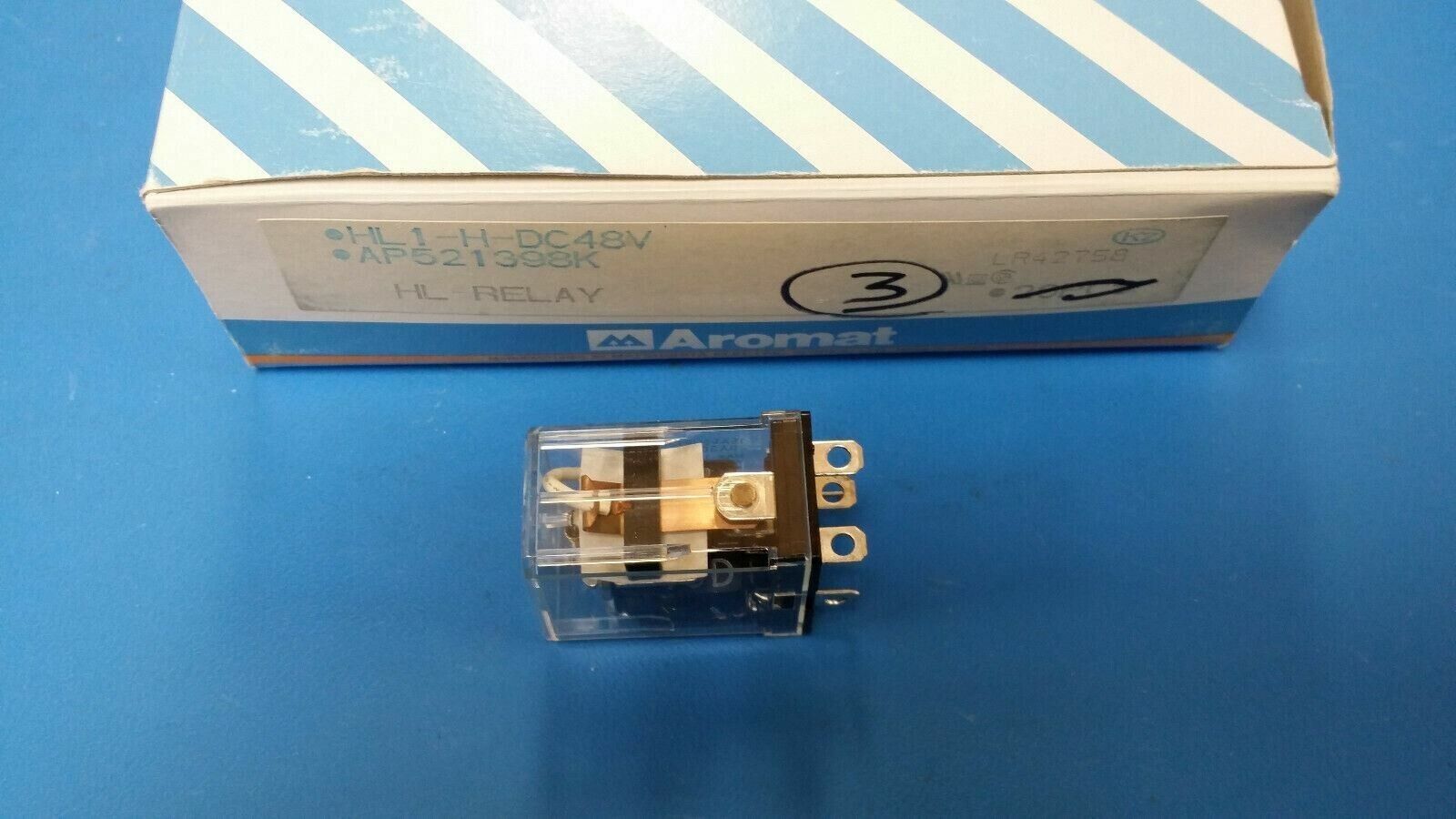

(1 PC) AROMAT HL1-H-DC48V Electromechanical Relay SPDT 15A 48VDC 2.6KOhm
Tax included.
(1 pc) AROMAT HL1-H-DC48V Electromechanical Relay SPDT 15A 48VDC 2.6KOhm
Part #: HL1-HP-DC48V
Part Category: Relays
Manufacturer: Panasonic
Description: Power/Signal Relay, SPDT, Momentary, 0.019A (Coil), 48VDC (Coil), 900mW (Coil), 15A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount
Status Discontinued
Relay Type POWER/SIGNAL RELAY
Body Breadth 20.8 mm
Body Height 35.4 mm
Body Length or Diameter 27.2 mm
Coil Current(DC)-Max 0.019 A
Coil/Input Supply Type DC
Coil Operate Voltage(DC) 38.4 V
Coil Release Voltage(DC) 4.8 V
Coil Resistance 2600.0 ohm
Coil Voltage(DC)-Max 48.0 V
Contact AC Max Rating R Load 15A@250VAC
Contact Current(AC)-Max 15.0 A
Contact Current(DC)-Max 15.0 A
Contact DC Max Rating R Load 15A@30VDC
Contact/Output Supply Type AC/DC
Contact Voltage(AC)-Max 250.0 V
Contact Voltage(DC)-Max 30.0 V
Electrical Life 500000.0 Cycle(s)
Mounting Feature THROUGH HOLE-STRAIGHT MOUNT
Operate Time 25.0 ms
Operating Temperature-Min -50.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method BOX
Physical Dimension 27.2mm x 20.8mm x 35.4mm
Reference Standard CSA; UL
Relay Action MOMENTARY
Relay Function SPDT
Release Time 25.0 ms
Termination Type SOLDER
