(3 PCS) 5629 J W MILLER 5629 Ind High Current RF Choke Bobbin Core 1mH 10% 1KHz
(3 PCS) 5629 J W MILLER 5629 Ind High Current RF Choke Bobbin Core 1mH 10% 1KHz

(3 PCS) 5629 J W MILLER 5629 Ind High Current RF Choke Bobbin Core 1mH 10% 1KHz

Tax included.
Only 50 left!

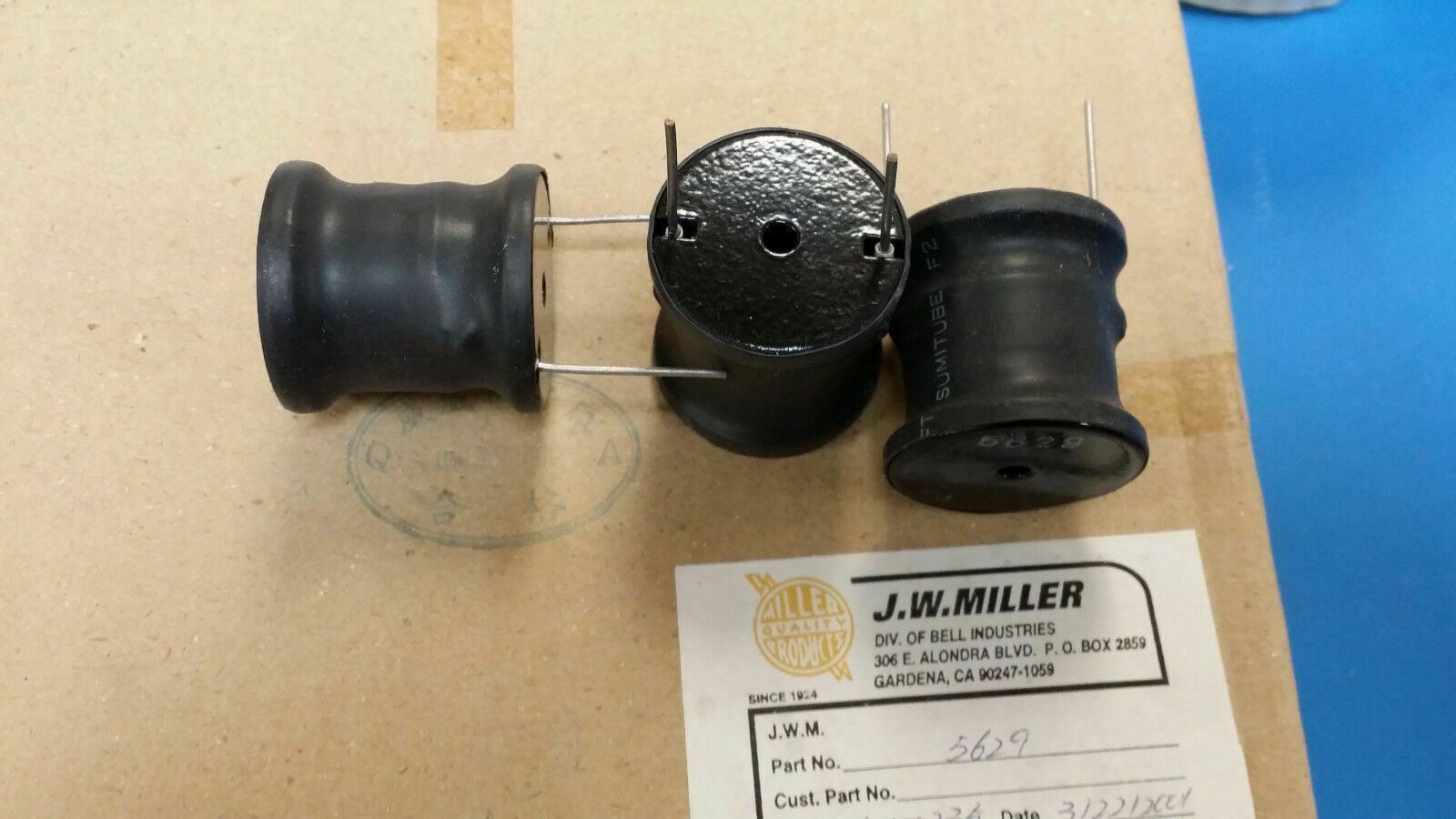

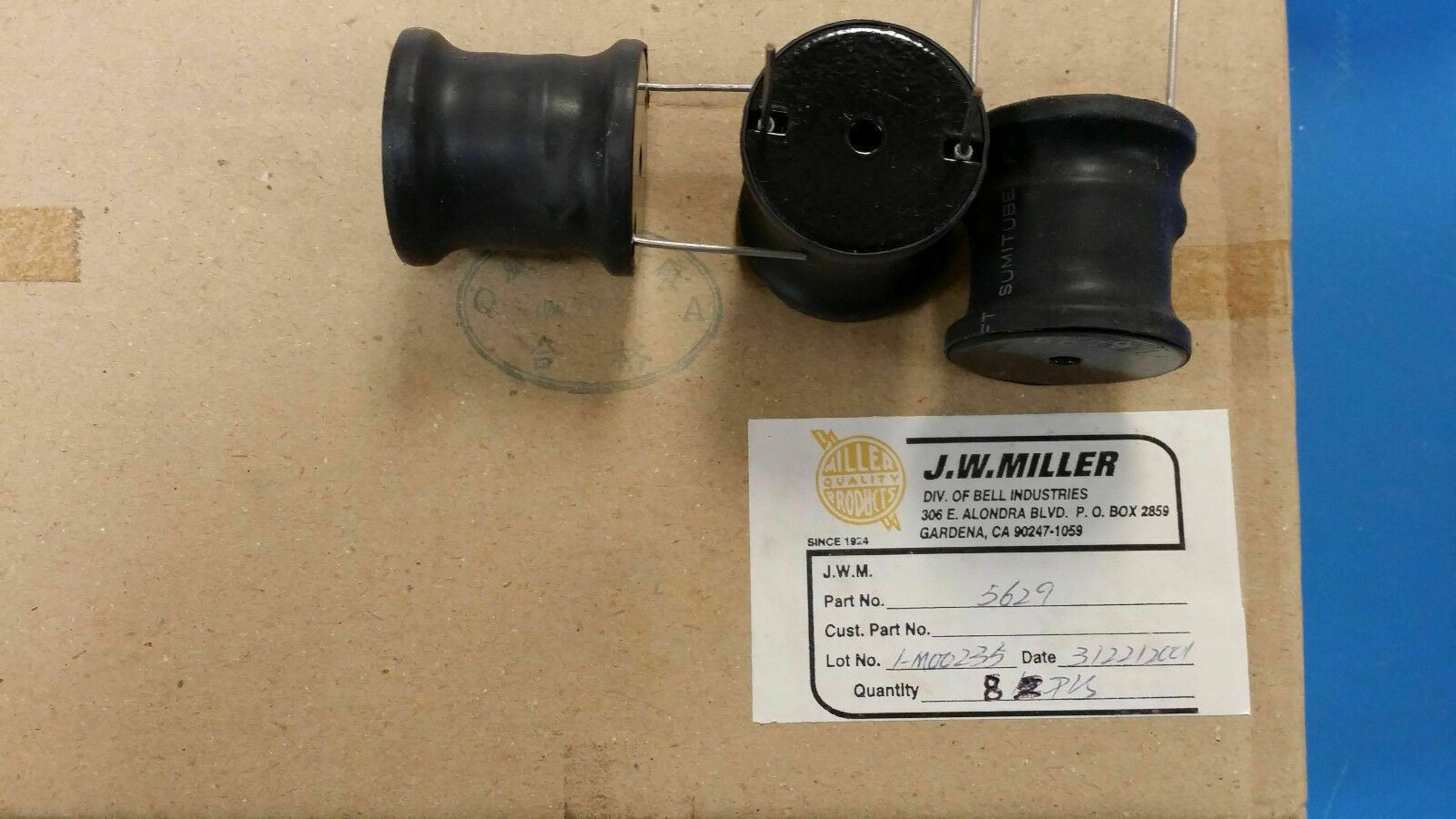

THIS LISTING IS FOR (3 PCS) 5629 J W MILLER  5629 Ind High Current RF Choke Bobbin Core 1mH 10% 1KHz


5629 Part Details & Parametric

EU RoHS
Not Compliant
Type High Current RF Choke
Core Material Ferrite
Inductance 1m
Technology Bobbin Core
Tolerance 10%
Test Frequency (Hz) 1K
Maximum DC Current (A) 4.4
Maximum DC Resistance (Ohm) 183m
Lead Style Radial
Product Diameter (mm) 38.1
Lead Pitch (mm) 31.24
Product Height (mm) 38.1
Maximum Operating Temperature (°C) 105
Minimum Operating Temperature (°C) -55
Taxonomy Magnetic » Inductor » Inductor Leaded
