(2PCS) XC9536-15VQ44C CPLD 800 Gates 36 Macro Cells 55.6MHz (CMOS) 5V 44-VTQFP
Tax included.

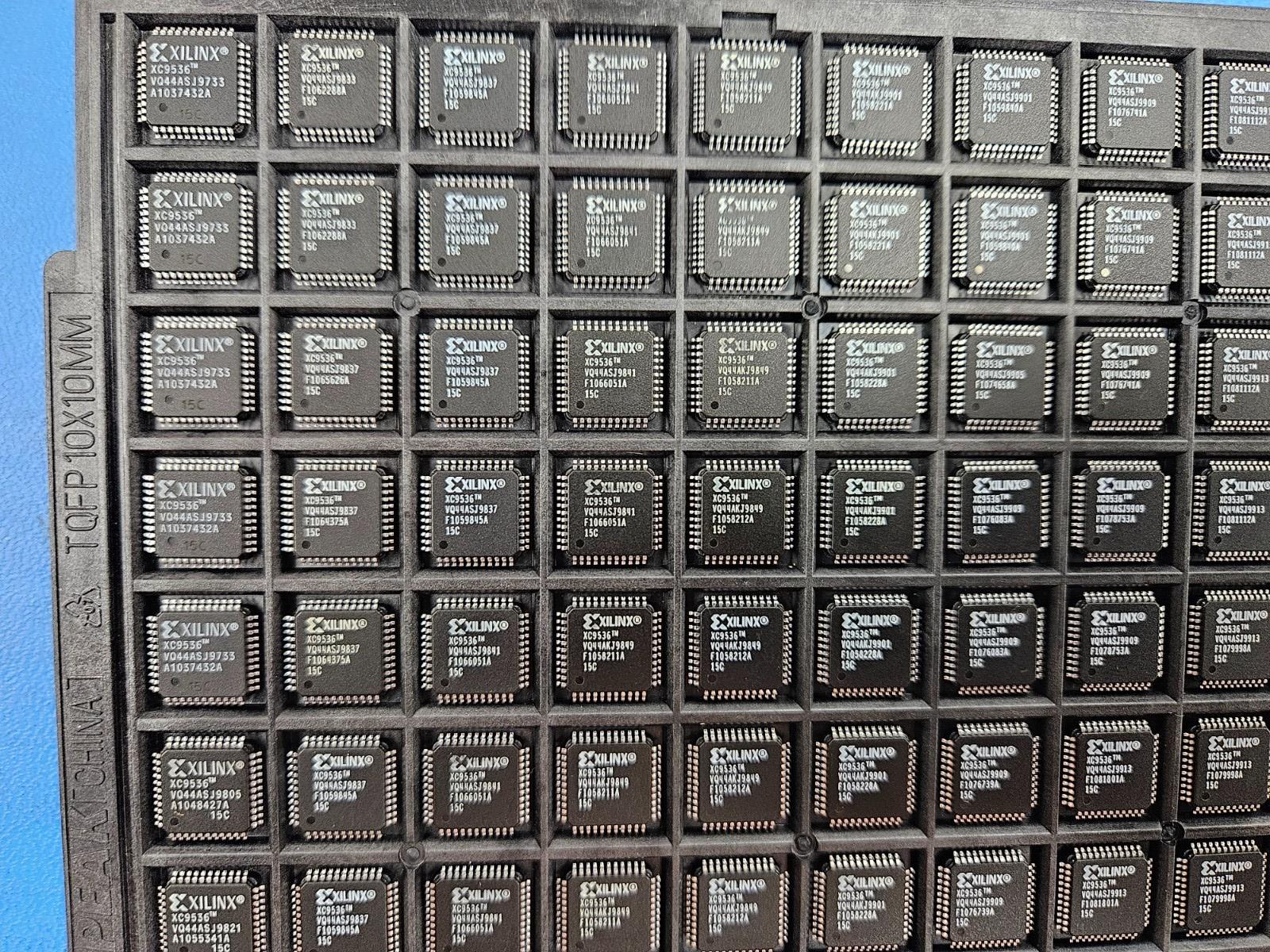

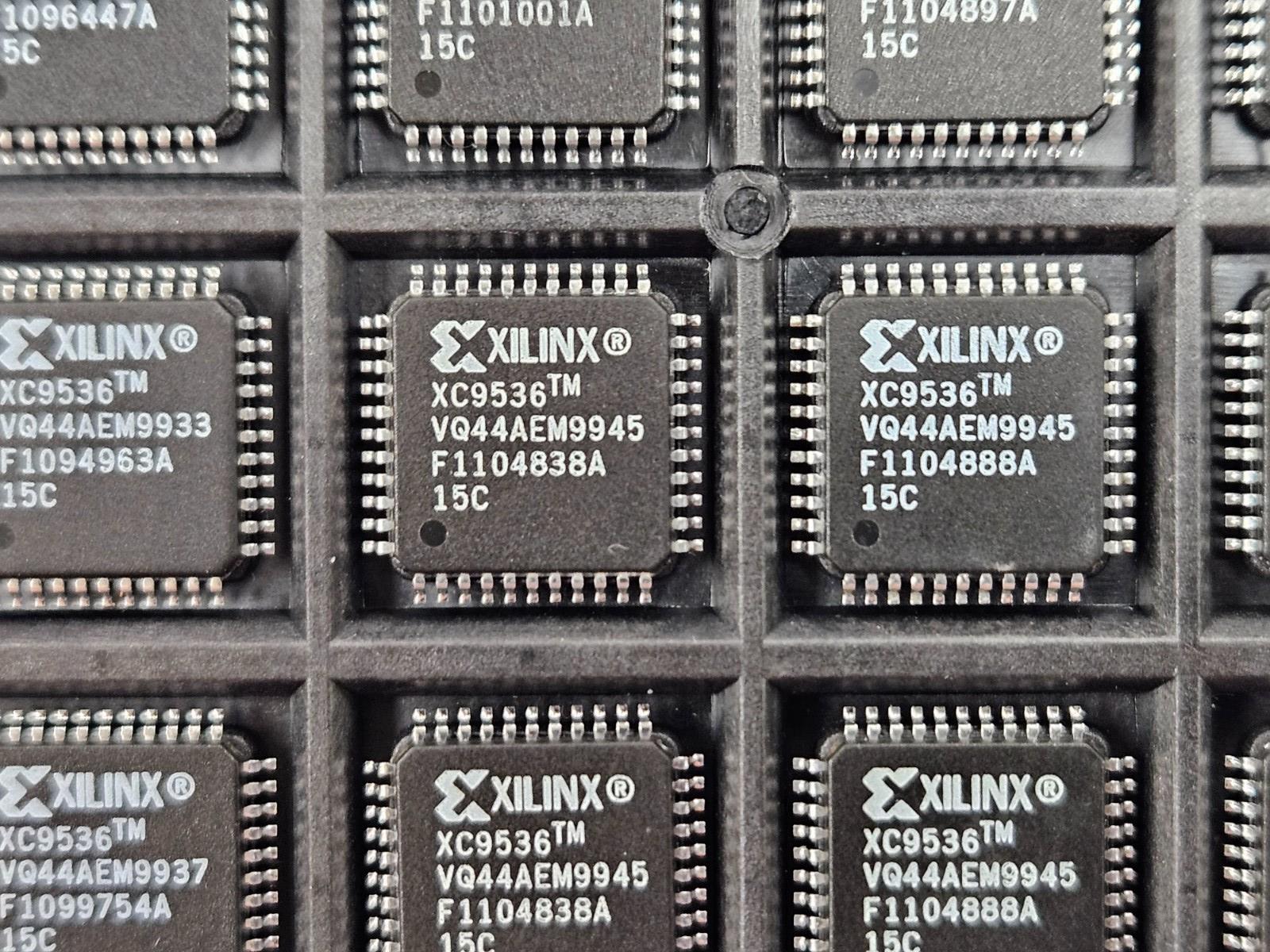

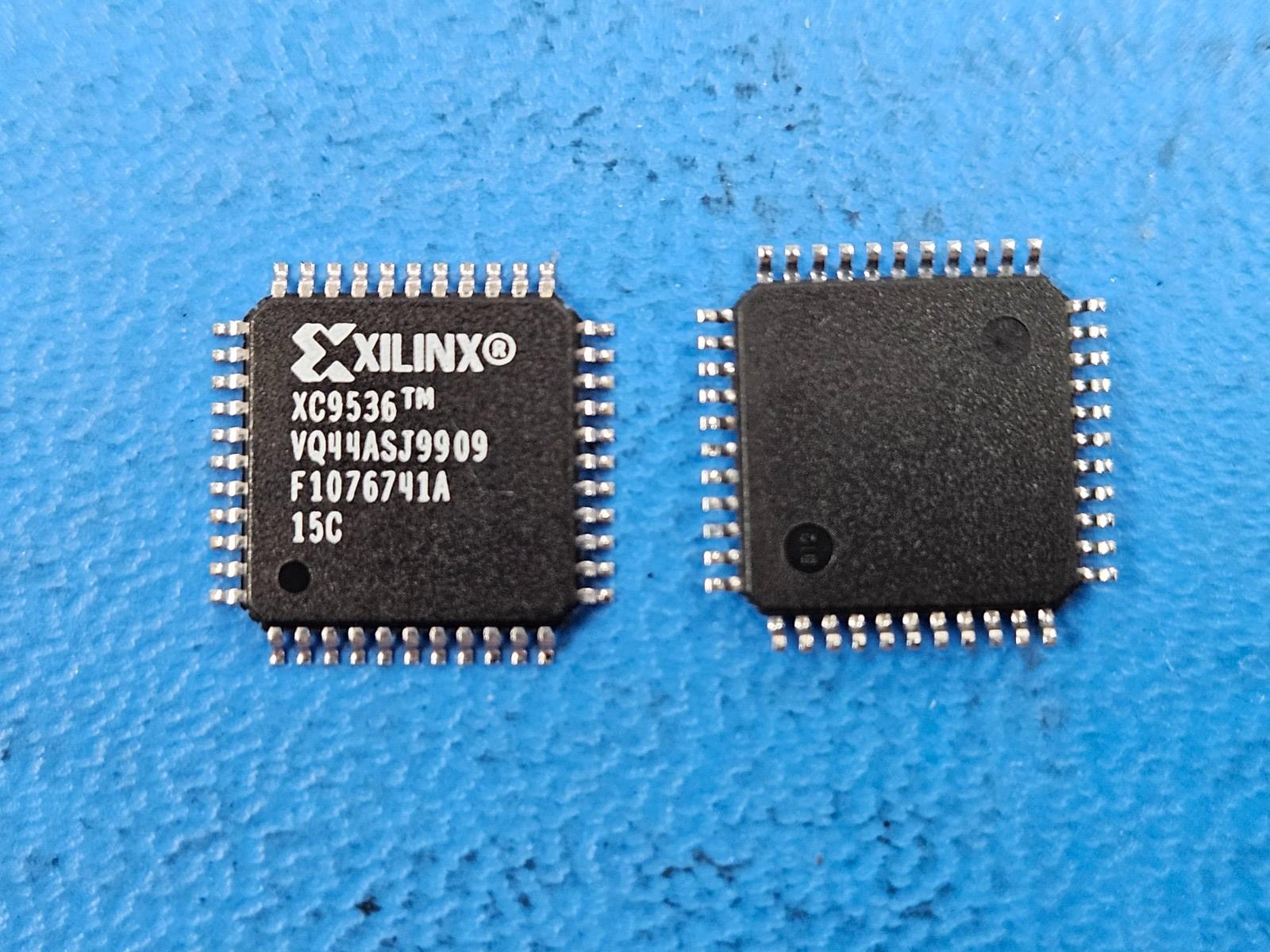

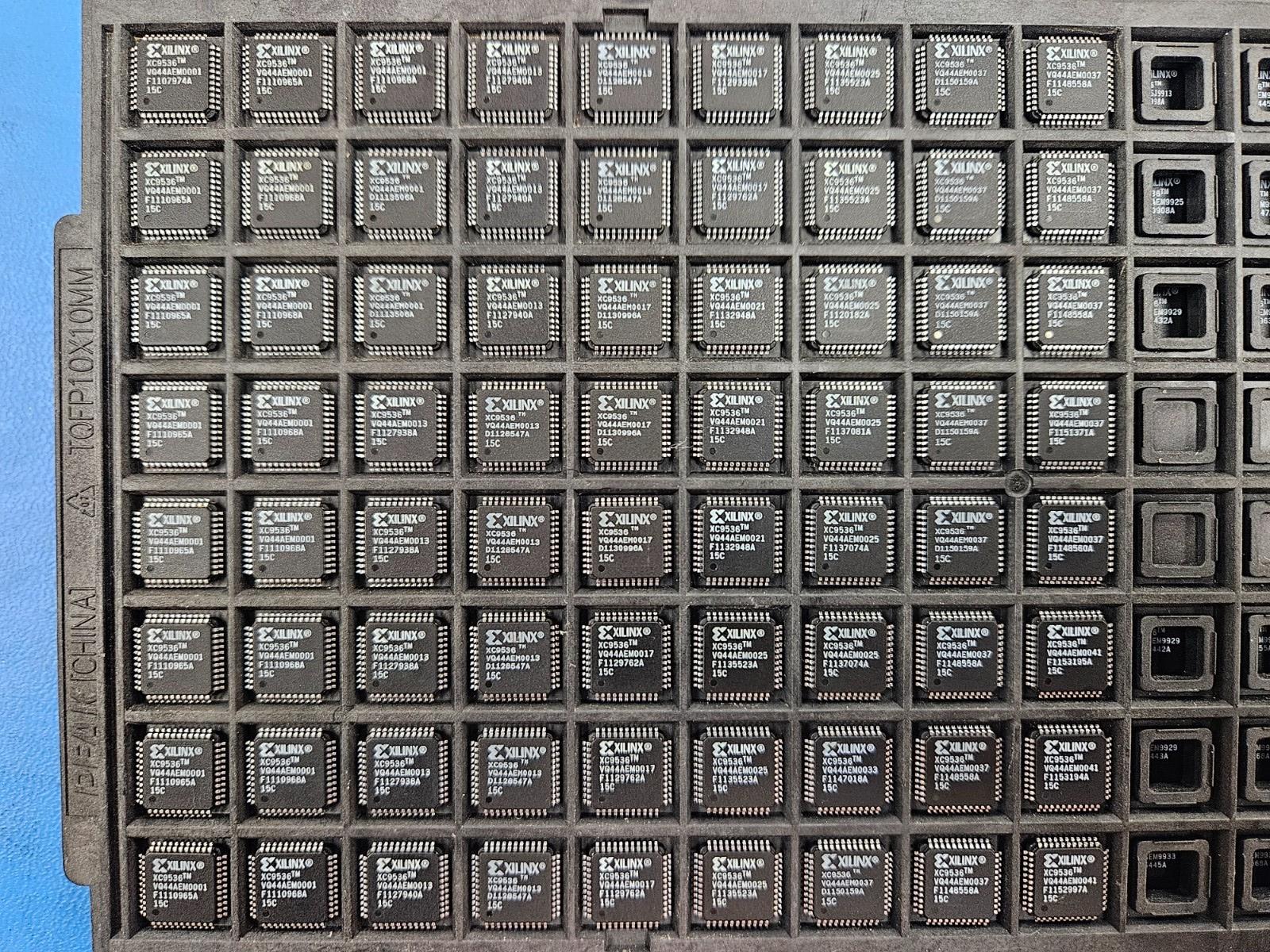

This listing is for (2PCS) of XC9536-15VQ44C by Xilinx
Mfr Package Description VQFP-44
Status Discontinued
Programmable Logic Type FLASH PLD
Clock Frequency-Max 55.6 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G44
JESD-609 Code e0
JTAG BST YES
Moisture Sensitivity Level 3
Number of Dedicated Inputs 0.0
Number of I/O Lines 34.0
Number of Macro Cells 36.0
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 0 DEDICATED INPUTS, 34 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code TQFP44,.47SQ,32
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 240
Power Supplies 3.3/5,5
Propagation Delay 15.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
