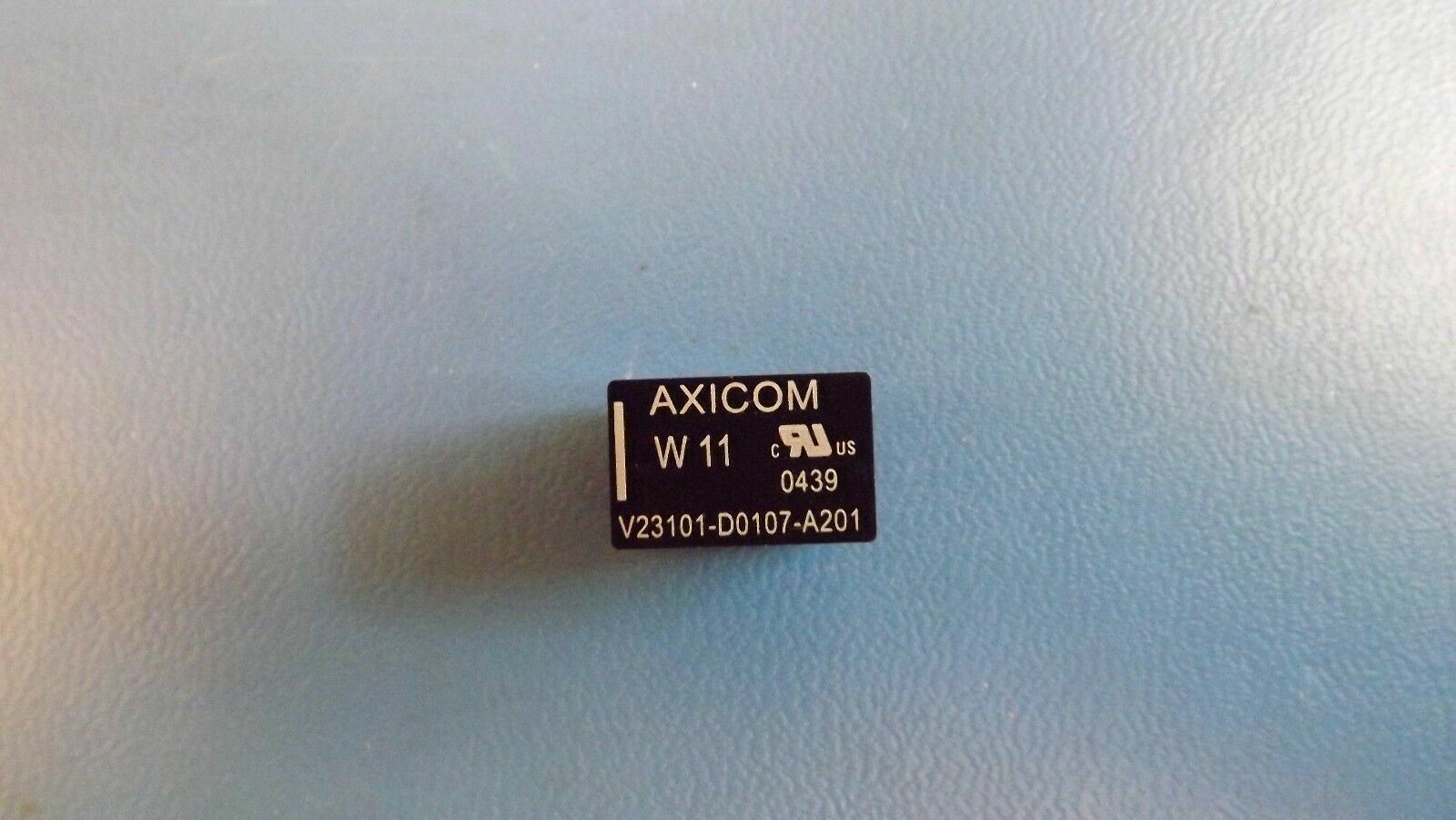

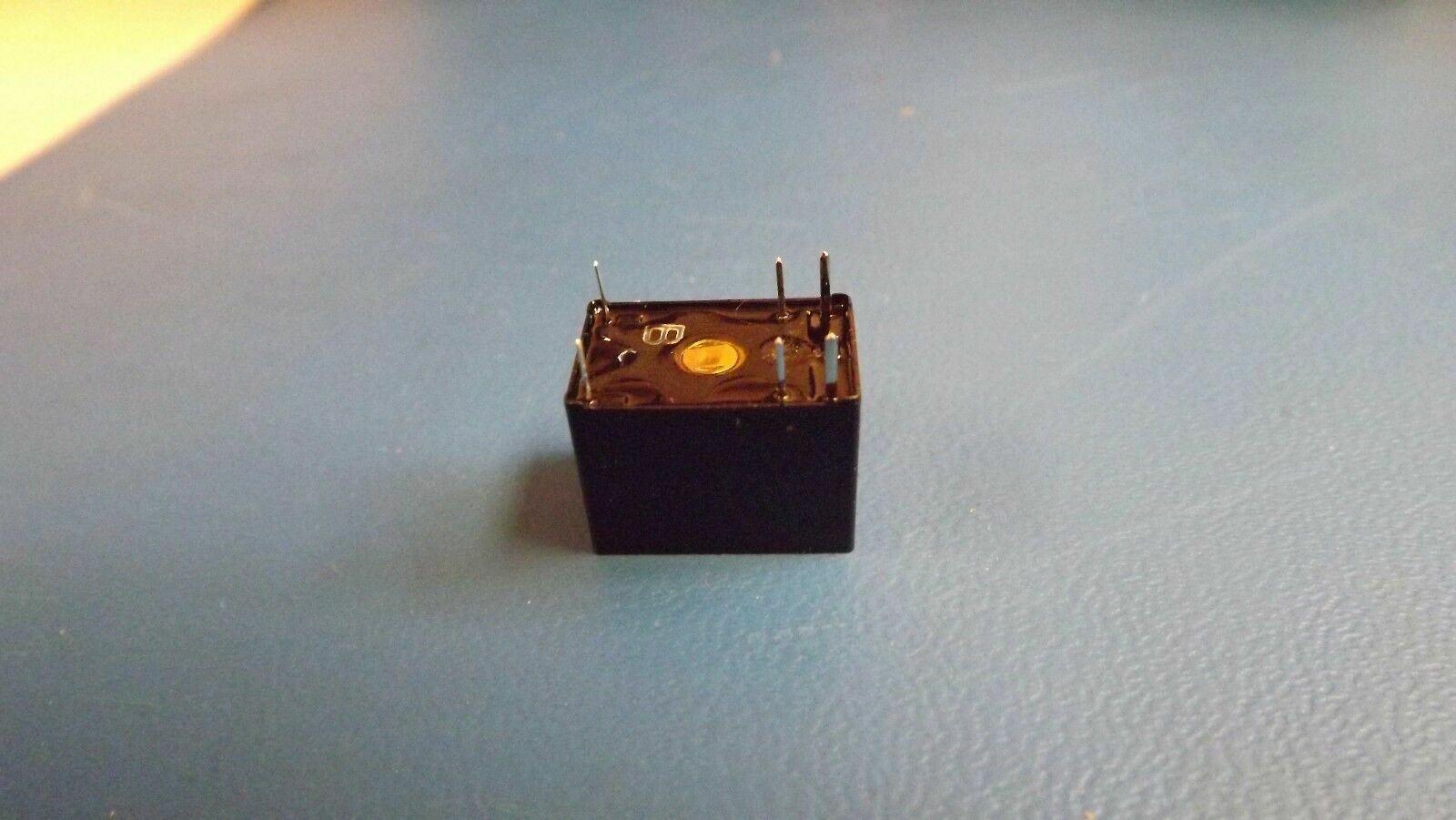

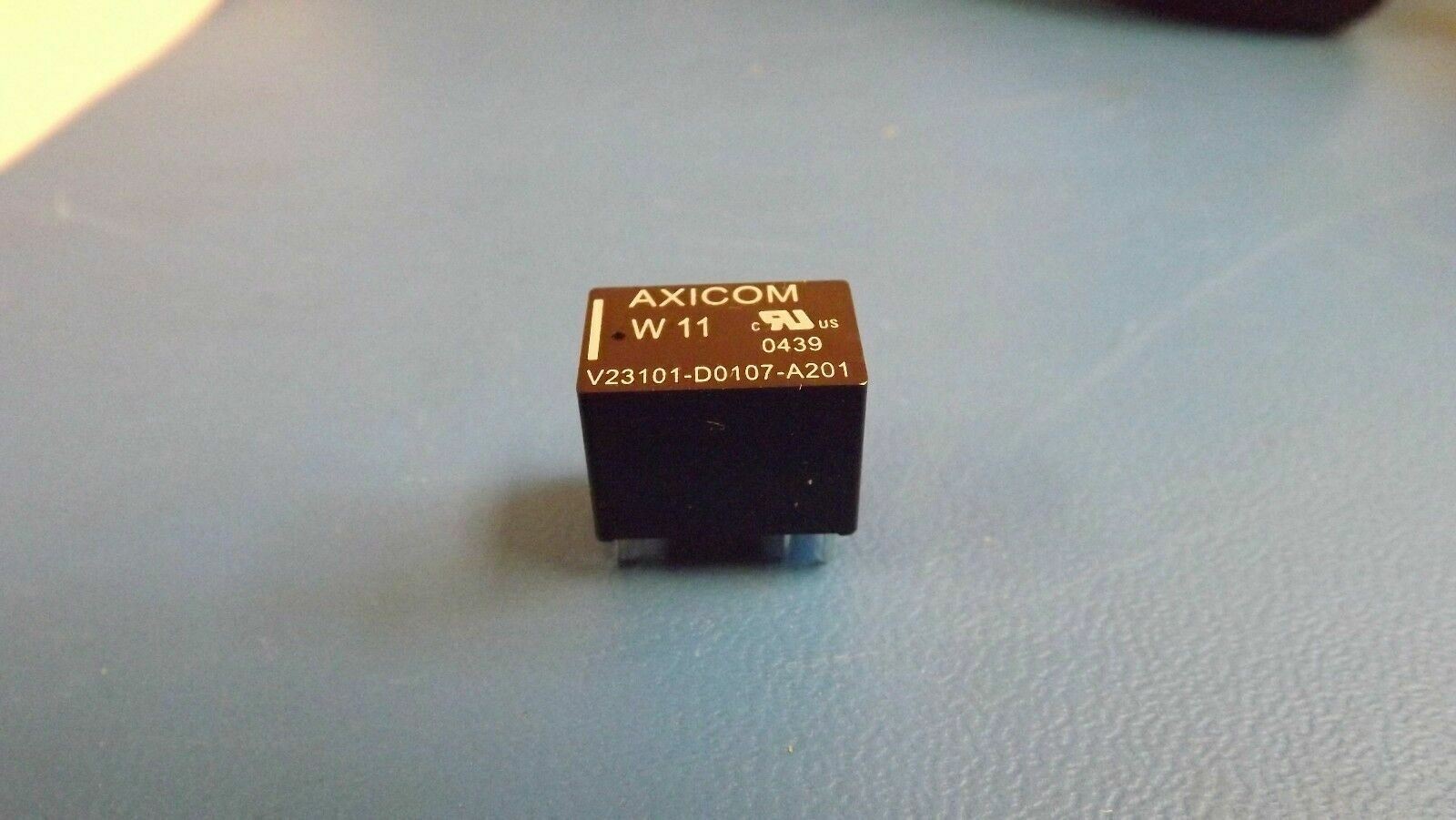

(2PCS) V23101D0107A201 3-1393779-5 TYCO AXIOCOM Relay 24VDC 2.8KOhm 1.25A SPDT
Tax included.
THIS LISTING IS FOR (2PCS) OF V23101D0107A201 3-1393779-5 BY TYCO
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT |
| EU RoHS Compliant | Yes |
| Status | Active |
| Relay Type | POWER/SIGNAL RELAY |
| Body Breadth | 10.5 mm |
| Body Height | 11.5 mm |
| Body Length or Diameter | 15.5 mm |
| Coil Current(DC)-Max | 0.0090 A |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 18 V |
| Coil Power (mW) | 206 |
| Coil Release Voltage(DC) | 2.4 V |
| Coil Resistance | 2800 ohm |
| Coil Voltage(DC)-Max | 24 V |
| Contact AC Max Rating R Load | 1.25A@125VAC |
| Contact Current(AC)-Max | 1.25 A |
| Contact Current(DC)-Max | 1.25 A |
| Contact DC Max Rating R Load | 1.25A@120VDC |
| Contact/Output Supply Type | AC/DC |
| Contact Voltage(AC)-Max | 125 V |
| Contact Voltage(DC)-Max | 120 V |
| Electrical Life | 100000 Cycle(s) |
| Manufacturer Series | 1393779 |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT |
| Operate Time | 17 ms |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |

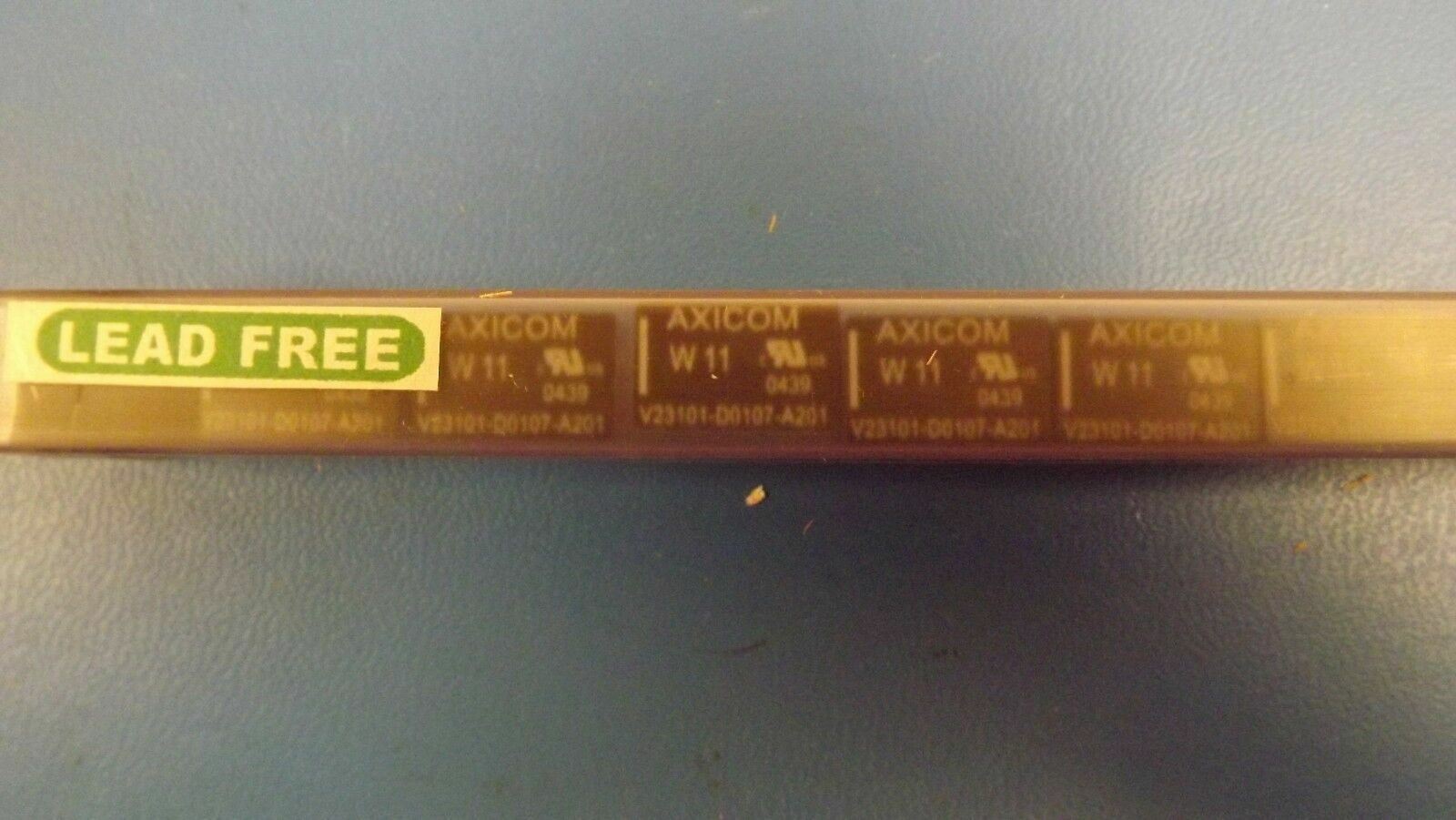

| Packing Method | BOX; TUBE |
| Physical Dimension | 15.5mm X 10.5mm X 11.5mm |
| Reference Standard | UL |
| Relay Action | MOMENTARY |
| Relay Function | SPDT |
| Release Time | 22 ms |
| Sealing | IP67 |
| Termination Type | SOLDER |
| Additional Feature | RELEASE TIME WITH DIODE IN PARALLEL |
