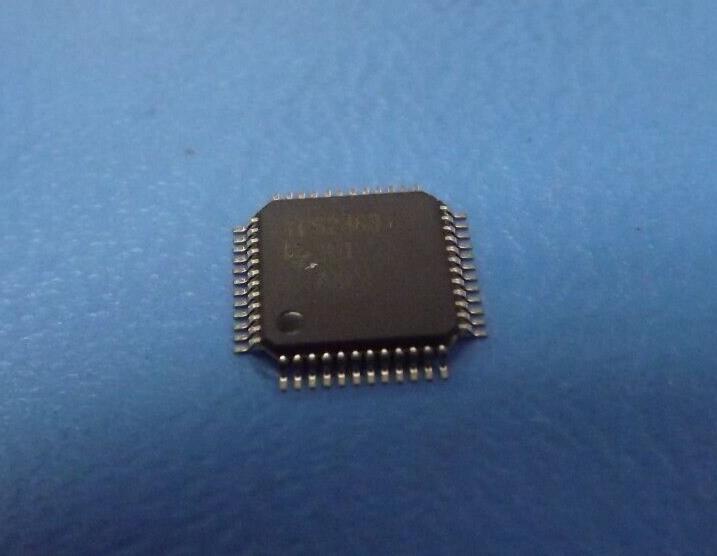

(2PCS) TPS2363PFB Hot Plug Controller 6 Channel PCI Express 48-TQFP
Tax included.

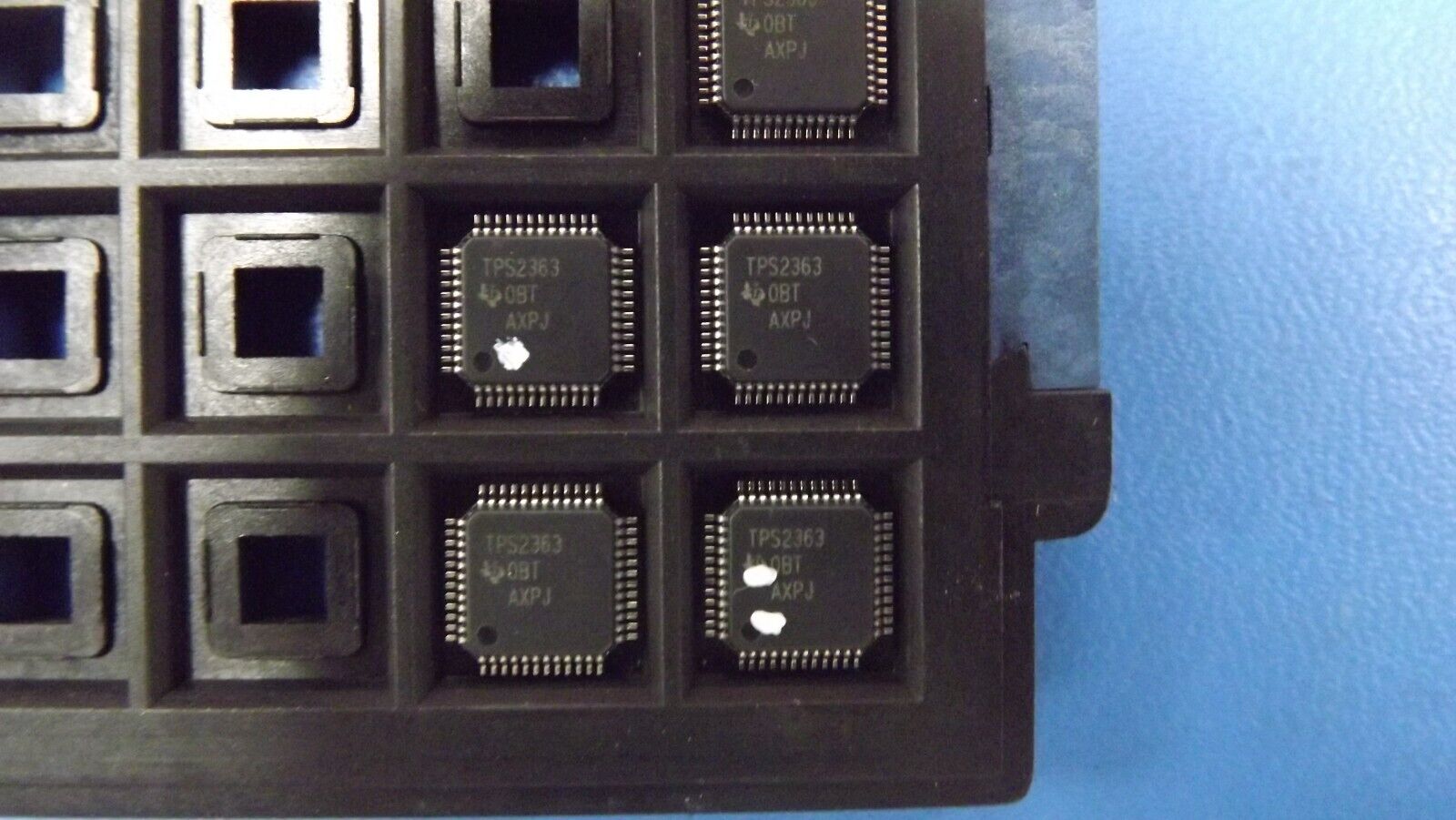

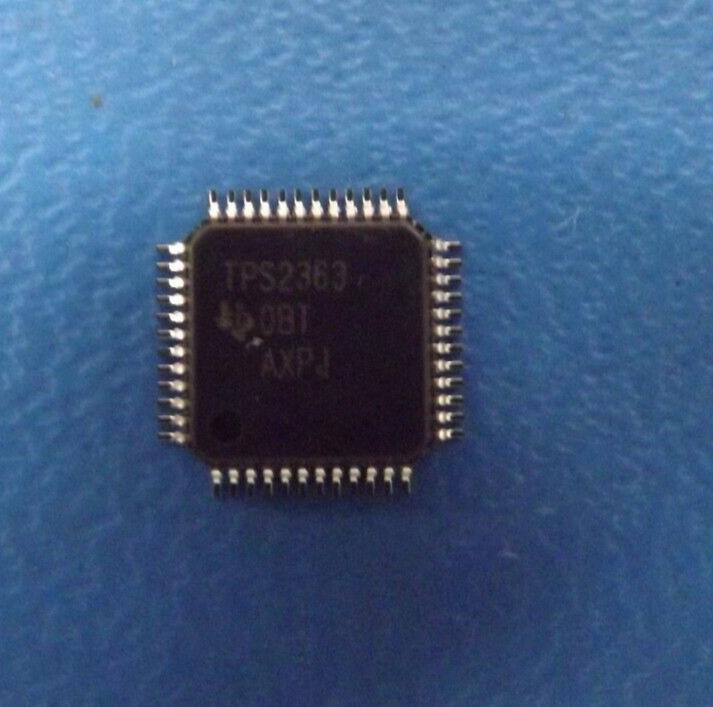

THIS LISTING IS FOR (2PCS) OF TPS2363PFB BY TEXAS INSTRUMENTS
Mfr Package Description PLASTIC, TQFP-48
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Analog IC - Other Type POWER SUPPLY SUPPORT CIRCUIT
Adjustable Threshold YES
JESD-30 Code S-PQFP-G48
JESD-609 Code e4
Moisture Sensitivity Level 2
Number of Channels 1
Number of Functions 1
Number of Terminals 48
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Current-Max 500.0 A
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Equivalence Code TQFP48,.35SQ
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Sub Category Power Management Circuits
Supply Current-Max (Isup) 1.0 mA
Supply Voltage-Nom (Vsup) 12.0 V
Supply Voltage-Min (Vsup) 10.8 V
Supply Voltage-Max (Vsup) 13.2 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 7.0 mm
Width 7.0 mm
