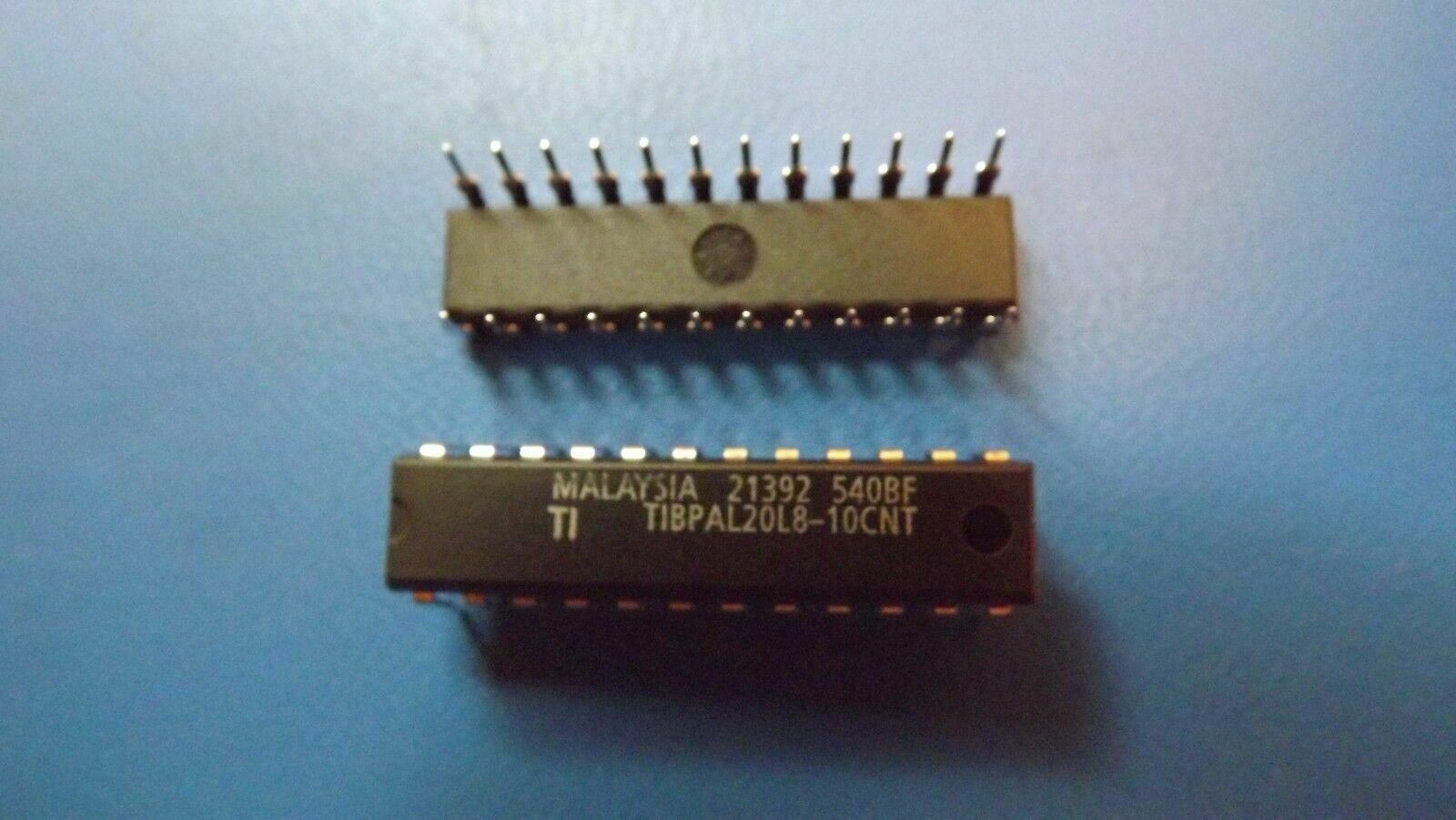

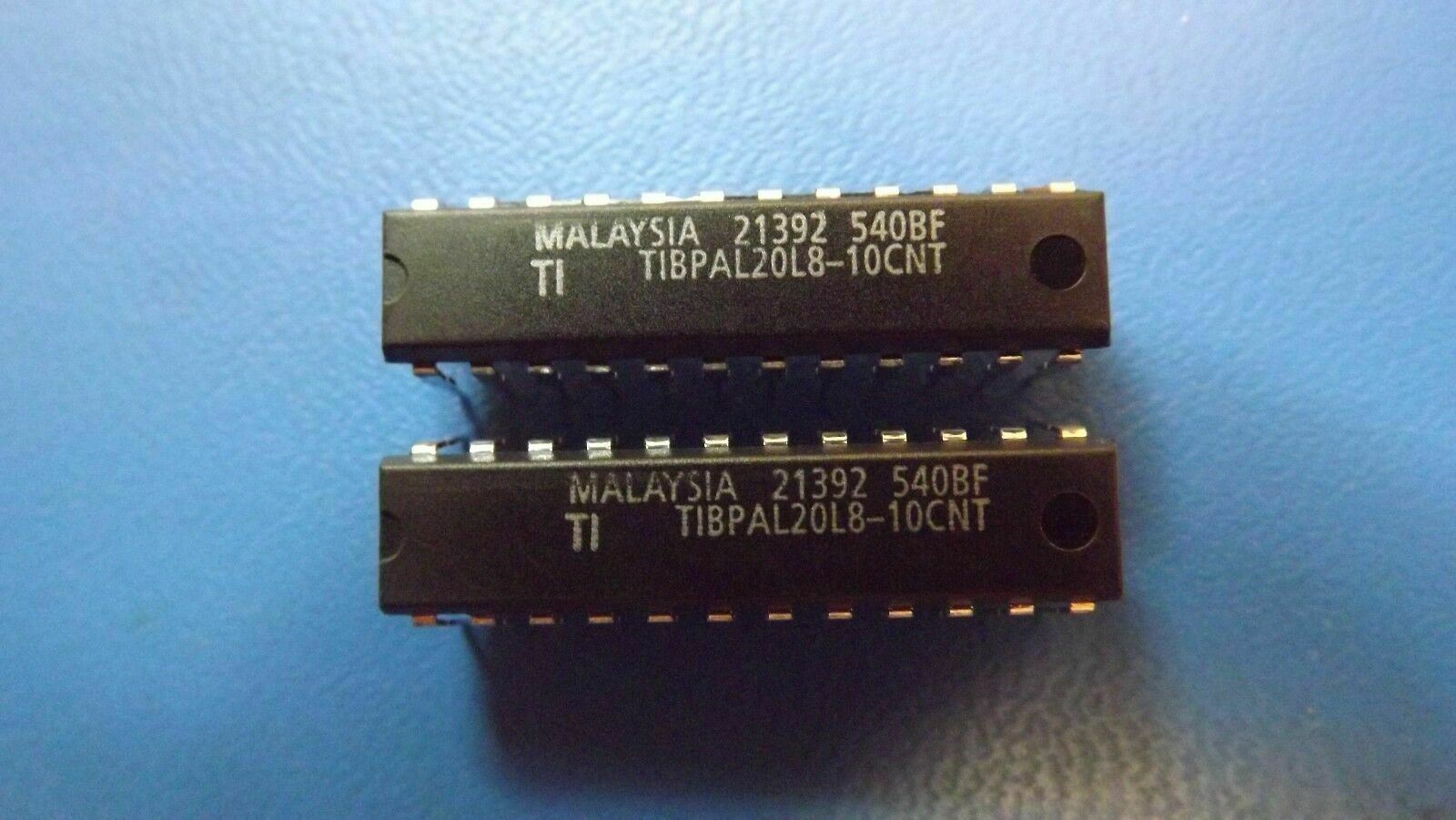

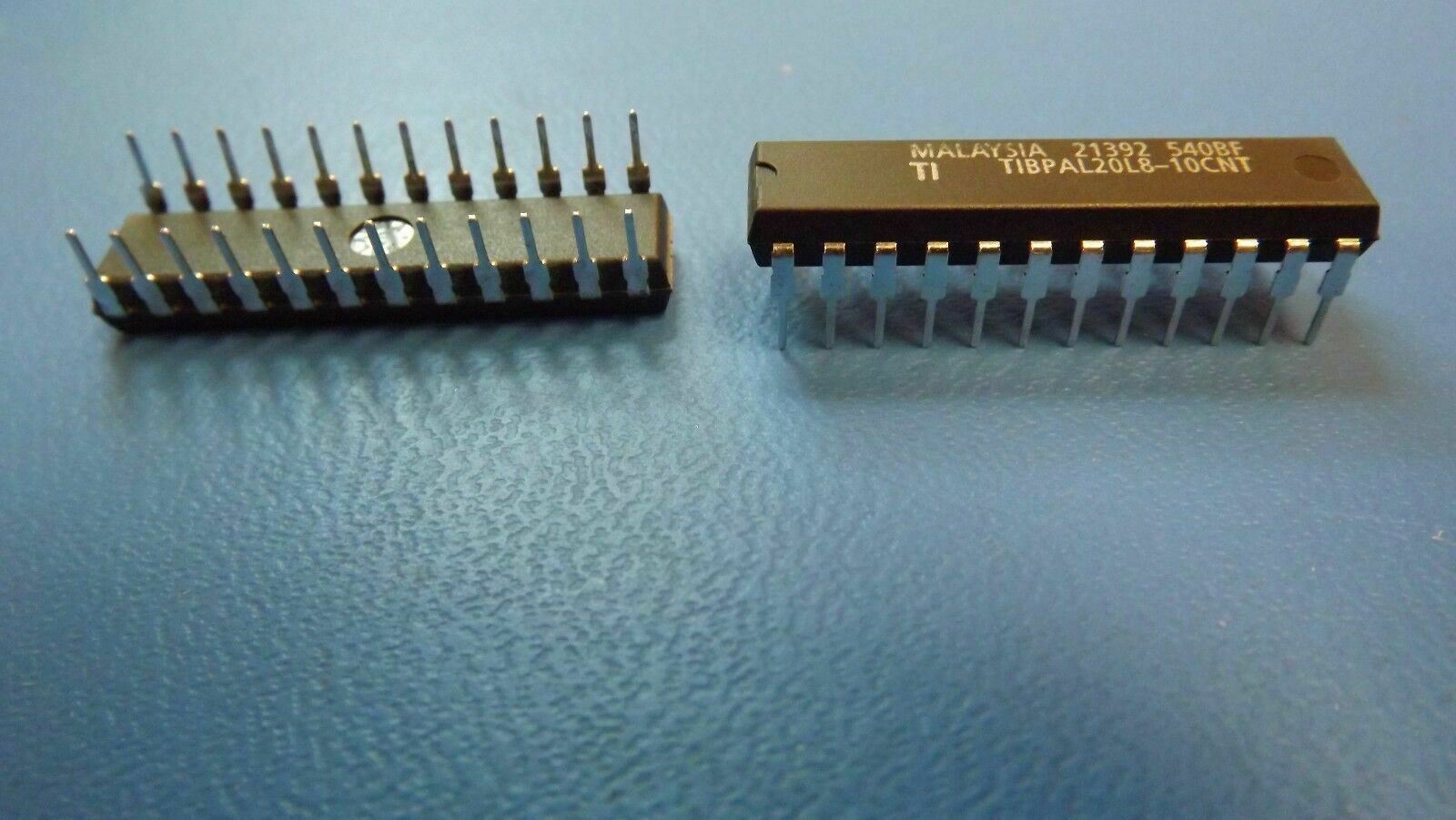

(2PCS) TIBPAL20L8-10CNT TEXAS INSTRUMENTS OT PLD, 10ns, PDIP24

  • $3.50
    Unit price per
Tax included.

Only 35 left!

THIS LISTING IS FOR (2PCS) OF  TIBPAL20L8-10CNT BY TEXAS INSTRUMENTS

SPECIFICATIONS
Mfr Package Description PLASTIC, DIP-24
Status Discontinued
Programmable Logic Type OT PLD
Architecture PAL-TYPE
JESD-30 Code R-PDIP-T24
JESD-609 Code e0
Number of Dedicated Inputs 14.0
Number of I/O Lines 6.0
Number of Inputs 20.0
Number of Outputs 8.0
Number of Product Terms 64.0
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Organization 14 DEDICATED INPUTS, 6 I/O
Output Function COMBINATORIAL
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP24,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Propagation Delay 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 31.64 mm
Width 7.62 mm
