(2PCS) TE28F160B3B90 Intel Flash, 1MX16, 90ns, TSOP-48
Tax included.

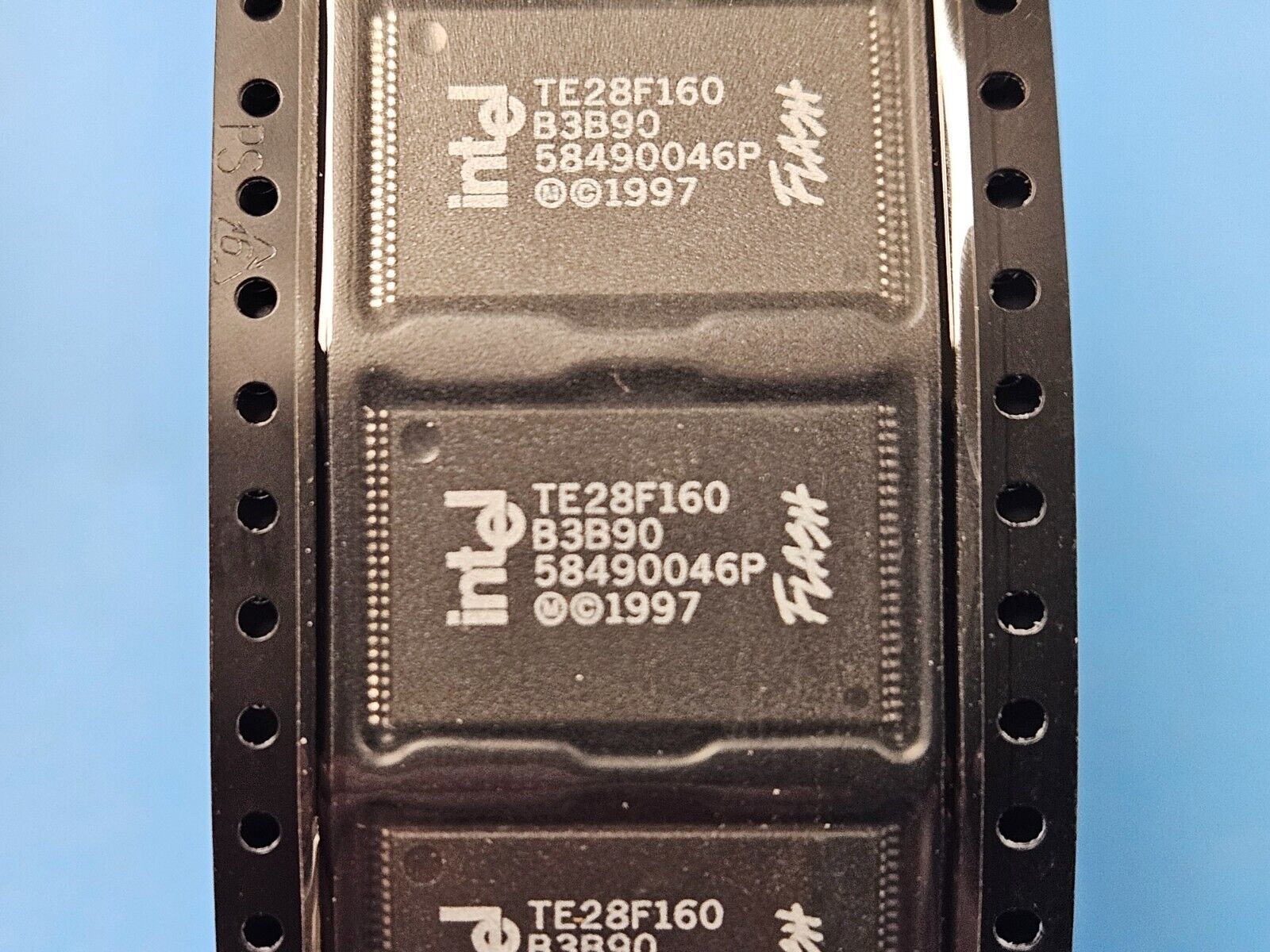

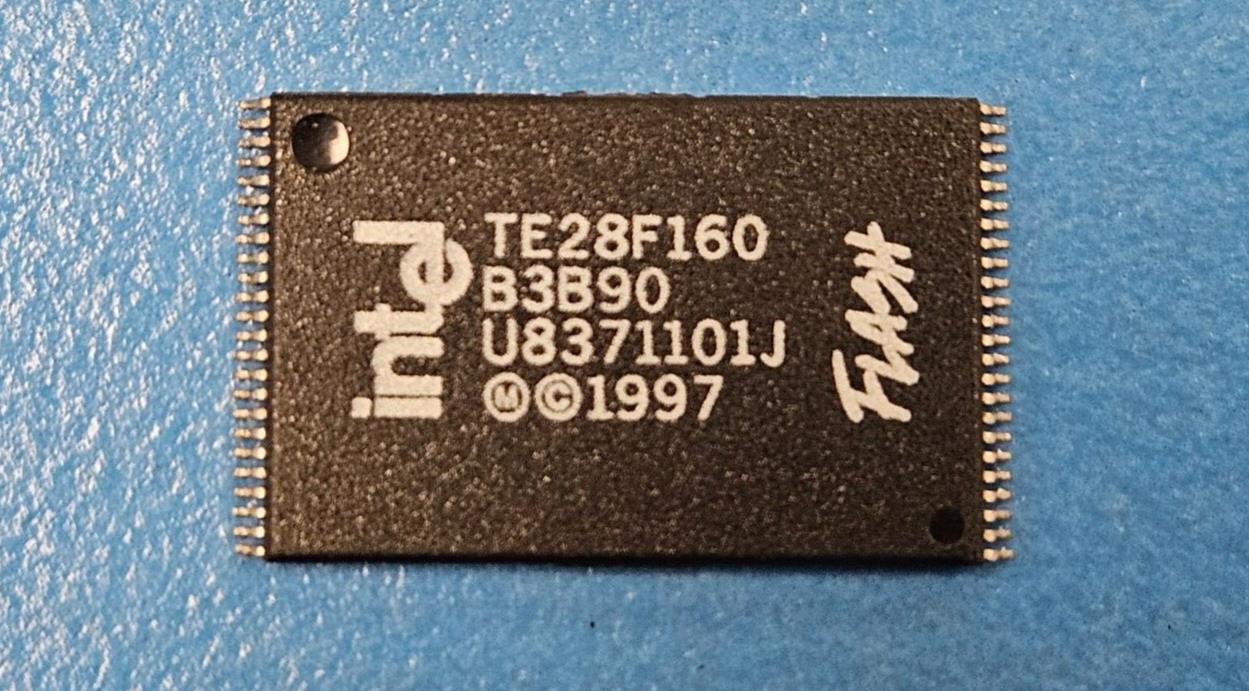

This listing is for (2PCS) of TE28F160B3B90 by Intel
Mfr Package Description 12 X 20 MM, TSOP-48
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 90.0 ns
Boot Block BOTTOM
Command User Interface YES
Data Polling NO
JESD-30 Code R-PDSO-G48
Memory Density 1.6777216E7 bit
Memory IC Type FLASH
Memory Width 16
Number of Functions 1
Number of Sectors/Size 8,31
Number of Terminals 48
Number of Words 1048576.0 words
Number of Words Code 1M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 1MX16
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP48,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.035 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology MOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Toggle Bit NO
Length 18.4 mm
Width 12.0 mm
Additional Feature USER-SELECTABLE 12V VPP; BOTTOM BOOT BLOCK
