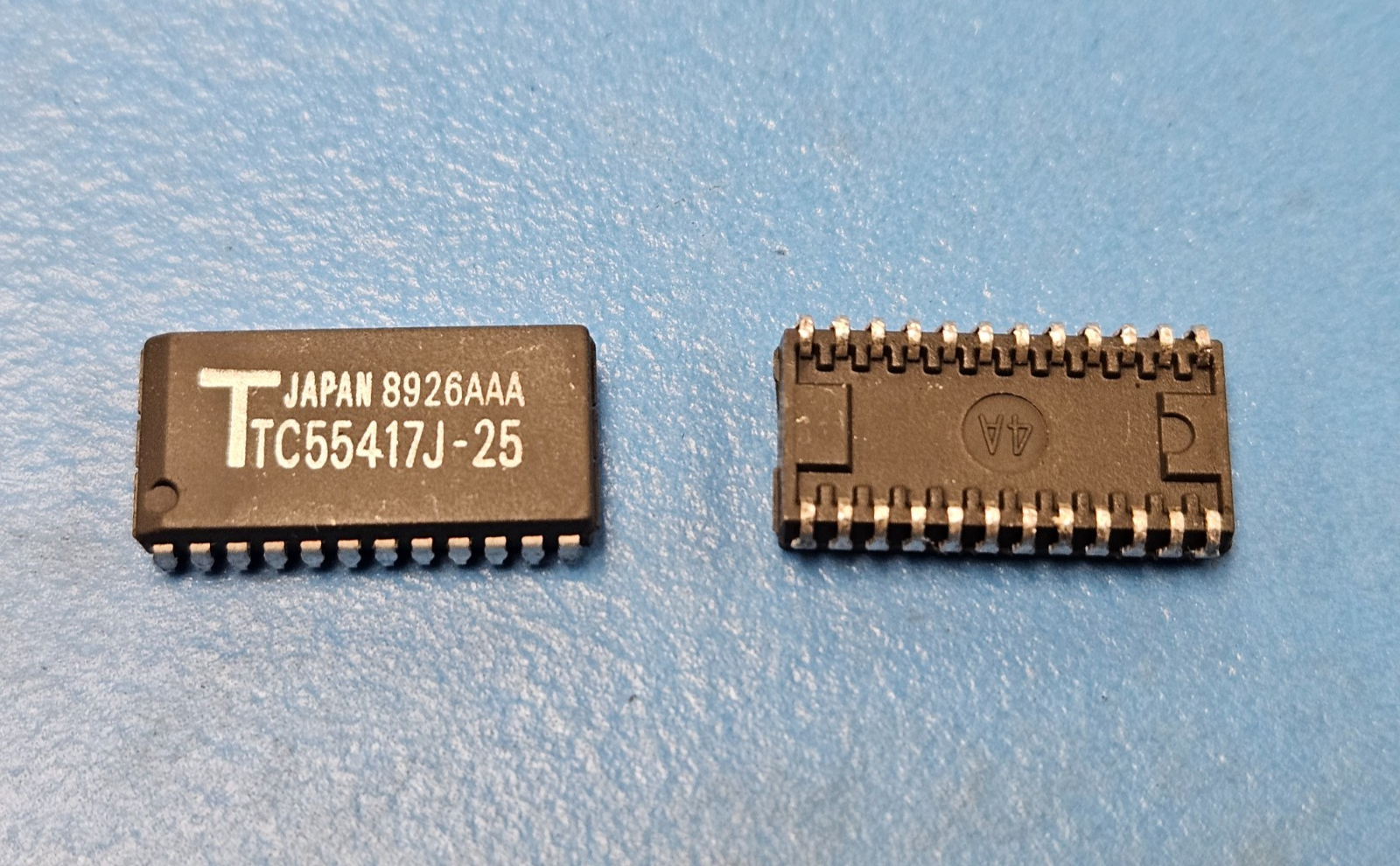

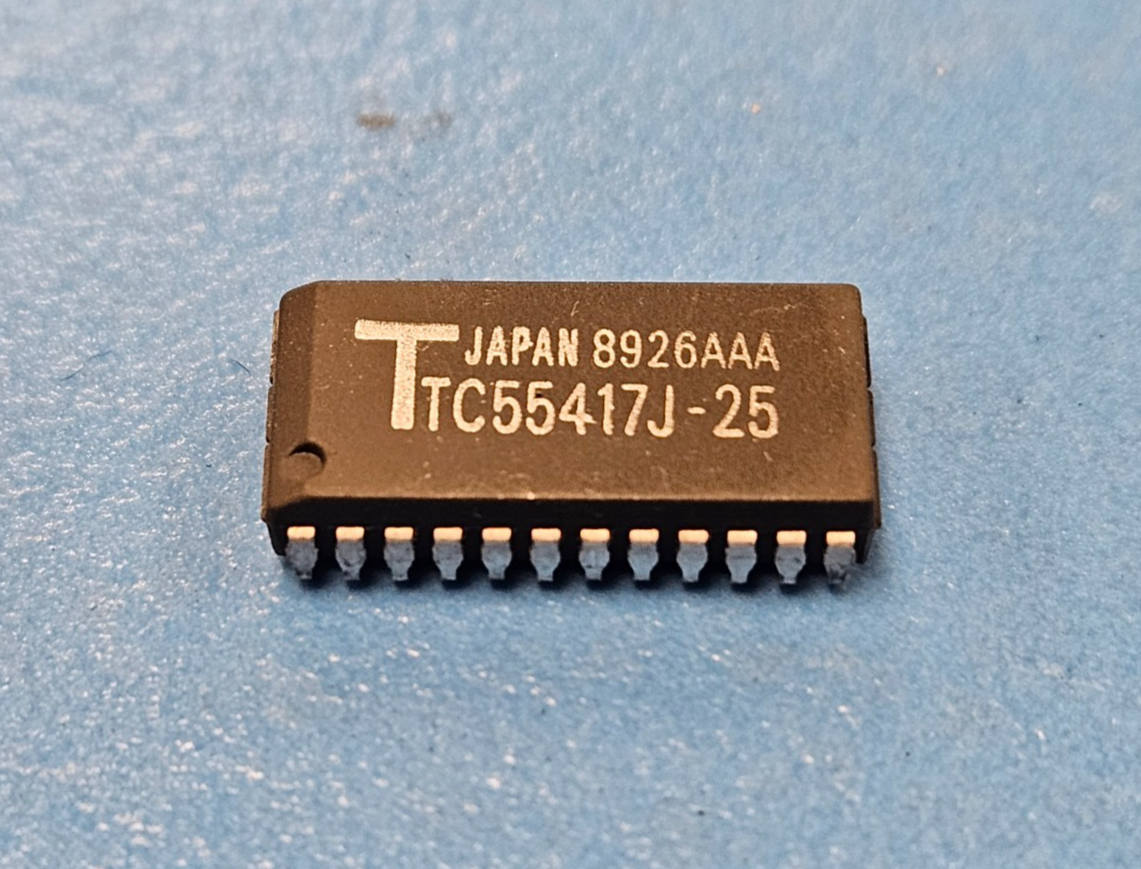

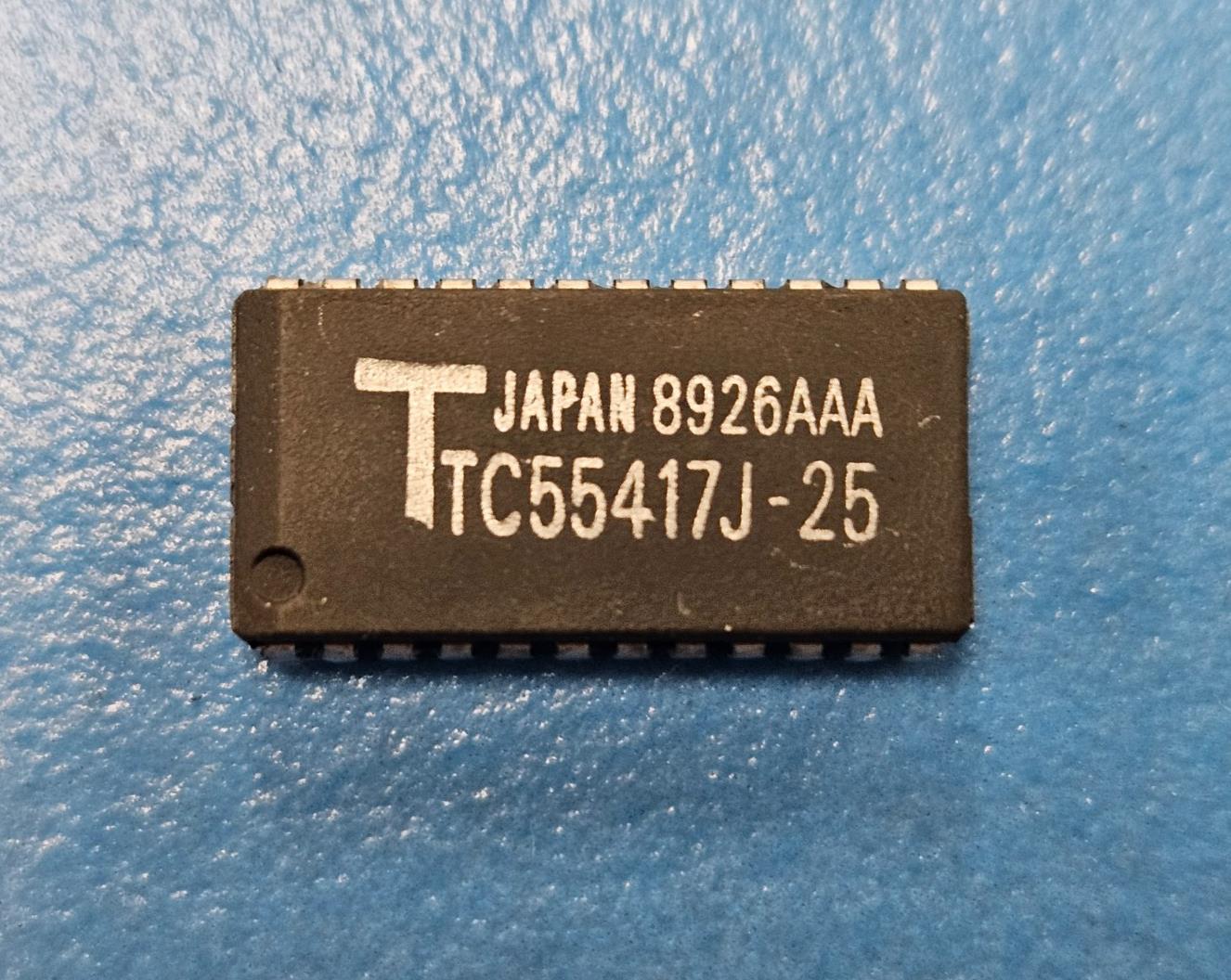

(2PCS) TC55417J-25 Toshiba Standard SRAM, 16KX4, 25ns, CMOS, SOJ24
Tax included.
This listing is for (2PCS) of TC55417J-25 by Toshiba
Status Contact Mfr
Access Time-Max (ns) 25.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-J24
J-STD-609 Code e0
Memory Density (bits) 65536.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Terminals 24
Number of Words (words) 16384.0000000000000000
Number of Words Code 16K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 16KX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ24,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Standby Current-Max (A) 0.001000000000000
Standby Voltage-Min (V) 4.500000
Supply Current-Max (mA) 120.000000000000000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position DUAL
