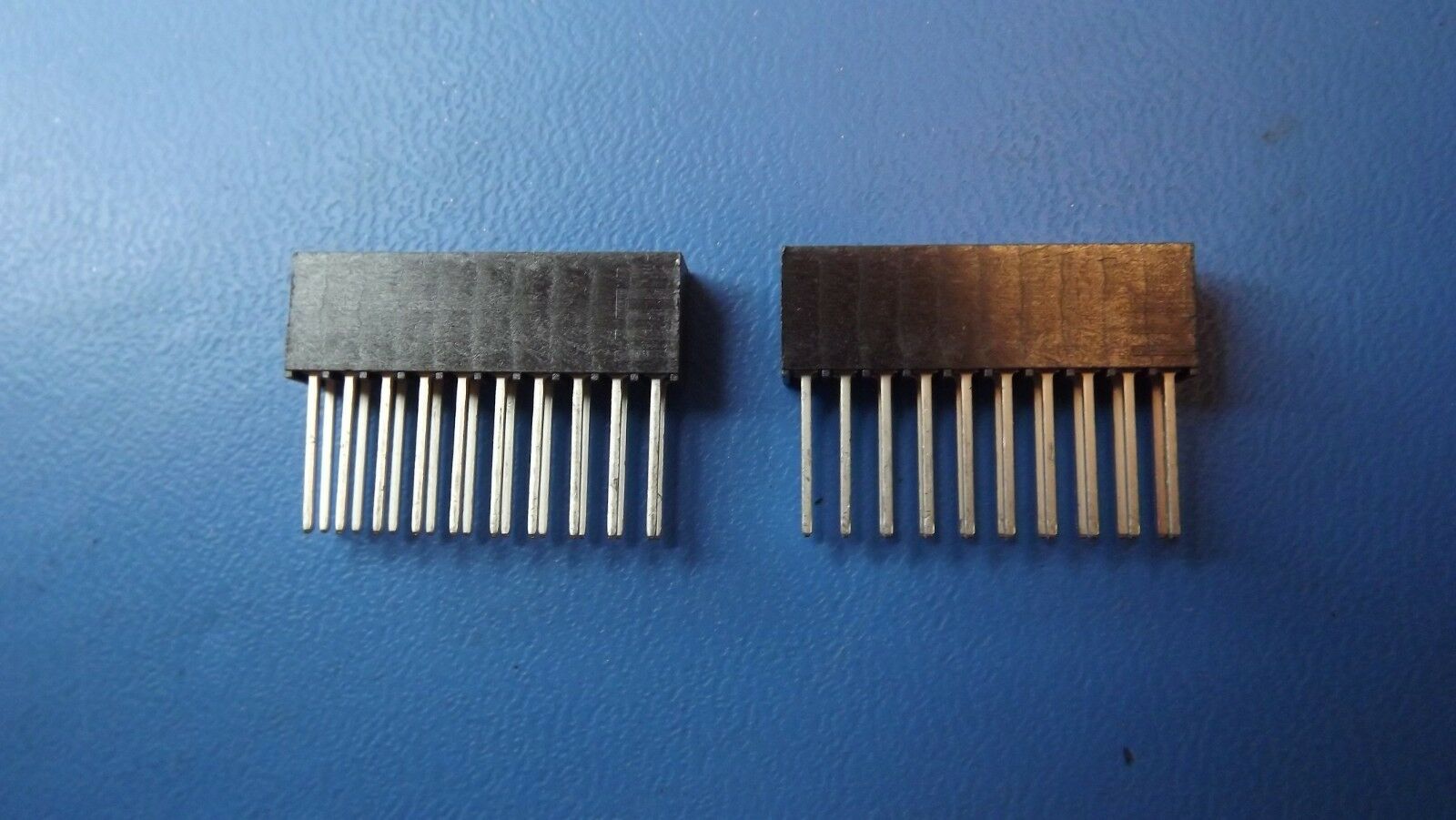

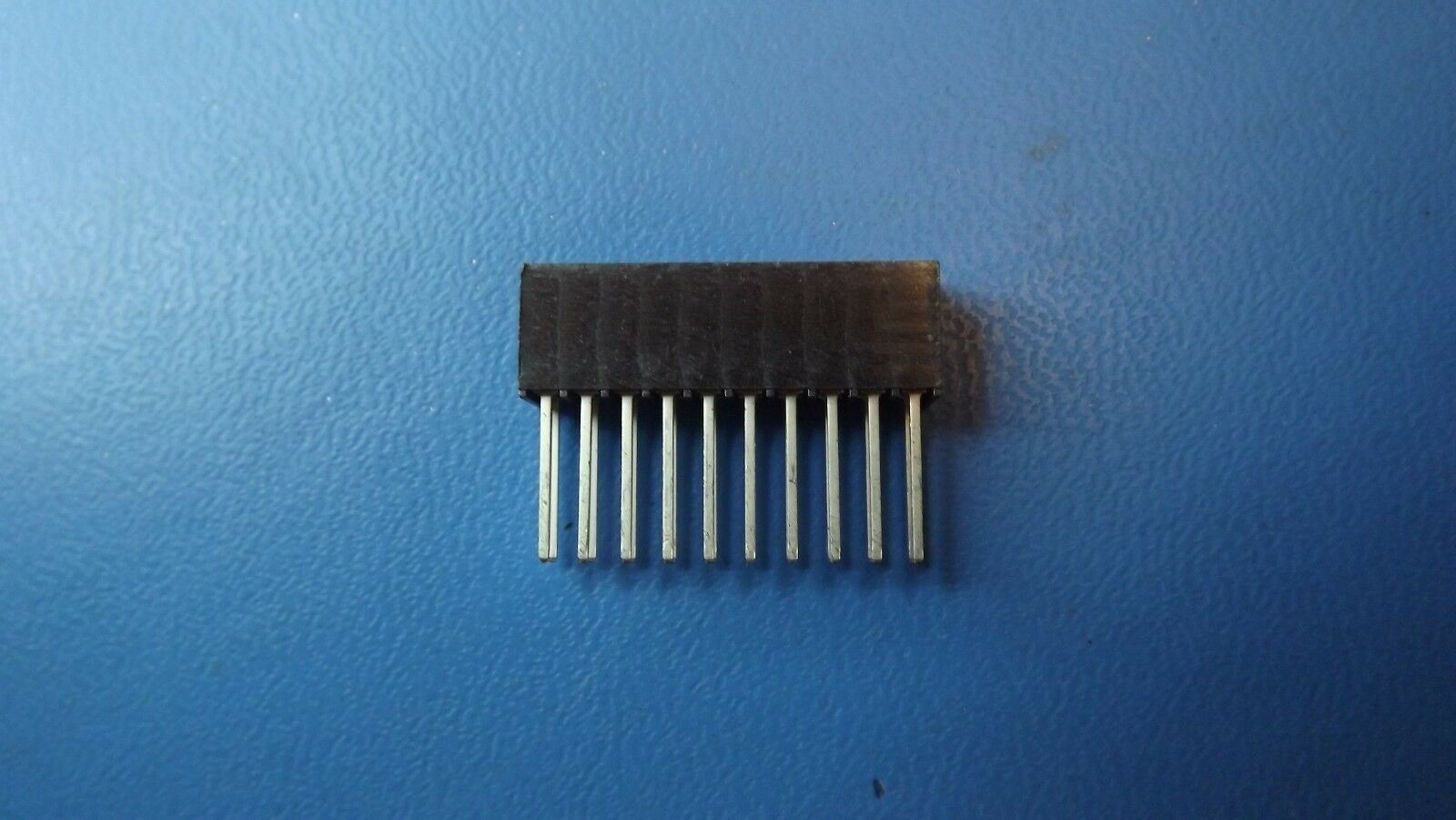

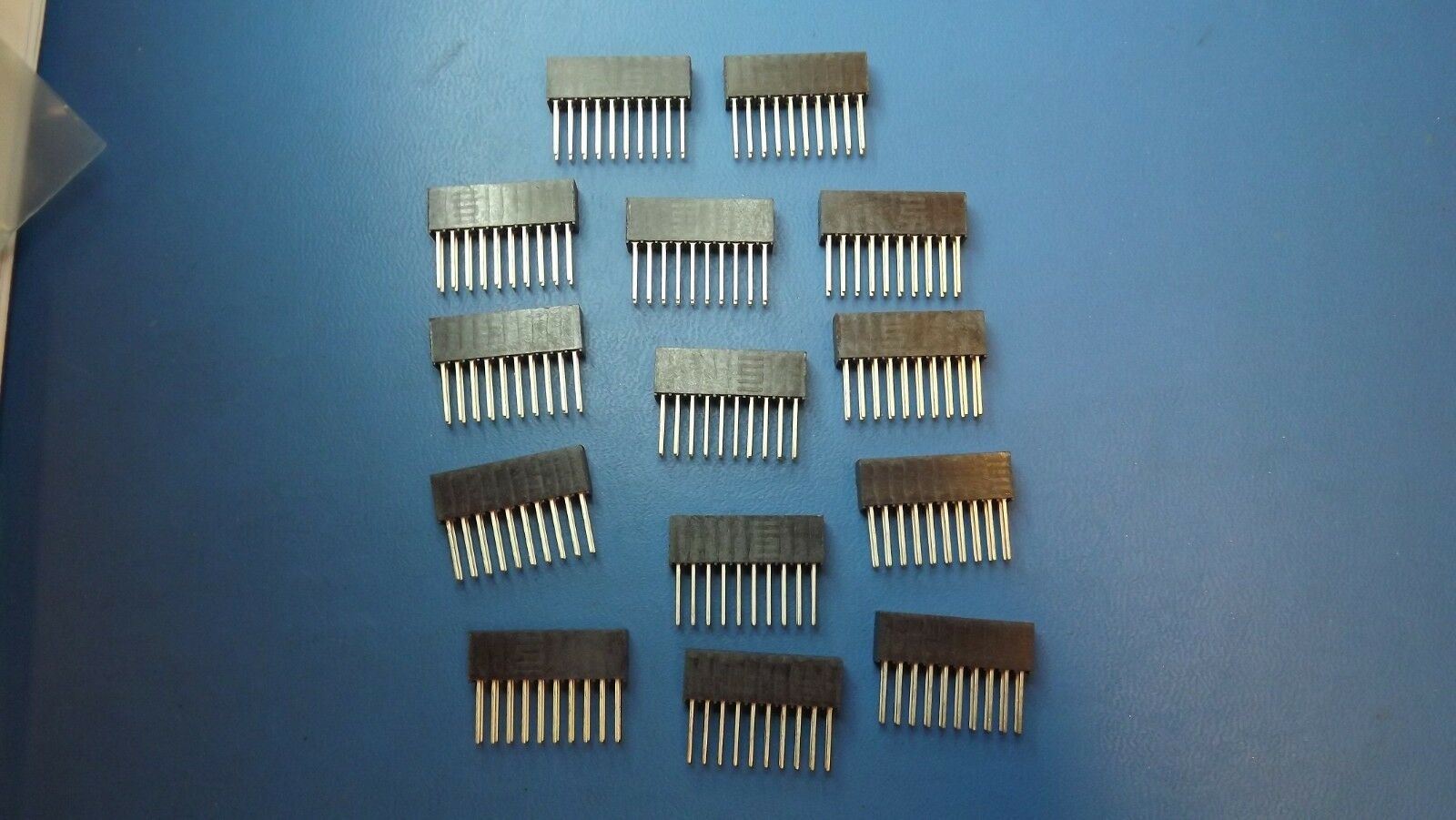

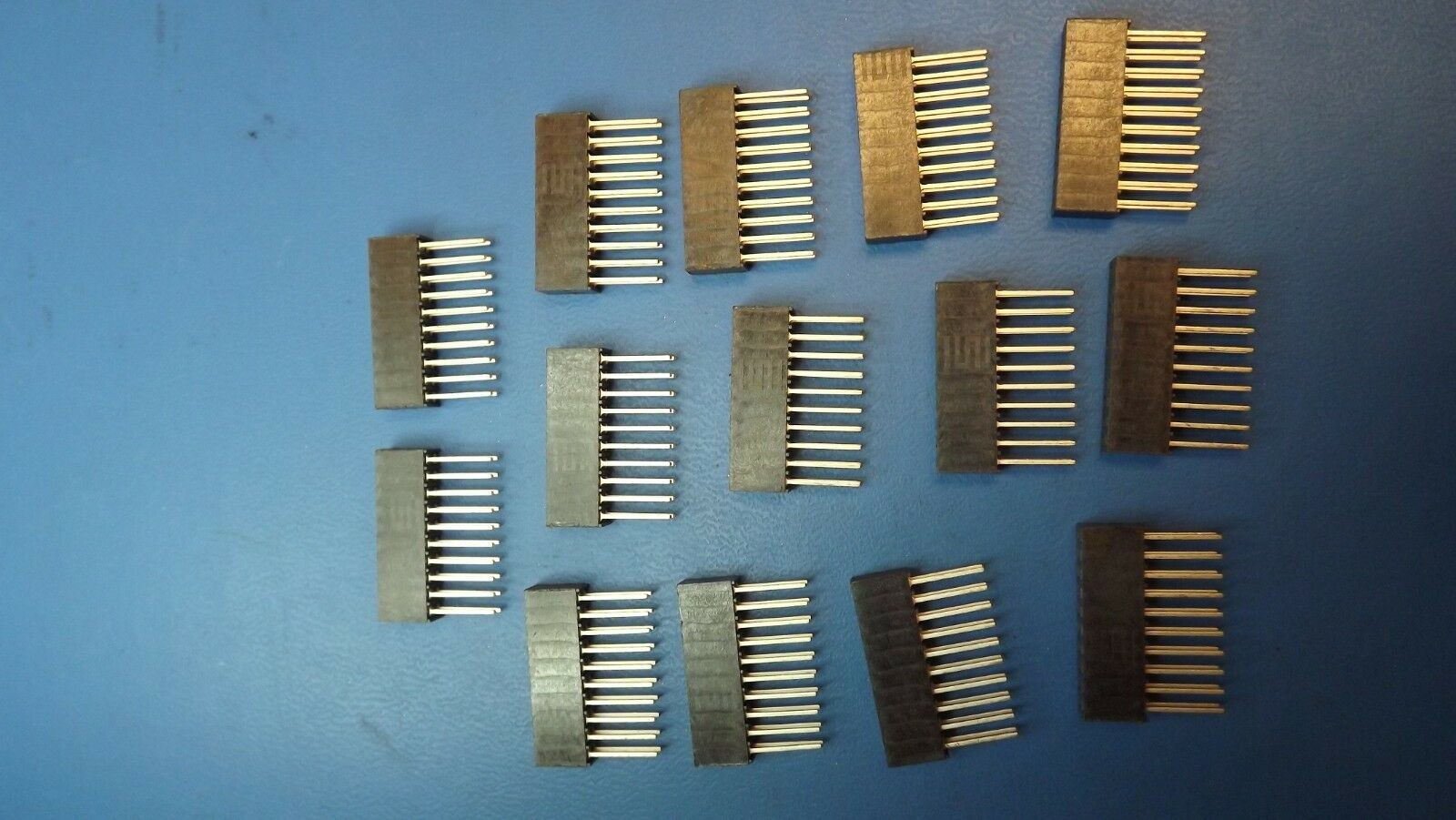

(2PCS) SSQ-110-03-T-D SAMTEC Conn Socket Strip SKT 20 POS 2.54mm

  • $5.00
    Unit price per
Tax included.

Only 5 left!

THIS LISTING IS FOR (2PCS) OF SSQ-110-03-T-D BY SAMTEC



Product Technical Specifications
EU RoHSCompliant
ECCN (US)EAR99
TypeSocket Strip
GenderSKT Gender describes the connector kind (Plug, Receptacle, Male or Female).
Number of Contacts20
Number of Rows2
Termination MethodSolder
Terminal Pitch (mm)2.54
Body OrientationStraight
Row Spacing (mm)2.54
Maximum Current Rating (A)6.3/Contact
Maximum Voltage Rating655VDC|465VAC
Maximum Contact Resistance (mOhm)10
Minimum Operating Temperature (°C)-55
Maximum Operating Temperature (°C)105
PackagingBulk
Product Length (mm)25.91
Product Depth (mm)4.95
Product Height (mm)8.51
MountingThrough Hole
