(2PCS) R1SE-0512/H2R RECOM CONV DC/DC 1W 05VIN 12VOUT

  • $6.95
    Unit price per
Tax included.

Only 11 left!

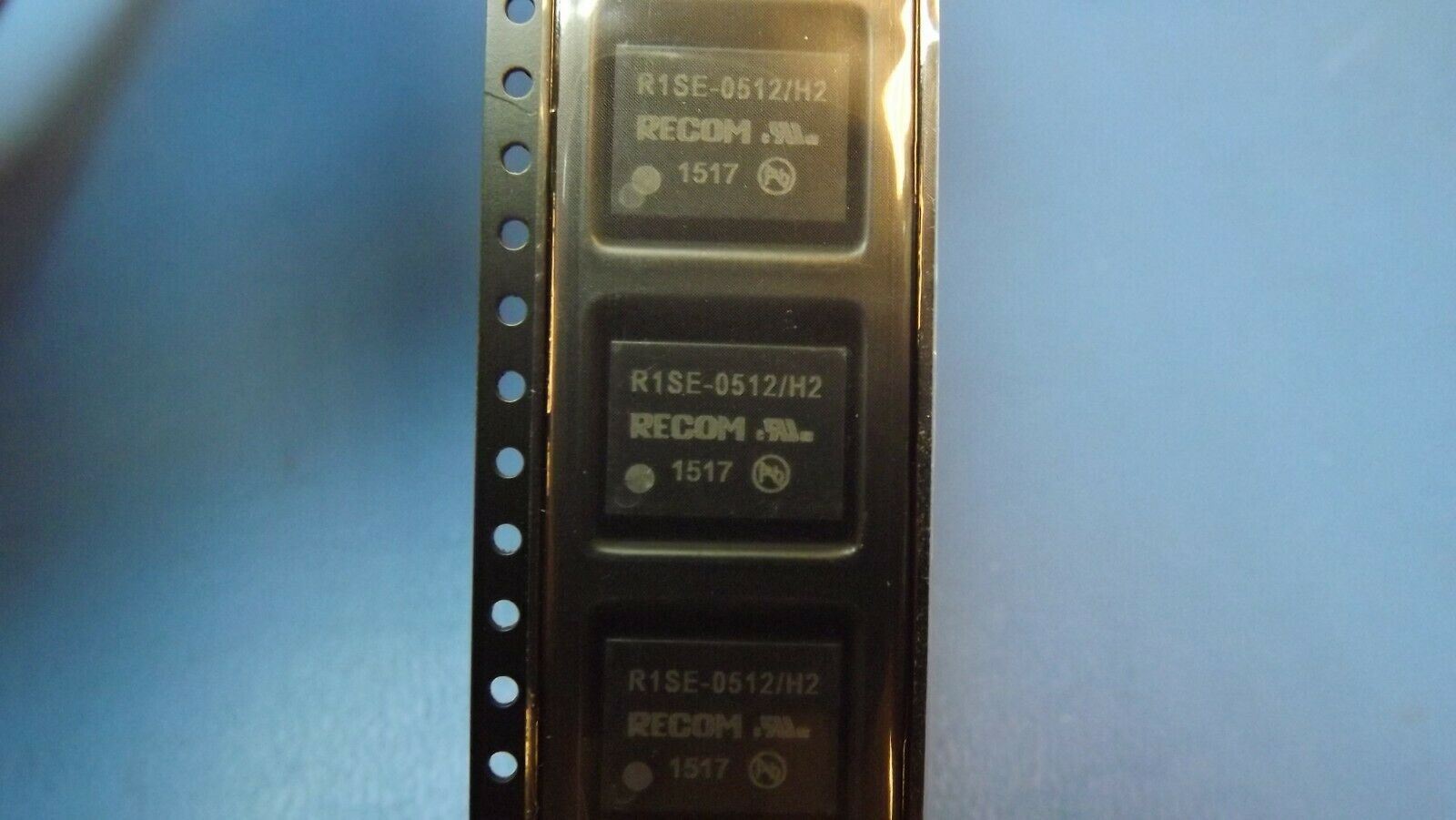

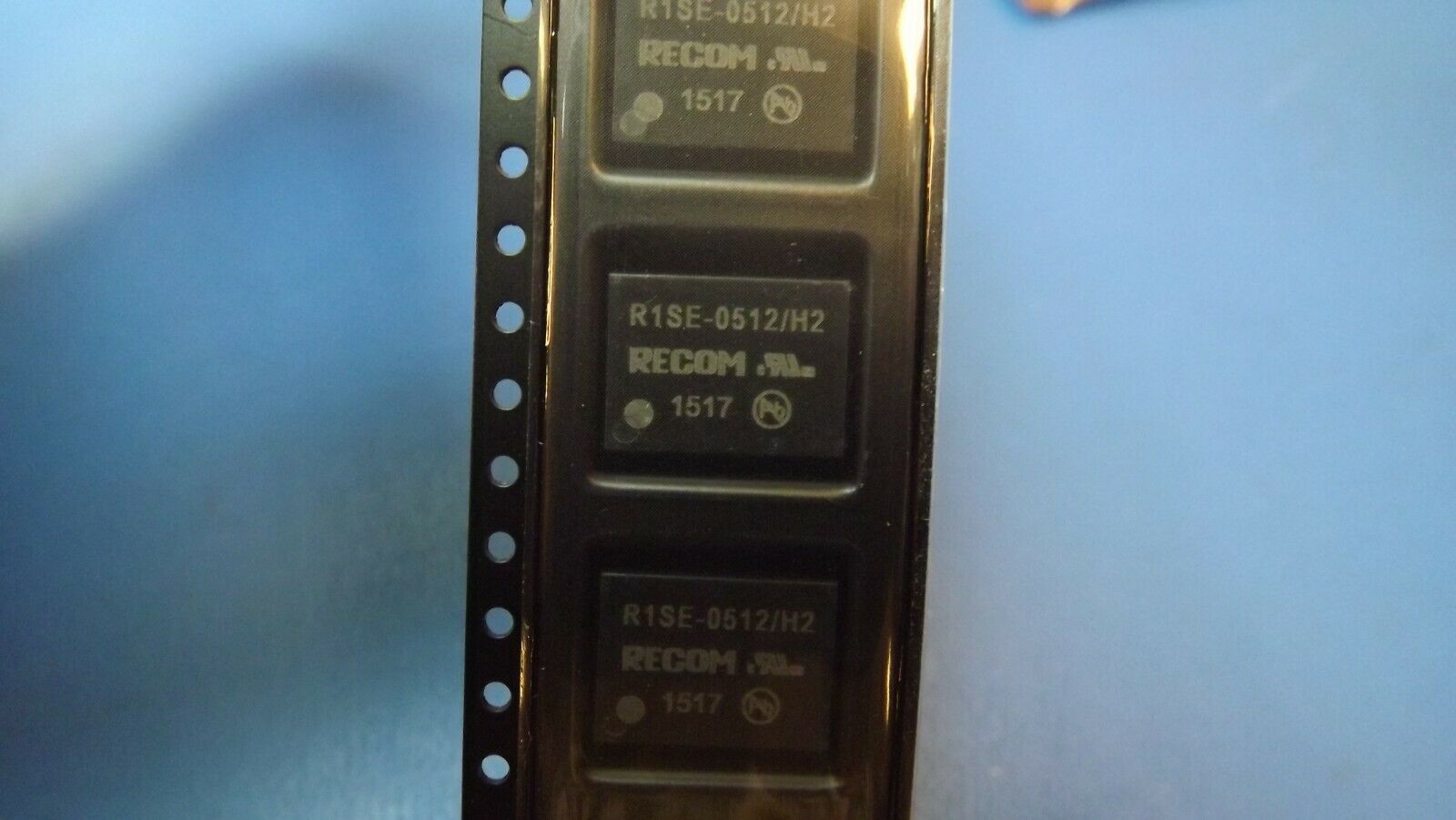

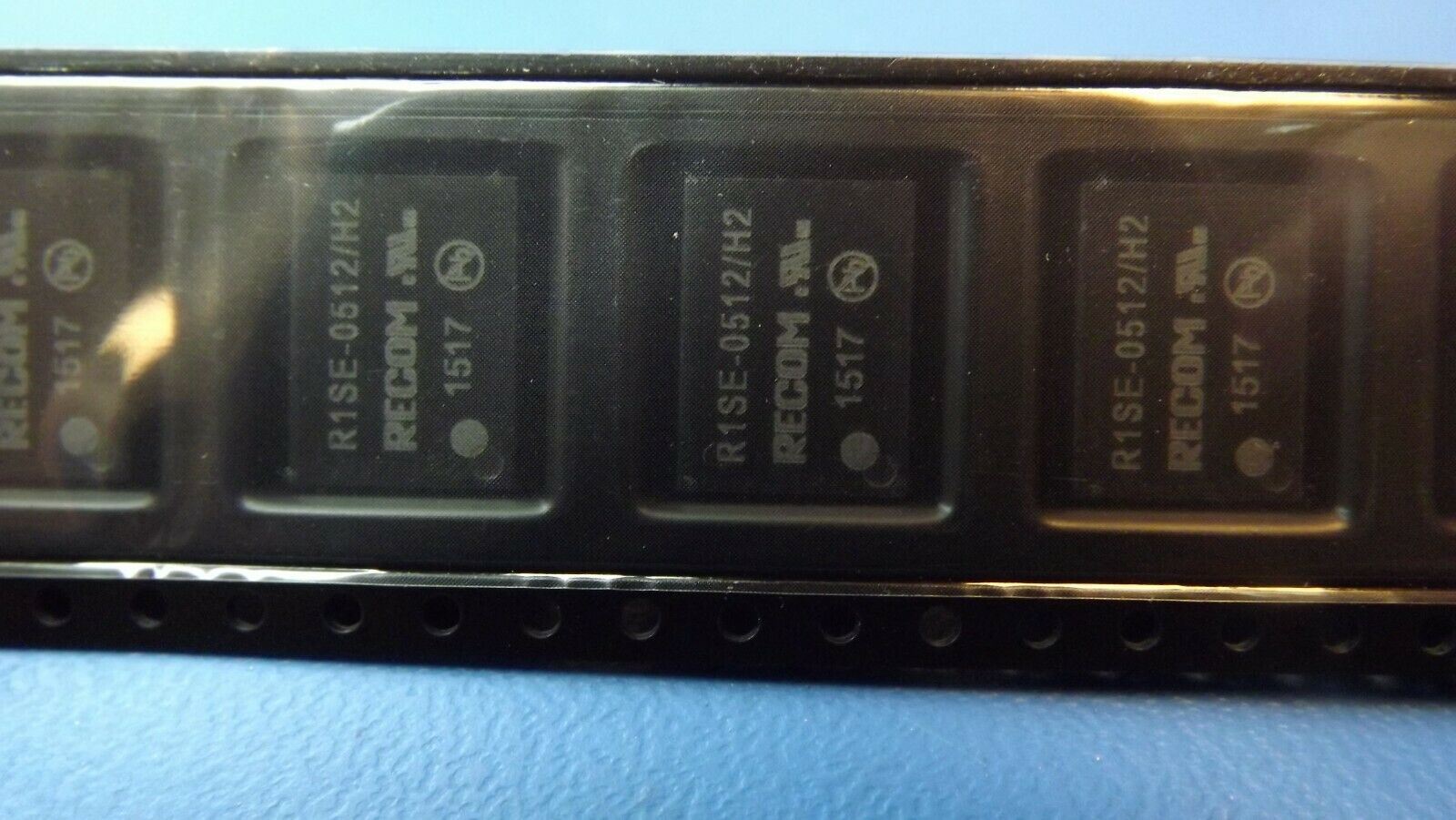

THIS LISTING IS FOR (2PCS) OF R1SE-0512/H2 BY RECOM

SPECIFICATIONS

Mfr Package Description PACKAGE-8/5
REACH Compliant Yes
EU RoHS Compliant Yes
Status Active
Analog IC - Other Type DC-DC UNREGULATED POWER SUPPLY MODULE
Input Voltage-Nom 5.0  V
Input Voltage-Min 4.5  V
Input Voltage-Max 5.5  V
JESD-30 Code R-PDMA-G5
Load Regulation-Max 10.0  %
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 5
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 100.0  Cel
Output Voltage-Nom 12.0  V
Output Voltage-Min 11.4  V
Output Voltage-Max 12.6  V
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Seated Height-Max 7.5  mm
Surface Mount YES
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 2.54  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Total Power Output-Max 1.0  W
Length 12.75  mm
Width 6.7  mm
