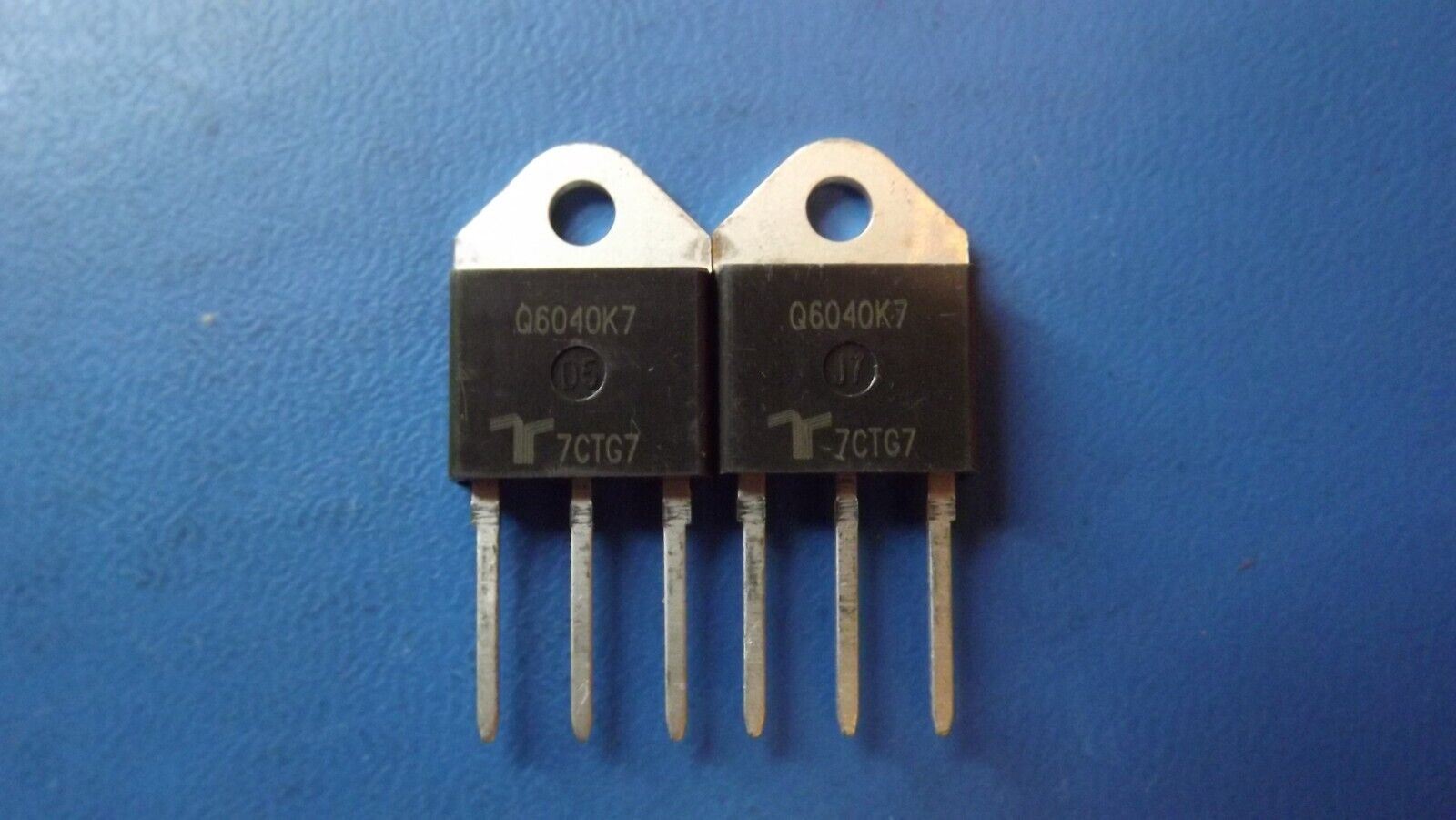

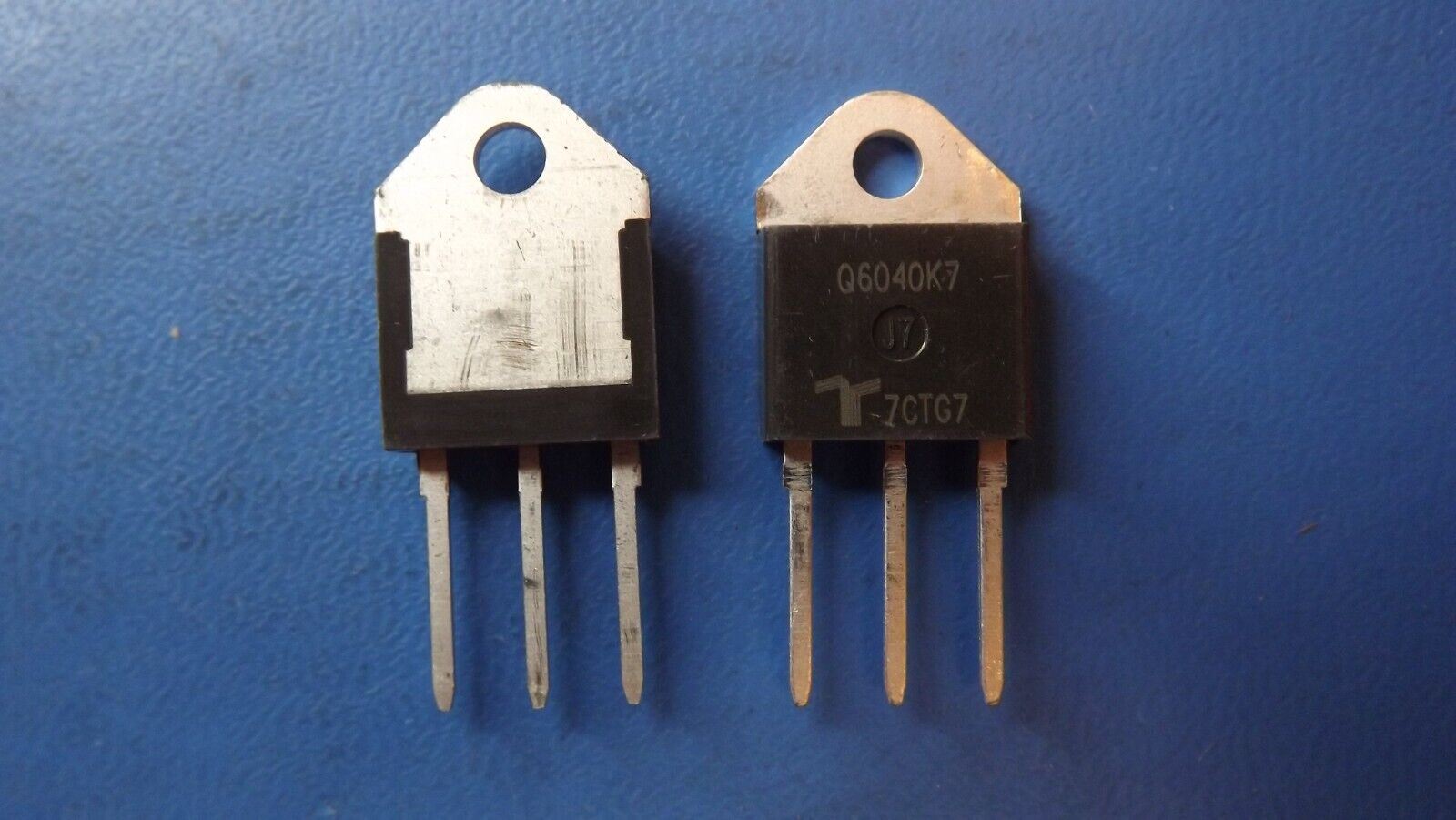

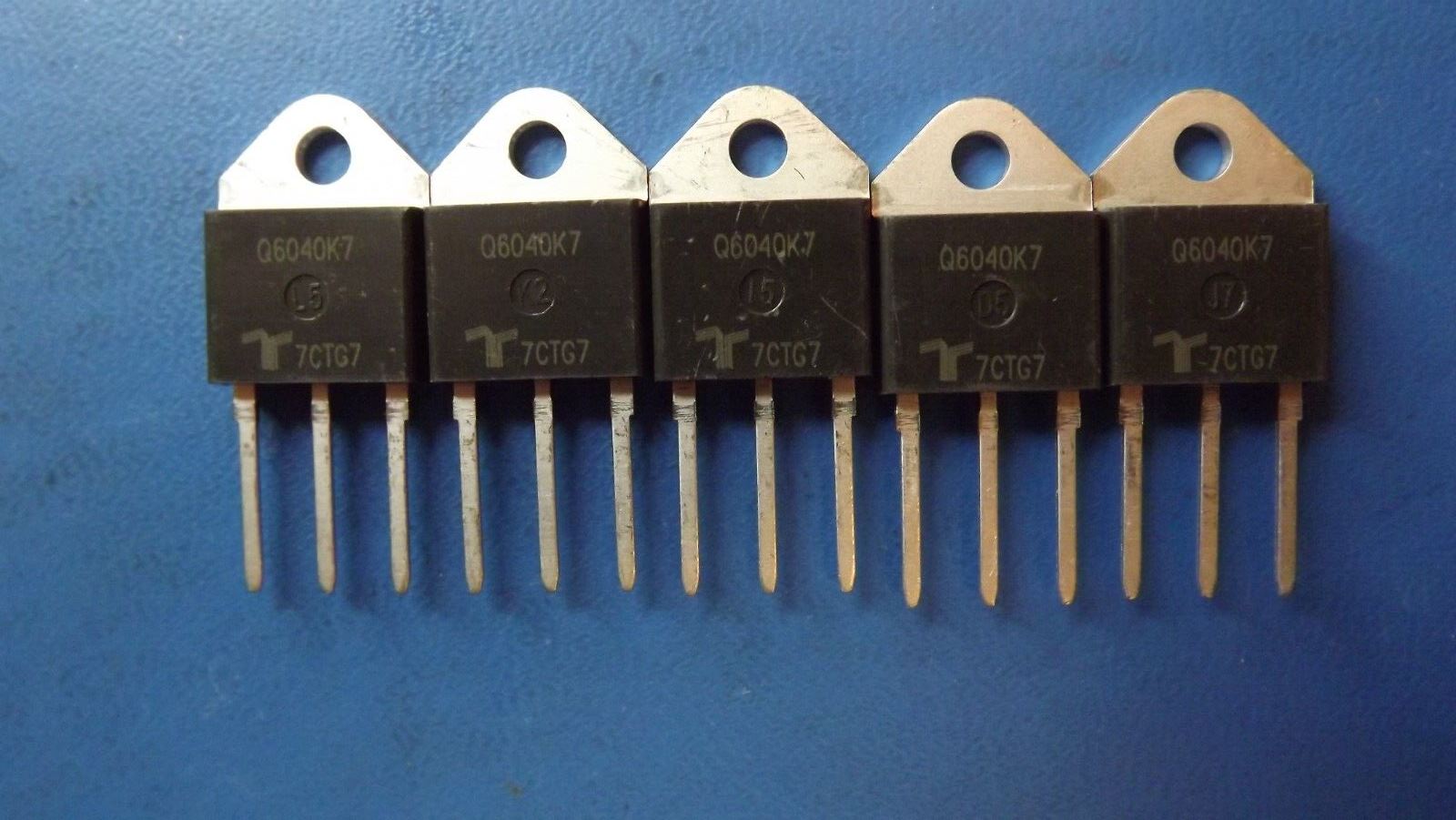

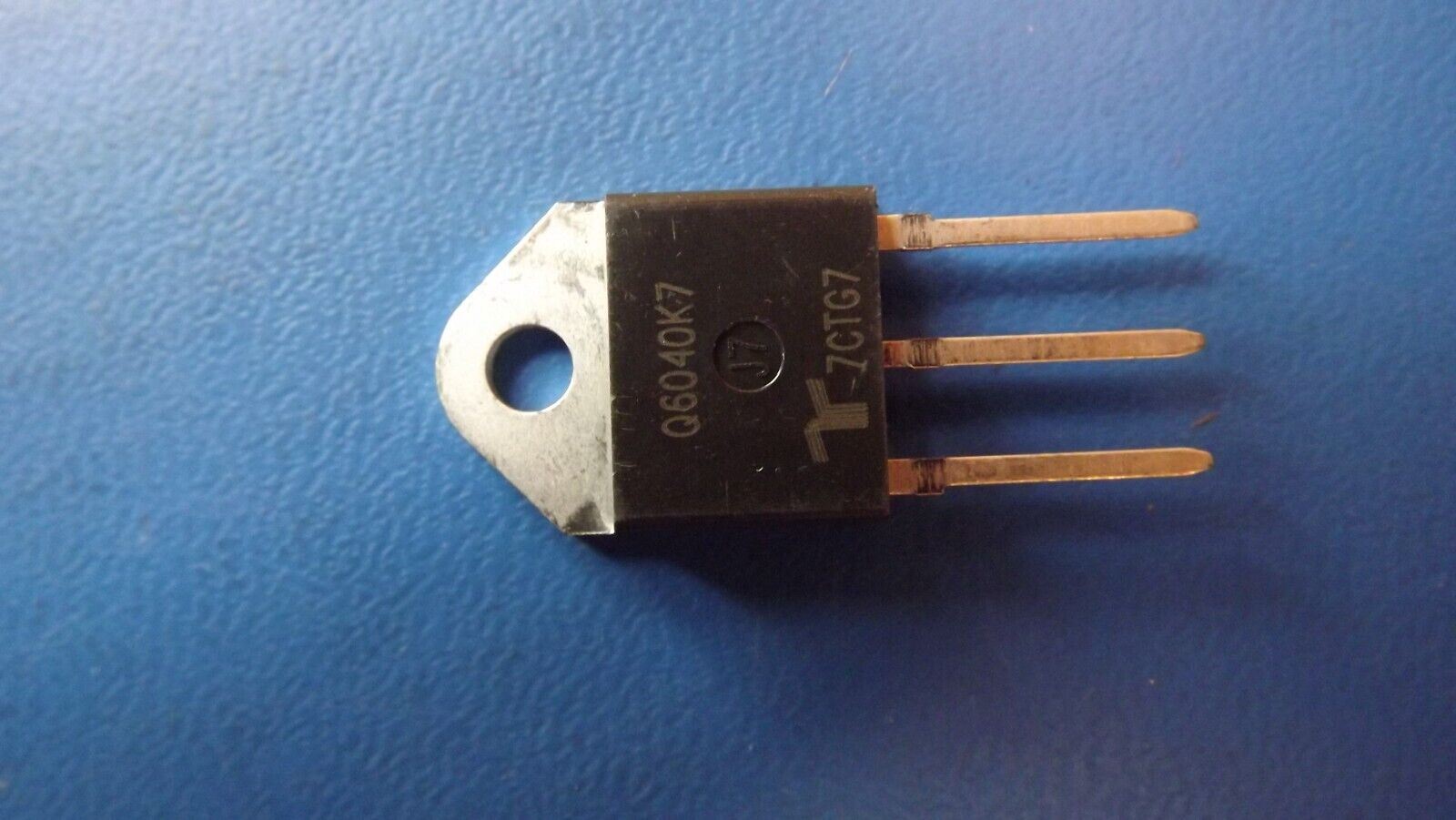

(2PCS) Q6040K7TP LITTELFUSE/TECCOR Thyristor TRIAC 600V 400A TO-218ACV
Tax included.
THIS LISTING IS FOR (2PCS) OF Q6040K7TP BY LITTELFUSE
Manufacturer: Littelfuse
Product Category: Triacs
RoHS: Details
Series: Qxx40xx
On-State RMS Current - It RMS: 40 A
Non Repetitive On-State Current: 335 A, 400 A
Rated Repetitive Off-State Voltage VDRM: 600 V
Off-State Leakage Current @ VDRM IDRM: 20 uA
On-State Voltage: 1.8 V
Holding Current Ih Max: 120 mA
Gate Trigger Voltage - Vgt: 2.5 V
Gate Trigger Current - Igt: 100 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package / Case: SMTO-218
Packaging: Tube
Brand: Littelfuse
Product Type: Triacs
