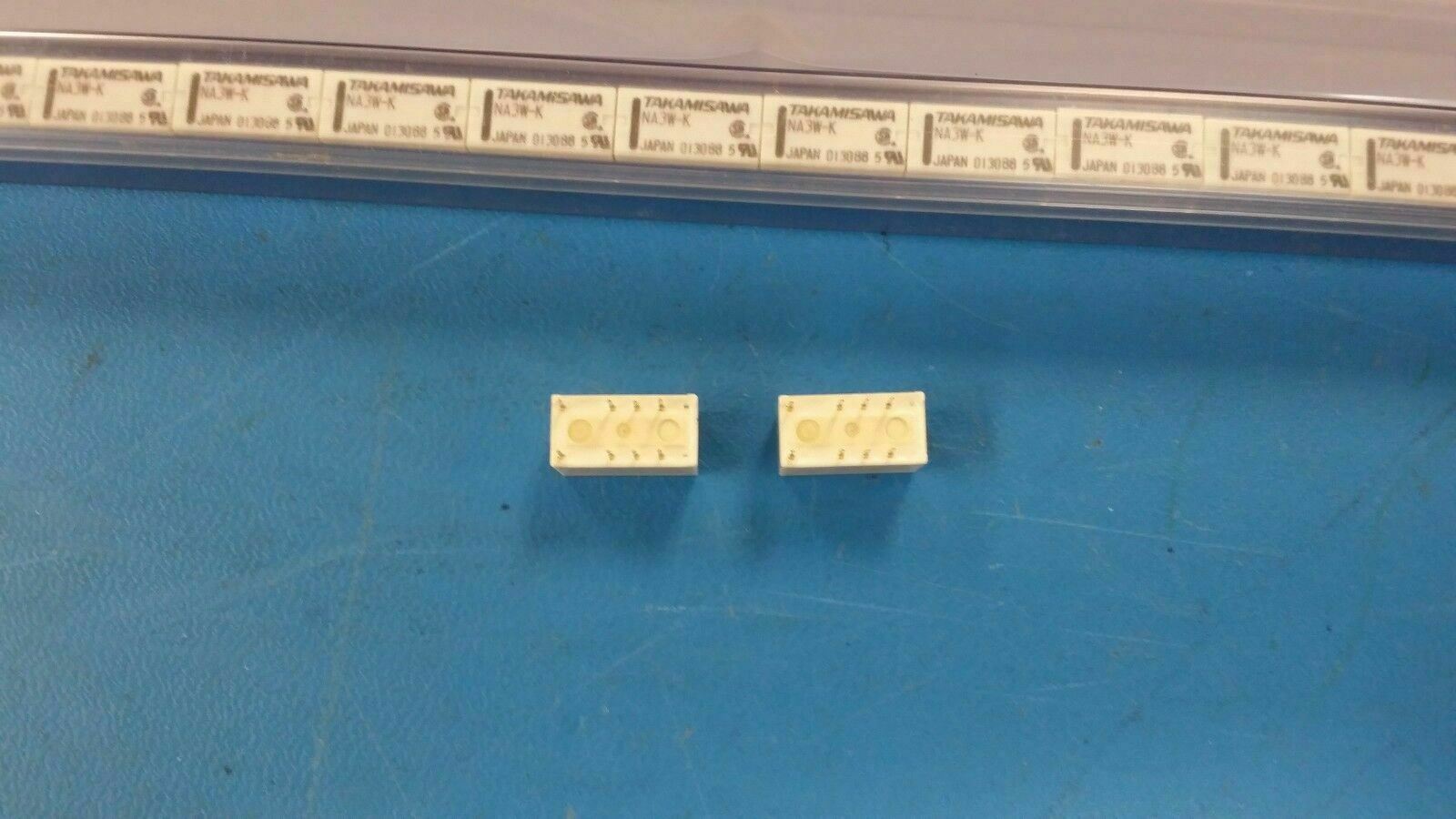

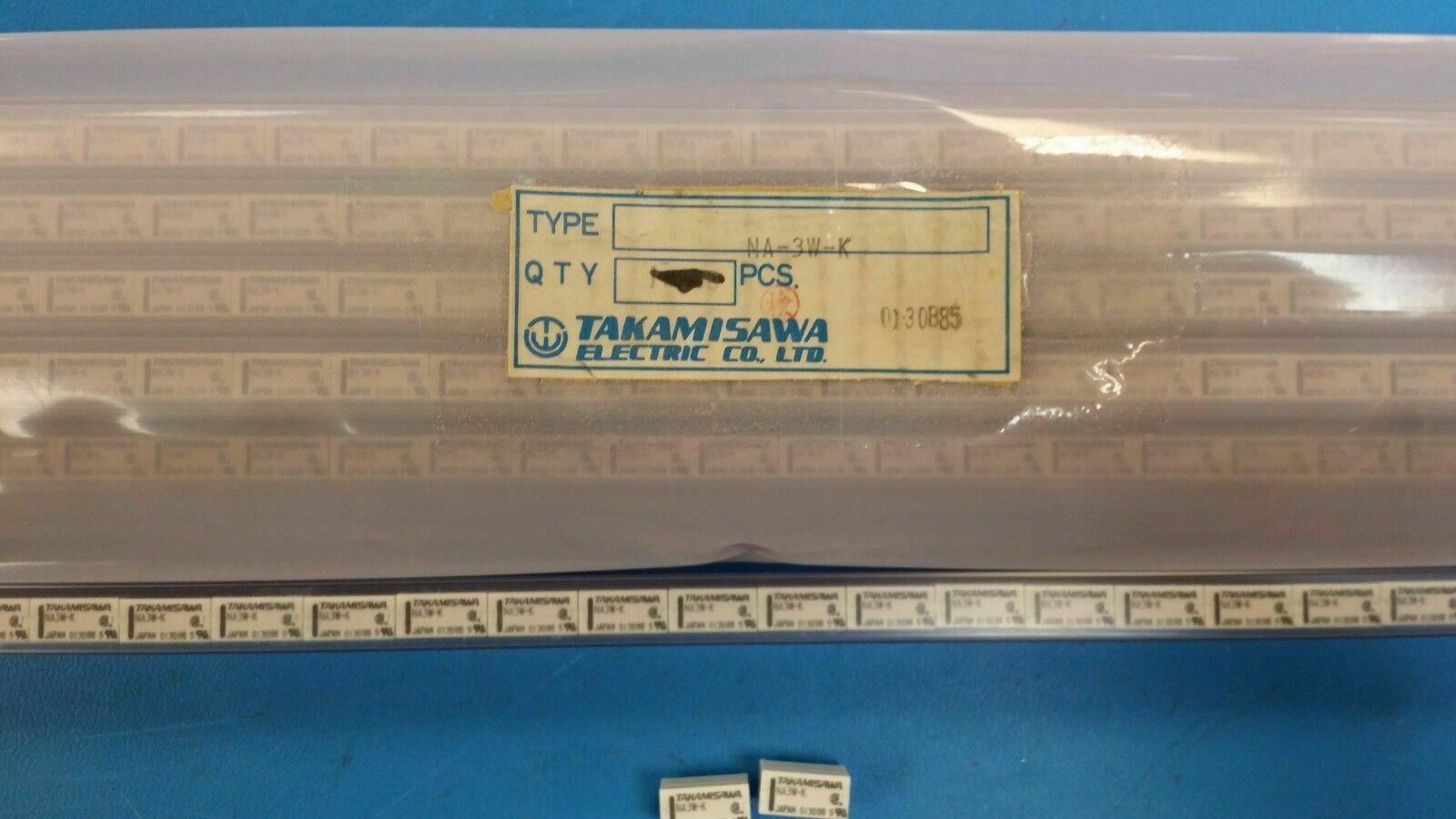

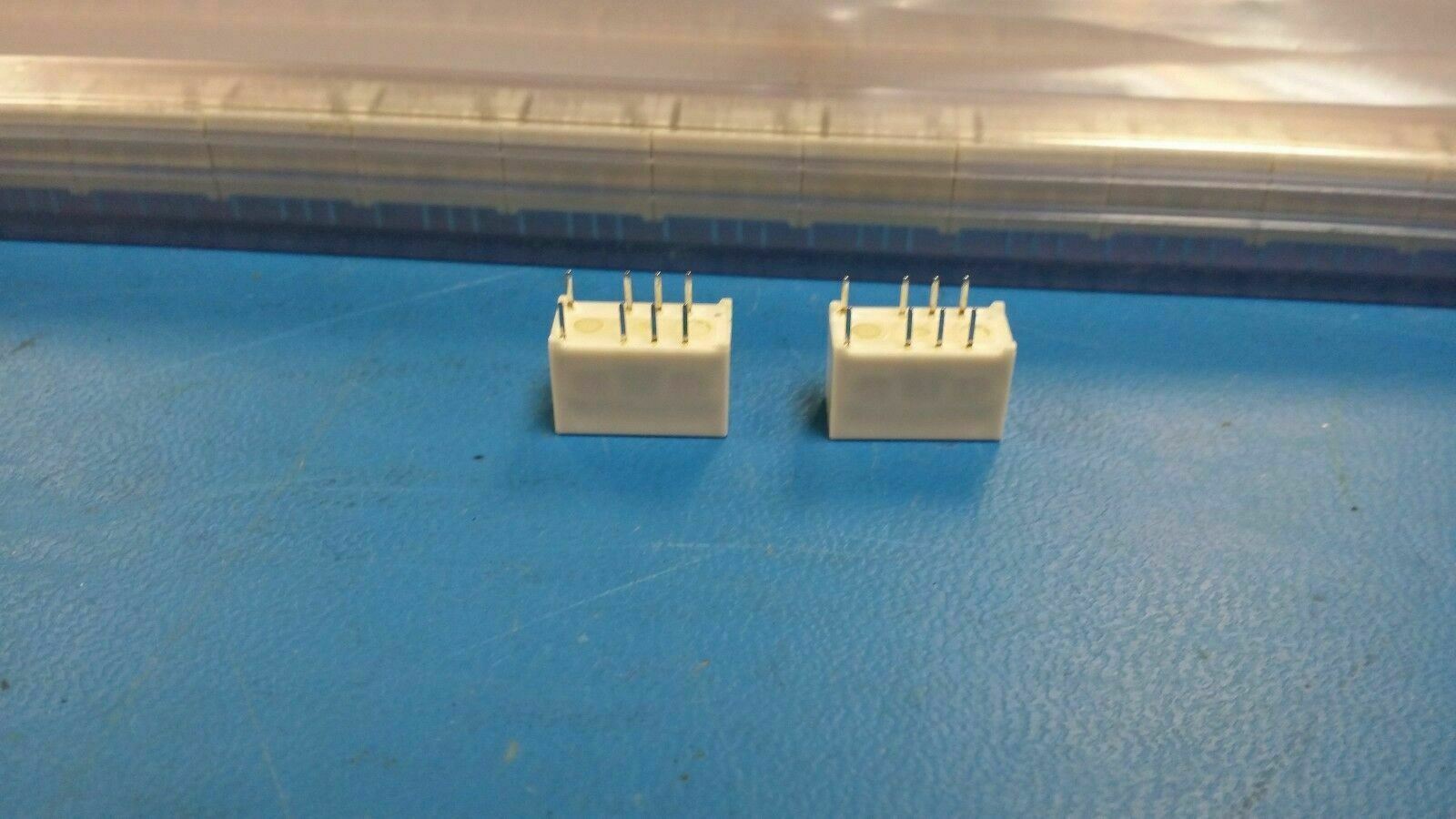

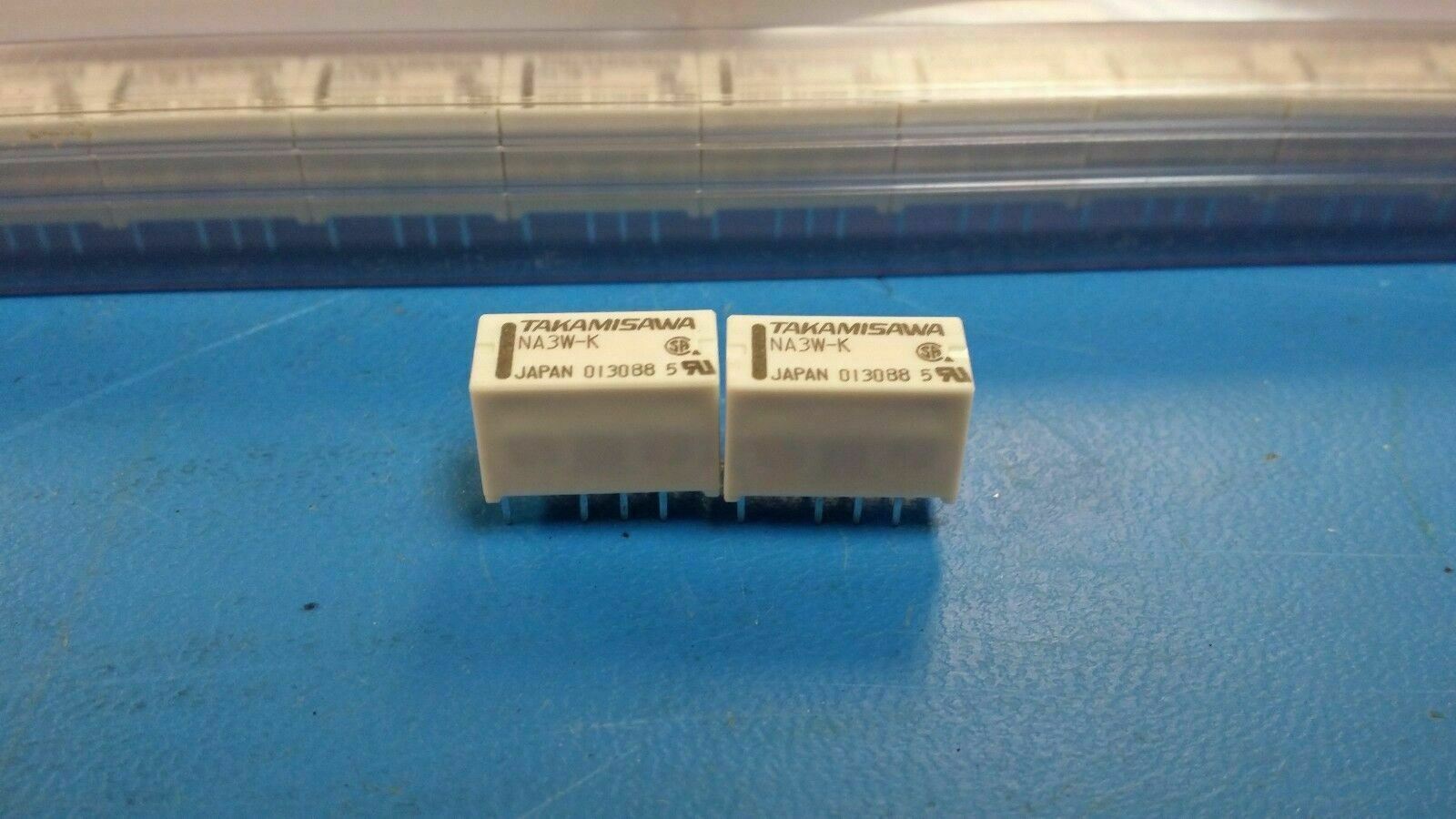

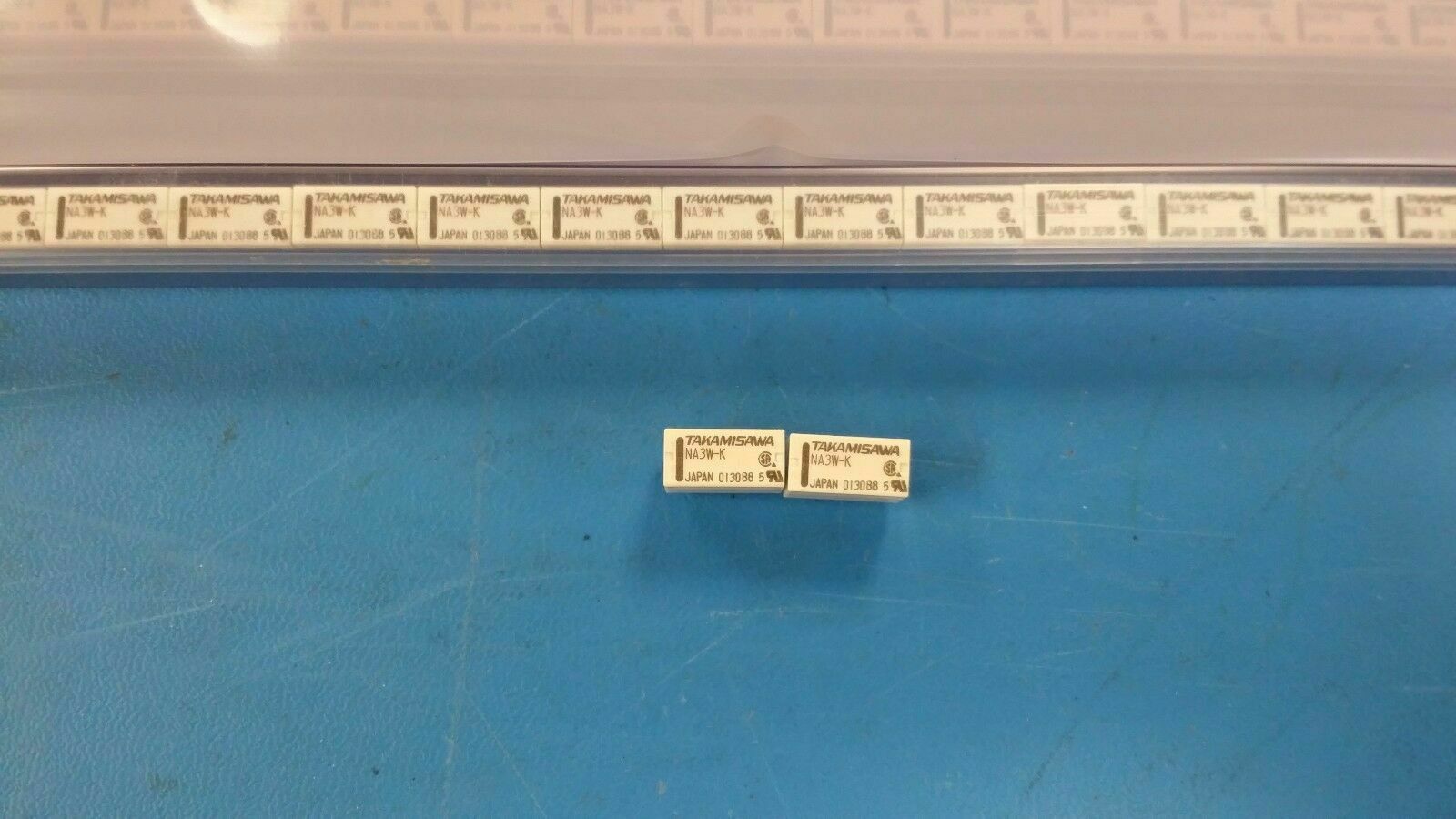

(2PCS) NA-3W-K Electromechanical Relay 3VDC 64.3Ohm 2A DPDT THT Signal Relay
Tax included.
THIS LISTING IS FOR (2PCS) NA-3W-K
SPECIFICATIONS:
| Status | Transferred |
| Relay Type | POWER/SIGNAL RELAY |
| Body Breadth | 7.4 mm |
| Body Height | 9.7 mm |
| Body Length or Diameter | 14.9 mm |
| Coil Current(DC)-Max | 0.0470 A |
| Coil/Input Supply Type | DC |
| Coil Operate Voltage(DC) | 2.25 V |
| Coil Power (mW) | 140 |
| Coil Release Voltage(DC) | 0.3000 V |
| Coil Resistance | 64.3 ohm |
| Coil Voltage(DC)-Max | 3 V |
| Contact AC Max Rating R Load | 2A@250VAC |
| Contact Current(AC)-Max | 2 A |
| Contact Current(DC)-Max | 2 A |
| Contact DC Max Rating R Load | 2A@220VDC |
| Contact/Output Supply Type | AC/DC |
| Contact Voltage(AC)-Max | 250 V |
| Contact Voltage(DC)-Max | 220 V |
| Electrical Life | 200000 Cycle(s) |
| JESD-609 Code | e1 |
| Manufacturer Series | NA |
| Mounting Feature | THROUGH HOLE-STRAIGHT MOUNT |
| Operate Time | 6 ms |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Physical Dimension | 14.9mm X 7.4mm X 9.7mm |
| Reference Standard | CSA; IEC; UL |
| Relay Action | MOMENTARY |
| Relay Function | DPDT |
| Release Time | 4 ms |
| Sealing | PLASTIC SEALED |
| Terminal Finish | TIN SILVER COPPER |
| Termination Type | SOLDER |
