(2PCS) MSP430F1121AIDW MCU 16-bit MSP430 RISC 4KB Flash 2.5V/3.3V SOIC-20 ROHS
Tax included.

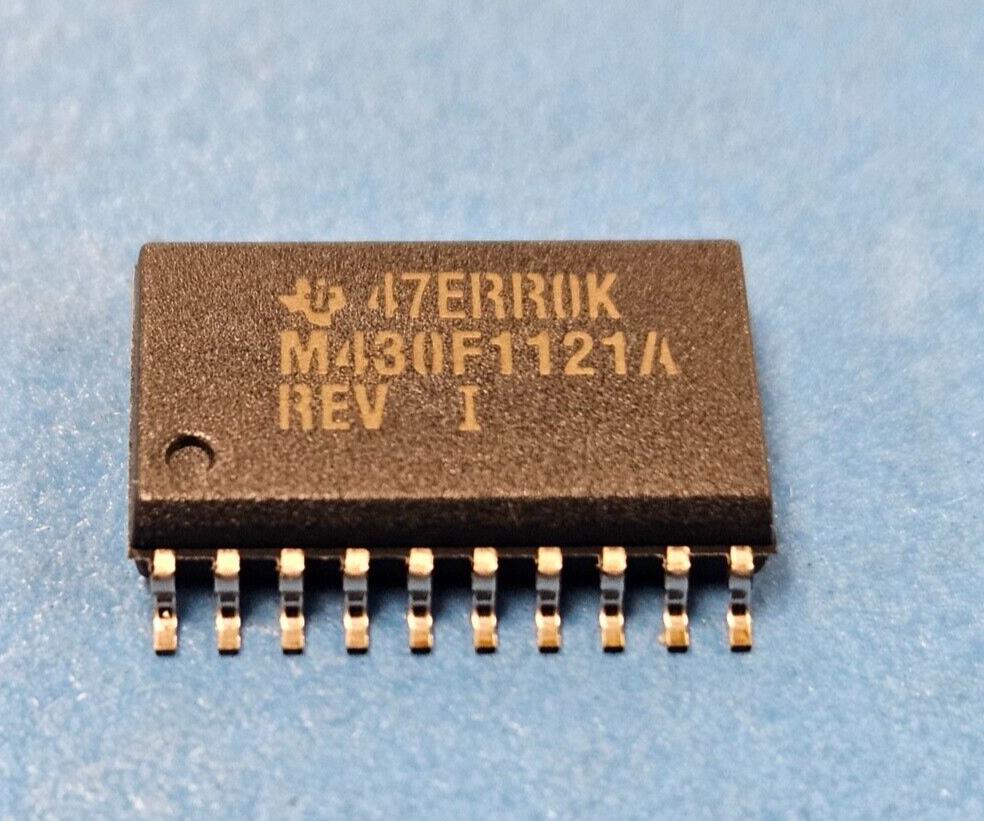

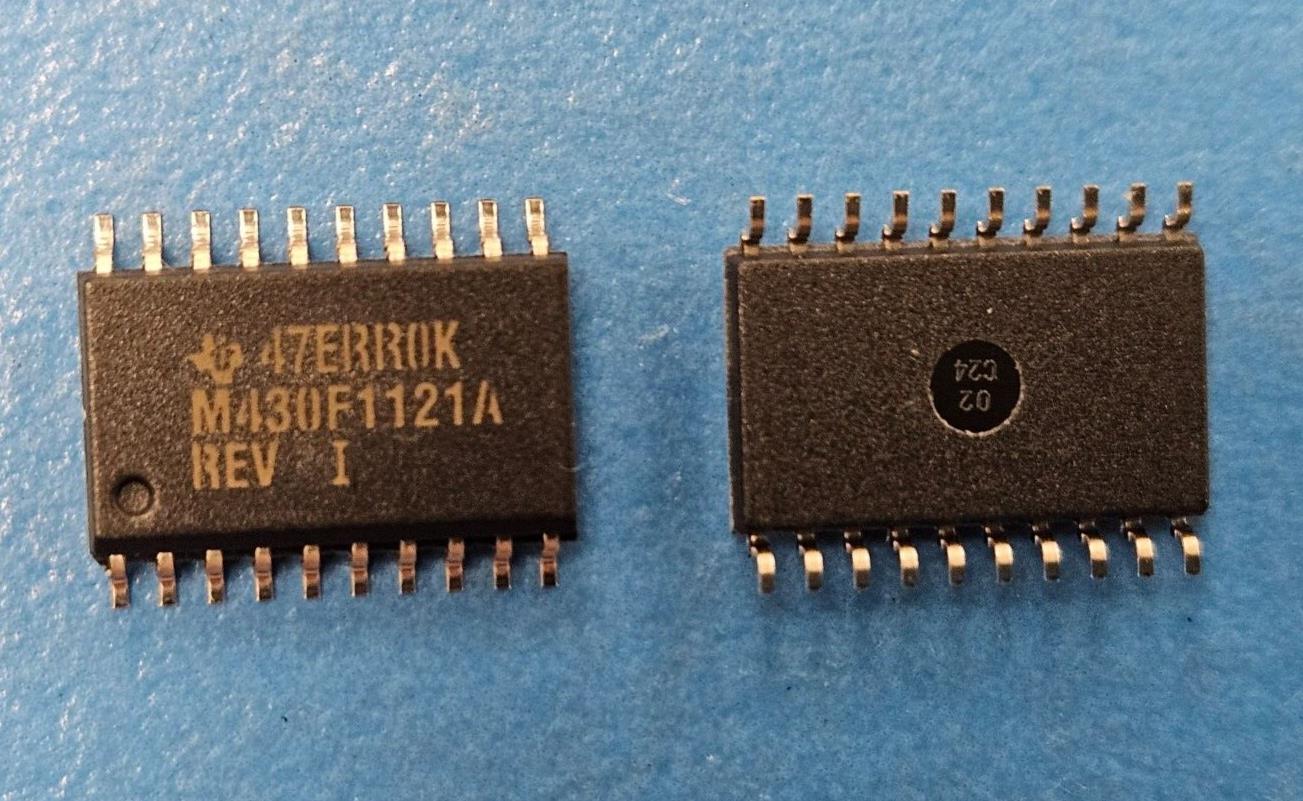

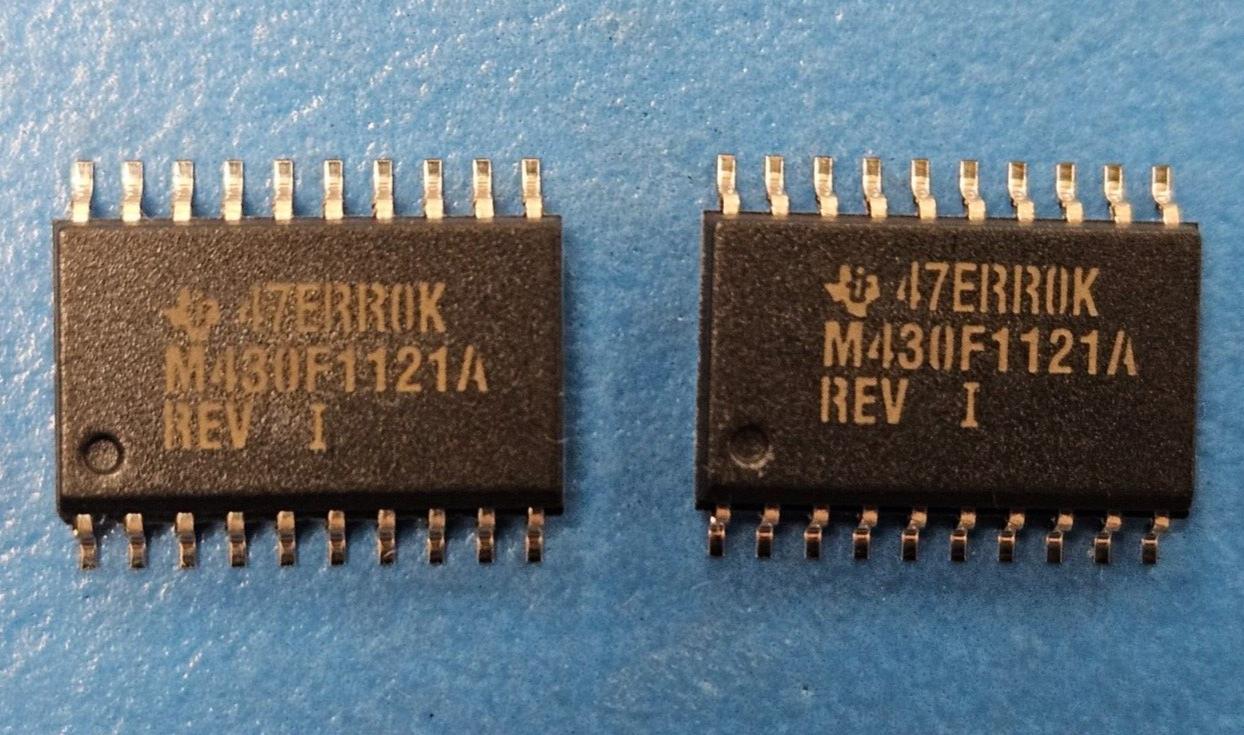

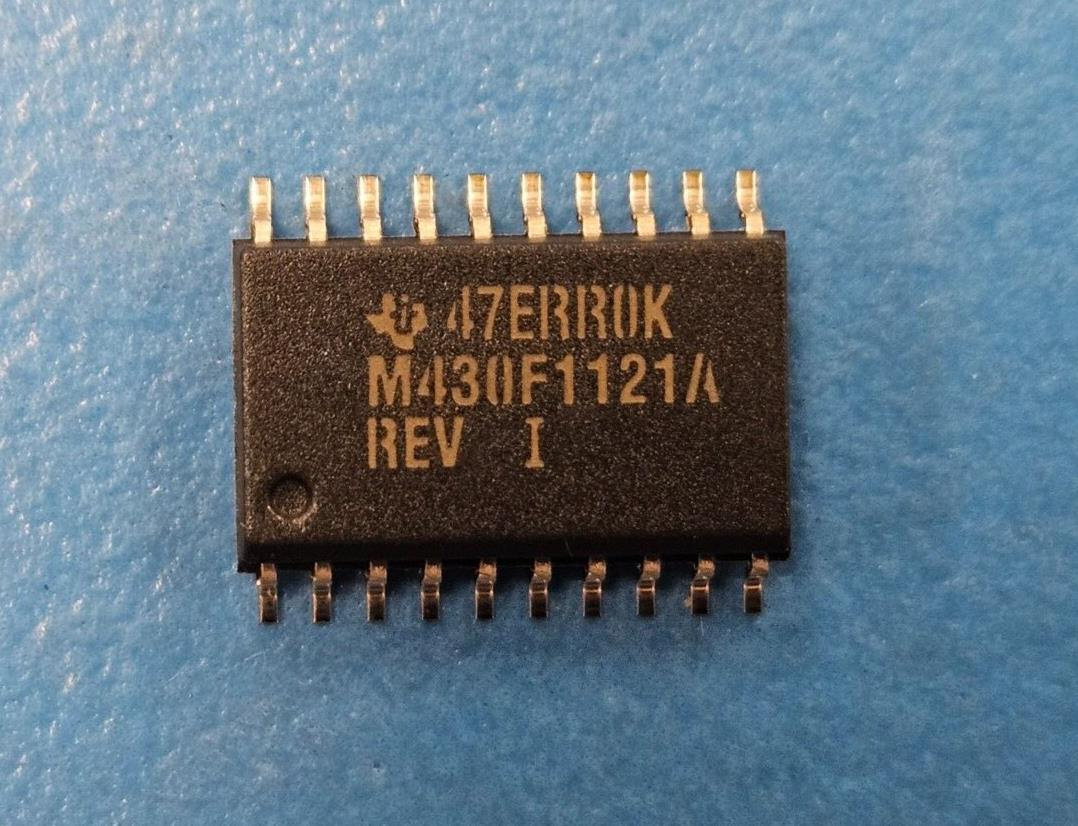

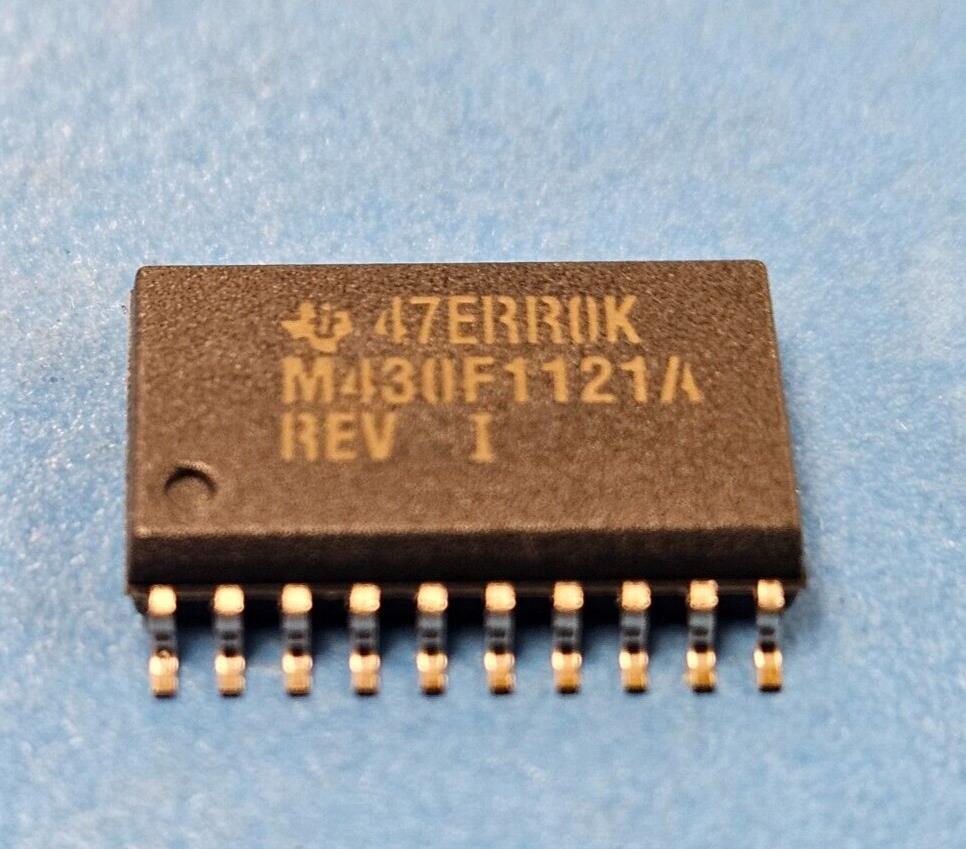

This listing is for (2PCS) of MSP430F1121AIDW by Texas Instruments.
Mfr Package Description SOIC-20
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
ADC Channels YES
Address Bus Width 0.0
Bit Size 16
Boundary Scan YES
Clock Frequency-Max 8.0 MHz
CPU Family MSP430
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e4
Low Power Mode YES
Moisture Sensitivity Level 1
Number of DMA Channels 0.0
Number of External Interrupts 0.0
Number of I/O Lines 14.0
Number of Serial I/Os 0.0
Number of Terminals 20
Number of Timers 3.0
On Chip Data RAM Width 8
On Chip Program ROM Width 8.0
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Power Supplies 2/3.3
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 256.0
RAM (words) 0.25
ROM Programmability FLASH
ROM (words) 2176
Seated Height-Max 2.65 mm
Speed 8.0 MHz
Sub Category Microcontrollers
Supply Current-Max 0.35 mA
Supply Voltage-Nom 2.2 V
Supply Voltage-Min 1.8 V
Supply Voltage-Max 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 12.8 mm
Width 7.5 mm
