(2PCS) MC33079PG LINEAR TECHNOLOGY IC OPAMP GP 16MHZ 14DIP
Tax included.

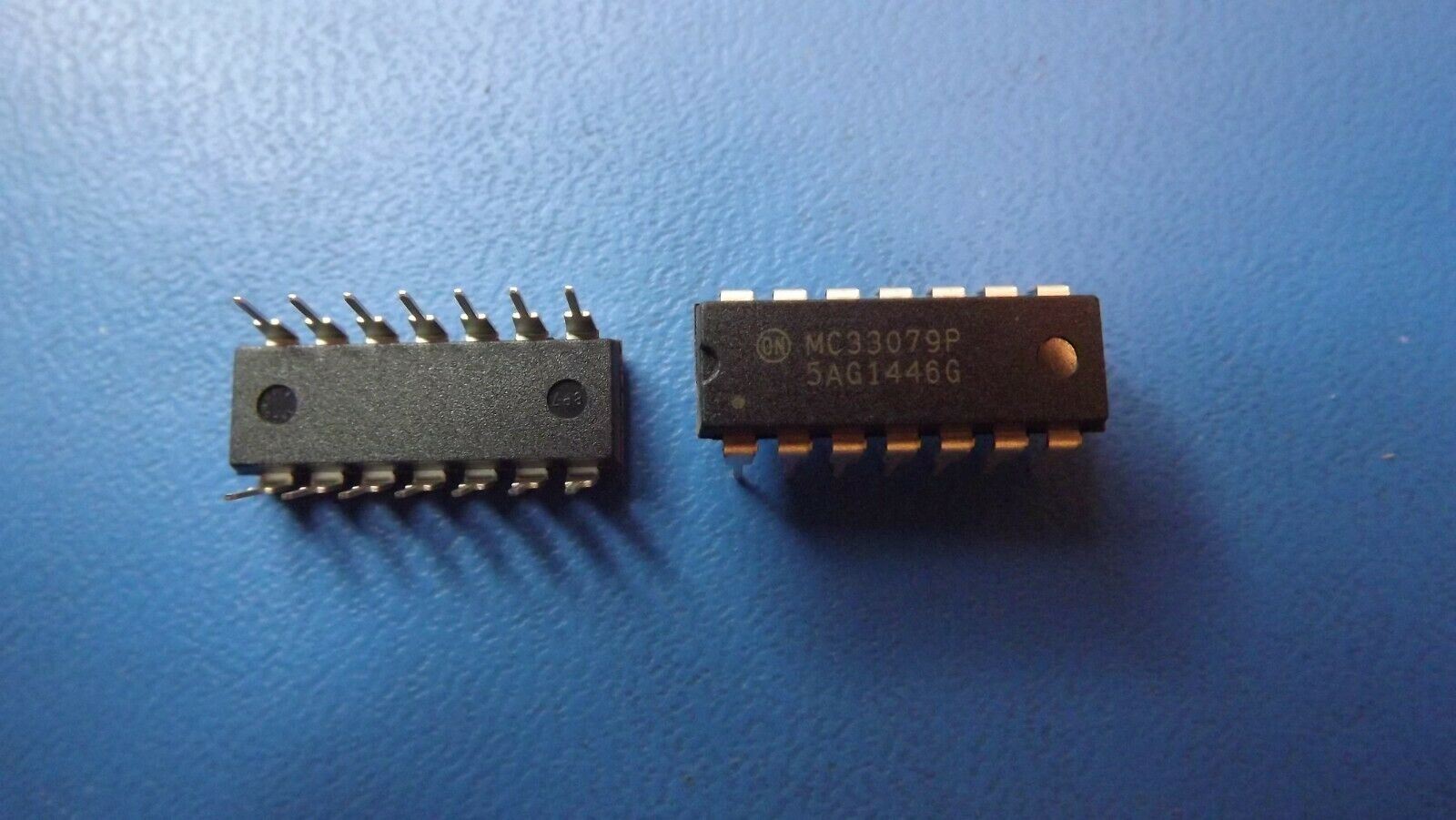

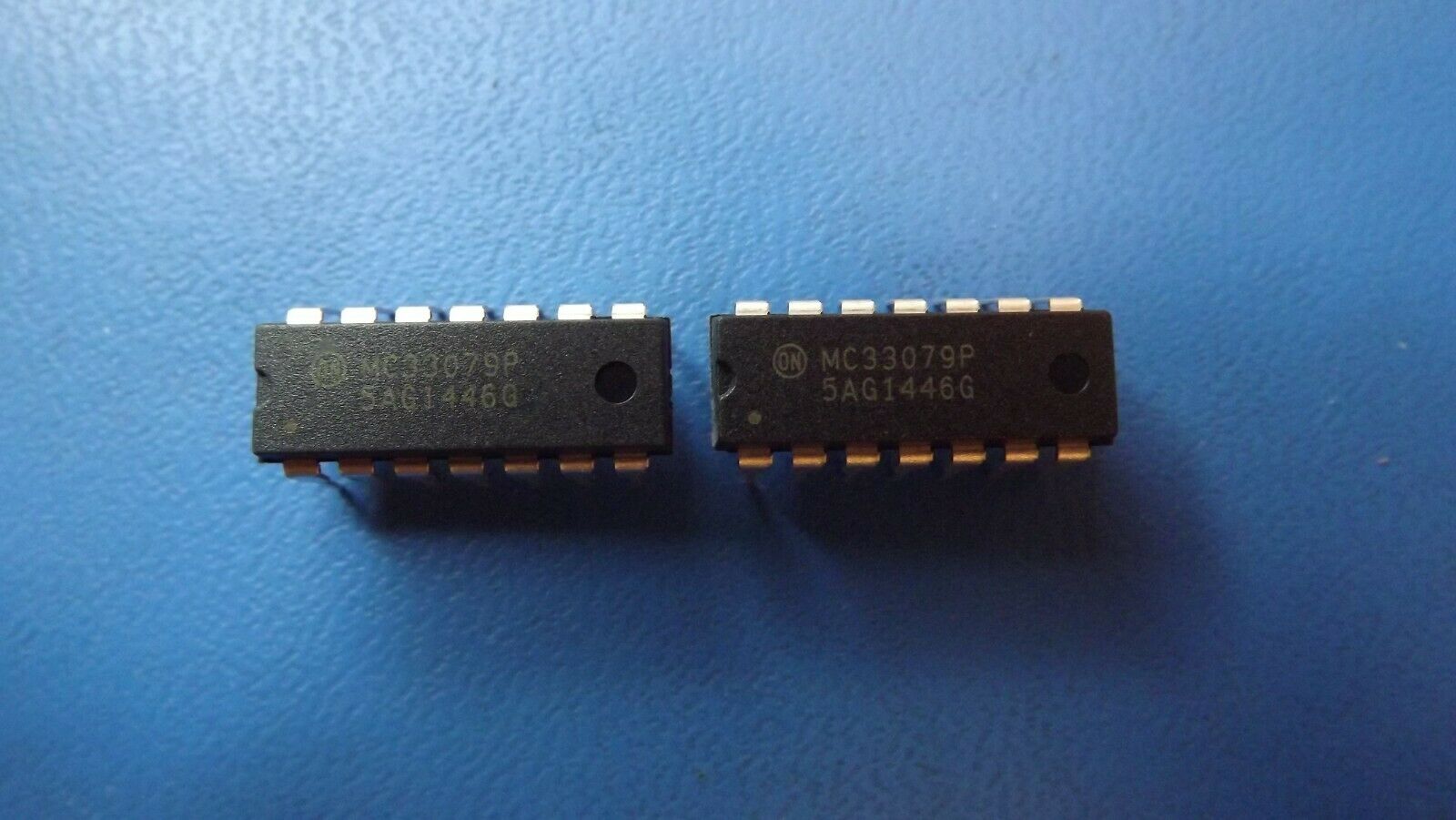

THIS LISTING IS FOR (2PCS) OF MC33079PG BY ON SEMICONDUCTOR
Manufacturer:ON Semiconductor
Product Category:Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style:Through Hole
Package / Case:PDIP-14
Output Current per Channel:29 mA
Number of Channels:4 Channel
GBP - Gain Bandwidth Product:16 MHz
SR - Slew Rate:7 V/us
CMRR - Common Mode Rejection Ratio:80 dB
Ib - Input Bias Current:750 nA
Vos - Input Offset Voltage:2.5 mV
Operating Supply Current:8.4 mA
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Shutdown:No Shutdown
Series:MC33079
Packaging:Tube
Amplifier Type:Low Noise Amplifier
Height:3.68 mm (Max)
Length:19.56 mm (Max)
Product:Operational Amplifiers
Supply Type:Dual
Technology:Bipolar
Width:6.6 mm (Max)
Brand:ON Semiconductor
Dual Supply Voltage:+/- 9 V, +/- 12 V, +/- 15 V
en - Input Voltage Noise Density:4.5 nV/sqrt Hz
In - Input Noise Current Density:0.5 pA/sqrt Hz
Maximum Dual Supply Voltage:+/- 18 V
Minimum Dual Supply Voltage:+/- 5 V
Operating Supply Voltage:+/- 5 V to +/- 18 V
Product Type:Op Amps - Operational Amplifiers
PSRR - Power Supply Rejection Ratio:80 dB
