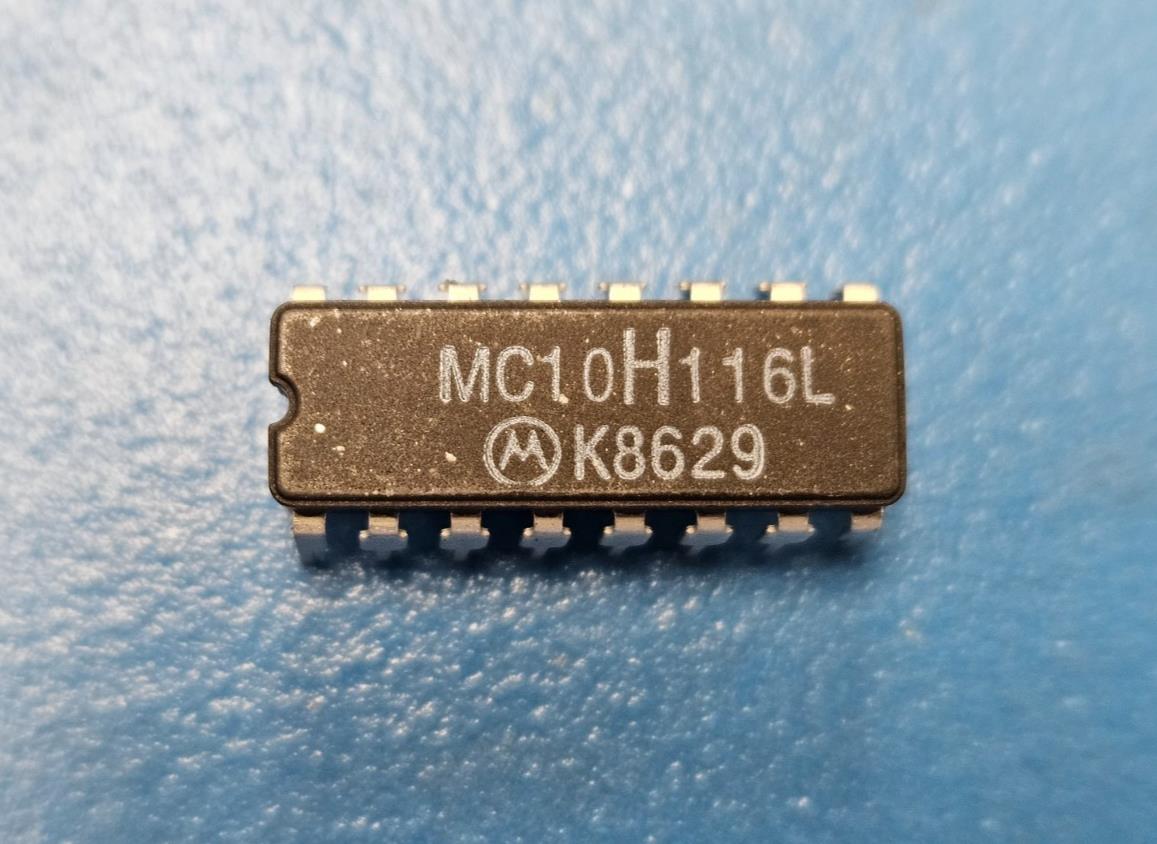

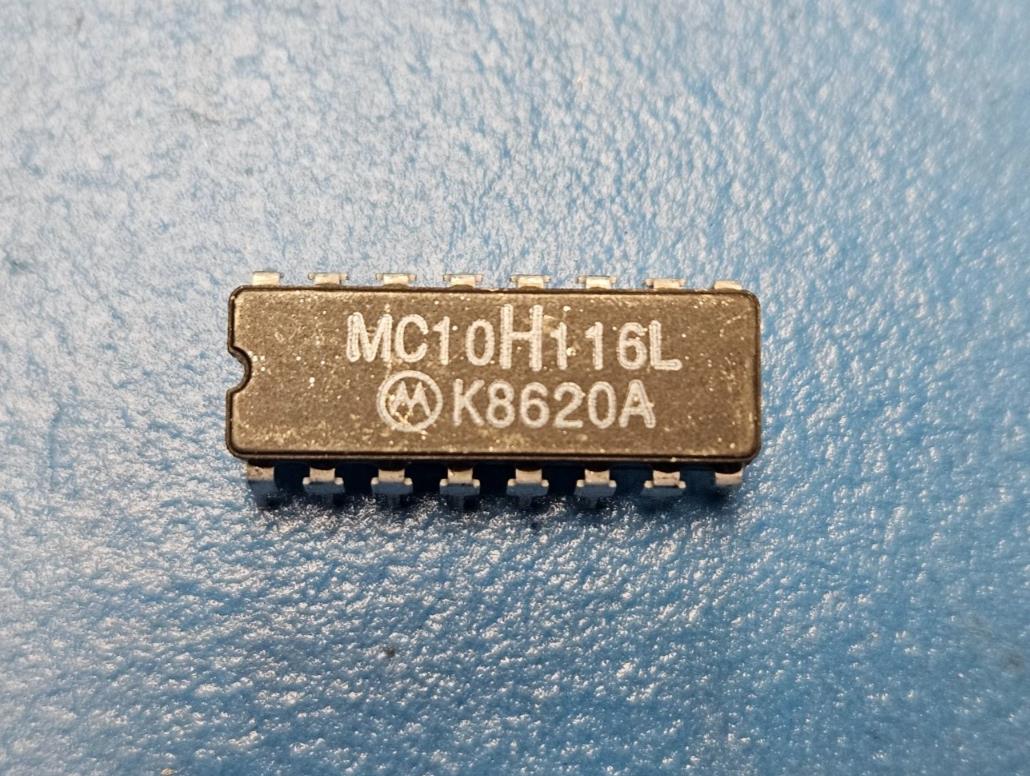

(2PCS) MC10116L Motorola Line Receiver, 1 Func, 3 Rcvr, ECL, CDIP16 *Trims*
Tax included.
This listing is for (2PCS) of MC10116L by Motorola
**The leads are trimmed.
Mfr Package Description CERAMIC, DIP-16
Status Transferred
Interface IC Type LINE RECEIVER
Differential Output YES
Input Characteristics DIFFERENTIAL
Interface Standard GENERAL PURPOSE
JESD-30 Code R-GDIP-T16
JESD-609 Code e0
Negative Supply Voltage-Nom -5.2 V
Number of Functions 1
Number of Terminals 16
Operating Temperature-Min -30.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics OPEN-EMITTER
Output Polarity COMPLEMENTARY
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 3.3 ns
Receiver Number of Bits 3.0
Seated Height-Max 5.08 mm
Sub Category Line Driver or Receivers
Supply Current-Max 23.0 mA
Surface Mount NO
Technology ECL
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.495 mm
Width 7.62 mm
