(2PCS) MAX660ESA MAXIM Charge Pump 1.5V to -5.5V/3V to 11V 100mA 8-Pin SOIC
Tax included.

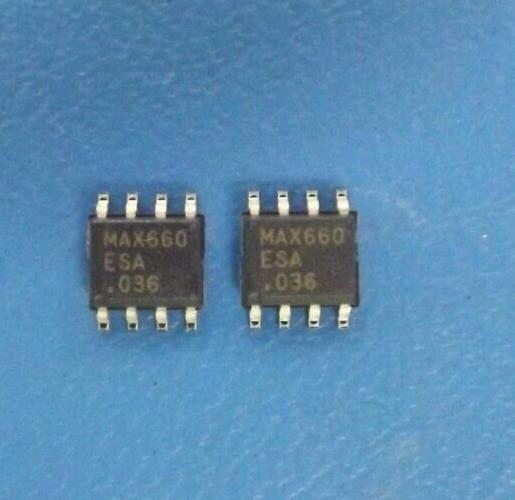

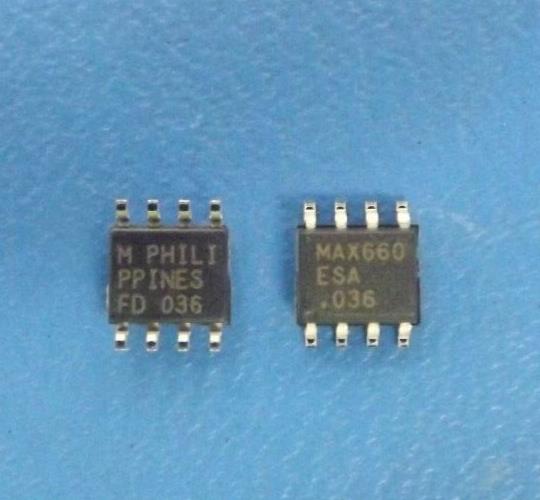

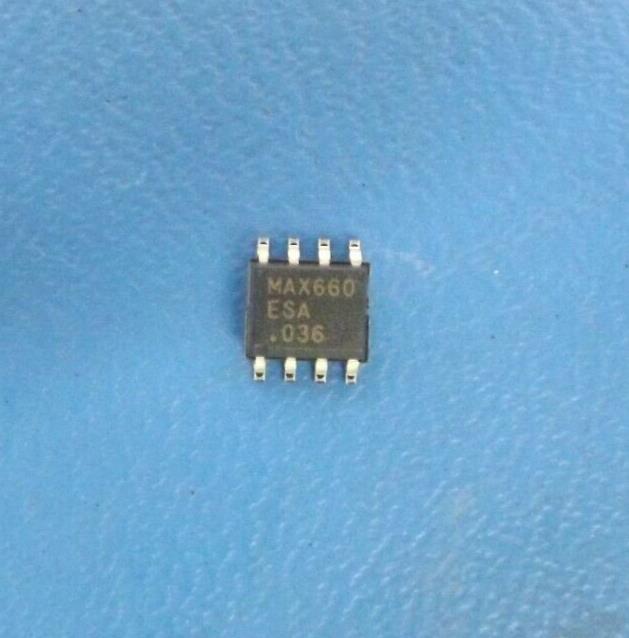

THIS LISTING IS FOR (2PCS) OF MAX660ESA BY MAXIM
Mfr Package Description 0.150 INCH, SOP-8
REACH Compliant Yes
Status Discontinued
Analog IC - Other Type SWITCHED CAPACITOR CONVERTER
Input Voltage-Nom 5.0 V
Input Voltage-Min 1.5 V
Input Voltage-Max 5.5 V
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Current-Max 0.12 A
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Sub Category Other Analog ICs
Supply Current-Max (Isup) 3.0 mA
Surface Mount YES
Switcher Configuration DOUBLER INVERTER
Switching Frequency-Max 80.0 kHz
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 4.9 mm
Width 3.9 mm
